NSN 5310-01-581-2136 MT080708, 03002A5509, 01-581-2136
Product Details | PLATE PLAIN NUT
5310-01-581-2136 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding, intergral prongs or by bonding.
Part Alternates: MT080708, 03002A5509, 5310-01-581-2136, 01-581-2136, 5310015812136, 015812136
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 JAN 2010 | 01-581-2136 | 01872 ( NUT, PLAIN, PLATE ) |

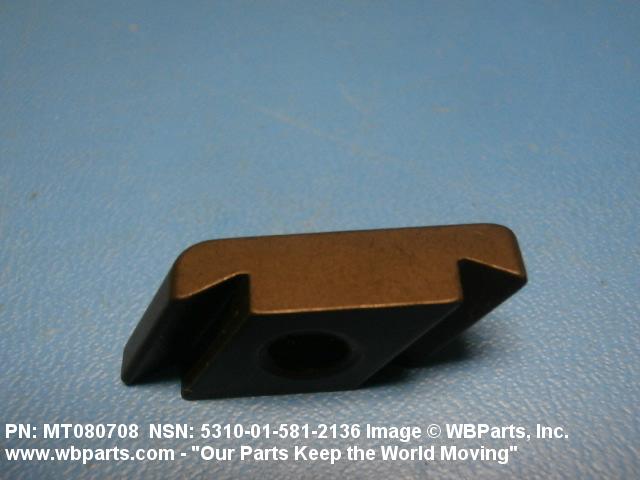

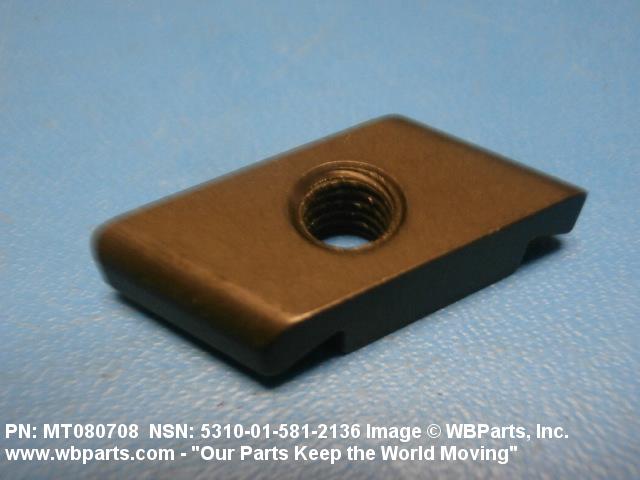

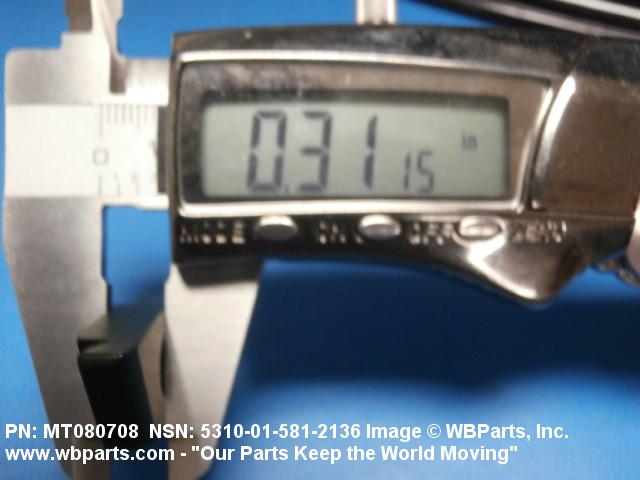

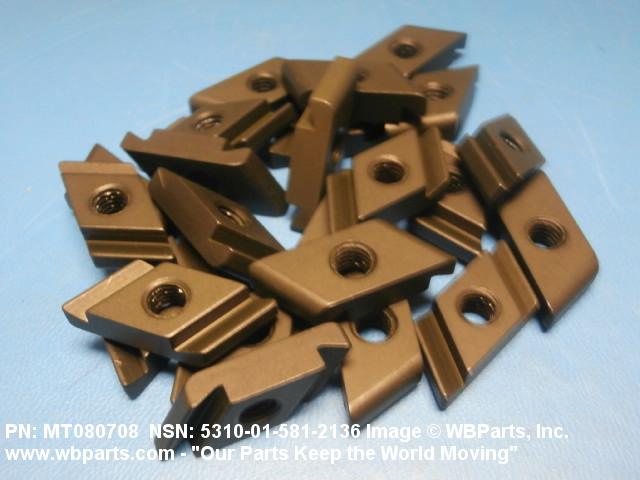

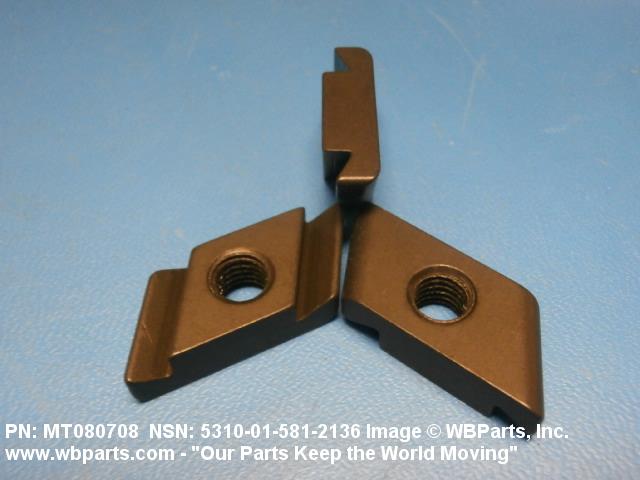

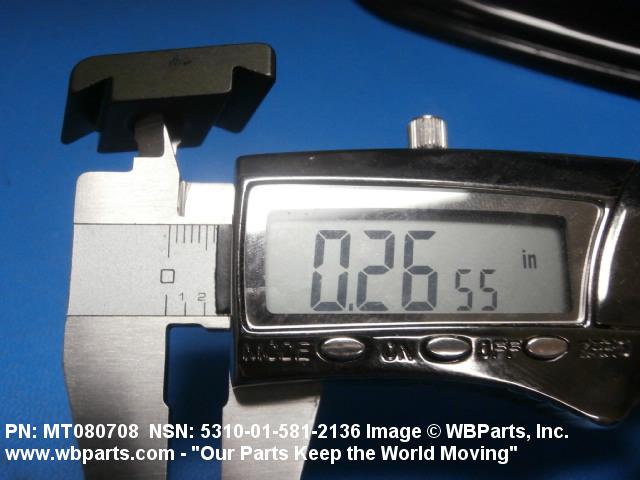

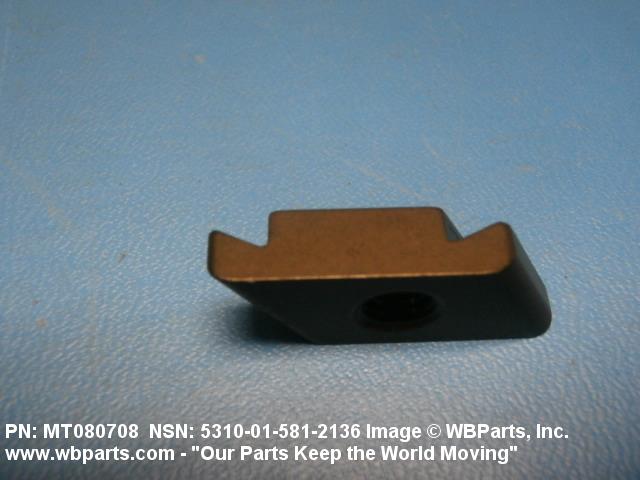

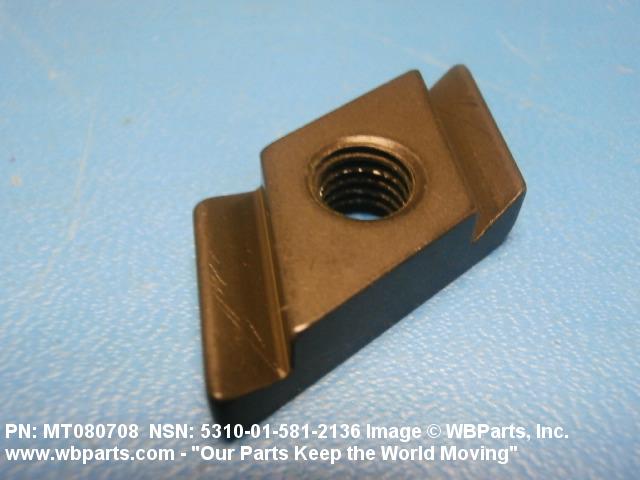

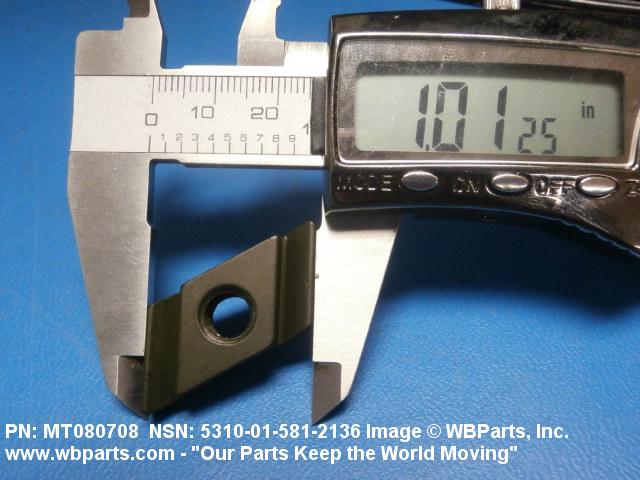

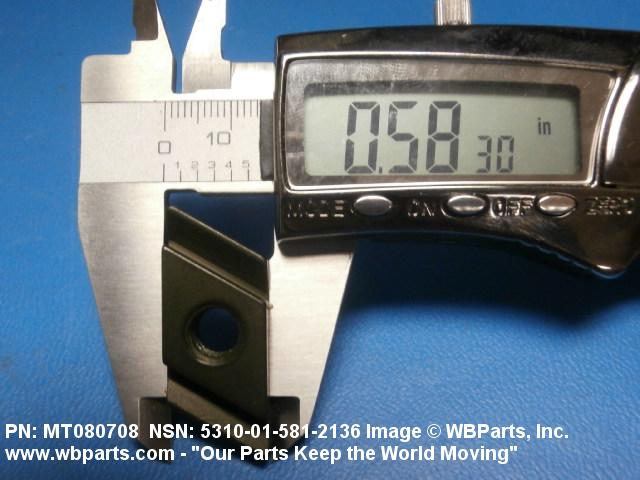

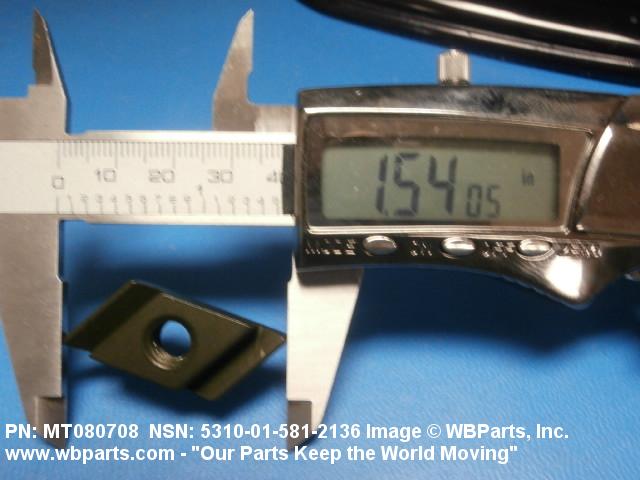

Drawings & Photos | NSN 5310-01-581-2136
Demand History | NSN 5310-01-581-2136
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 03002A5509 | 2022-10-285 | 3492 | DIBBS |
| MT080708 | 2022-10-285 | 3492 | DIBBS |
| 03002A5509 | 2022-09-270 | 2703 | DIBBS |
| MT080708 | 2022-09-270 | 2703 | DIBBS |
| 5310-01-581-2136 | 2022-08-241 | 50 | United States |
| 5310-01-581-2136 | 2022-08-241 | 50 | United States |
| 03002A5509 | 2022-08-221 | 6226 | DIBBS |
| MT080708 | 2022-08-221 | 6226 | DIBBS |
| 5310-01-581-2136 | 2022-07-201 | 30 | United States |
| 03002A5509 | 2021-08-215 | 3528 | DIBBS |
| MT080708 | 2021-08-215 | 3528 | DIBBS |
| 03002A5509 | 2021-07-195 | 2450 | DIBBS |
| MT080708 | 2021-07-195 | 2450 | DIBBS |
| 03002A5509 | 2020-11-317 | 2028 | DIBBS |
| MT080708 | 2020-11-317 | 2028 | DIBBS |
| 03002A5509 | 2020-04-99 | 1747 | DIBBS |
| MT080708 | 2020-04-99 | 1747 | DIBBS |
| 03002A5509 | 2020-02-33 | 675 | DIBBS |
| MT080708 | 2020-02-33 | 675 | DIBBS |
| 03002A5509 | 2019-07-204 | 2931 | DIBBS |
| MT080708 | 2019-07-204 | 2931 | DIBBS |
| 03002A5509 | 2019-04-101 | 4492 | DIBBS |
| MT080708 | 2019-04-101 | 4492 | DIBBS |
| 5310-01-581-2136 | 2016-05-123 | 3372 | DIBBS |
| 5310-01-581-2136 | 2016-03-90 | 1547 | DIBBS |
| 5310-01-581-2136 | 2016-03-67 | 433 | DIBBS |
| 5310-01-581-2136 | 2016-01-18 | 230 | DIBBS |
| 5310-01-581-2136 | 2016-01-13 | 84 | us |
| 5310-01-581-2136 | 2016-01-05 | 335 | DIBBS |
| 5310-01-581-2136 | 2015-11-316 | 305 | DIBBS |
| 5310-01-581-2136 | 2015-10-302 | 842 | DIBBS |
| 5310-01-581-2136 | 2015-09-260 | 350 | DIBBS |
| 5310-01-581-2136 | 2015-08-238 | 1479 | DIBBS |
| 5310-01-581-2136 | 2015-08-216 | 1479 | DIBBS |
| 5310-01-581-2136 | 2015-07-202 | 800 | DIBBS |
| 5310-01-581-2136 | 2015-07-182 | 1600 | DIBBS |
| 5310-01-581-2136 | 2015-06-153 | 1700 | DIBBS |
| 5310-01-581-2136 | 2015-05-132 | 3500 | DIBBS |
| 5310-01-581-2136 | 2015-04-92 | 640 | DIBBS |
| 5310-01-581-2136 | 2015-03-75 | 700 | DIBBS |
| 5310-01-581-2136 | 2015-01-22 | 420 | DIBBS |
| 5310-01-581-2136 | 2015-01-11 | 420 | DIBBS |
| 5310-01-581-2136 | 2014-02-52 | 28 | US |
| 5310-01-581-2136 | 2013-07-184 | 6000 | DIBBS |
| 5310-01-581-2136 | 2013-05-129 | 1160 | DIBBS |
| 5310-01-581-2136 | 2013-02-45 | 780 | DIBBS |
| 5310-01-581-2136 | 2011-12-362 | 114 | DIBBS |
| 5310-01-581-2136 | 2011-05-136 | 114 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-581-2136
Related Products | NSN 5310-01-581-2136
Technical Data | NSN 5310-01-581-2136
| Characteristic | Specifications |
|---|---|
| NUT HEIGHT | 7.9 MILLIMETERS NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
| DRILLED HOLE DIAMETER | 8.0 MILLIMETERS NOMINAL |
| END ITEM IDENTIFICATION | LAV-C2A2;2355-01-539-3589 |
| PLATE THICKNESS | 7.9 MILLIMETERS NOMINAL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| THREAD SERIES | M |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B221 ALUMINUM 6061-T6 NATIONAL STD/SPEC ALL MATERIAL RESPONSES OVERALL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | CLAMP NUT;RAIL NUT |
| NUT STYLE | PLATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TYPE III CLASS 2,COLOR PER FED-STD-595 COLOR CHIP 34094(383 GREEN) FED STD ALL TREATMENT RESPONSES OVERALL |
| NOMINAL THREAD SIZE | 8.0 MILLIMETERS |
| PLATE WIDTH | 14.8 MILLIMETERS NOMINAL |
| THREAD PITCH IN MILLIMETERS | 1.25 |
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| HOLE TYPE AND QUANTITY | 1 DRILLED |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5310-01-581-2136
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-581-2136
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
