NSN 5310-01-589-7140 BACN10YT4CD, BH005284L, BH00528-4L

Product Details | HEXAGON SELF-LOCKING NUT

5310-01-589-7140 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: BACN10YT4CD, BH005284L, BH00528-4L, 5310-01-589-7140, 01-589-7140, 5310015897140, 015897140

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	03 NOV 2010	01-589-7140	05277 ( NUT, SELF-LOCKING, HEXAGON )

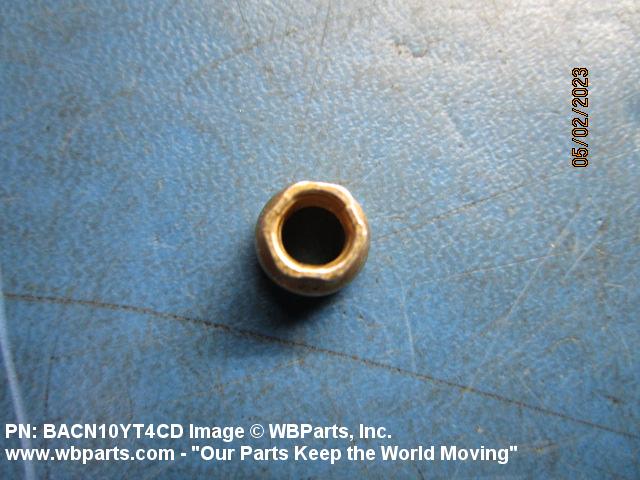

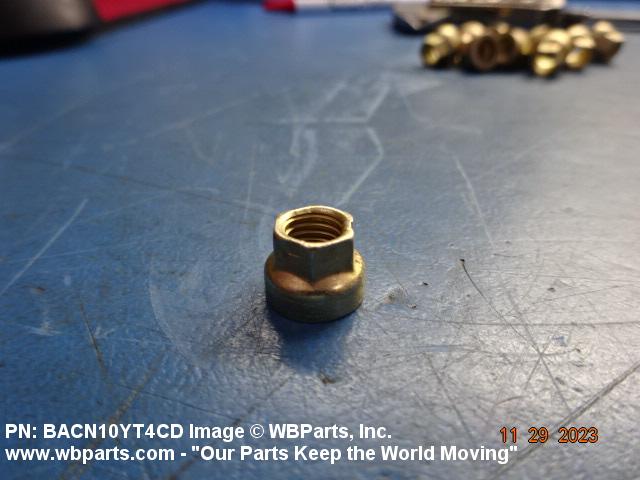

Drawings & Photos | NSN 5310-01-589-7140

Part Number	Request Date	QTY	Origin
5310-01-589-7140	2025-12-344	1000	US
BACN10YT4CD	2025-12-341	1000	DIBBS
BH00528-4L	2025-12-341	1000	DIBBS
5310-01-589-7140	2025-11-324	14	United States
BACN10YT4CD	2025-09-246	230	DIBBS
BH00528-4L	2025-09-246	230	DIBBS
BACN10YT4CD	2025-06-176	276	DIBBS
BH00528-4L	2025-06-176	276	DIBBS
BACN10YT4CD	2025-06-168	276	DIBBS
BH00528-4L	2025-06-168	276	DIBBS
5310-01-589-7140	2025-05-128	1000	United States
BACN10YT4CD	2023-11-310	12	United States
BACN10YT4CD	2023-04-116	1000	United States
5310-01-589-7140	2018-01-31	486	DIBBS
5310-01-589-7140	2017-11-324	201	DIBBS
5310-01-589-7140	2017-08-215	92	DIBBS
5310-01-589-7140	2016-06-181	10	DIBBS
5310-01-589-7140	2016-01-20	12	DIBBS
BACN10YT4CD	2009-02-51	100000	US

Cross Reference | NSN 5310-01-589-7140

Part Number	Cage Code	Manufacturer
BACN10YT4CD	81205	THE BOEING COMPANY DBA BOEING
BACN10YT4CD	Z0HA9	BOEING DEFENCE AUSTRALIA
BH00528-4L	27238	BRISTOL INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-589-7140

Compare

Related Products | NSN 5310-01-589-7140

5310-01-589-7229, 5310-01-589-7322, 5310-01-590-2175, 5310-01-590-3408, 5310-01-590-4139

Technical Data | NSN 5310-01-589-7140

Characteristic	Specifications
THREAD DIRECTION	RIGHT-HAND
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416, TYPE II, CLASS 2 OR 8 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5639 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS5697 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS5685 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS5686 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS5732 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
THREAD SERIES	UNJF
COUNTERBORE DIAMETER	0.284 INCHES MINIMUM OVERALL AND 0.288 INCHES MAXIMUM OVERALL
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	28
WIDTH ACROSS FLATS	0.305 INCHES MINIMUM AND 0.313 INCHES MAXIMUM
NUT HEIGHT	0.340 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED
NUT COUNTERBORE DEPTH	0.107 INCHES MINIMUM OVERALL AND 0.117 INCHES MAXIMUM OVERALL
MATERIAL	STEEL COMP 304 OVERALL OR STEEL COMP 305 OVERALL OR IRON ALLOY 660 OVERALL
THREAD CLASS	3B

Restrictions/Controls & Freight Information | NSN 5310-01-589-7140

Restrictions
Freight

Category	Code	Description
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	593	unknown
Originating Activity Code	ZA	Australia ZB ZC
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-589-7140

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
