NSN 5310-01-596-6456 F52NE083, 01-596-6456, 015966456
Product Details | HEXAGON SELF-LOCKING NUT
5310-01-596-6456 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: F52NE083, 5310-01-596-6456, 01-596-6456, 5310015966456, 015966456
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 MAY 2011 | 01-596-6456 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

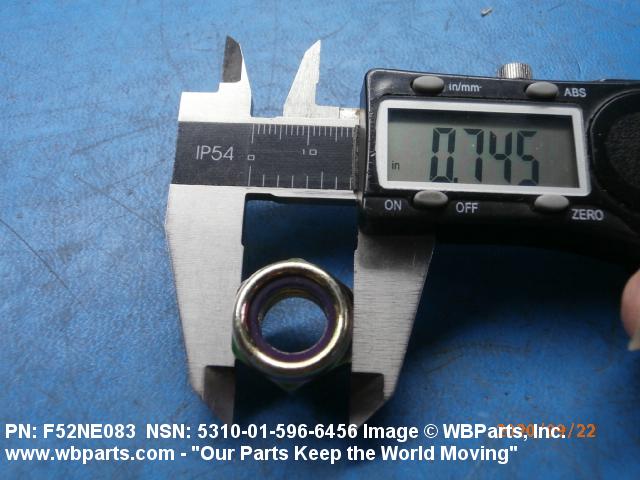

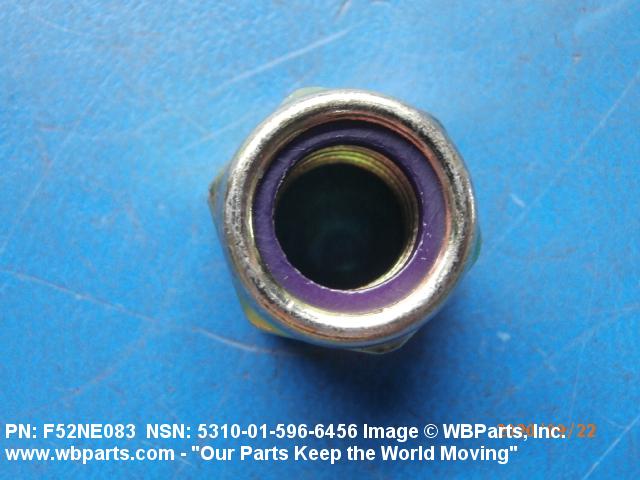

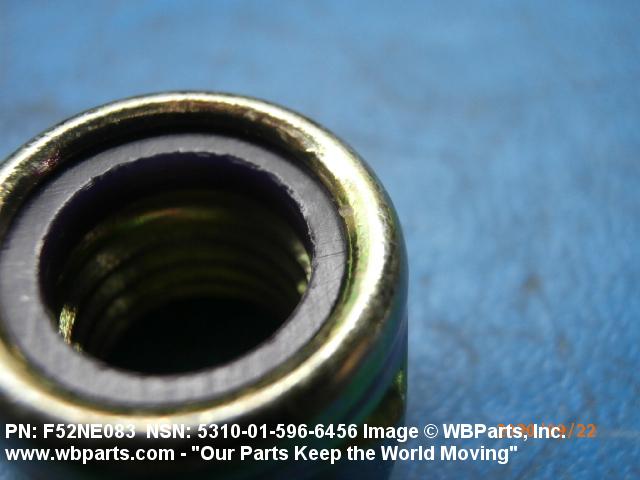

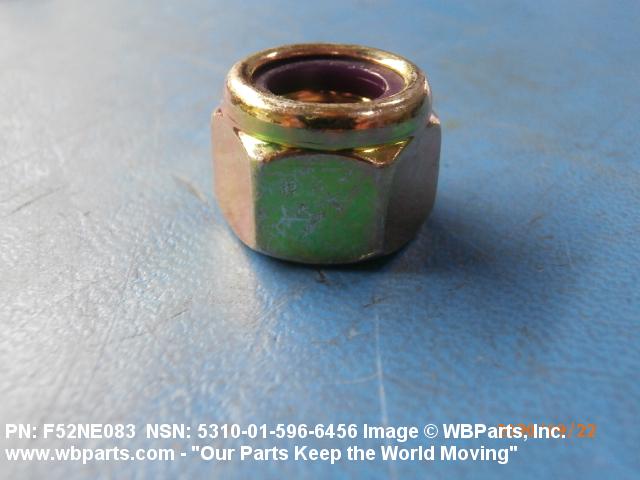

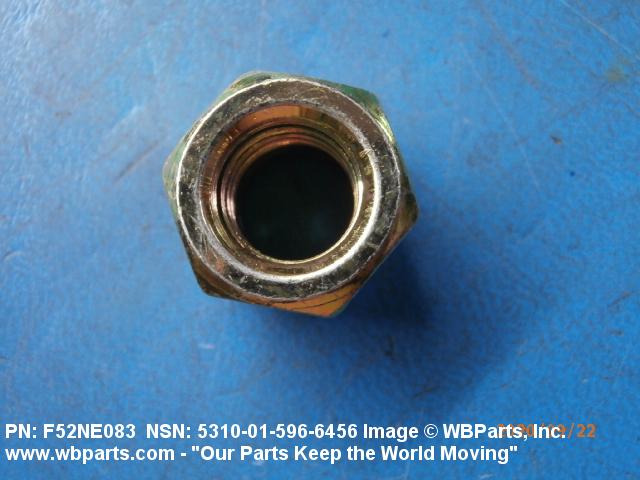

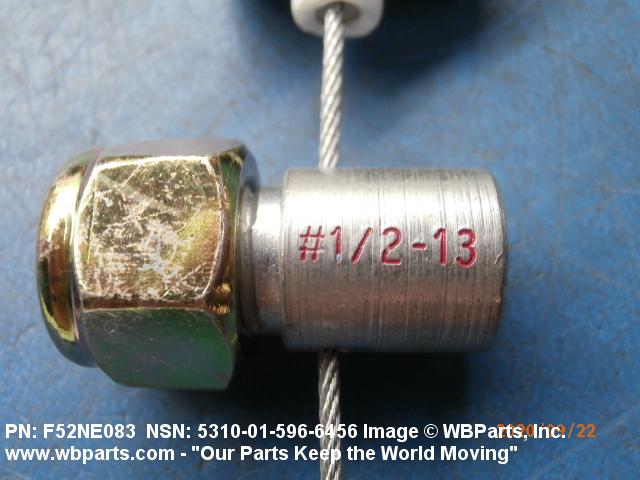

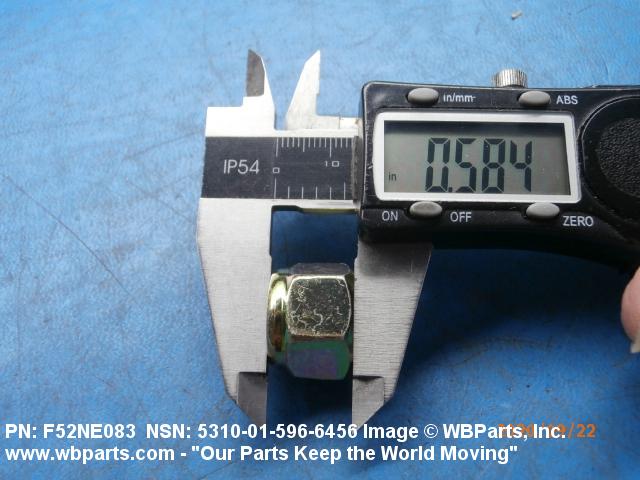

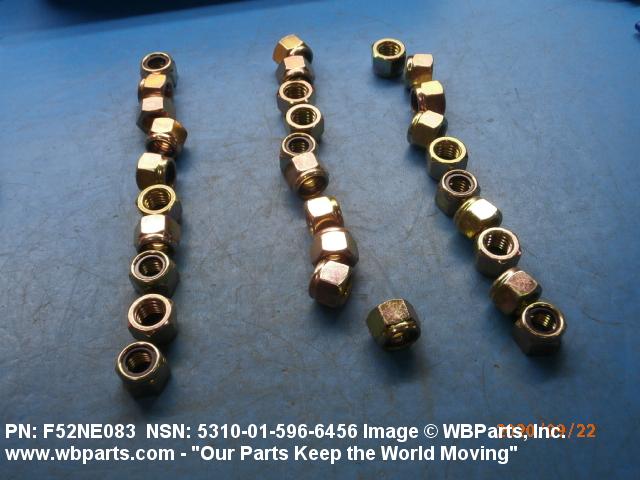

Drawings & Photos | NSN 5310-01-596-6456
Demand History | NSN 5310-01-596-6456
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F52NE083 | 2024-10-277 | 5 | DIBBS |
| F52NE083 | 2024-09-261 | 5 | DIBBS |
| F52NE083 | 2020-12-337 | 4 | United States |
| F52NE083 | 2020-10-286 | 16 | United States |
| 5310-01-596-6456 | 2020-09-254 | 30 | United States |
| 5310-01-596-6456 | 2018-05-124 | 9 | DIBBS |
| 5310-01-596-6456 | 2018-02-59 | 9 | DIBBS |
| 5310-01-596-6456 | 2017-12-356 | 9 | DIBBS |
| 5310-01-596-6456 | 2017-11-309 | 9 | DIBBS |
| 5310-01-596-6456 | 2017-07-192 | 9 | DIBBS |
| F52NE083 | 2011-06-154 | 1500 | Canada |
| F52NE083 | 2011-05-151 | 1500 | Canada |
Cross Reference | NSN 5310-01-596-6456
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F52NE083 | 3EYN5 | ESNA INDUSTRIAL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-596-6456
Related Products | NSN 5310-01-596-6456
Technical Data | NSN 5310-01-596-6456
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| THREAD QUANTITY PER INCH | 13 |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| MATERIAL | STEEL OVERALL AND PLASTIC POLYAMIDE OVERALL |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| THREAD CLASS | 3B |
Restrictions/Controls & Freight Information | NSN 5310-01-596-6456
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-596-6456
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
