NSN 5310-01-597-9499 BACN10JC04CD, 01-597-9499, 015979499
Product Details | HEXAGON SELF-LOCKING NUT
5310-01-597-9499 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: BACN10JC04CD, 5310-01-597-9499, 01-597-9499, 5310015979499, 015979499
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JUN 2011 | 01-597-9499 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

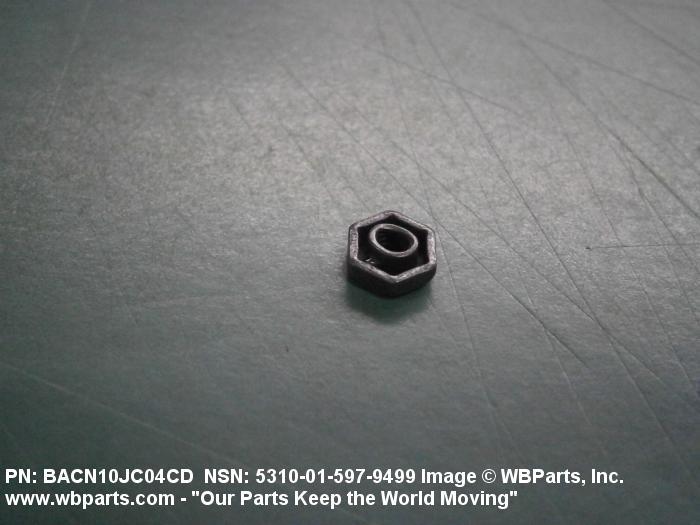

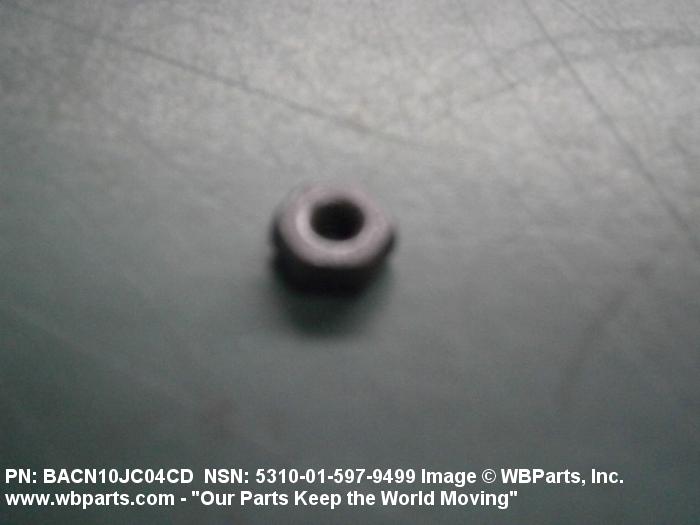

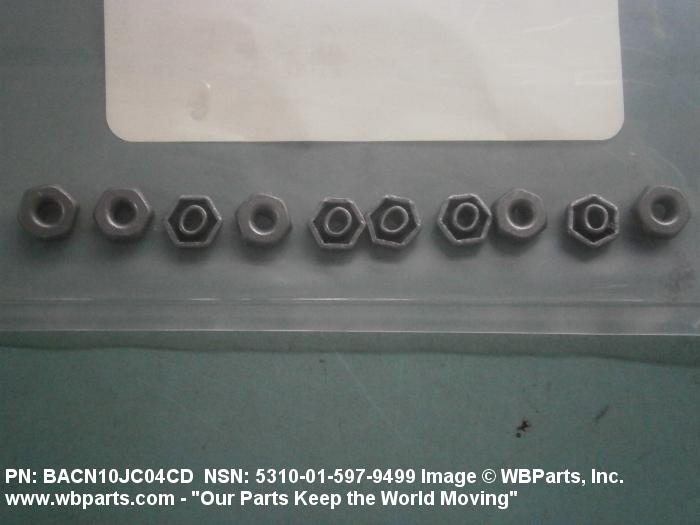

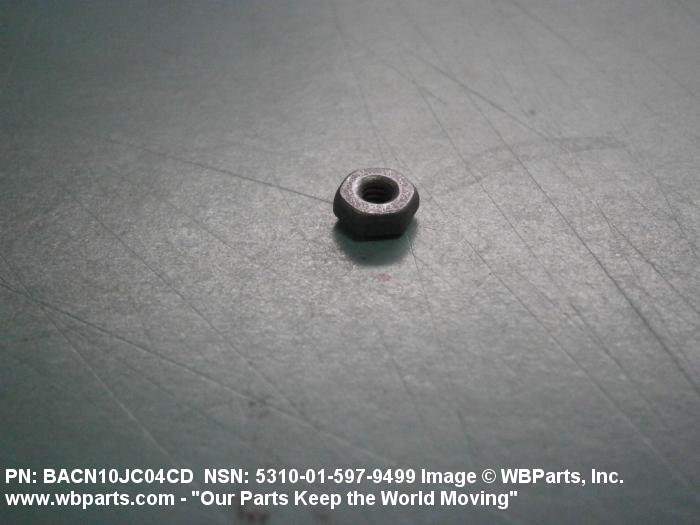

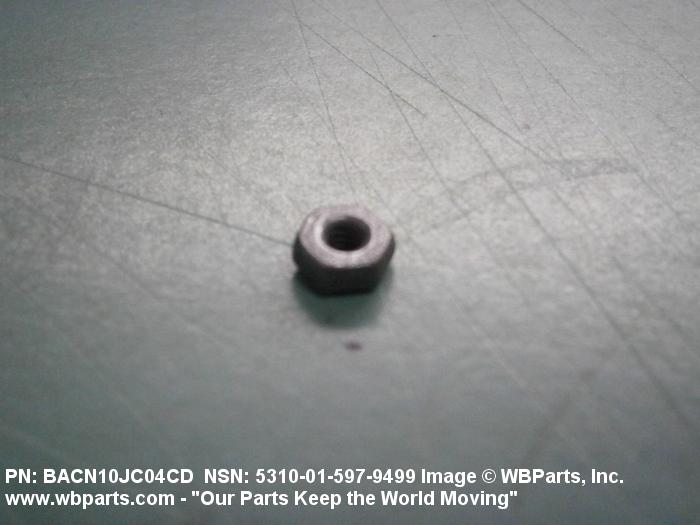

Drawings & Photos | NSN 5310-01-597-9499
Demand History | NSN 5310-01-597-9499
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN10JC04CD | 2025-01-07 | 4 | US |
| 5310-01-597-9499 | 2023-10-299 | 400 | US |
| BACN10JC04CD | 2020-06-156 | 20 | United States |
| BACN10JC04CD | 2020-06-156 | 120 | United States |
| BACN10JC04CD | 2019-06-170 | 84 | DIBBS |
| 5310-01-597-9499 | 2016-07-194 | 46 | DIBBS |
| 5310-01-597-9499 | 2012-08-244 | 46 | DIBBS |
| 5310-01-597-9499 | 2012-08-237 | 46 | DIBBS |
| 5310-01-597-9499 | 2012-08-215 | 46 | DIBBS |
Cross Reference | NSN 5310-01-597-9499
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACN10JC04CD | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| BACN10JC04CD | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| BACN10JC04CD | 52828 | REPUBLIC FASTENER MFG. CORP. |
| BACN10JC04CD | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| BACN10JC04CD | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| BACN10JC04CD | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-597-9499
Related Products | NSN 5310-01-597-9499
Technical Data | NSN 5310-01-597-9499
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | GRAPHITE |
| THREAD QUANTITY PER INCH | 40 |
| THREAD SERIES | UNC |
| BEARING SURFACE TYPE | FLAT |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 44.0 ROCKWELL C MAXIMUM |
| WIDTH ACROSS FLATS | 0.243 INCHES NOMINAL |
| NUT STYLE | HEXAGON |
| END ITEM IDENTIFICATION | E-3 AWACS AIRCRAFT |
| NUT HEIGHT | 0.125 INCHES NOMINAL |
| MATERIAL | STEEL COMP 8740 OVERALL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | NUT,SELF-LOCKING,HEX,LOW HEIGHT 450 F AND 900 F |
| THREAD CLASS | 3B |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-01-597-9499
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-597-9499
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
