NSN 5310-01-622-5289 BACN10HR3CS , 01-622-5289, 016225289
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-01-622-5289 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10HR3CS , 5310-01-622-5289, 01-622-5289, 5310016225289, 016225289
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2013283 | 01-622-5289 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

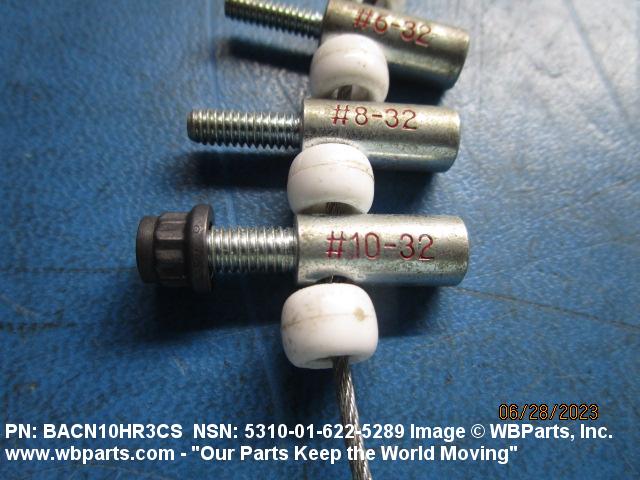

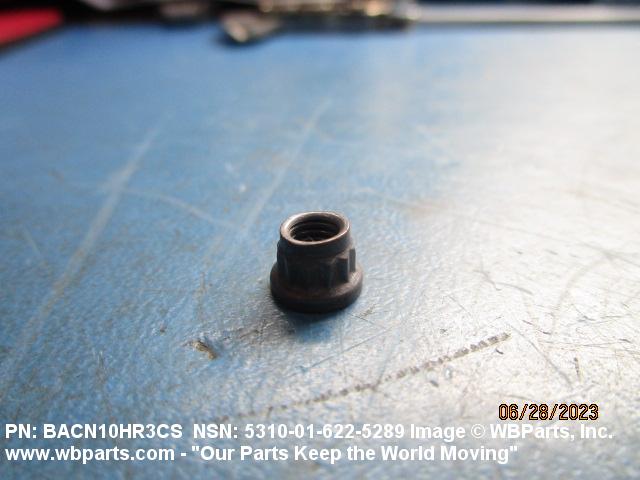

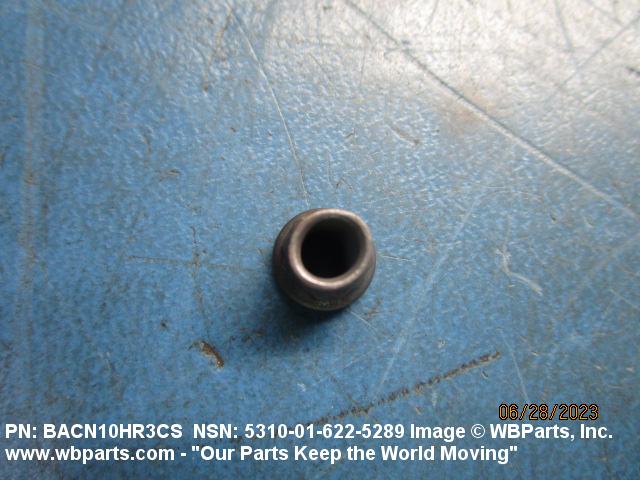

Drawings & Photos | NSN 5310-01-622-5289
Demand History | NSN 5310-01-622-5289
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-622-5289 | 2023-06-156 | 30 | us |
| BACN10HR3CS | 2010-03-89 | 16 | US |
| BACN10HR3CS | 2008-06-162 | 1000 | United States |
Cross Reference | NSN 5310-01-622-5289
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACN10HR3CS | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-622-5289
Technical Data | NSN 5310-01-622-5289
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.1900 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OR |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5737 ASSN STD 1ST MATERIAL RESPONSE AND |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS2700, TYPE 2 OR TYPE 8 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | DOUBLE HEXAGON |

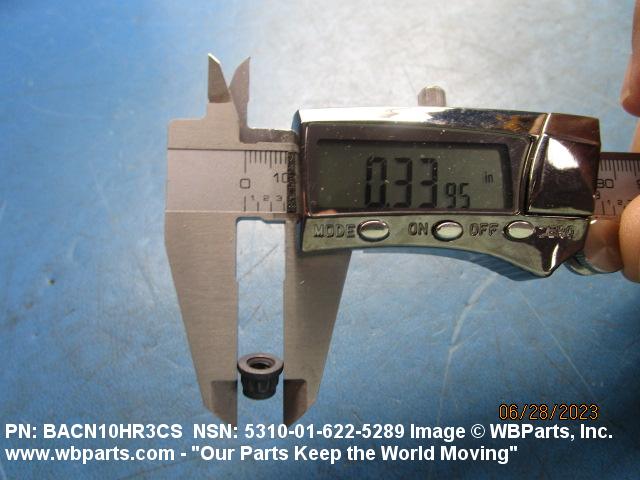

| WASHER OUTSIDE DIAMETER | 0.287 INCHES MINIMUM |
| OVERALL HEIGHT | 0.220 INCHES MINIMUM AND |
| WASHER THICKNESS | 0.015 INCHES MINIMUM |

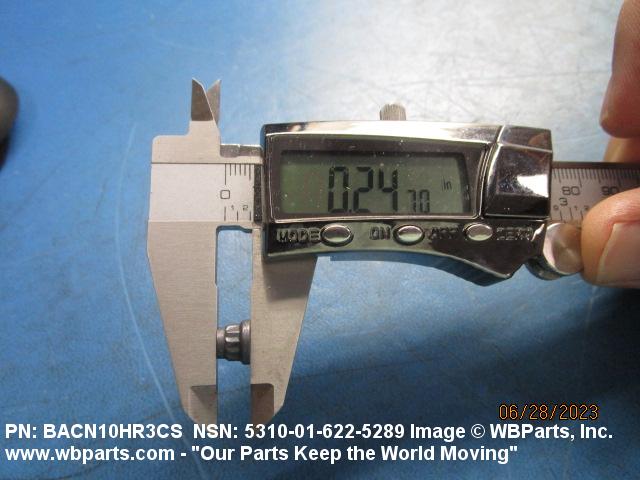

| WIDTH ACROSS FLATS | 0.243 INCHES MINIMUM AND |
| LOCKING FEATURE | FREE-RUNNING ALL METAL DESIGN |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| SPECIAL FEATURES | HAS SOLID FILM LUBRICATION PER MIL-PRF-46010 TYPE 1. |
Restrictions/Controls & Freight Information | NSN 5310-01-622-5289
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
