NSN 5310-01-633-0195 MS21044C08, 96345A230 , 01-633-0195
Product Details | HEXAGON SELF-LOCKING NUT
5310-01-633-0195 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS21044C08, 96345A230 , 5310-01-633-0195, 01-633-0195, 5310016330195, 016330195
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2014309 | 01-633-0195 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

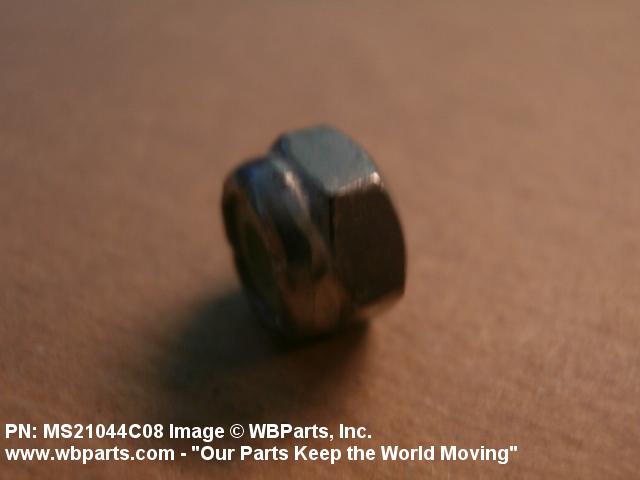

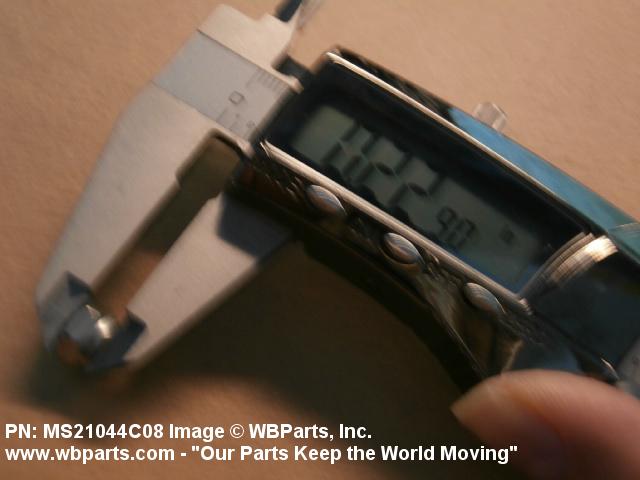

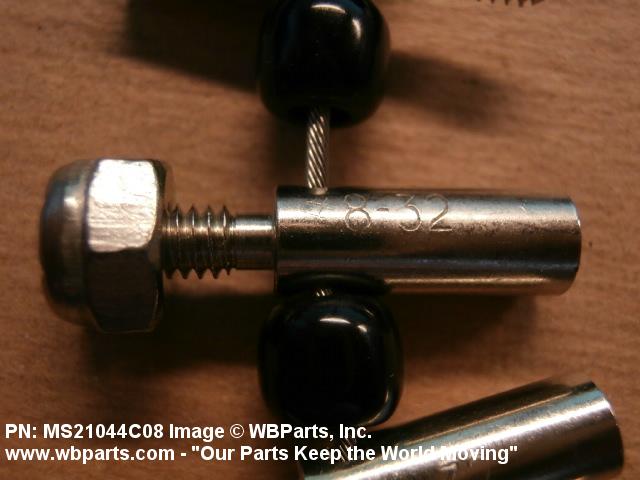

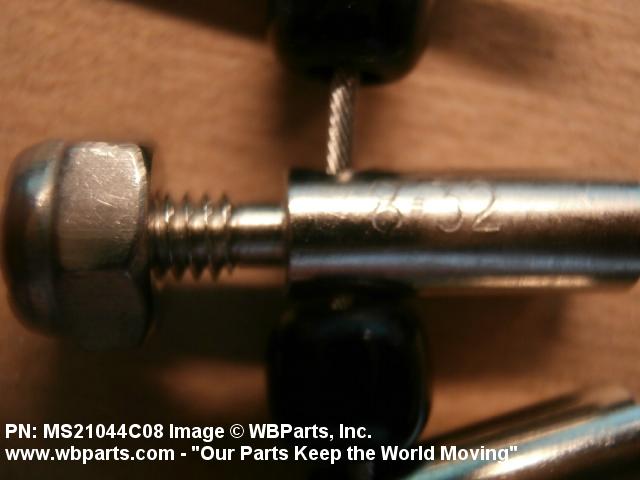

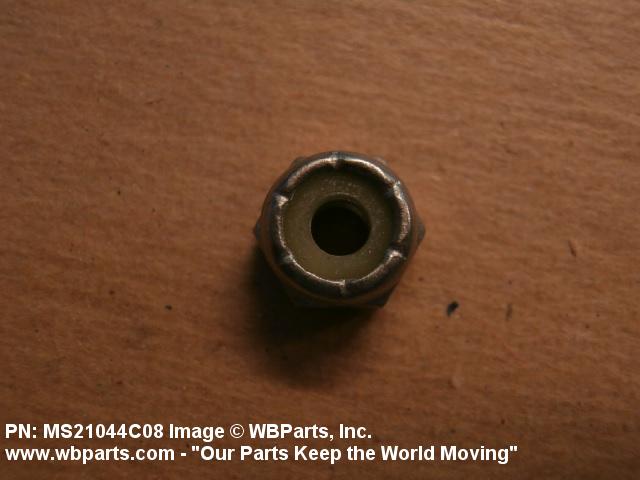

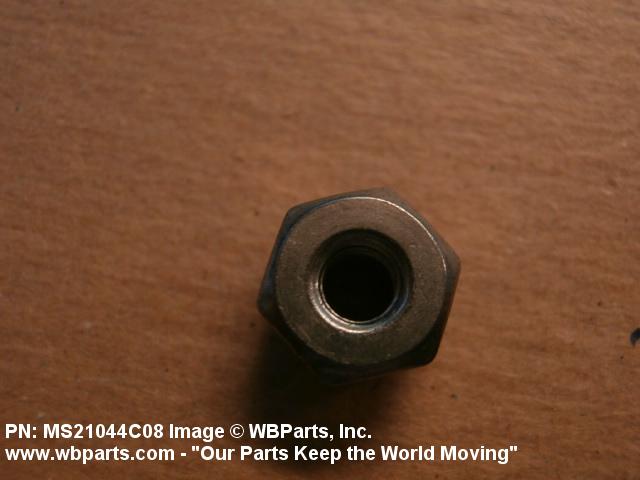

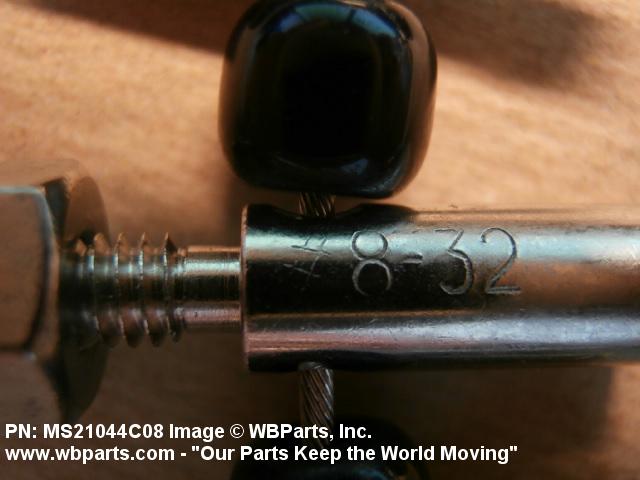

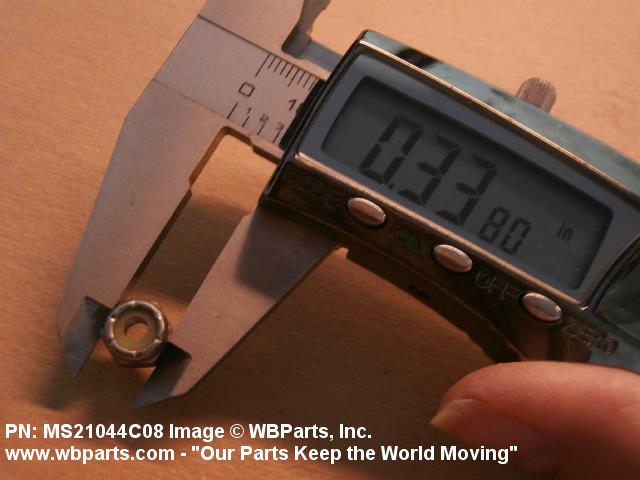

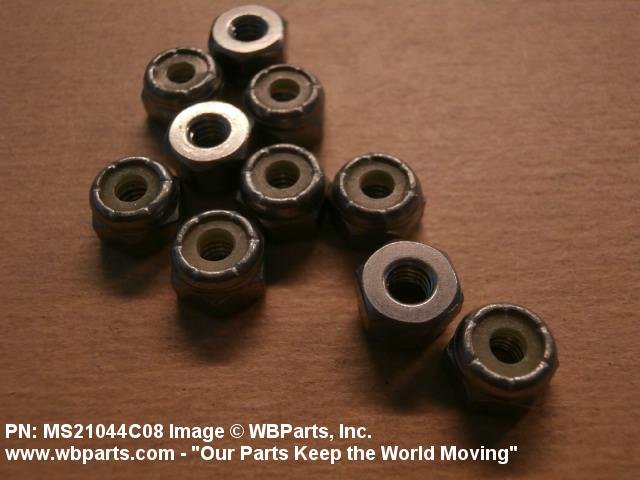

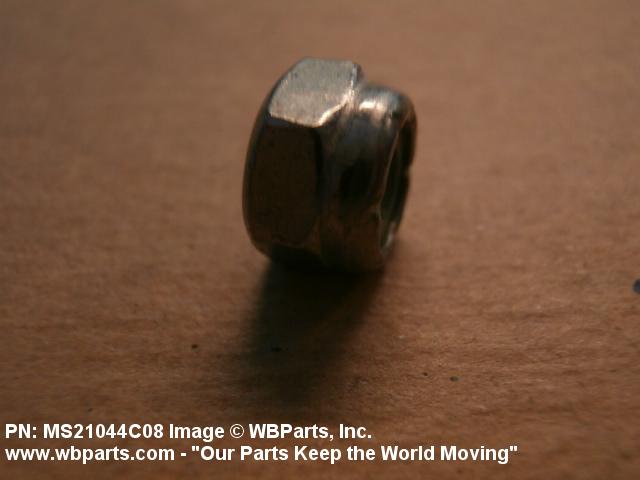

Drawings & Photos | NSN 5310-01-633-0195
Demand History | NSN 5310-01-633-0195
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-633-0195 | 2025-05-138 | 1316 | DIBBS |
| MS21044C08 | 2025-03-76 | 2 | United States |
| 5310-01-633-0195 | 2025-01-16 | 1316 | DIBBS |
| 5310-01-633-0195 | 2024-10-291 | 1110 | DIBBS |
| MS21044C08 | 2024-10-283 | 64 | Italy |
| 5310-01-633-0195 | 2024-07-206 | 278 | DIBBS |
| 5310-01-633-0195 | 2024-03-77 | 682 | DIBBS |
| 5310-01-633-0195 | 2023-11-323 | 352 | DIBBS |
| 5310-01-633-0195 | 2023-07-197 | 1796 | DIBBS |
| 5310-01-633-0195 | 2023-04-106 | 416 | DIBBS |
| MS21044C08 | 2021-11-334 | 500 | Croatia |
| MS21044C08 | 2018-09-253 | 50 | us |
| MS21044C08 | 2018-09-248 | 4 | United States |
| MS21044C08 | 2018-02-59 | 10 | United States |
| 5310-01-633-0195 | 2018-02-35 | 380 | DIBBS |
| 5310-01-633-0195 | 2017-08-236 | 167 | DIBBS |
| MS21044C08 | 2017-04-96 | 20 | US |
| 5310-01-633-0195 | 2017-01-04 | 35 | DIBBS |
| 5310-01-633-0195 | 2016-12-336 | 35 | DIBBS |
| 5310-01-633-0195 | 2016-09-251 | 3 | DIBBS |
| 5310-01-633-0195 | 2016-08-243 | 4 | DIBBS |
| MS21044C08 | 2016-04-105 | 48 | Canada |
| 5310-01-633-0195 | 2016-04-97 | 20 | DIBBS |
| 5310-01-633-0195 | 2016-03-89 | 20 | DIBBS |
| MS21044C08 | 2015-06-176 | 1020 | Turkey |
| MS21044C08 | 2013-10-282 | 20 | United States |
| MS21044C08 | 2012-06-177 | 8 | United States |
| MS21044C08 | 2012-05-135 | 115 | United States |
| MS21044C08 | 2012-01-02 | 10 | India |
| MS21044C08 | 2011-12-361 | 30 | United States |
| MS21044C08 | 2011-10-299 | 100 | United States |
| MS21044C08 | 2011-04-95 | 416 | United States |
| MS21044C08 | 2010-12-356 | 1 | Italy |
| MS21044C08 | 2010-09-260 | 100 | Italy |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-633-0195
Related Products | NSN 5310-01-633-0195
Technical Data | NSN 5310-01-633-0195
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| NUT STYLE | HEXAGON |
| NUT HEIGHT | 0.281 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.344 INCHES NOMINAL |
| BEARING SURFACE TYPE | CHAMFERED |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| III END ITEM IDENTIFICATION | AN/TPN-31 V |
Restrictions/Controls & Freight Information | NSN 5310-01-633-0195
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-633-0195
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
