NSN 5315-00-814-2041 2813231501, 2813231-501, 67B4525901
Product Details | HEADLESS STRAIGHT PIN
5315-00-814-2041 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: 2813231501, 2813231-501, 67B4525901, 67B45259-01, 5315-00-814-2041, 00-814-2041, 5315008142041, 008142041
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 APR 1968 | 00-814-2041 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

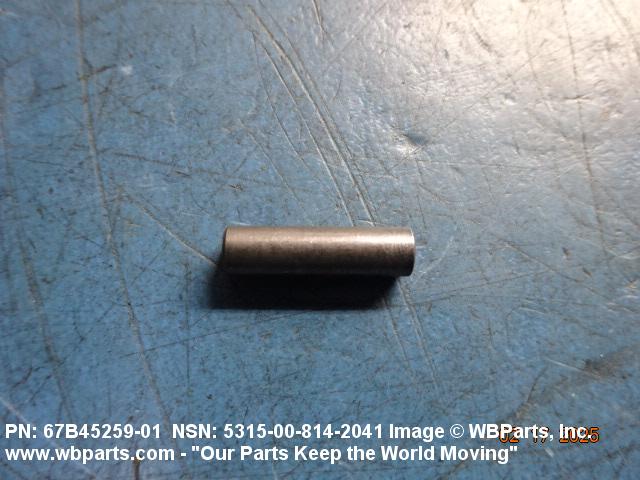

Drawings & Photos | NSN 5315-00-814-2041
Demand History | NSN 5315-00-814-2041
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-814-2041 | 2025-02-35 | 200 | Spain |
| 5315-00-814-2041 | 2025-01-27 | 210 | Spain |
| 5315-00-814-2041 | 2024-10-276 | 210 | Spain |
| 5315-00-814-2041 | 2020-05-124 | 1408 | DIBBS |
| 5315-00-814-2041 | 2020-04-98 | 168 | DIBBS |
| 5315-00-814-2041 | 2020-03-70 | 83 | DIBBS |
| 5315-00-814-2041 | 2019-11-322 | 150 | India |
| 5315-00-814-2041 | 2019-11-314 | 150 | Singapore |
| 5315-00-814-2041 | 2019-11-308 | 150 | Singapore |
| 67B4525901 | 2009-01-22 | 105 | Singapore |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-814-2041
Technical Data | NSN 5315-00-814-2041
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,CLASS 440C FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 58.0 ROCKWELL C NOMINAL OVERALL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.005 INCHES MINIMUM AND 0.015 INCHES MAXIMUM |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |

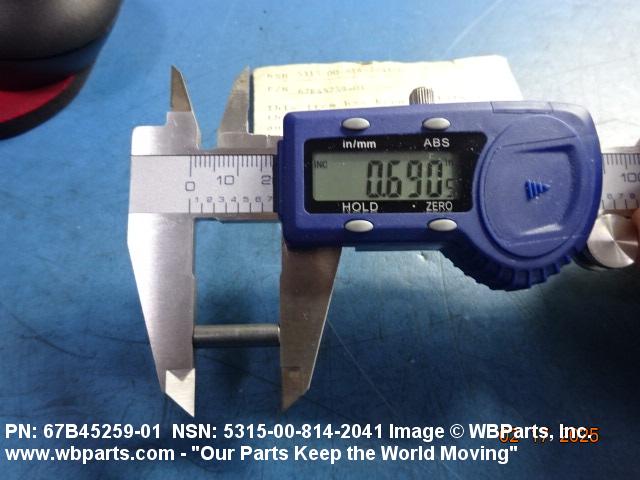

| PIN OVERALL LENGTH | 0.690 INCHES MINIMUM AND 0.700 INCHES MAXIMUM |

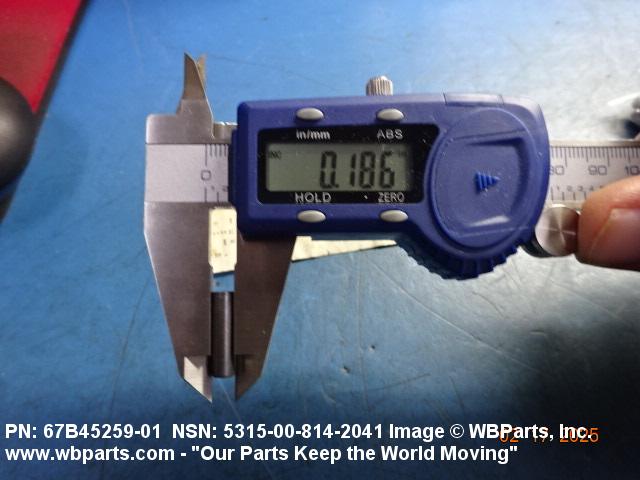

| PIN OVERALL DIAMETER | 0.1850 INCHES MINIMUM AND 0.1860 INCHES MAXIMUM |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 2813231-501 |
Restrictions/Controls & Freight Information | NSN 5315-00-814-2041
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-814-2041
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GG | TG:GUNNERY EQUIPMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
