NSN 5315-01-096-5057 12250272, 01-096-5057, 010965057
Product Details | HEADED GROOVED PIN
5315-01-096-5057 A cylindrically-shaped headed item, having circular or longitudinal groove(s).
Part Alternates: 12250272, 5315-01-096-5057, 01-096-5057, 5315010965057, 010965057
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUN 1980 | 01-096-5057 | 02382 ( PIN, GROOVED, HEADED ) |

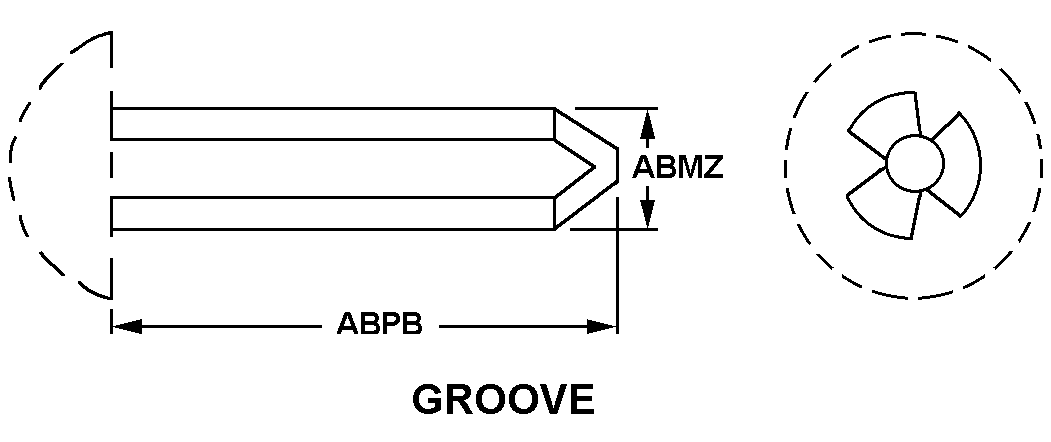

Drawings & Photos | NSN 5315-01-096-5057
Demand History | NSN 5315-01-096-5057
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-096-5057 | 2025-02-43 | 17 | DIBBS |
| 5315-01-096-5057 | 2025-02-35 | 17 | DIBBS |
| 5315-01-096-5057 | 2025-01-21 | 43 | DIBBS |
| 5315-01-096-5057 | 2025-01-12 | 43 | DIBBS |
| 5315-01-096-5057 | 2020-02-33 | 77 | DIBBS |
| 5315-01-096-5057 | 2017-04-107 | 75 | DIBBS |
| 5315-01-096-5057 | 2017-02-40 | 75 | DIBBS |
| 5315-01-096-5057 | 2012-04-118 | 124 | DIBBS |
| 5315-01-096-5057 | 2012-03-68 | 135 | DIBBS |
| 5315-01-096-5057 | 2011-08-238 | 63 | DIBBS |
| 5315-01-096-5057 | 2010-07-211 | 39 | DIBBS |
| 5315-01-096-5057 | 2010-05-146 | 7 | DIBBS |
| 5315-01-096-5057 | 2010-04-111 | 44 | DIBBS |
| 5315-01-096-5057 | 2010-01-06 | 13 | DIBBS |
| 5315-01-096-5057 | 2009-12-352 | 18 | DIBBS |
Cross Reference | NSN 5315-01-096-5057
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12250272 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-096-5057
Related Products | NSN 5315-01-096-5057
Technical Data | NSN 5315-01-096-5057
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1018 OVERALL |
| STYLE DESIGNATOR | E95 GROOVE |
| DIAMETER | 0.748 INCHES NOMINAL |
| UNDER HEAD LENGTH | 8.630 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.310 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| HEAD STYLE | 43 SQUARE |
| HEAD WIDTH | 0.880 INCHES NOMINAL |
| HEIGHT | 1.000 INCHES NOMINAL |
| SPECIAL FEATURES | 2330-01-054-9771 TRAILER,MSL |
Restrictions/Controls & Freight Information | NSN 5315-01-096-5057
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-096-5057
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
