NSN 5315-01-131-0425 0508790000, 50879, 01-131-0425
Product Details | HEADED GROOVED PIN
5315-01-131-0425 A cylindrically-shaped headed item, having circular or longitudinal groove(s).
Part Alternates: 0508790000, 50879, 5315-01-131-0425, 01-131-0425, 5315011310425, 011310425
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 MAY 1982 | 01-131-0425 | 02382 ( PIN, GROOVED, HEADED ) |
Drawings & Photos | NSN 5315-01-131-0425
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-131-0425
Related Products | NSN 5315-01-131-0425
Technical Data | NSN 5315-01-131-0425
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC OVERALL |
| STYLE DESIGNATOR | E87 GROOVE |
| DIAMETER | 0.188 INCHES NOMINAL |
| EFFECTIVE LENGTH | 0.047 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.125 INCHES NOMINAL |
| UNDER HEAD LENGTH | 0.500 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.172 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.046 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 49.0 DEGREES NOMINAL |

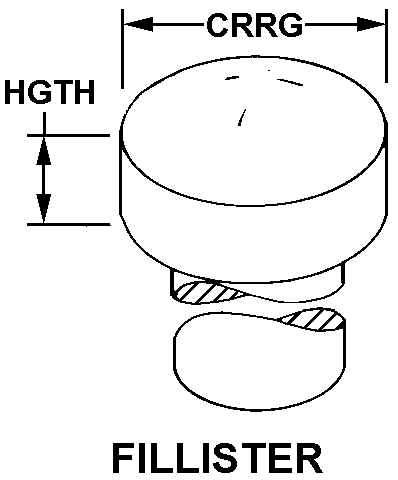

| HEAD STYLE | 13 FILLISTER |
| PIN HEAD DIAMETER | 0.250 INCHES NOMINAL |
| HEIGHT | 0.125 INCHES NOMINAL |
| MANUFACTURERS CODE | 12338 |
| DESIGN CONTROL REFERENCE | 0508790000 |
Restrictions/Controls & Freight Information | NSN 5315-01-131-0425
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5315-01-131-0425
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
