NSN 5315-01-166-2246 12615697, 6164387, 01-166-2246
Product Details | HEADED GROOVED PIN
5315-01-166-2246 A cylindrically-shaped headed item, having circular or longitudinal groove(s).
Part Alternates: 12615697, 6164387, 5315-01-166-2246, 01-166-2246, 5315011662246, 011662246
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 NOV 1983 | 01-166-2246 | 02382 ( PIN, GROOVED, HEADED ) |

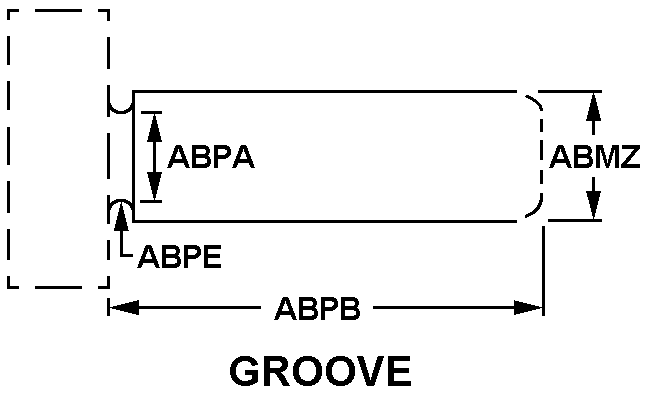

Drawings & Photos | NSN 5315-01-166-2246
Cross Reference | NSN 5315-01-166-2246
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12615697 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-166-2246
Related Products | NSN 5315-01-166-2246
Technical Data | NSN 5315-01-166-2246
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 COND-C1 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-STD-171 MIL STD SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | E94 GROOVE |
| DIAMETER | 14.984 MILLIMETERS NOMINAL |
| UNDERCUT DIAMETER | 13.0 MILLIMETERS NOMINAL |
| UNDER HEAD LENGTH | 15.5 MILLIMETERS NOMINAL |
| UNDERCUT RADIUS | 2.0 MILLIMETERS NOMINAL |
| FIRST END STYLE | 9 SQUARE |
| HEAD STYLE | 16 FLAT |
| PIN HEAD DIAMETER | 22.0 MILLIMETERS NOMINAL |
| HEIGHT | 3.0 MILLIMETERS NOMINAL |
| SPECIAL FEATURES | PILOT HOLE 6.80 MM DIA BY 18.5 MMDEEP WITH THREAD M8X1.25-6H THREAD 12.0 MM DEEP IN HEAD |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 12615697 |
Restrictions/Controls & Freight Information | NSN 5315-01-166-2246
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
