NSN 5315-01-298-0668 52198822, 5219882-2, 52198823

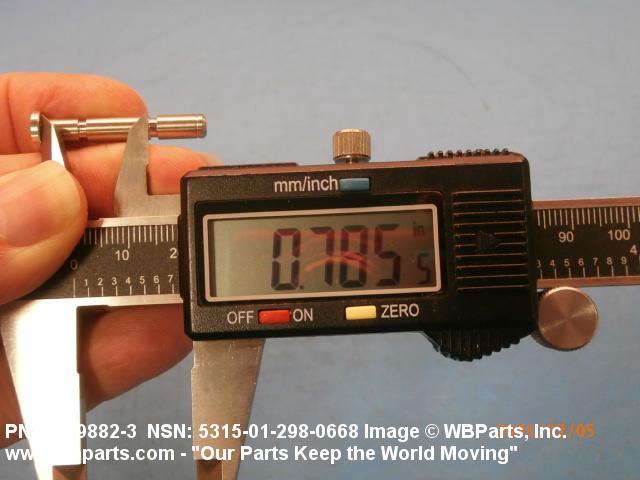

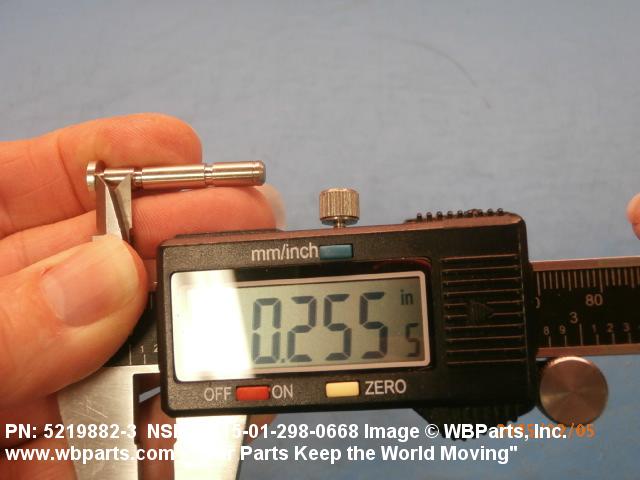

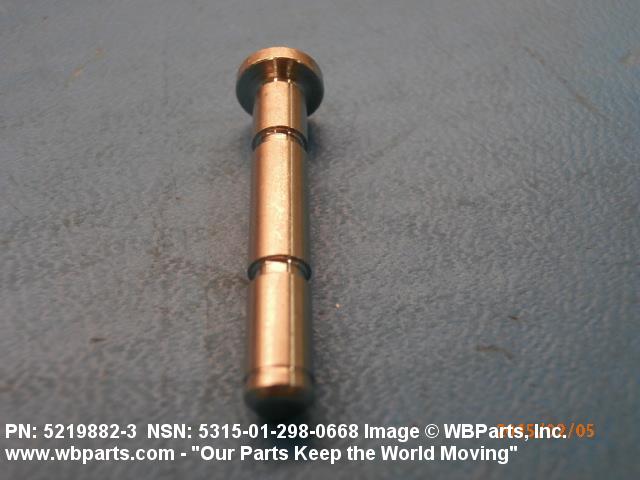

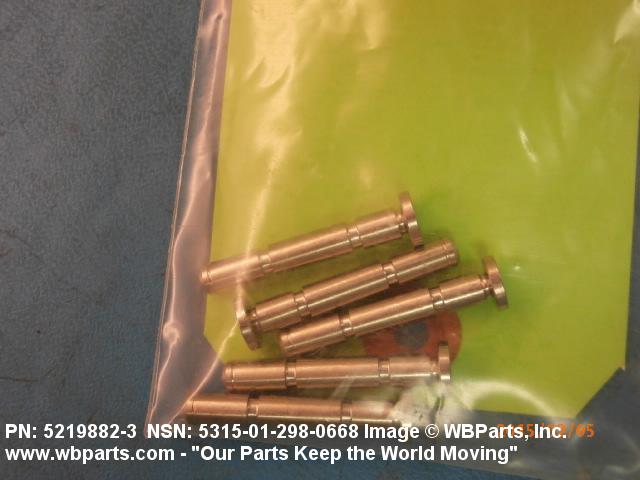

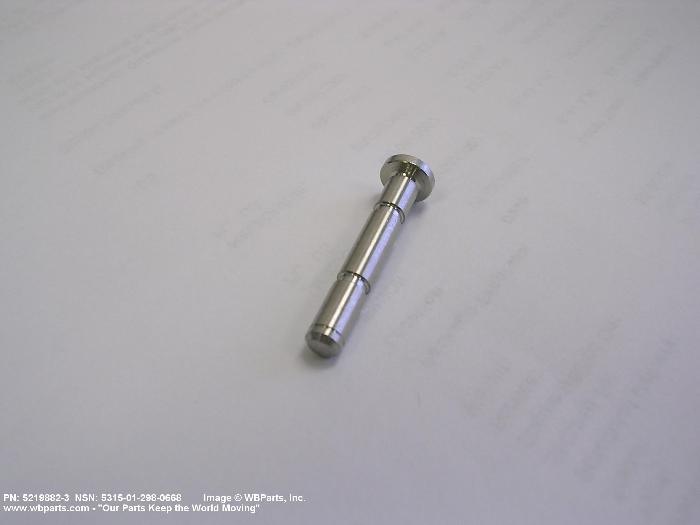

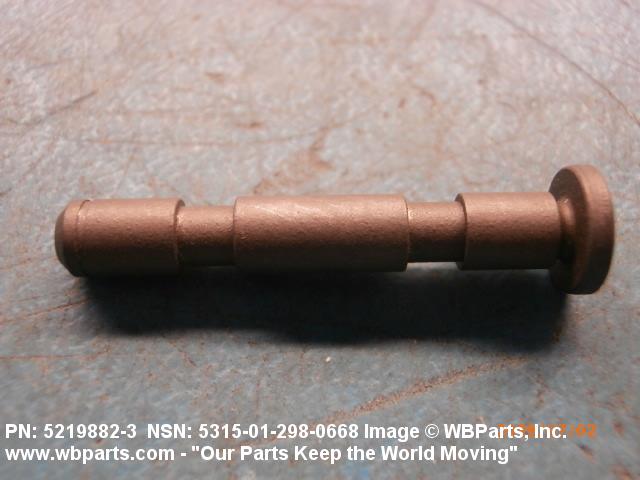

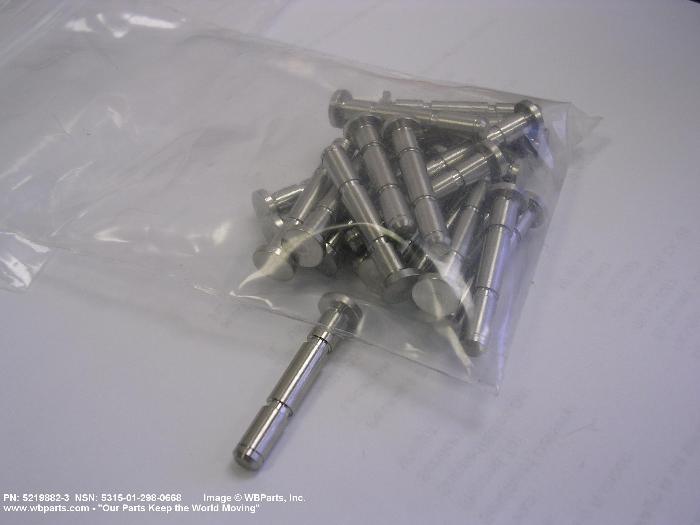

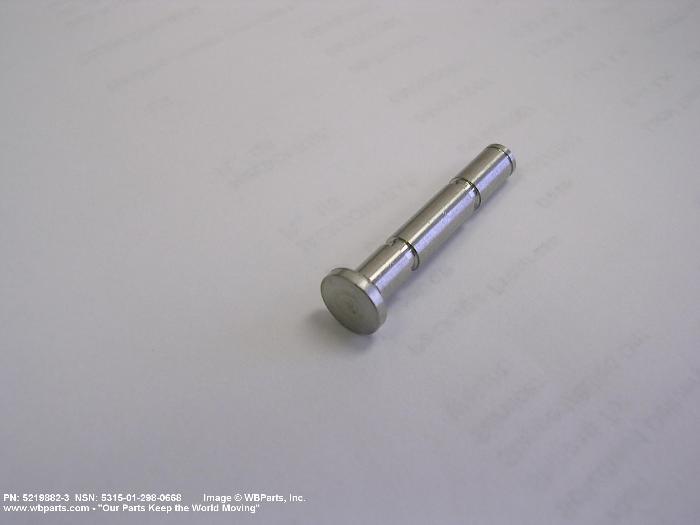

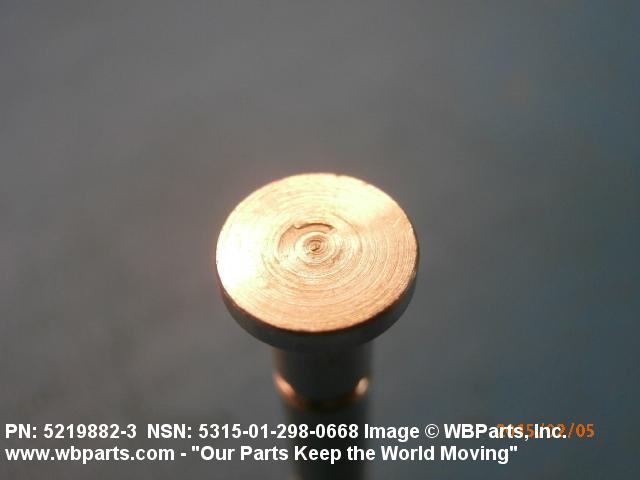

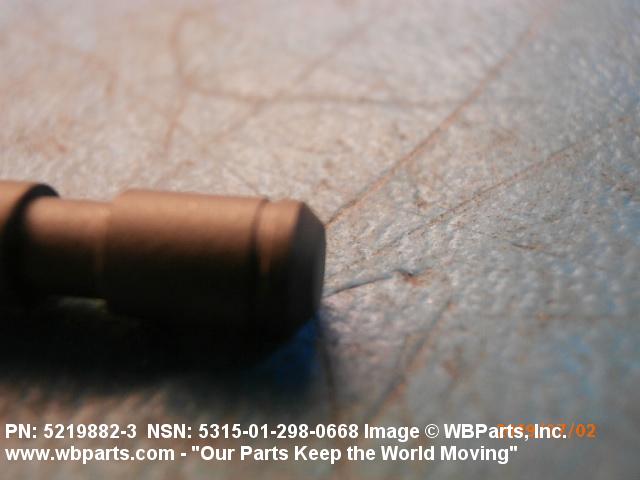

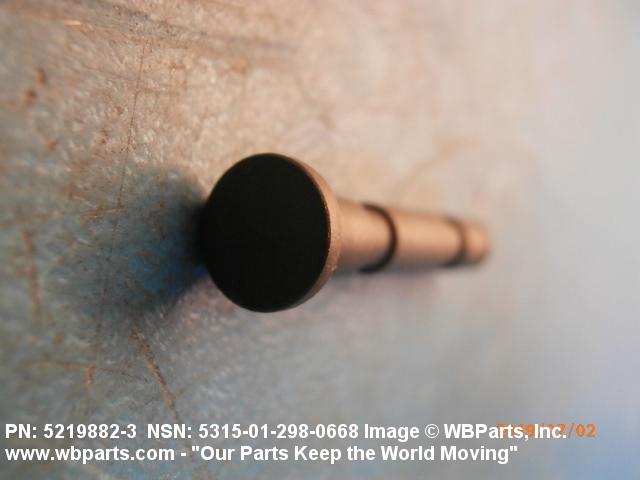

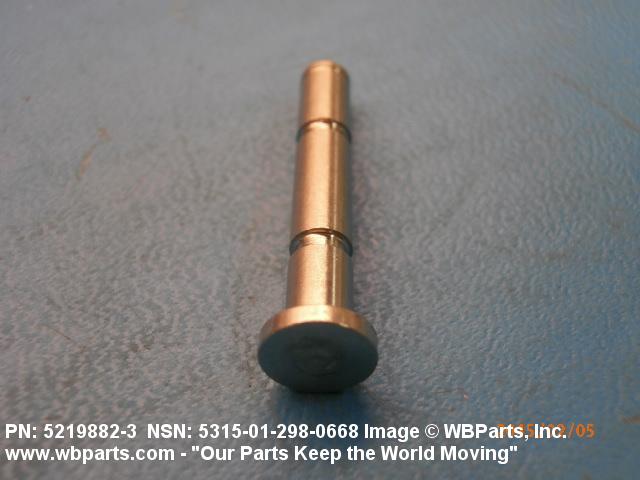

5315-01-298-0668 A cylindrically-shaped headed item, having circular or longitudinal groove(s).

Part Alternates: 52198822, 5219882-2, 52198823, 5219882-3, 5315-01-298-0668, 01-298-0668, 5315012980668, 012980668

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	10 APR 1989	01-298-0668	02382 ( PIN, GROOVED, HEADED )

Part Number	Request Date	QTY	Origin
5315-01-298-0668	2025-08-216	1172	DIBBS
5315-01-298-0668	2022-02-46	300	United States
5315-01-298-0668	2021-11-313	894	DIBBS
5315-01-298-0668	2021-08-223	645	DIBBS
5315-01-298-0668	2020-01-24	24	Spain
5315-01-298-0668	2019-12-351	6	United States
52198823	2019-12-346	5	United States
5315-01-298-0668	2019-06-163	5	United States
52198823	2019-06-162	5	United States
5315-01-298-0668	2019-06-162	5	United States
5315-01-298-0668	2018-08-217	329	DIBBS
5315-01-298-0668	2018-07-212	313	DIBBS
5315-01-298-0668	2018-07-204	313	DIBBS
5315-01-298-0668	2015-01-20	7	United States
5315-01-298-0668	2013-03-64	535	DIBBS
5315-01-298-0668	2012-12-340	44	DIBBS
5315-01-298-0668	2012-06-174	42	DIBBS
5315-01-298-0668	2012-04-114	0	DIBBS
5315-01-298-0668	2012-04-111	21	DIBBS
5315-01-298-0668	2012-03-79	62	DIBBS
5315-01-298-0668	2012-02-39	83	DIBBS
5315-01-298-0668	2010-04-104	198	DIBBS
5315-01-298-0668	2008-11-329	314	DIBBS
5315-01-298-0668	2008-09-252	600	DIBBS
52198822	2007-04-102	24	United States
52198822	2007-03-80	24	United States
52198822	2007-01-24	24	United States

Part Number	Cage Code	Manufacturer
5219882-2	0RK79	GENERAL DYNAMICS ROBOTIC SYSTEMS, INC.
5219882-2	53711	NAVAL SEA SYSTEMS COMMAND
5219882-2	5D286	LOCKHEED MARTIN CORP LOCKHEED MARTIN LABORATORIES
5219882-2	8T104	GENERAL DYNAMICS ROBOTICS SYSTEM INC
5219882-3	53711	NAVAL SEA SYSTEMS COMMAND

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5315-01-298-0668

Compare

5315-01-298-0669, 5315-01-298-0670, 5315-01-298-1114, 5315-01-298-1116, 5315-01-298-1242

Characteristic	Specifications
MATERIAL	STEEL COMP 630 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	WS19168 CAGEC 5D286 MFR REF SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	36.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM OVERALL
STYLE DESIGNATOR	E87 GROOVE

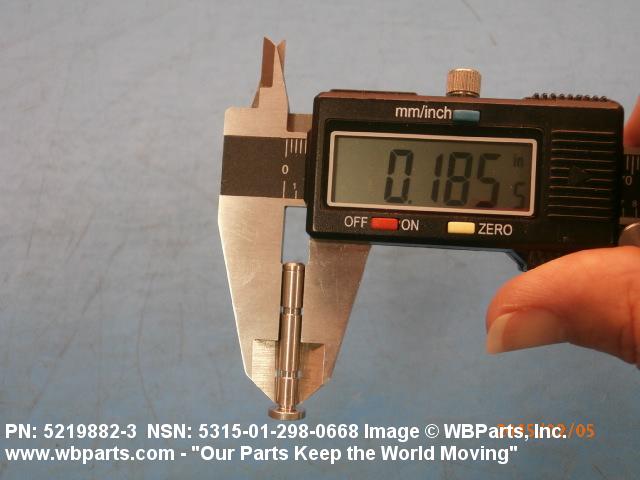

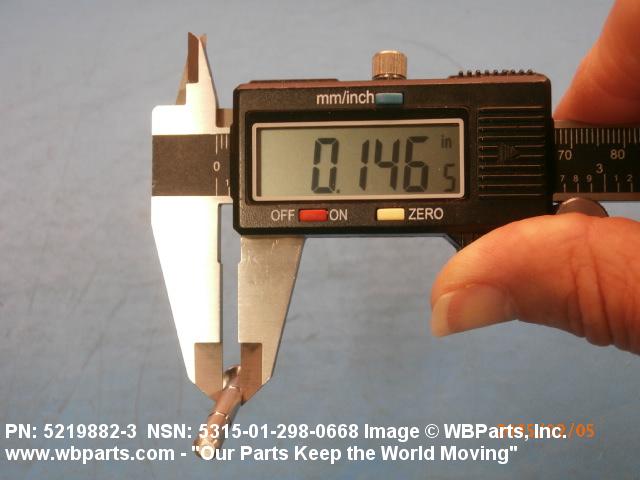

DIAMETER	0.1858 INCHES MINIMUM AND 0.1865 INCHES MAXIMUM
EFFECTIVE LENGTH	1.125 INCHES NOMINAL

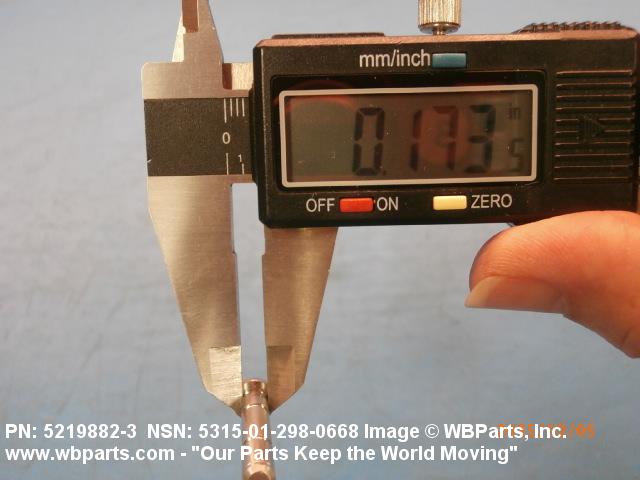

UNDERCUT DIAMETER	0.1735 INCHES MINIMUM AND 0.1765 INCHES MAXIMUM

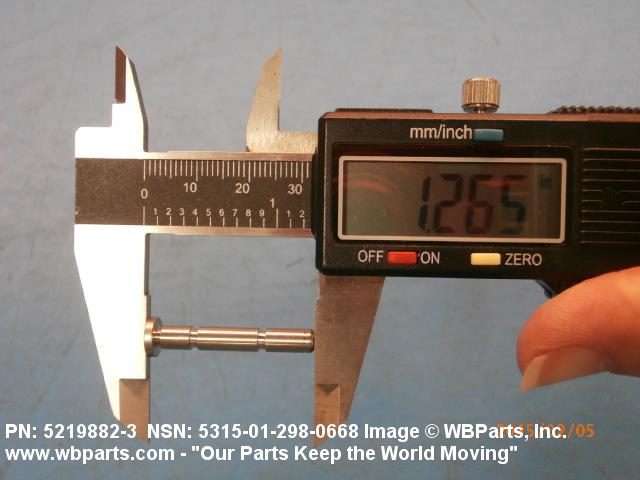

UNDER HEAD LENGTH	1.265 INCHES NOMINAL

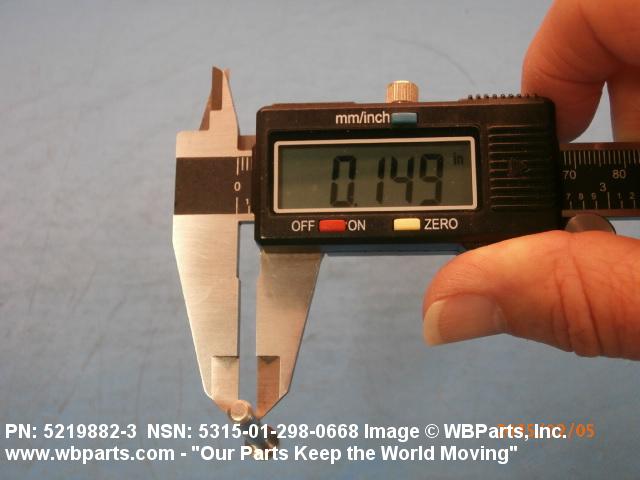

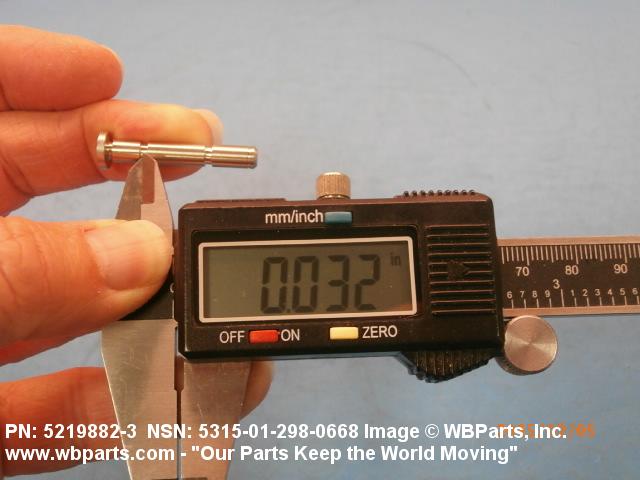

UNDERCUT WIDTH	0.018 INCHES MINIMUM AND 0.020 INCHES MAXIMUM
