NSN 5315-01-340-1399 10123307 , 1B480681, 1B48068-1
Product Details | HEADED GROOVED PIN
5315-01-340-1399 A cylindrically-shaped headed item, having circular or longitudinal groove(s).
Part Alternates: 10123307 , 1B480681, 1B48068-1, 5315-01-340-1399, 01-340-1399, 5315013401399, 013401399
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 JUN 1991 | 01-340-1399 | 02382 ( PIN, GROOVED, HEADED ) |
Drawings & Photos | NSN 5315-01-340-1399
Demand History | NSN 5315-01-340-1399
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-340-1399 | 2018-06-169 | 2 | DIBBS |
| 5315-01-340-1399 | 2018-06-161 | 2 | DIBBS |
| 5315-01-340-1399 | 2017-10-293 | 2 | DIBBS |
| 5315-01-340-1399 | 2017-10-285 | 2 | DIBBS |
| 5315-01-340-1399 | 2011-11-332 | 2 | DIBBS |
Cross Reference | NSN 5315-01-340-1399
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1B48068-1 | 18355 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-340-1399
Related Products | NSN 5315-01-340-1399
Technical Data | NSN 5315-01-340-1399
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP XM-12 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5659 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | PS13001 CAGEC 18355 MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | E93 GROOVE |
| DIAMETER | 0.8740 INCHES MINIMUM AND 0.8745 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.814 INCHES NOMINAL |
| UNDER HEAD LENGTH | 2.497 INCHES MINIMUM AND 2.507 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.060 INCHES NOMINAL |
| FIRST END STYLE | 3 OVAL |

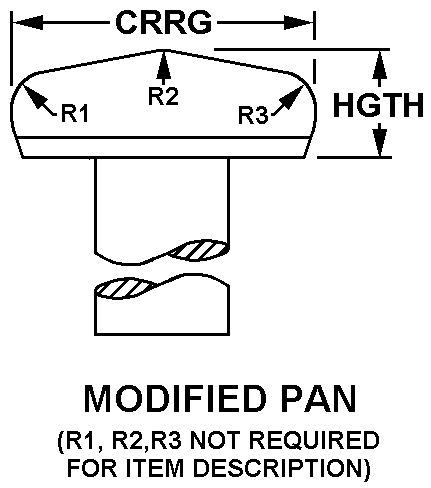

| HEAD STYLE | 35 MODIFIED PAN |
| PIN HEAD DIAMETER | 1.180 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 3 ONE END W/TWO DRILLED HOLES |
| FIRST HOLE DIAMETER | 0.076 INCHES MINIMUM AND 0.082 INCHES MAXIMUM |
| SECOND HOLE DIAMETER | 0.076 INCHES MINIMUM AND 0.082 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.118 INCHES NOMINAL |
| ANGLE BETWEEN CENTERLINE OF HOLES | 37.0 DEGREES MINIMUM AND 47.0 DEGREES MAXIMUM |
| SPECIAL FEATURES | 0.498 IN. MIN. 0.507 IN. MAX. DIA. HOLE THRU HEAD |
Restrictions/Controls & Freight Information | NSN 5315-01-340-1399
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
