NSN 5320-00-117-6826 MS20470AD44, MS20470AD4-4, AN470AD44

Product Details | SOLID RIVET

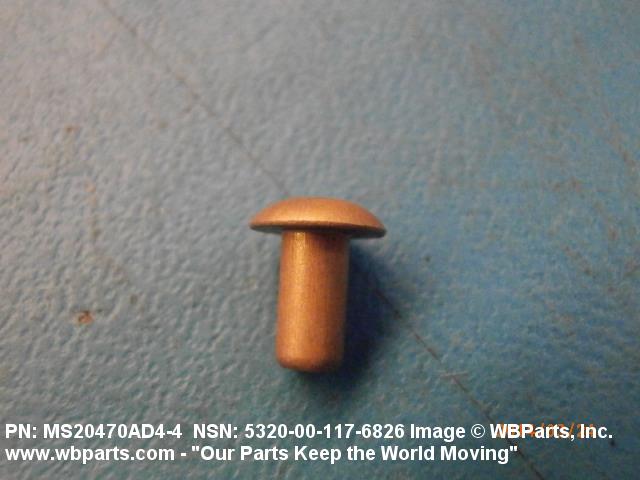

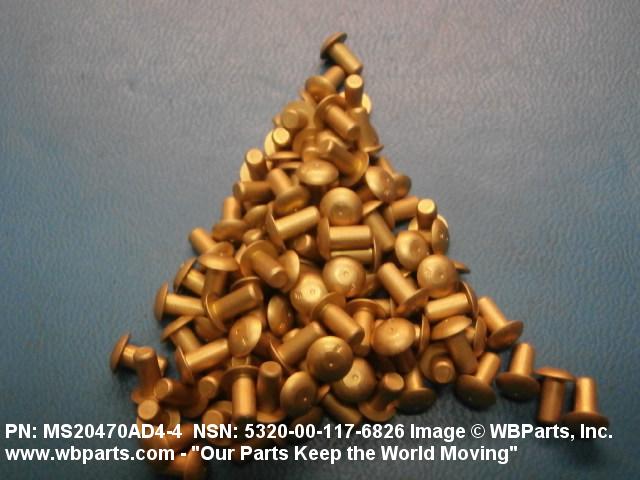

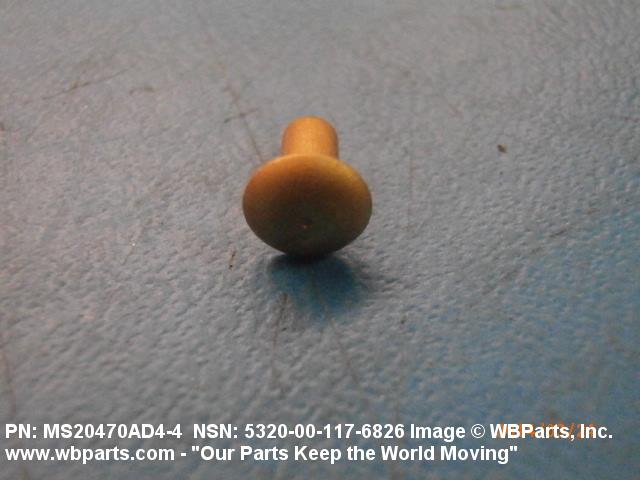

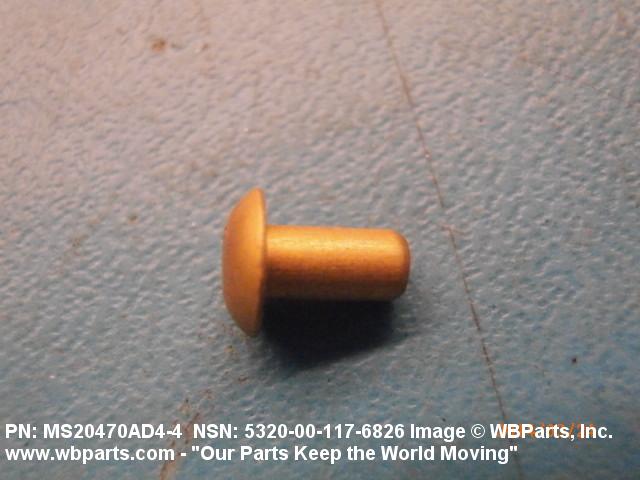

5320-00-117-6826 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.

Part Alternates: MS20470AD44, MS20470AD4-4, AN470AD44, AN470AD4-4, AS125739, AS2228404, AS2228-404, GHN1000319, GHN10003-19 , 7903738-25 , 939.17.81.234, 939.17.81.237 , 9391781234, 9391781237, 9461312306, 946131-2306 , 6026-3004-5 , 6026314612, 6026-3146-12 , 6026-3002-2 , 6026-3167-3 , 10123462, 1018992004, 1018992-004, 117436-002, 126831, 252AD44, 25-2AD4-4, 413719-076, 5-4-1323-3-53, 5320-00-117-6826, 00-117-6826, 5320001176826 , 080198033, 541323353, 602630022, 413719076, 117436002, 790373825, 602630045, 602631673, 001176826

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-117-6826	00861 ( RIVET, SOLID )

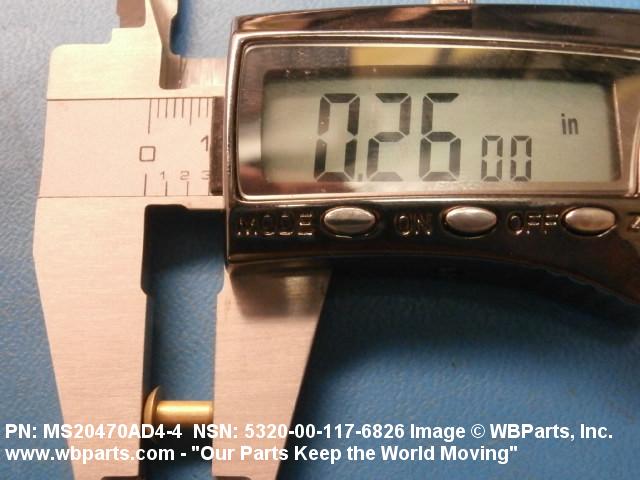

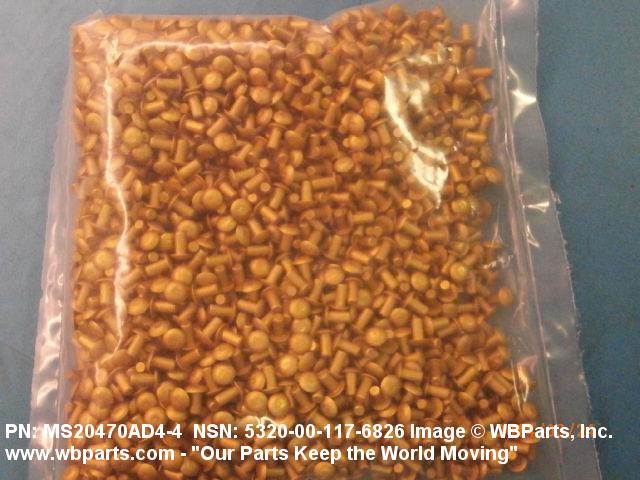

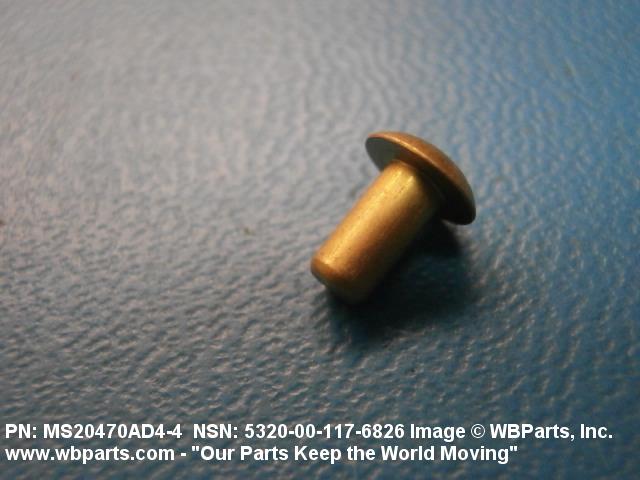

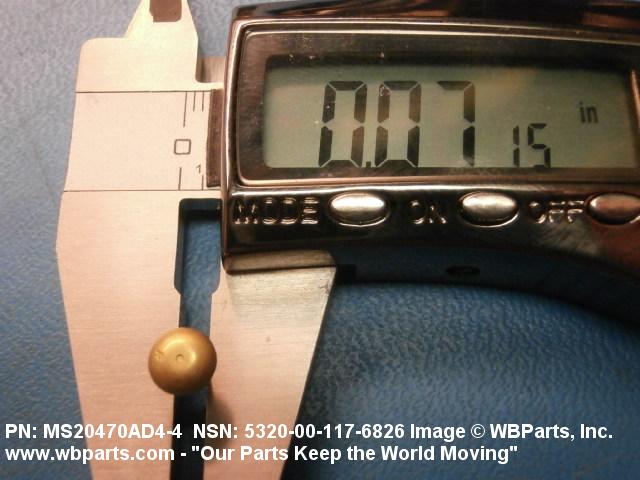

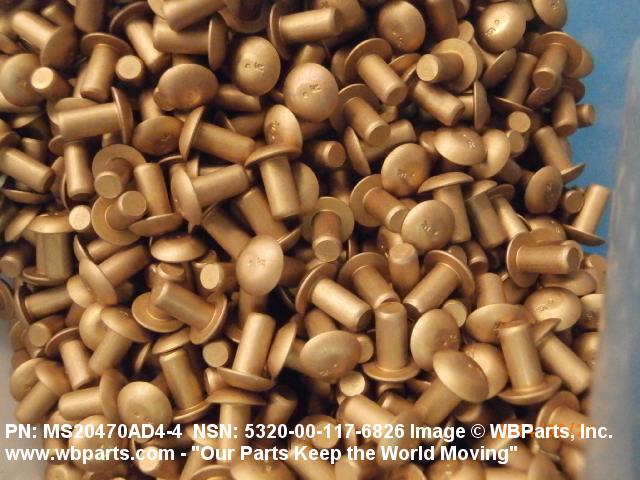

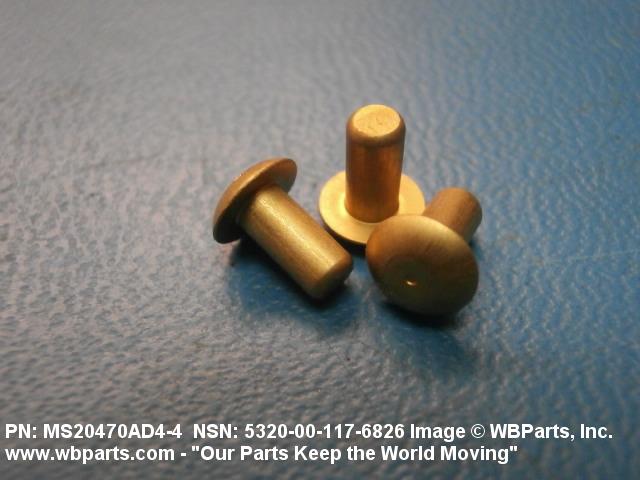

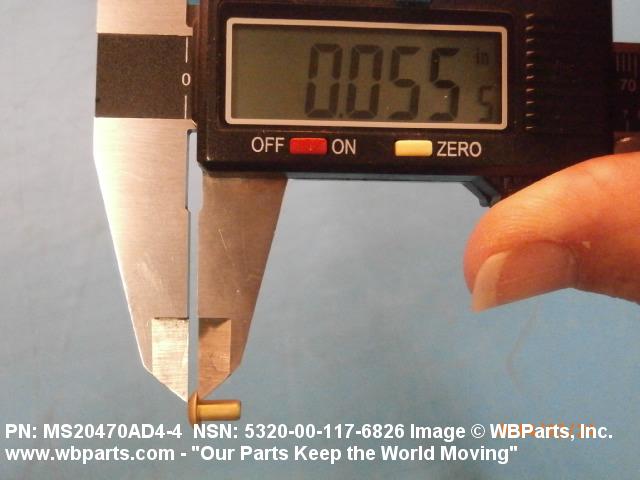

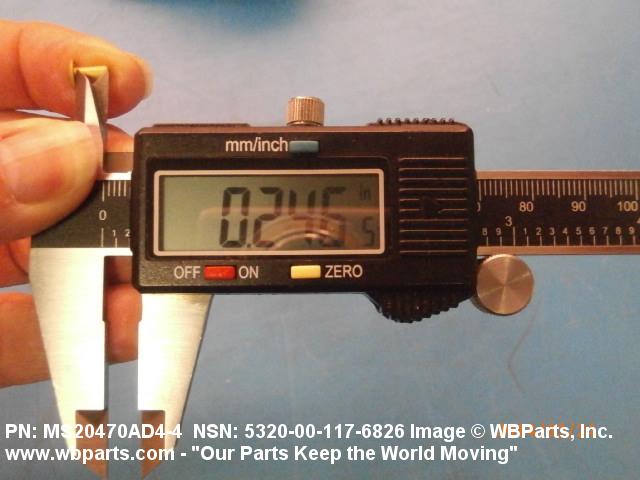

Drawings & Photos | NSN 5320-00-117-6826

Part Number	Request Date	QTY	Origin
MS20470AD44	2025-12-345	200	Sweden
MS20470AD44	2025-12-338	4	us
MS20470AD44	2025-02-33	3000	AE
MS20470AD44	2024-12-344	2	United States
MS20470AD44	2024-10-291	250	us
5320-00-117-6826	2024-10-275	1000	Singapore
MS20470AD44	2024-06-173	86834	United States
MS20470AD44	2024-05-141	1850	US
MS20470AD44	2023-12-346	804	UK
MS20470AD44	2023-12-346	804	UK
MS20470AD44	2023-12-341	1	FR
5320-00-117-6826	2023-10-283	10	AE
MS20470AD44	2023-09-264	34000	ZA
5320-00-117-6826	2023-08-228	20000	TR
MS20470AD44	2023-08-214	1	US
MS20470AD44	2023-07-201	9000	US
MS20470AD44	2023-07-201	9000	US
MS20470AD44	2023-03-82	6	IN
5320-00-117-6826	2023-02-48	8	Malta
MS20470AD44	2022-12-347	16	United States
MS20470AD44	2022-12-347	92	United States
MS20470AD44	2022-12-347	126	United States
MS20470AD44	2022-12-347	3000	United States
MS20470AD44	2022-08-236	5	South Africa
AN470AD44	2022-01-21	100	ES
MS20470AD44	2022-01-11	32	Malta
MS20470AD44	2021-01-05	1000	China
AN470AD44	2020-11-315	5	United States
MS20470AD4-4	2020-06-174	160	Hong Kong
MS20470AD4-4	2020-05-147	1000	US
MS20470AD44	2019-09-253	1068	Australia
5320-00-117-6826	2019-03-64	19100	DIBBS
MS20470AD44	2019-02-36	1	United States
5320-00-117-6826	2018-12-350	19100	DIBBS
MS20470AD44	2018-10-281	48	United States
5320-00-117-6826	2018-07-204	19100	DIBBS
AN470AD44	2018-07-200	280	US
5320-00-117-6826	2018-02-50	1	United States
MS20470AD44	2018-01-09	200	KE
5320-00-117-6826	2017-12-354	1	DIBBS-RFPs
MS20470AD44	2017-09-269	1	us
5320-00-117-6826	2017-09-261	17174	DIBBS
5320-00-117-6826	2017-09-256	11300	DIBBS
5320-00-117-6826	2017-09-244	11300	DIBBS
5320-00-117-6826	2017-08-236	11300	DIBBS
5320-00-117-6826	2017-06-171	11300	DIBBS
5320-00-117-6826	2017-05-145	11300	us
MS20470AD44	2017-05-145	1	Malaysia
5320-00-117-6826	2017-05-143	11300	DIBBS
5320-00-117-6826	2017-05-137	1	Malaysia
5320-00-117-6826	2017-05-135	5561	DIBBS
5320-00-117-6826	2017-05-127	5561	DIBBS
MS20470AD44	2016-10-285	100	United States
MS20470AD44	2016-05-131	4000	Egypt
MS20470AD44	2016-04-110	100	us
AN470AD4-4	2015-05-138	28	United States
AN470AD4-4	2015-05-138	368	United States
AN470AD4-4	2015-05-138	48	United States
AN470AD4-4	2015-05-138	28	United States
AN470AD4-4	2015-05-138	368	United States
AN470AD4-4	2015-05-138	48	United States
MS20470AD44	2015-02-54	100	US
5320-00-117-6826	2014-07-196	1520	AR
MS20470AD44	2014-02-43	1	United States
MS20470AD44	2014-02-36	100	Malaysia
MS20470AD44	2014-01-02	320	US
MS20470AD44	2013-12-345	300	CA
MS20470AD44	2013-11-310	39	MX
MS20470AD44	2013-10-276	1	United States
5320-00-117-6826	2013-09-253	100	Canada
MS20470AD4-4	2013-08-240	2	US
MS20470AD44	2013-08-219	4	US
MS20470AD44	2013-04-102	50	US
MS20470AD44	2012-12-341	100	US
5320-00-117-6826	2012-12-340	500	US
MS20470AD44	2012-04-110	10	US
MS20470AD44	2011-10-304	288	United States
5320-00-117-6826	2011-08-227	1	CO
5320-00-117-6826	2011-04-112	24	United States
5320-00-117-6826	2011-04-112	24	United States
5320-00-117-6826	2011-03-76	6	US
MS20470AD44	2011-02-34	1	US
5320-00-117-6826	2010-10-301	40	US
MS20470AD44	2010-10-298	1000	UK
MS20470AD44	2010-10-291	3000	US
MS20470AD44	2010-09-273	50	US
MS20470AD44	2010-08-224	846	US
5320-00-117-6826	2010-05-124	47	US
5320-00-117-6826	2010-04-103	4	PK
MS20470AD44	2010-02-49	425	US
5320-00-117-6826	2009-10-275	6000	Malta
MS20470AD44	2009-09-253	100	NG
5320-00-117-6826	2009-08-243	10	US
5320-00-117-6826	2009-06-167	8	US
5320-00-117-6826	2009-05-132	20	US
5320-00-117-6826	2009-02-57	54	United States
MS20470AD44	2008-11-319	200	United States
5320-00-117-6826	2008-10-295	220	AR
MS20470AD44	2008-09-256	150	US
5320-00-117-6826	2008-08-220	40	us
5320-00-117-6826	2008-08-219	2000	United States
5320-00-117-6826	2008-07-202	4	US
5320-00-117-6826	2008-06-156	51015	US
5320-00-117-6826	2008-03-73	200	US
MS20470AD44	2007-11-325	5	Iraq
5320-00-117-6826	2006-10-292	5	United Arab Emirates

Cross Reference | NSN 5320-00-117-6826

Part Number	Cage Code	Manufacturer
080198033	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
1018992-004	05037	ANACOMP, INC.
1018992-004	0HBH2	LEXEL IMAGING SYSTEMS, INC.
117436-002	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
126831	00198	PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP.
126831	R1120	SATAIR A/S
25-2AD4-4	38597	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
413719-076	02964	AMERICAN STERILIZER COMPANY DBA AMSCO STERILITY ASSURANCE
413719-076	0NWN1	STERIS CORPORATION
5-4-1323-3-53	05699	BRUNSWICK CORP DEFENSE DIV
5-4-1323-3-53	81337	ARMY, UNITED STATES DEPARTMENT OF THE
5320001176826	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
939.17.81.234	S4080	PILATUS AIRCRAFT LTD
AN470AD4-4	81352	AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS
AN470AD4-4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS125739	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS2228-404	U1653	SOCIETY OF BRITISH AEROSPACE COMPANI LTD SBAC
MS20470AD4-4	2N935	B/E AEROSPACE, INC. DBA BE AEROSPACE CONSUMABLES
MS20470AD4-4	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS20470AD4-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-117-6826

Compare

Related Products | NSN 5320-00-117-6826

5320-00-117-6827, 5320-00-117-6828, 5320-00-117-6829, 5320-00-117-6830, 5320-00-117-6831

Technical Data | NSN 5320-00-117-6826

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2117 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SHEAR STRENGTH	26000 SINGLE POUNDS PER SQUARE INCH
HEAD STYLE	C28 UNIVERSAL
HEAD HEIGHT	0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM

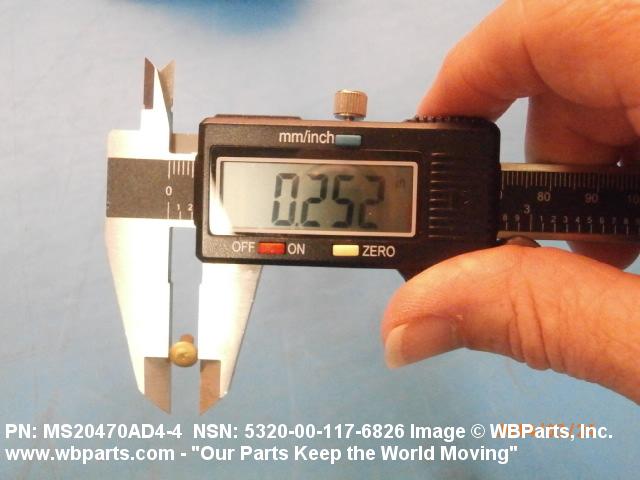

HEAD MAJOR DIAMETER	0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM
SHANK STYLE	D10 STRAIGHT WITH RADIUS CHAMFERED TIP

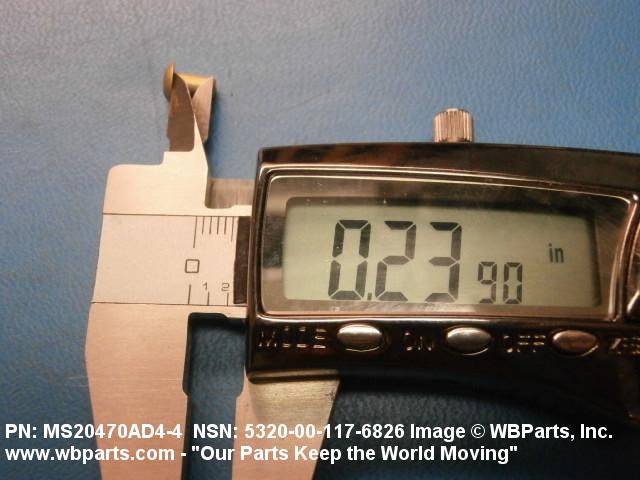

FASTENER LENGTH	0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM

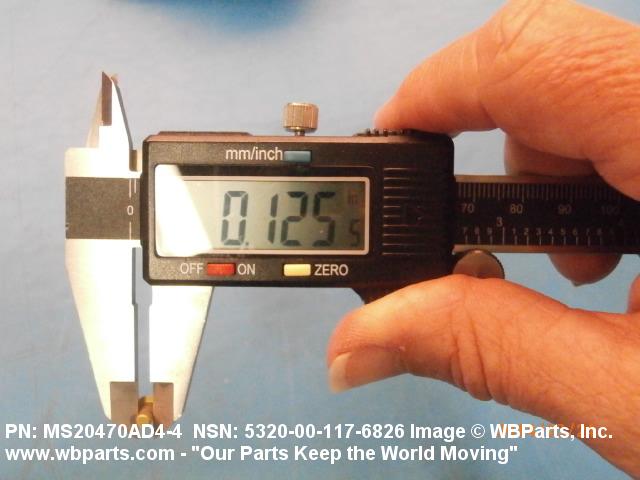

SHANK DIAMETER	0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM
GRIP LENGTH	0.052 INCHES MINIMUM AND 0.072 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5320-00-117-6826

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013630	ALUM RIVETS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-00-117-6826

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds
