NSN 5320-00-117-6948 MS20426AD43, MS20426AD4-3, NOR23032333
Product Details | SOLID RIVET
5320-00-117-6948 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20426AD43, MS20426AD4-3, NOR23032333, NOR2-303-23-3-3, NOR230323335, NOR2-303-23-3-3-5, AN426AD43, AN426AD4-3, BACR15DP4AD3, 1761500334, 17-615-00-334, 5320-00-117-6948, 00-117-6948, 5320001176948, 001176948
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-117-6948 | 00861 ( RIVET, SOLID ) |

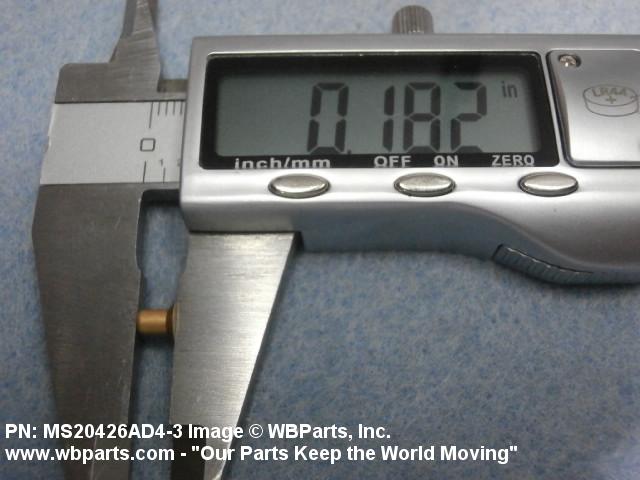

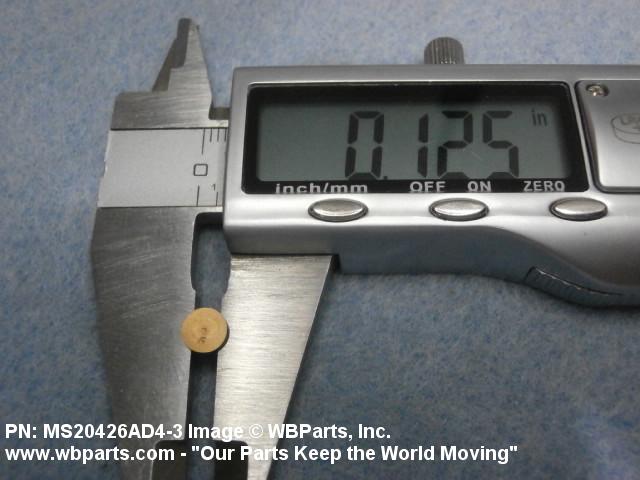

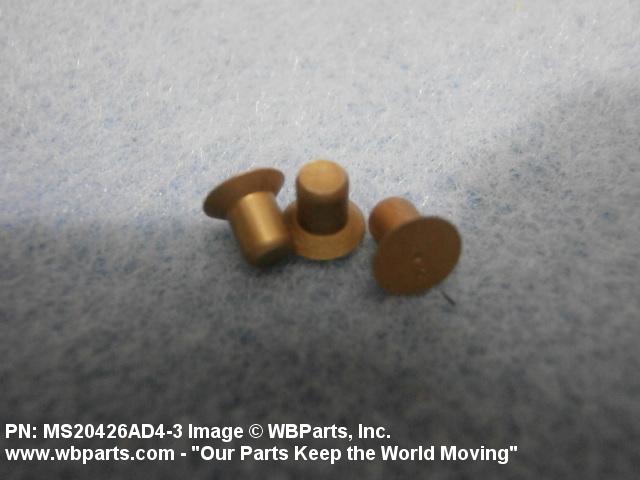

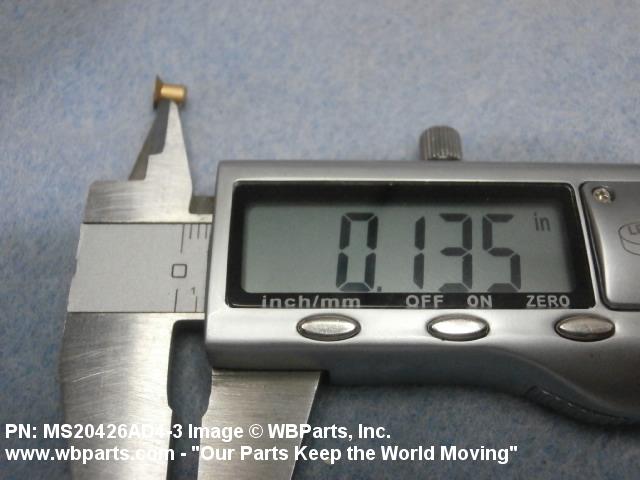

Drawings & Photos | NSN 5320-00-117-6948
Demand History | NSN 5320-00-117-6948
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20426AD43 | 2024-09-249 | 148 | US |
| MS20426AD43 | 2024-04-94 | 450 | US |
| MS20426AD43 | 2023-07-207 | 40 | US |
| AN426AD43 | 2022-11-322 | 4 | South Africa |
| MS20426AD43 | 2021-07-194 | 500 | United States |
| MS20426AD4-3 | 2020-05-147 | 1000 | US |
| 5320-00-117-6948 | 2019-01-30 | 1000 | United States |
| MS20426AD43 | 2018-06-177 | 22 | United States |
| 5320-00-117-6948 | 2018-02-37 | 459 | DIBBS |
| 5320-00-117-6948 | 2017-12-337 | 364 | DIBBS |
| 5320-00-117-6948 | 2017-05-136 | 1 | Malaysia |
| MS20426AD43 | 2017-05-122 | 1 | United States |
| 5320-00-117-6948 | 2017-03-78 | 316 | DIBBS |
| 5320-00-117-6948 | 2016-06-154 | 312 | DIBBS |
| MS20426AD43 | 2012-10-277 | 1000 | us |
| MS20426AD4-3 | 2012-06-158 | 100 | HK |
| 5320-00-117-6948 | 2012-06-157 | 8 | US |
| MS20426AD43 | 2012-03-73 | 15840 | United States |
| MS20426AD43 | 2011-03-70 | 30 | VE |
| MS20426AD43 | 2011-02-41 | 2800 | US |
| MS20426AD43 | 2011-02-34 | 1 | US |
| 5320-00-117-6948 | 2011-01-28 | 1 | US |
| MS20426AD43 | 2008-12-346 | 25 | US |
| 5320-00-117-6948 | 2008-12-337 | 100 | us |
| 5320-00-117-6948 | 2008-11-311 | 1 | Colombia |
| MS20426AD43 | 2007-11-325 | 800 | US |
Cross Reference | NSN 5320-00-117-6948
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17-615-00-334 | 78022 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| AN426AD4-3 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| BACR15DP4AD3 | 77272 | THE BOEING COMPANY DBA BOEING |
| BACR15DP4AD3 | 81205 | THE BOEING COMPANY DBA BOEING |
| MS20426AD4-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20426AD4-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NOR2-303-23-3-3 | A2142 | ALENIA AERMACCHI SPA |
| NOR2-303-23-3-3-5 | A2142 | ALENIA AERMACCHI SPA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-117-6948
Related Products | NSN 5320-00-117-6948
Technical Data | NSN 5320-00-117-6948
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 26000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.221 INCHES MINIMUM AND 0.229 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |
| FASTENER LENGTH | 0.178 INCHES MINIMUM AND 0.198 INCHES MAXIMUM |
| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | W/S: HELICOPTER, MH-53E; MISSILE, ALL-WEATHER ANTI-SHIP, HARPOON (AGM-84); SWITCHING UNIT, TELEPHONE, AUTO; HELICOPTER, ADVANCE ATTACK, AH-1W; HELICOPTER, SEARCH AND RESCUE, HH-60H; AIRCRAFT, (AC-130H, MC-130H, EC-130E, HC-130); AIRCRAFT, C-2A (REPROCURED); MISSILE, AIR-TO-AIR, PHOENIX (AIM-54); HELICOPTER, CARRIER BASED ASW, SH-60F |
Restrictions/Controls & Freight Information | NSN 5320-00-117-6948
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
