NSN 5320-00-286-0661 HL5708MC, HL570-8MC, ST3M525N4M
Product Details | PIN-RIVET COLLAR

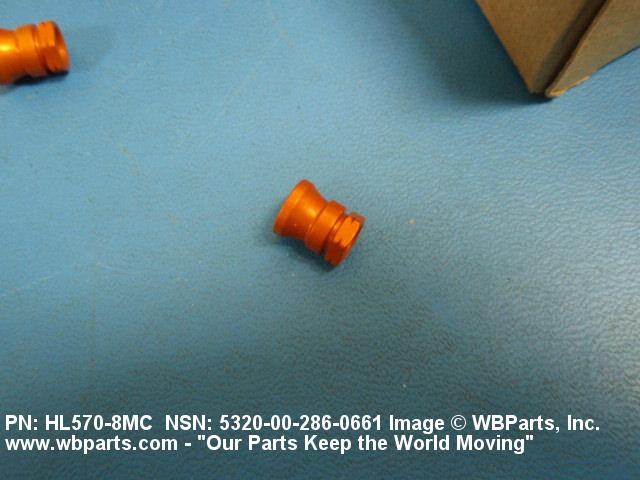

5320-00-286-0661 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HL5708MC, HL570-8MC, ST3M525N4M, ST3M525N4ME, 10123578 , 3929AS16204, 3929AS1620-4 , 5320-00-286-0661, 00-286-0661, 5320002860661, 002860661
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 SEP 1973 | 00-286-0661 | 67166 ( COLLAR, PIN-RIVET ) |
Drawings & Photos | NSN 5320-00-286-0661
Demand History | NSN 5320-00-286-0661
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-286-0661 | 2025-10-293 | 4000 | US |
| 5320-00-286-0661 | 2025-07-196 | 430 | Spain |
| 5320-00-286-0661 | 2023-07-193 | 35 | Spain |
| 5320-00-286-0661 | 2023-07-193 | 120 | Spain |
| HL5708MC | 2023-05-145 | 4586 | United States |
| ST3M525N4ME | 2023-05-145 | 4586 | United States |
| 5320-00-286-0661 | 2023-01-18 | 64 | MANUAL |
| 5320-00-286-0661 | 2023-01-18 | 1664 | MANUAL |
| ST3M525N4ME | 2023-01-18 | 1664 | Saudi Arabia |
| ST3M525N4ME | 2023-01-18 | 64 | Saudi Arabia |
| HL570-8MC | 2022-04-107 | 8302 | DIBBS |
| ST3M525N4ME | 2021-09-267 | 352 | United States |
| 5320-00-286-0661 | 2021-03-69 | 1416 | US |
| ST3M525N4ME | 2021-03-64 | 1376 | United States |
| ST3M525N4ME | 2021-02-53 | 132 | us |
| ST3M525N4ME | 2018-01-23 | 4 | United States |
| 5320-00-286-0661 | 2017-12-354 | 8 | US |
| ST3M525N4ME | 2017-07-198 | 75 | Saudi Arabia |
| ST3M525N4ME | 2017-01-23 | 4 | United States |
| 5320-00-286-0661 | 2015-08-230 | 8471 | DIBBS |
| 5320-00-286-0661 | 2015-06-154 | 1570 | DIBBS |
| 5320-00-286-0661 | 2014-07-194 | 7734 | DIBBS |
| 5320-00-286-0661 | 2013-09-246 | 1 | DIBBS-RFPs |
| ST3M525N4ME | 2009-09-267 | 600 | US |
| ST3M525N4ME | 2009-09-267 | 600 | US |
| ST3M525N4ME | 2009-09-267 | 600 | US |
| ST3M525N4ME | 2009-09-267 | 600 | US |
| ST3M525N4ME | 2009-09-267 | 600 | US |
| ST3M525N4ME | 2009-09-267 | 600 | US |
| ST3M525N4ME | 2009-09-267 | 600 | US |
| HL570-8MC | 2009-09-266 | 600 | United States |
| ST3M525N4ME | 2009-09-266 | 600 | United States |
| ST3M525N4ME | 2009-09-244 | 720 | United States |
| 5320-00-286-0661 | 2007-12-337 | 800 | United States |
Cross Reference | NSN 5320-00-286-0661
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3929AS1620-4 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| HL570-8MC | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| HL570-8MC | 50392 | SPS TECHNOLOGIES INC |
| HL570-8MC | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL570-8MC | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL570-8MC | 73197 | HI-SHEAR CORPORATION |
| HL570-8MC | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HL570-8MC | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| ST3M525N4M | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST3M525N4ME | 76301 | BOEING COMPANY, THE DBA BOEING |
