NSN 5320-00-286-0665 ST3M429C36D1, ST3M429C3-6D1, TLC300L36E
Product Details | PIN-RIVET
5320-00-286-0665 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: ST3M429C36D1, ST3M429C3-6D1, TLC300L36E, TLC300L3-6E, TLC300L6E, TLC300L-6E, 5320-00-286-0665, 00-286-0665, 5320002860665, 002860665
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 SEP 1973 | 00-286-0665 | 67165 ( PIN-RIVET ) |

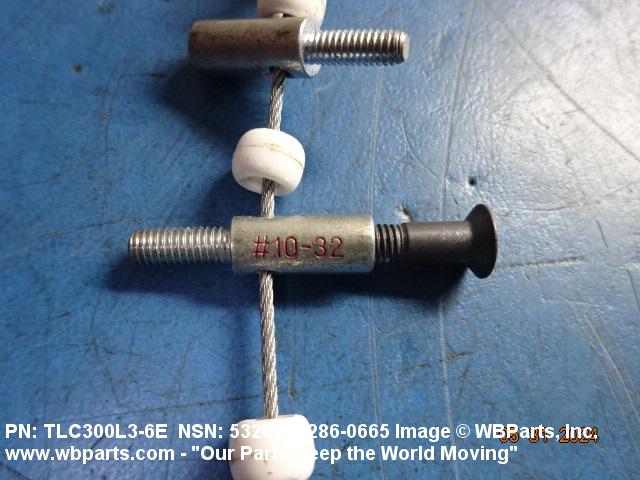

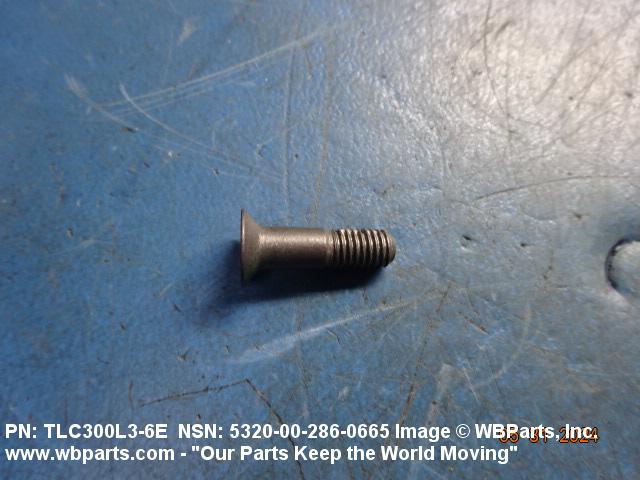

Drawings & Photos | NSN 5320-00-286-0665
Demand History | NSN 5320-00-286-0665
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-286-0665 | 2024-05-122 | 15 | United States |
| 5320-00-286-0665 | 2018-05-122 | 144 | DIBBS |
| 5320-00-286-0665 | 2018-03-65 | 40 | DIBBS |
| 5320-00-286-0665 | 2018-03-63 | 19 | DIBBS |
| 5320-00-286-0665 | 2018-01-01 | 11 | DIBBS |
| 5320-00-286-0665 | 2018-01-01 | 35 | DIBBS |
| 5320-00-286-0665 | 2017-12-347 | 11 | DIBBS |
| 5320-00-286-0665 | 2017-12-345 | 11 | DIBBS |
| 5320-00-286-0665 | 2011-10-293 | 45 | DIBBS |
| 5320-00-286-0665 | 2011-09-261 | 20 | DIBBS |
| 5320-00-286-0665 | 2011-08-238 | 10 | DIBBS |
| 5320-00-286-0665 | 2011-07-184 | 10 | DIBBS |
| 5320-00-286-0665 | 2011-06-168 | 57 | DIBBS |
Cross Reference | NSN 5320-00-286-0665
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST3M429C3-6D1 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST3M429C3-6D1 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| TLC300L-6E | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| TLC300L-6E | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| TLC300L-6E | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| TLC300L-6E | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| TLC300L-6E | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| TLC300L-6E | 97928 | HUCK INTL INC |
| TLC300L3-6E | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| TLC300L3-6E | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| TLC300L3-6E | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| TLC300L3-6E | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| TLC300L3-6E | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| TLC300L3-6E | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| TLC300L3-6E | 97928 | HUCK INTL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-286-0665
Related Products | NSN 5320-00-286-0665
Technical Data | NSN 5320-00-286-0665
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 95000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A9 FLUSH COUNTERSUNK |

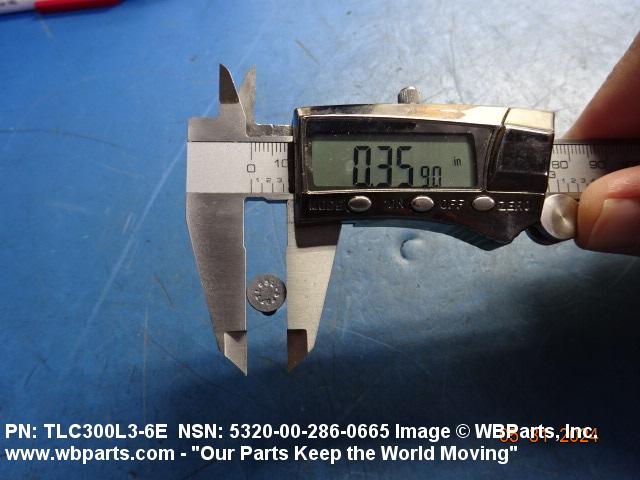

| HEAD MAJOR DIAMETER | 0.398 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | B33 PIN-RIVET, TAPERED, THREADED |

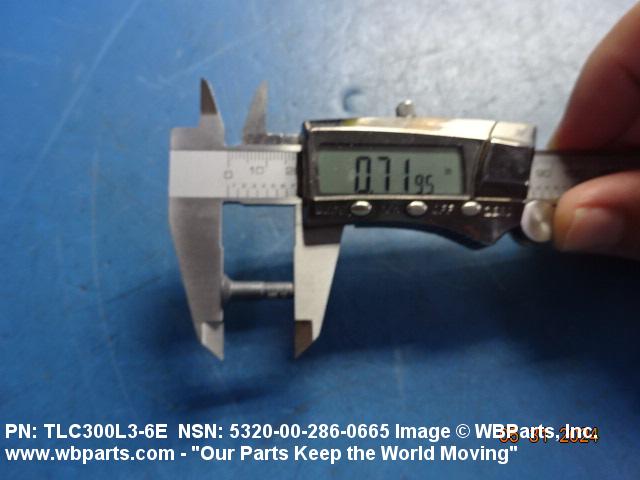

| FASTENER LENGTH | 0.718 INCHES NOMINAL |

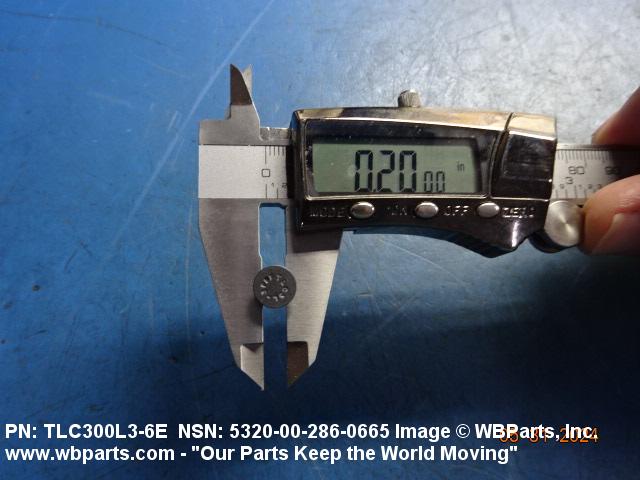

| SHANK DIAMETER | 0.200 INCHES NOMINAL |
| TIP DIAMETER | 0.1958 INCHES NOMINAL |

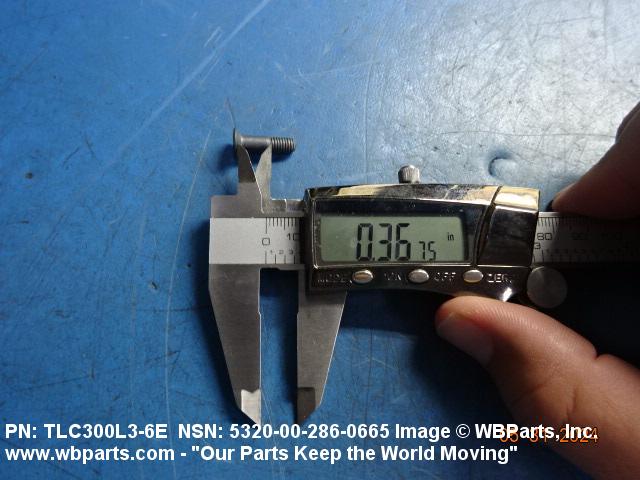

| GRIP LENGTH | 0.375 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL AND DRY FILM |
| MANUFACTURERS CODE | 97928 |
| DESIGN CONTROL REFERENCE | TLC300L3-6E |
