NSN 5320-00-291-5451 MA441547, MA4415-4-7, AICL4187
Product Details | PIN-RIVET

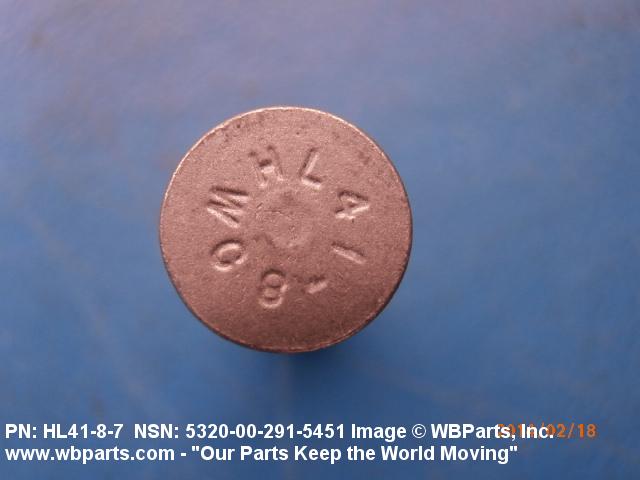

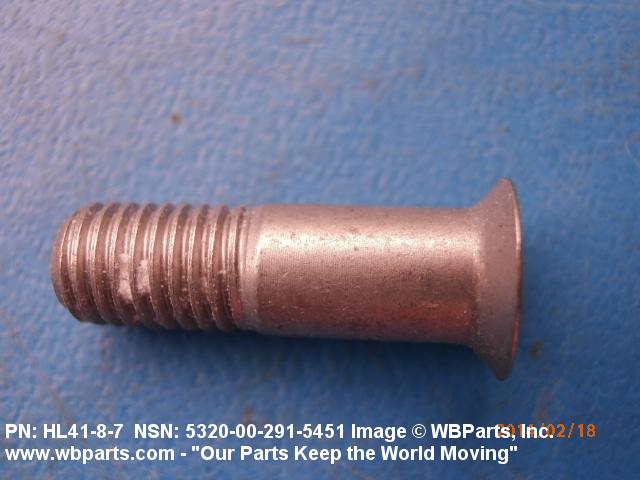

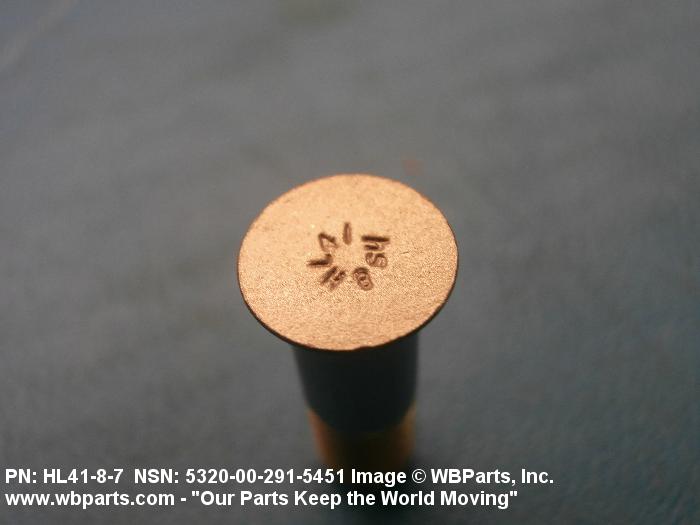

5320-00-291-5451 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: MA441547, MA4415-4-7, AICL4187, AICL41-8-7, HL4187, HL41-8-7, ST25D6087, ST25D60-8-7, ST3M415C47, ST3M415C4-7, 5320-00-291-5451, 00-291-5451, 5320002915451, 002915451
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 SEP 1973 | 00-291-5451 | 67165 ( PIN-RIVET ) |

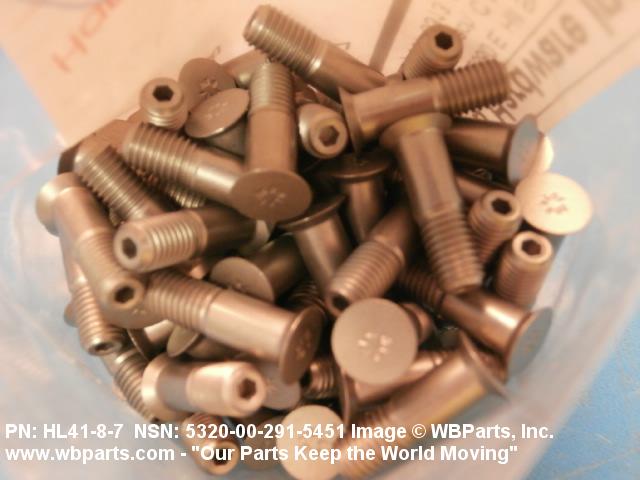

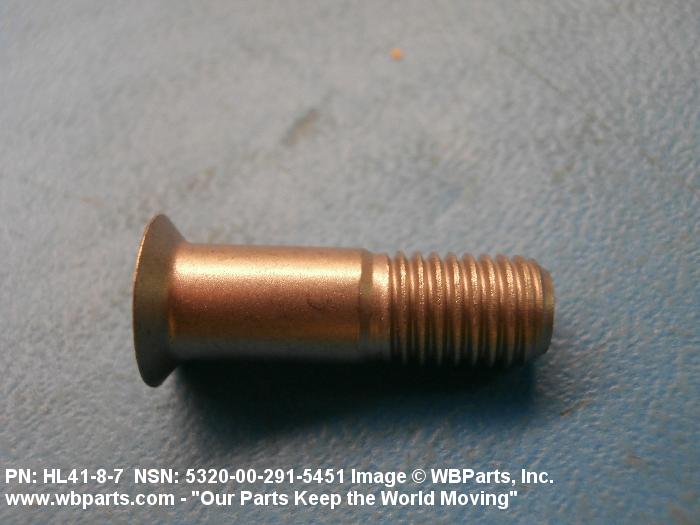

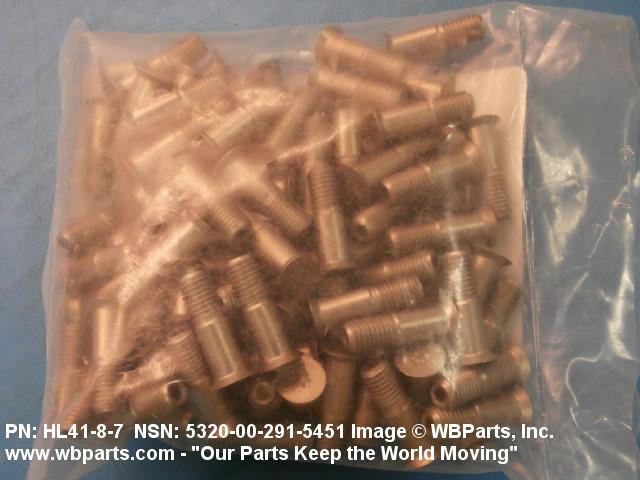

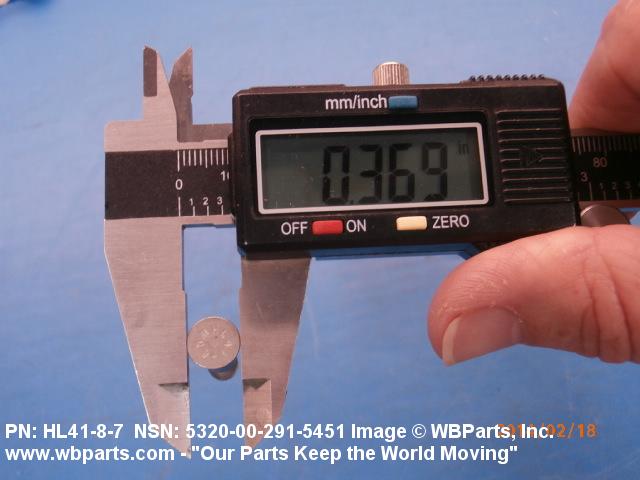

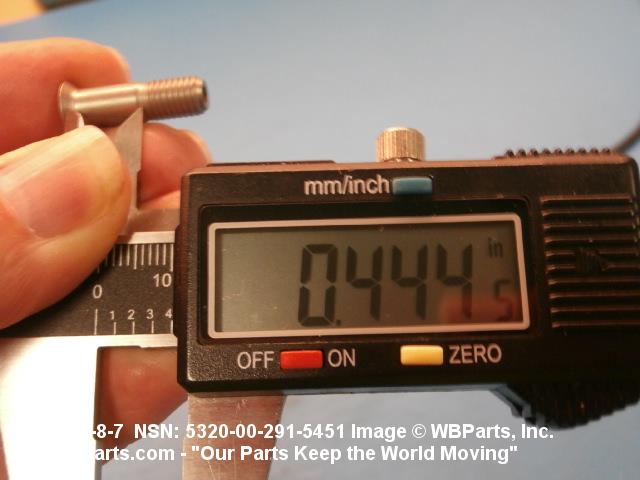

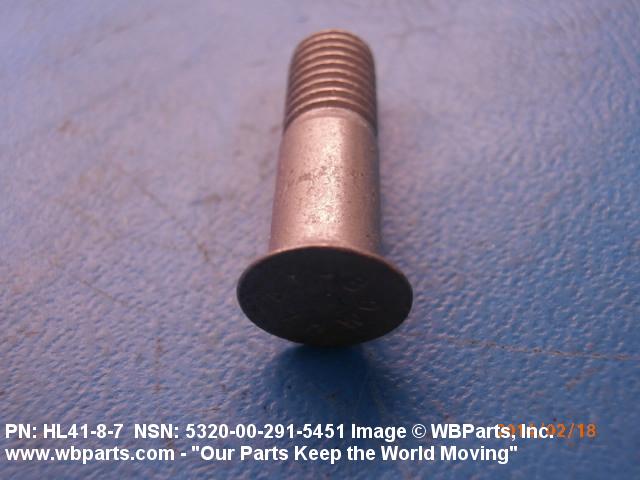

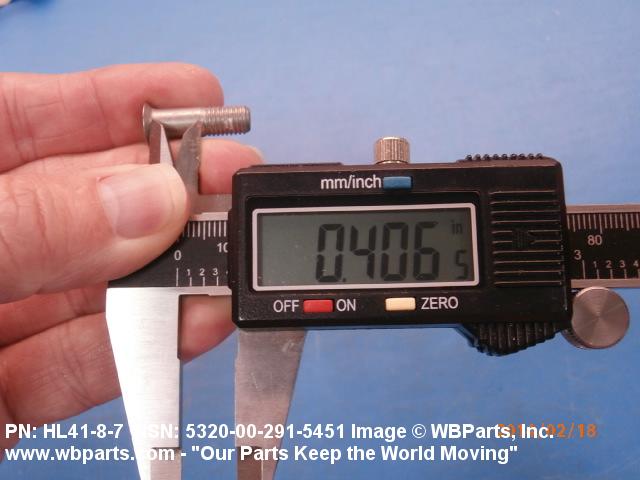

Drawings & Photos | NSN 5320-00-291-5451
Demand History | NSN 5320-00-291-5451
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL41-8-7 | 2021-08-220 | 53 | DIBBS |
| HL41-8-7 | 2020-10-302 | 150 | DIBBS |
| HL41-8-7 | 2020-02-57 | 126 | DIBBS |
| HL41-8-7 | 2019-05-150 | 126 | DIBBS |
| HL41-8-7 | 2019-03-62 | 34 | DIBBS |
| HL41-8-7 | 2019-02-43 | 38 | DIBBS |
| 5320-00-291-5451 | 2017-07-206 | 156 | DIBBS |
| HL4187 | 2014-06-170 | 100 | United States |
| HL4187 | 2014-02-38 | 100 | United States |
| HL4187 | 2014-01-31 | 100 | United States |
| 5320-00-291-5451 | 2011-09-265 | 49 | DIBBS |
| 5320-00-291-5451 | 2011-07-193 | 57 | DIBBS |
| 5320-00-291-5451 | 2009-07-196 | 96 | DIBBS |
| 5320-00-291-5451 | 2008-06-170 | 159 | DIBBS |
Cross Reference | NSN 5320-00-291-5451
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AICL41-8-7 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL41-8-7 | 08539 | QUANTA SYSTEMS CORP DBA DATA-CONTROL SYSTEMS |
| HL41-8-7 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL41-8-7 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| HL41-8-7 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL41-8-7 | 60516 | WEST COAST AEROSPACE INC |
| HL41-8-7 | 73197 | HI-SHEAR CORPORATION |
| HL41-8-7 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HL41-8-7 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL41-8-7 | 97928 | HUCK INTL INC |
| HL41-8-7 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| MA4415-4-7 | 58845 | ABOUNDING SECURITY INC DIV OF MAA CORP |
| ST25D60-8-7 | 04236 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN SPACE SYSTEMS |
| ST3M415C4-7 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-291-5451
Related Products | NSN 5320-00-291-5451
Technical Data | NSN 5320-00-291-5451

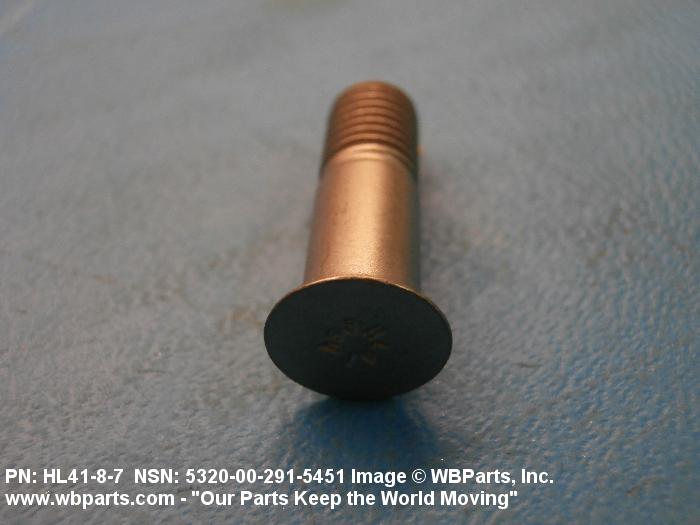

| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | 258,FSCM 73197 MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 95000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A9 FLUSH COUNTERSUNK |

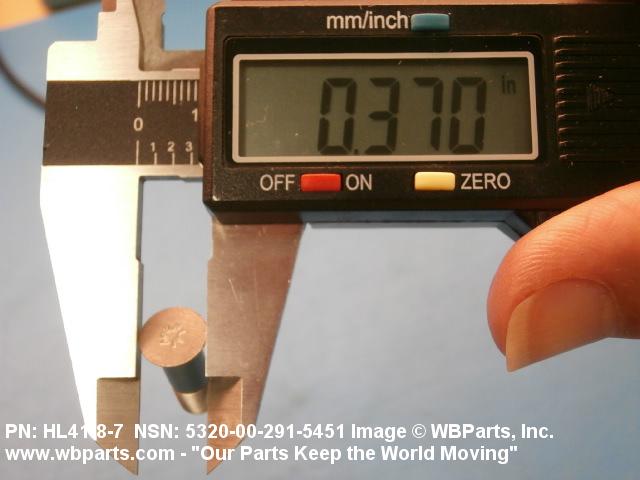

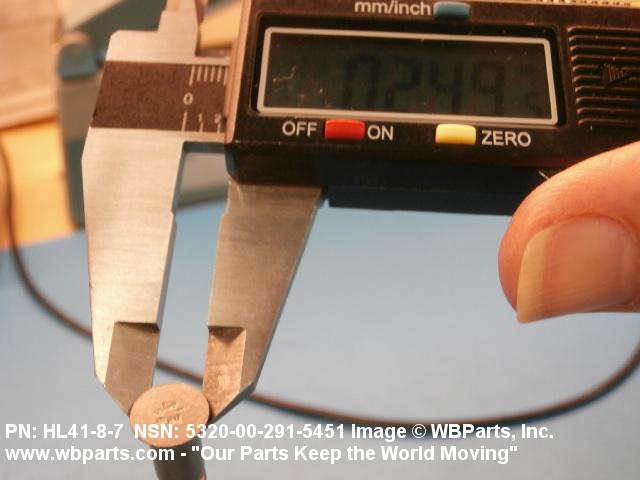

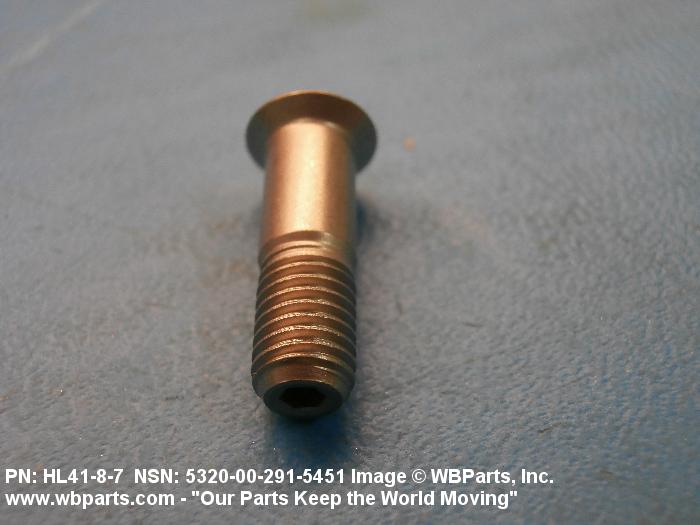

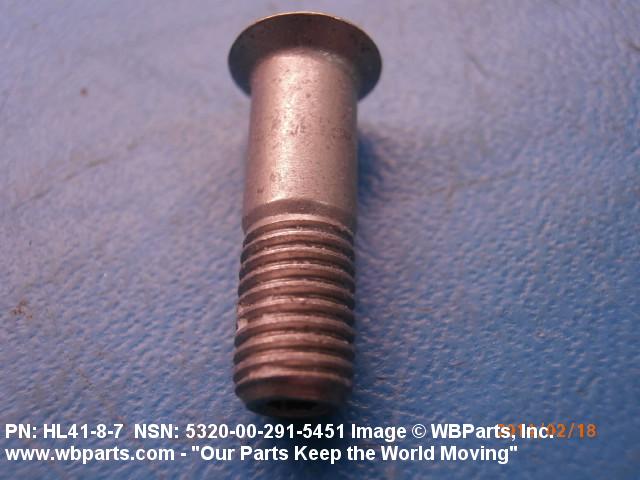

| HEAD MAJOR DIAMETER | 0.390 INCHES MINIMUM AND 0.395 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |

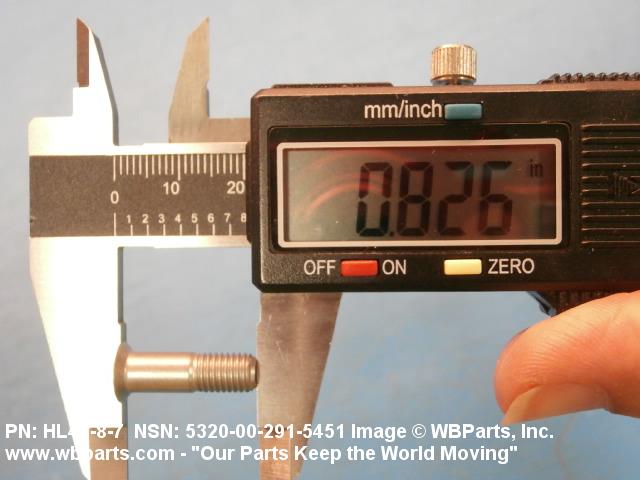

| FASTENER LENGTH | 0.823 INCHES MINIMUM AND 0.843 INCHES MAXIMUM |

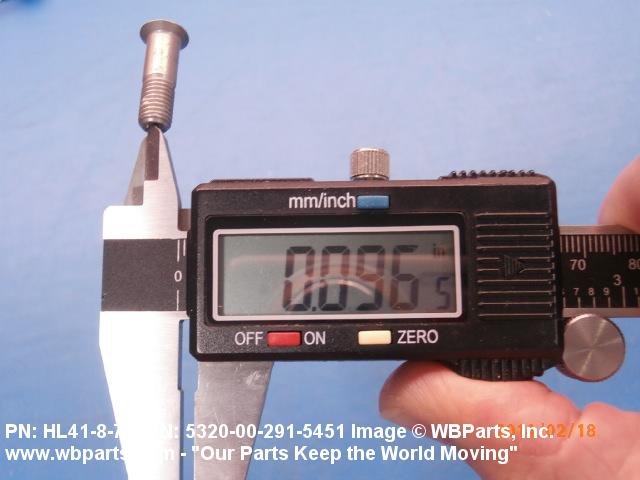

| WIDTH BETWEEN FLATS | 0.095 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |

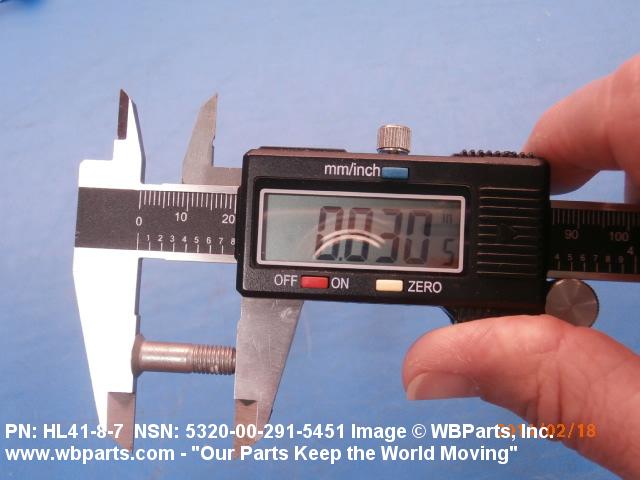

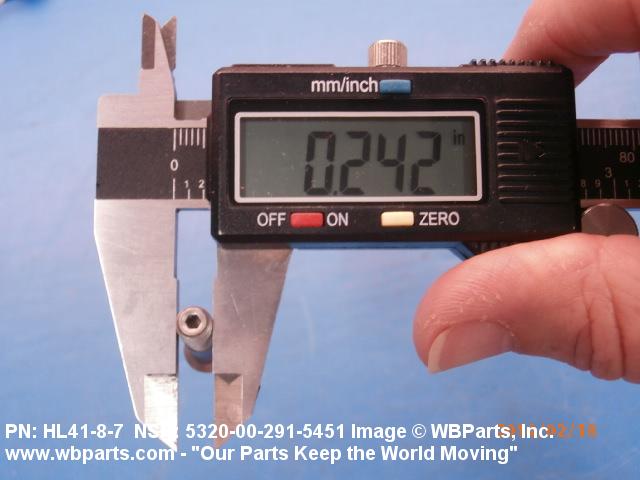

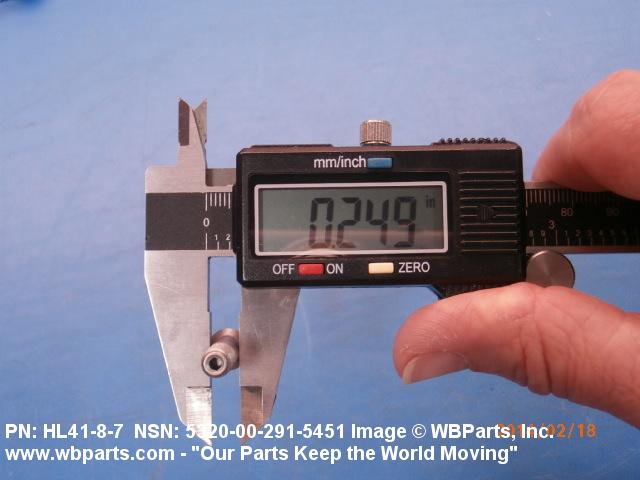

| SHANK DIAMETER | 0.2490 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
