NSN 5320-00-323-6111 MA4457410, MA4457-4-10, AICL644810
Product Details | PIN-RIVET
5320-00-323-6111 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: MA4457410, MA4457-4-10, AICL644810, AIC-L-644-8-10, HL644LL810, HL644LL-8-10, HL644LL8-10, HL644YE810, HL644YE-8-10, ST3M457C410, ST3M457C4-10, 10123686, 5320-00-323-6111, 00-323-6111, 5320003236111, 003236111
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 NOV 1973 | 00-323-6111 | 67165 ( PIN-RIVET ) |

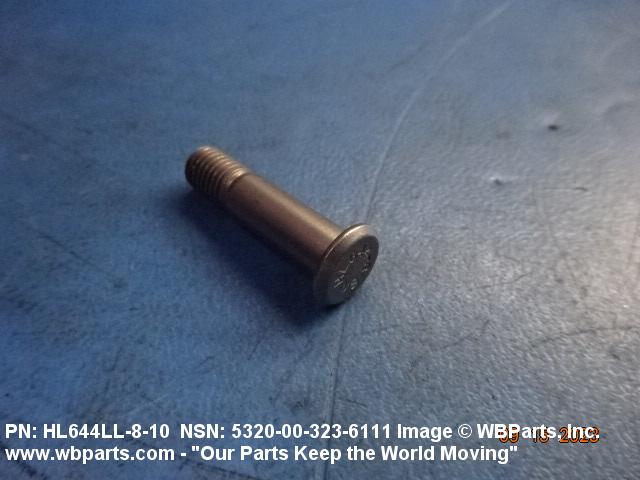

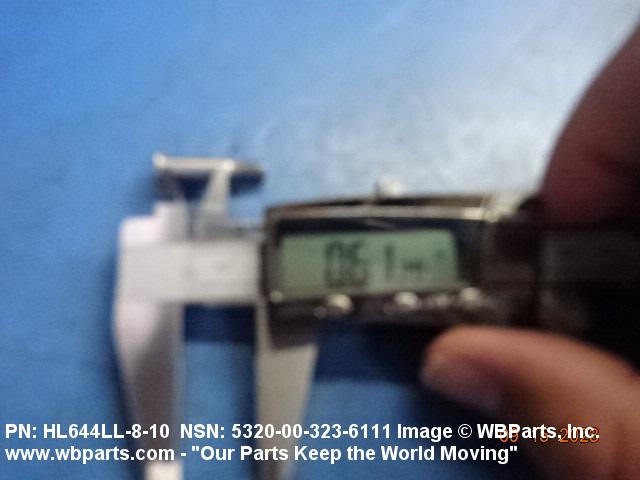

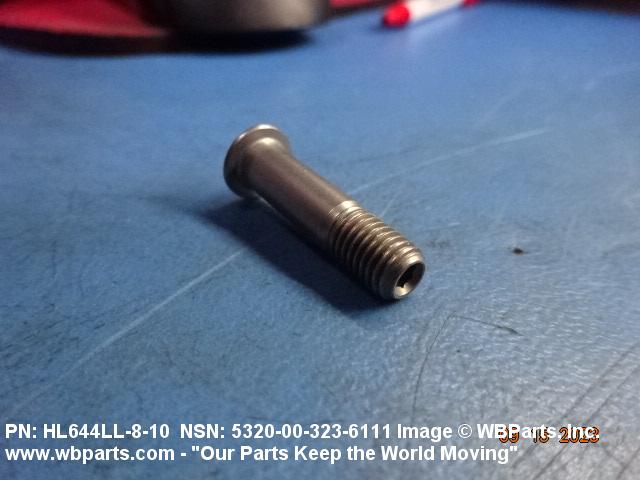

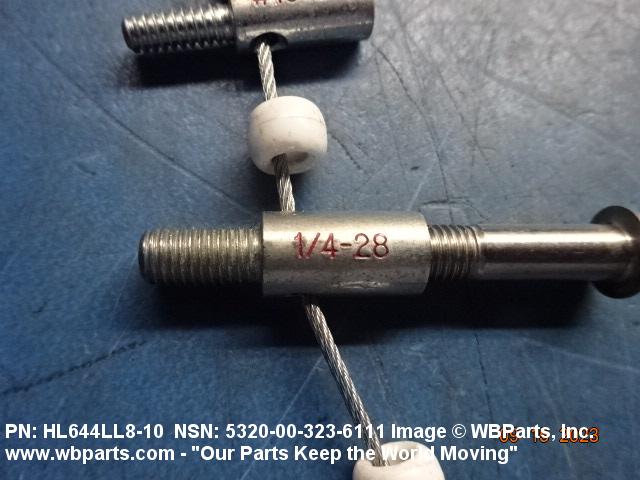

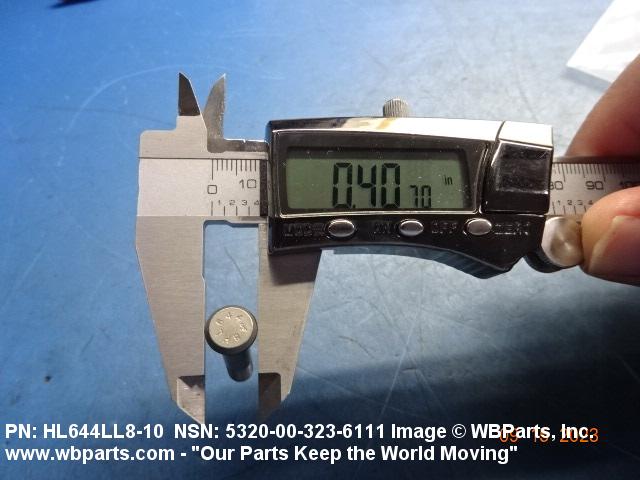

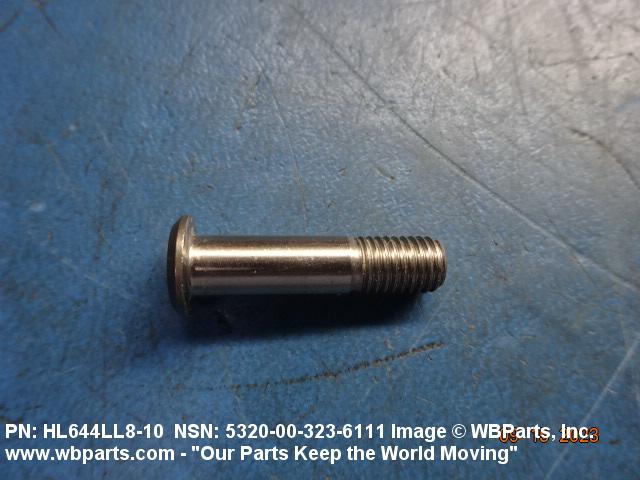

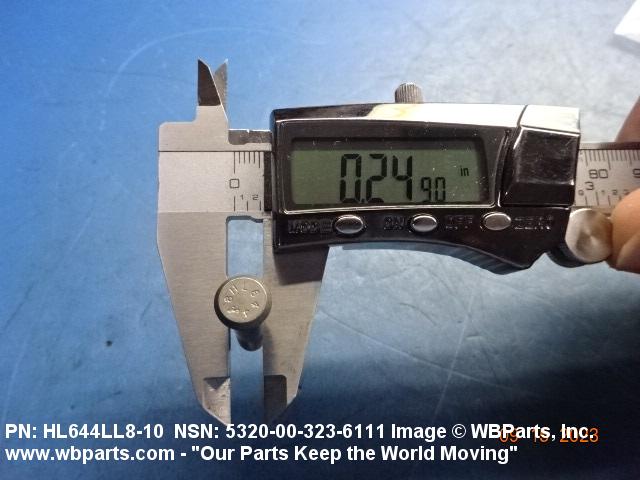

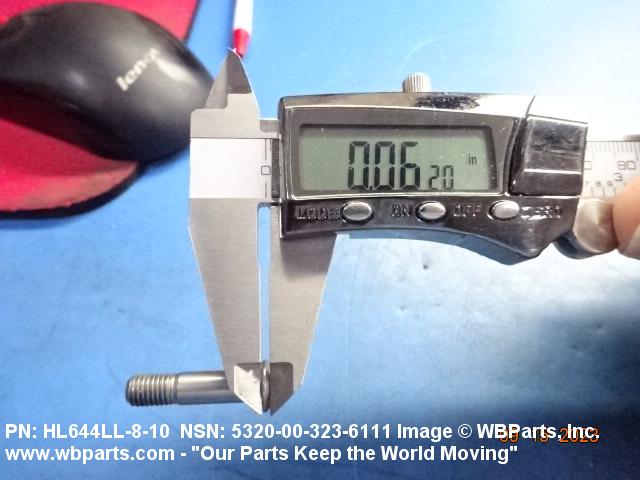

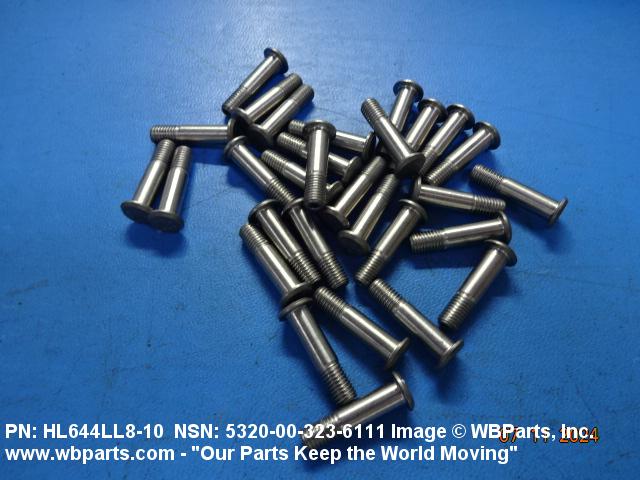

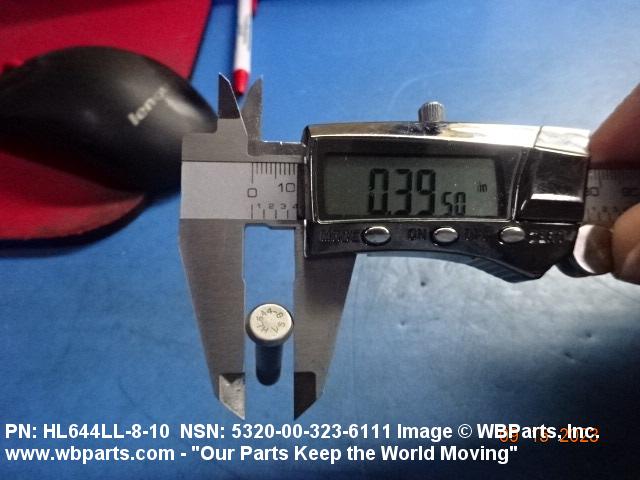

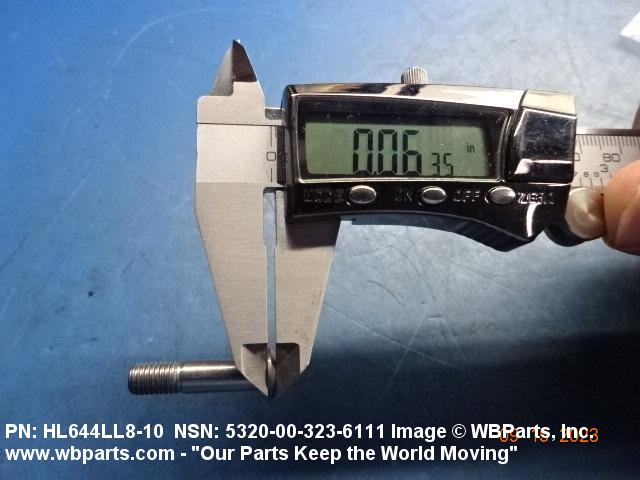

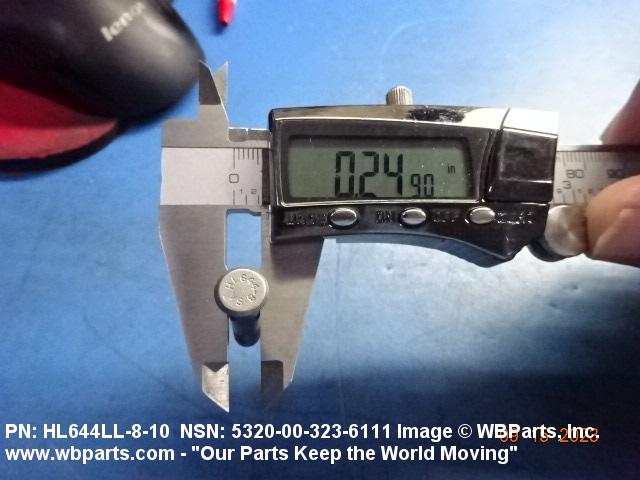

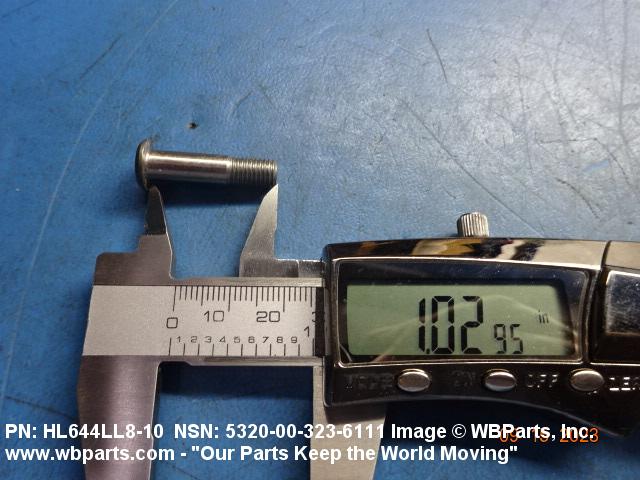

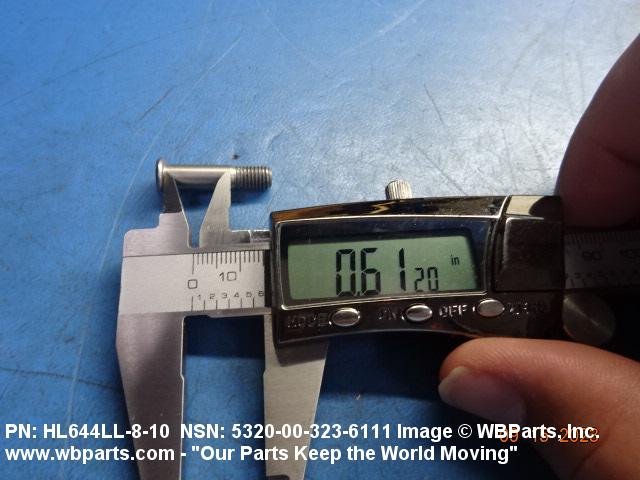

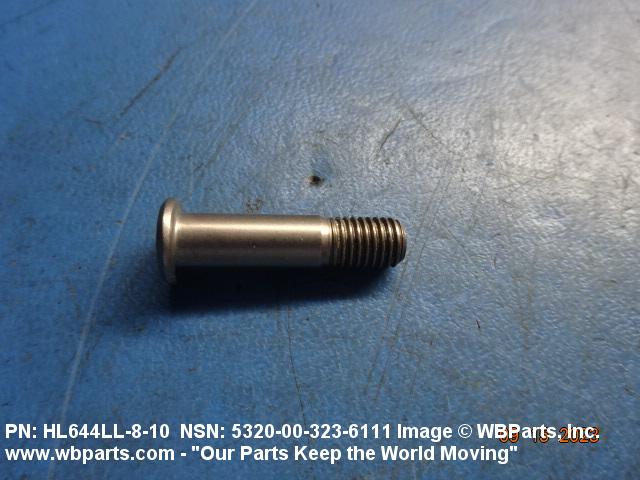

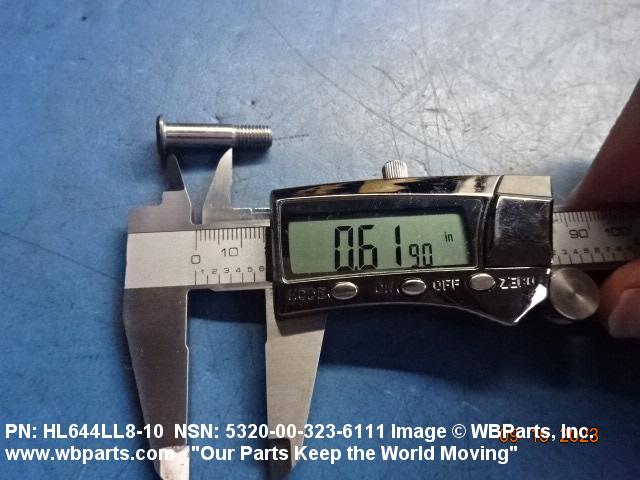

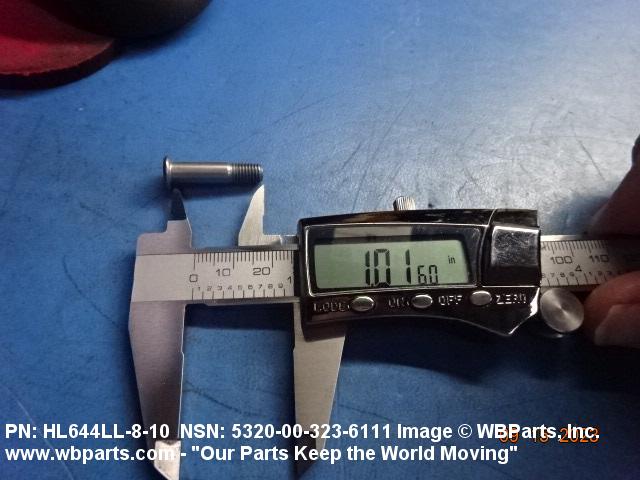

Drawings & Photos | NSN 5320-00-323-6111
Demand History | NSN 5320-00-323-6111
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-323-6111 | 2025-07-198 | 25 | Spain |
| 5320-00-323-6111 | 2024-06-155 | 30 | Spain |
| 5320-00-323-6111 | 2023-07-193 | 30 | Spain |
| 5320-00-323-6111 | 2018-01-31 | 80 | ES |
| AICL644810 | 2016-06-165 | 1 | US |
| HL644YE810 | 2016-06-160 | 110 | US |
| HL644YE810 | 2014-06-160 | 80 | Spain |
| HL644YE810 | 2014-06-157 | 1000 | Spain |
Cross Reference | NSN 5320-00-323-6111
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AIC-L-644-8-10 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL644LL-8-10 | 73197 | HI-SHEAR CORPORATION |
| HL644LL-8-10 | L4528 | LISI AEROSPACE CANADA CORP |
| HL644LL8-10 | 50392 | SPS TECHNOLOGIES INC |
| HL644LL8-10 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL644LL8-10 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL644LL8-10 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| HL644YE-8-10 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL644YE-8-10 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL644YE-8-10 | 60516 | WEST COAST AEROSPACE INC |
| HL644YE-8-10 | 73197 | HI-SHEAR CORPORATION |
| HL644YE-8-10 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL644YE-8-10 | 97928 | HUCK INTL INC |
| HL644YE-8-10 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| HL644YE-8-10 | L4528 | LISI AEROSPACE CANADA CORP |
| MA4457-4-10 | 58845 | ABOUNDING SECURITY INC DIV OF MAA CORP |
| ST3M457C4-10 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-323-6111
Restrictions/Controls & Freight Information | NSN 5320-00-323-6111
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-323-6111
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
