NSN 5320-00-498-3596 HL18612, HL18-6-12, 00-498-3596
Product Details | PIN-RIVET
5320-00-498-3596 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HL18612, HL18-6-12, 5320-00-498-3596, 00-498-3596, 5320004983596, 004983596
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 OCT 1969 | 00-498-3596 | 67165 ( PIN-RIVET ) |

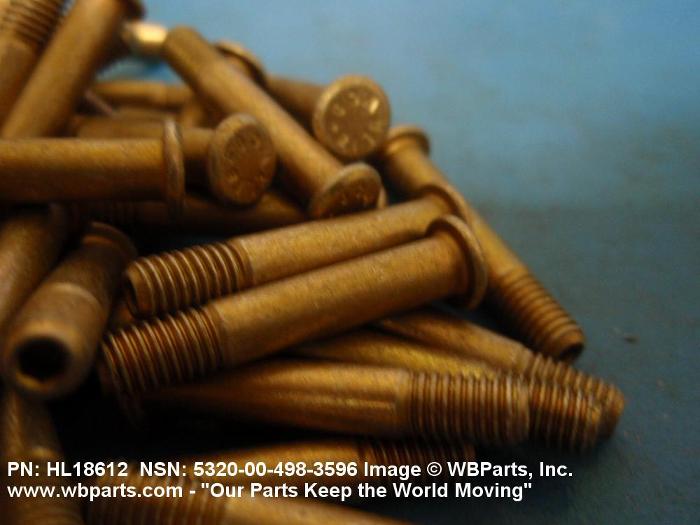

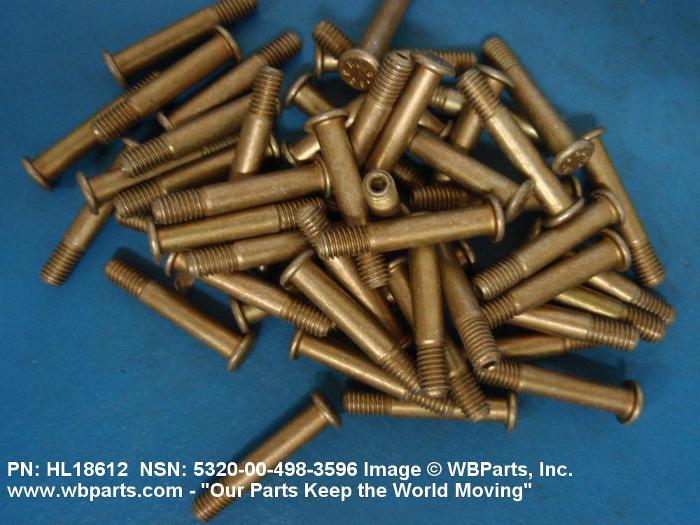

Drawings & Photos | NSN 5320-00-498-3596
Demand History | NSN 5320-00-498-3596
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL18-6-12 | 2024-04-121 | 2 | DIBBS |
| HL18-6-12 | 2024-04-105 | 10 | DIBBS |
| HL18-6-12 | 2024-03-81 | 100 | DIBBS |
| HL18-6-12 | 2022-07-194 | 42 | DIBBS |
| HL18612 | 2011-03-77 | 50 | United States |
Cross Reference | NSN 5320-00-498-3596
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HL18-6-12 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL18-6-12 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL18-6-12 | 73197 | HI-SHEAR CORPORATION |
| HL18-6-12 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL18-6-12 | 97928 | HUCK INTL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-498-3596
Technical Data | NSN 5320-00-498-3596
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HEAD STYLE | A15 FLAT/TINNER'S |
| HEAD HEIGHT | 0.052 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.307 INCHES NOMINAL |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |
| FASTENER LENGTH | 1.094 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.077 INCHES NOMINAL |
| SHANK DIAMETER | 0.188 INCHES NOMINAL |
| GRIP LENGTH | 0.750 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.183 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| MANUFACTURERS CODE | 73197 |
| DESIGN CONTROL REFERENCE | HL18-6-12 |
Restrictions/Controls & Freight Information | NSN 5320-00-498-3596
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
