NSN 5320-00-658-3842 MA442033, MA4420-3-3, AICL4863
Product Details | PIN-RIVET
5320-00-658-3842 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: MA442033, MA4420-3-3, AICL4863, AIC-L-48-6-3, HL4863, HL48-6-3, ST25D5963, ST25D59-6-3, ST3M420C33, ST3M420C3-3, STEM420C33, STEM420C3-3, 10123803 , 642AS072317, 642AS0723-17, 661263, 5320-00-658-3842, 00-658-3842, 5320006583842, 006583842
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 OCT 1970 | 00-658-3842 | 67165 ( PIN-RIVET ) |

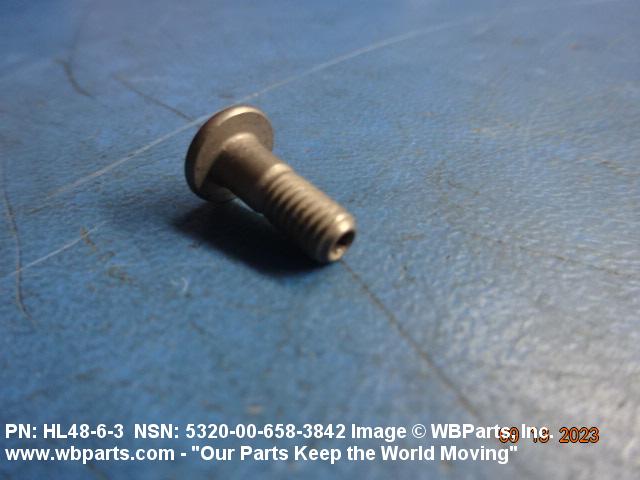

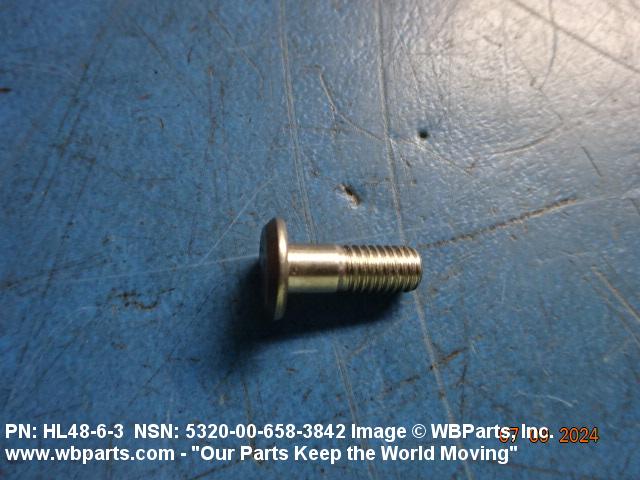

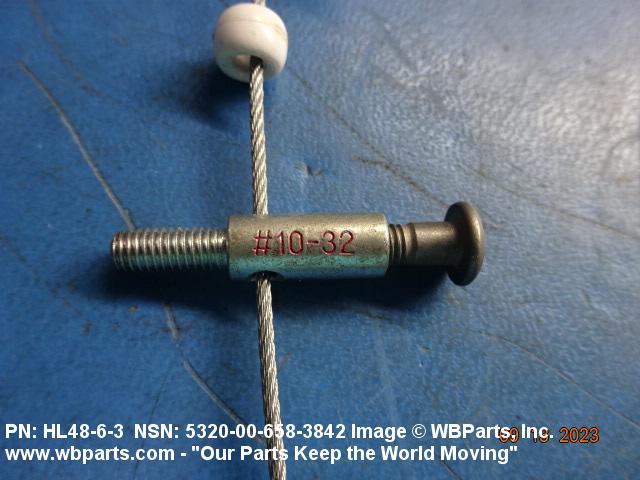

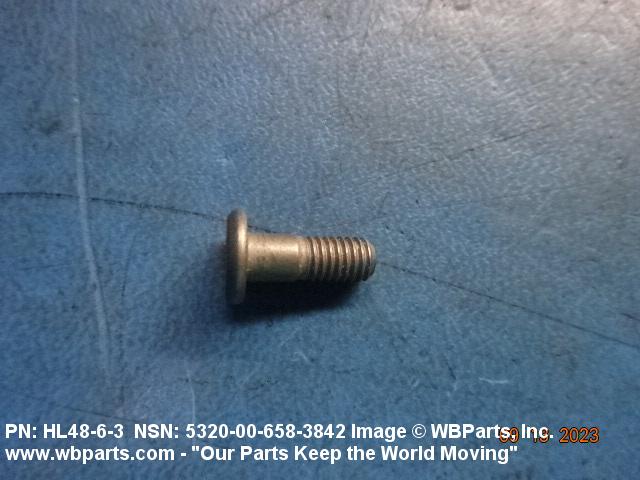

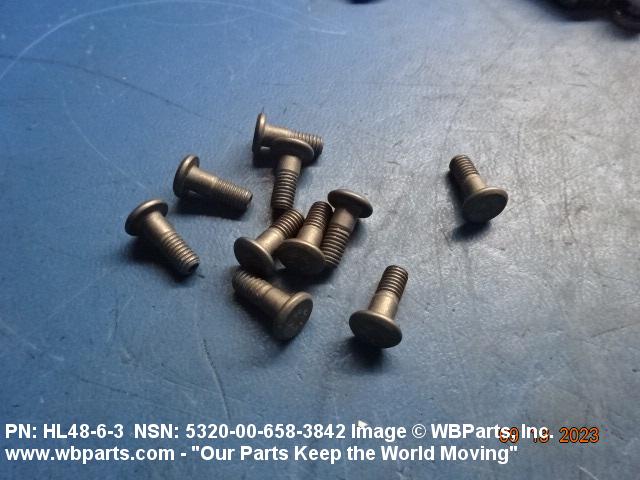

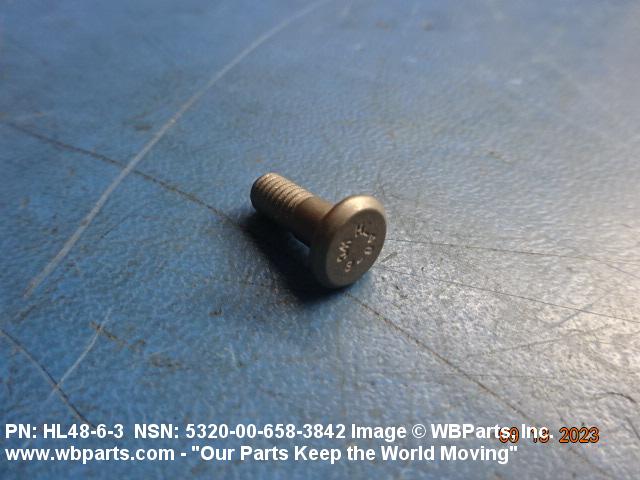

Drawings & Photos | NSN 5320-00-658-3842
Demand History | NSN 5320-00-658-3842
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-658-3842 | 2024-06-155 | 30 | Spain |
| 5320-00-658-3842 | 2023-07-193 | 10 | Spain |
| AICL4863 | 2020-11-317 | 4 | US |
Cross Reference | NSN 5320-00-658-3842
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 642AS0723-17 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 661263 | 04024 | FOREST SERVICE SPECIFICATIONS PROMULGATED BY UNITED STATES |
| 661263 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 661263 | A1387 | NECCHI SPA |
| AIC-L-48-6-3 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL48-6-3 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| HL48-6-3 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL48-6-3 | 60516 | WEST COAST AEROSPACE INC |
| HL48-6-3 | 73197 | HI-SHEAR CORPORATION |
| HL48-6-3 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HL48-6-3 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL48-6-3 | 97928 | HUCK INTL INC |
| HL48-6-3 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| HL48-6-3 | L4528 | LISI AEROSPACE CANADA CORP |
| MA4420-3-3 | 58845 | ABOUNDING SECURITY INC DIV OF MAA CORP |
| ST25D59-6-3 | 04236 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN SPACE SYSTEMS |
| ST3M420C3-3 | 76301 | BOEING COMPANY, THE DBA BOEING |
| STEM420C3-3 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-658-3842
Related Products | NSN 5320-00-658-3842
Technical Data | NSN 5320-00-658-3842
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | 258,FSCM 73197 MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A34 FLAT CHAMFER |

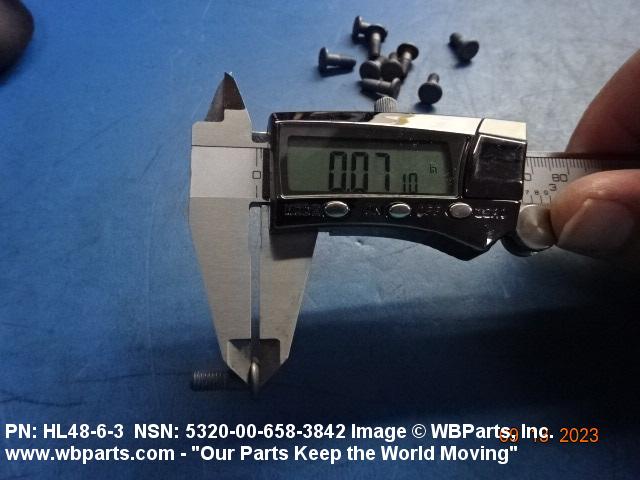

| HEAD HEIGHT | 0.064 INCHES MINIMUM AND 0.074 INCHES MAXIMUM |

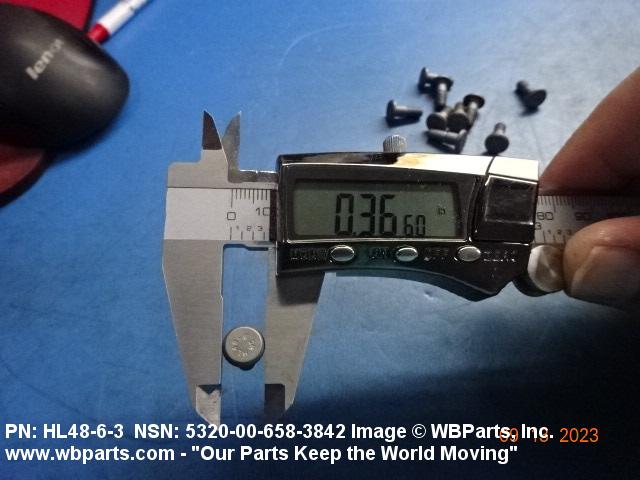

| HEAD MAJOR DIAMETER | 0.357 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |

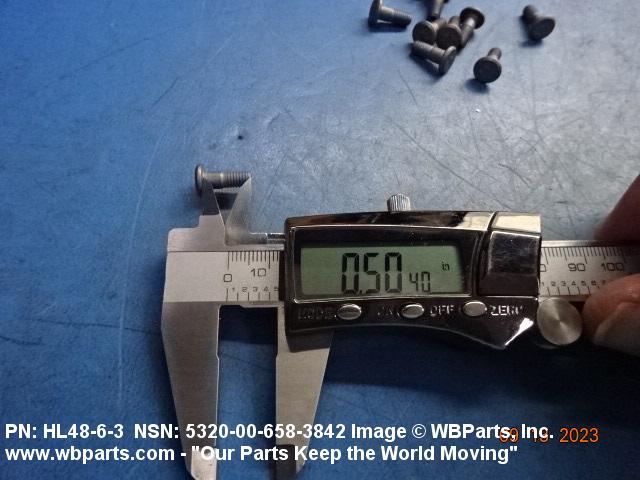

| FASTENER LENGTH | 0.503 INCHES MINIMUM AND 0.523 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.079 INCHES MINIMUM AND 0.081 INCHES MAXIMUM |
| SHANK DIAMETER | 0.1890 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM |
| GRIP LENGTH | 0.193 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| END ITEM IDENTIFICATION | W/S: TICONDEROGA CLASS CG (47); MISSILE, ALL-WEATHER ANTI-SHIP, HARPOON (AGM-84); AIRCRAFT, AWACS, E-3A; ENGINE, AIRCRAFT, TF-33-P-7 (C-141A/B); AIRCRAFT, EAGLE F-15; AIRCRAFT, HX UNIQUE; AIRCRAFT, HORNET F/A-18; AIRCRAFT, HARRIER AV-8B |
Restrictions/Controls & Freight Information | NSN 5320-00-658-3842
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-658-3842
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
