5320-00-660-0763 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: ALPPHE52, ALPPHE5-2, NAS152502, NAS1525-02, NAS15252, NAS1525-2, 2LPE0502, 2LP-E05-02, 5320-00-660-0763, 00-660-0763, 5320006600763, 006600763
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-660-0763 | 67165 ( PIN-RIVET ) |

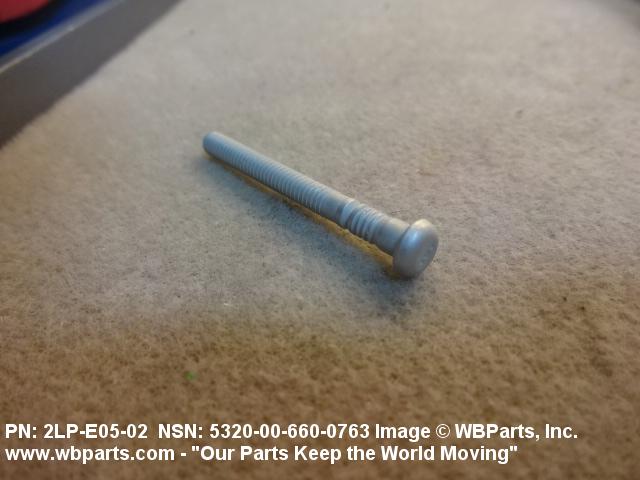

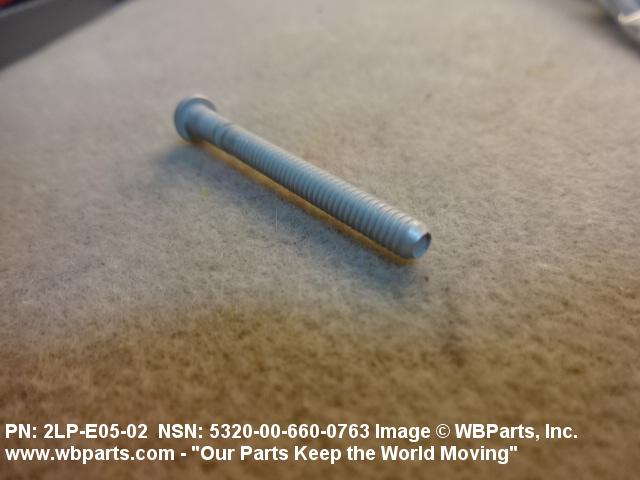

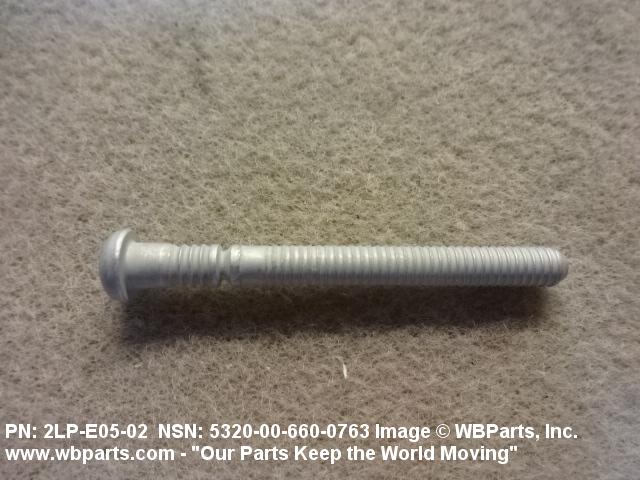

Drawings & Photos | NSN 5320-00-660-0763
Demand History | NSN 5320-00-660-0763
Cross Reference | NSN 5320-00-660-0763
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2LP-E05-02 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| ALPPHE5-2 | 29666 | HUCK MFG CO |
| NAS1525-02 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1525-02 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1525-2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5320-00-660-0763
Related Products | NSN 5320-00-660-0763
5320-00-660-0765, 5320-00-660-0785, 5320-00-660-0819, 5320-00-660-0820, 5320-00-660-0821
Technical Data | NSN 5320-00-660-0763
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-282 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR CHROMATE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A21 STRAIGHT PAN |
| HEAD HEIGHT | 0.095 INCHES NOMINAL |

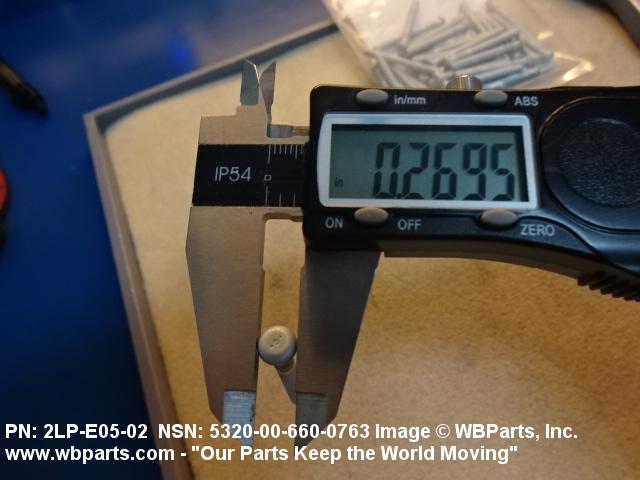

| HEAD MAJOR DIAMETER | 0.282 INCHES NOMINAL |
| SHANK STYLE | B27 PIN-RIVET, MULTIPLE GROOVED |

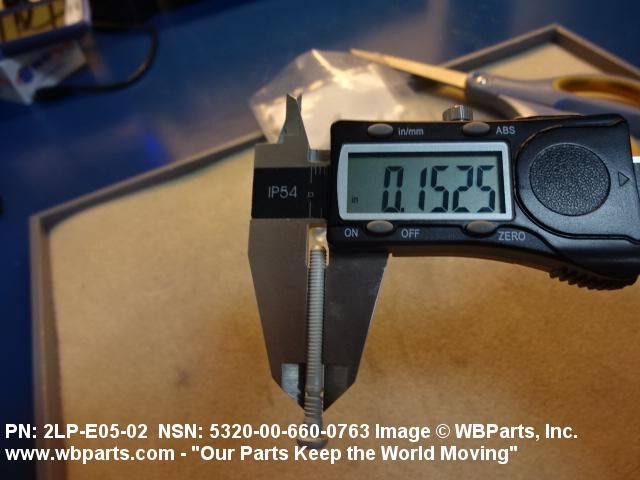

| FASTENER LENGTH | 1.520 INCHES NOMINAL |
| SHANK DIAMETER | 0.156 INCHES NOMINAL |

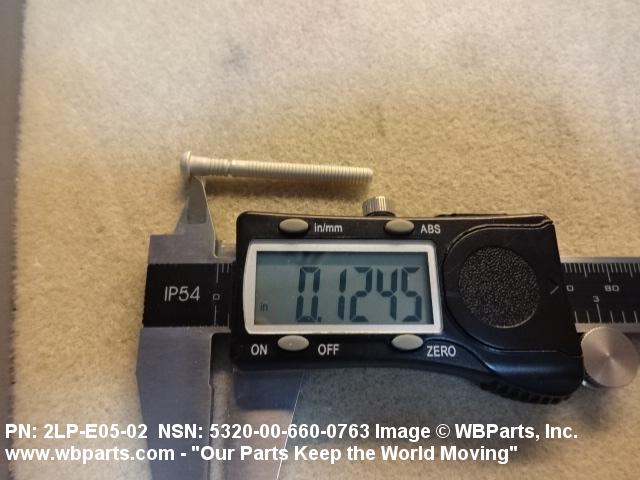

| GRIP LENGTH | 0.125 INCHES NOMINAL |
| FEATURES PROVIDED | CASEHARDENED |
| MANUFACTURERS CODE | 17446 |
| DESIGN CONTROL REFERENCE | 2LP-E05-02 |
