NSN 5320-00-680-3746 R1014C, 00-680-3746, 006803746
Product Details | PIN-RIVET
5320-00-680-3746 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: R1014C, 5320-00-680-3746, 00-680-3746, 5320006803746, 006803746
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-680-3746 | 67165 ( PIN-RIVET ) |

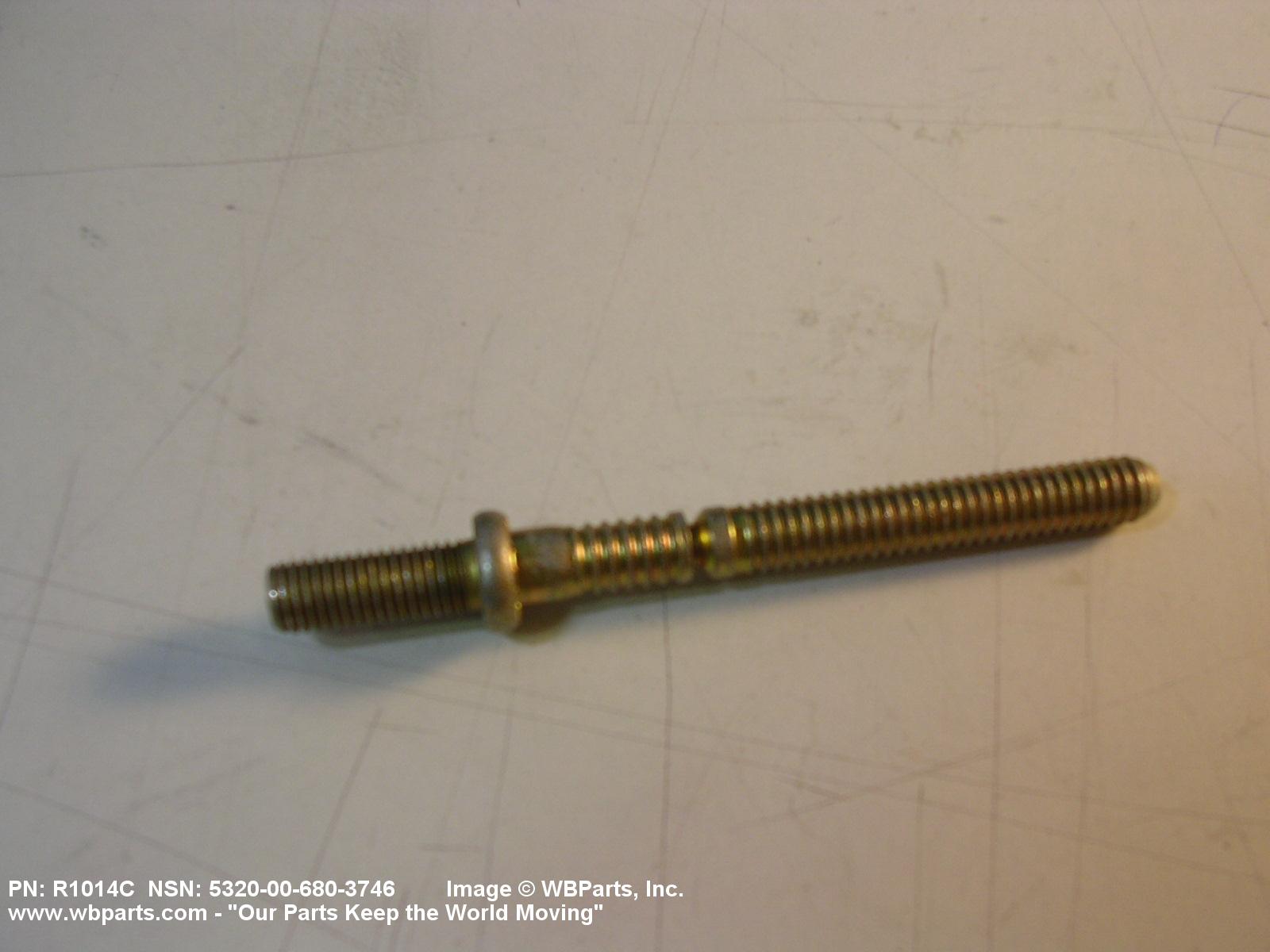

Drawings & Photos | NSN 5320-00-680-3746
Demand History | NSN 5320-00-680-3746
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-680-3746 | 2008-04-105 | 800 | Japan |
| 5320-00-680-3746 | 2008-03-79 | 1000 | Japan |
| 5320-00-680-3746 | 2008-02-38 | 500 | Japan |
| 5320-00-680-3746 | 2007-12-351 | 500 | Japan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-680-3746
Technical Data | NSN 5320-00-680-3746
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HEAD STYLE | A15 FLAT/TINNER'S |
| HEAD HEIGHT | 0.106 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.410 INCHES NOMINAL |
| SHANK STYLE | B27 PIN-RIVET, MULTIPLE GROOVED |
| FASTENER LENGTH | 2.188 INCHES NOMINAL |
| SHANK DIAMETER | 0.250 INCHES NOMINAL |
| GRIP LENGTH | 0.125 INCHES MINIMUM AND 0.297 INCHES MAXIMUM |
| MANUFACTURERS CODE | 17446 |
| DESIGN CONTROL REFERENCE | R1014C |
Restrictions/Controls & Freight Information | NSN 5320-00-680-3746
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
