NSN 5320-00-800-9546 NAS146504, NAS1465-04, NAS1465N4
Product Details | PIN-RIVET
5320-00-800-9546 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: NAS146504, NAS1465-04, NAS1465N4, NASL4654, NASL465-4, R3001T0504, R3001-T05-04, 45812S26, 458-12S2-6 , 45812S6, 458-12S-6 , 76245, 5320-00-800-9546, 00-800-9546, 5320008009546, 008009546
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-800-9546 | 67165 ( PIN-RIVET ) |
Drawings & Photos | NSN 5320-00-800-9546
Demand History | NSN 5320-00-800-9546
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS146504 | 2026-01-23 | 628 | US |
| 5320-00-800-9546 | 2025-11-325 | 1346 | DIBBS |
| 5320-00-800-9546 | 2025-11-317 | 1346 | DIBBS |
| 5320-00-800-9546 | 2025-10-280 | 215 | DIBBS |
| NAS146504 | 2025-08-230 | 17000 | India |
| 5320-00-800-9546 | 2025-08-213 | 796 | DIBBS |
| 5320-00-800-9546 | 2025-07-205 | 796 | DIBBS |
| 5320-00-800-9546 | 2025-05-129 | 20 | Canada |
| NAS146504 | 2025-01-23 | 18700 | India |
| NAS146504 | 2025-01-21 | 1150 | Korea |
| NAS146504 | 2020-06-182 | 50 | US |
| 5320-00-800-9546 | 2017-12-354 | 1 | DIBBS-RFPs |
| NAS146504 | 2014-04-100 | 288 | United States |
| NAS1465-04 | 2011-04-97 | 100 | |
| 5320-00-800-9546 | 2011-02-56 | 10 | CL |
Cross Reference | NSN 5320-00-800-9546
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1465-04 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1465-04 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1465N4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NASL465-4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| R3001-T05-04 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-800-9546
Related Products | NSN 5320-00-800-9546
Technical Data | NSN 5320-00-800-9546
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A31 UNDER CUT PAN NO. 2 |

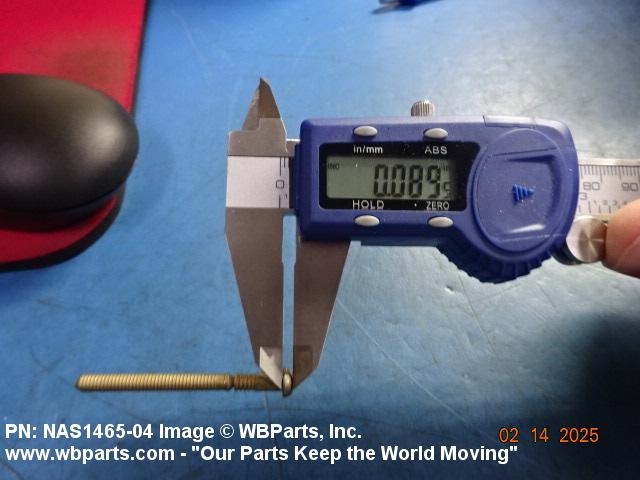

| HEAD HEIGHT | 0.085 INCHES MINIMUM AND 0.095 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.258 INCHES MINIMUM AND 0.282 INCHES MAXIMUM |

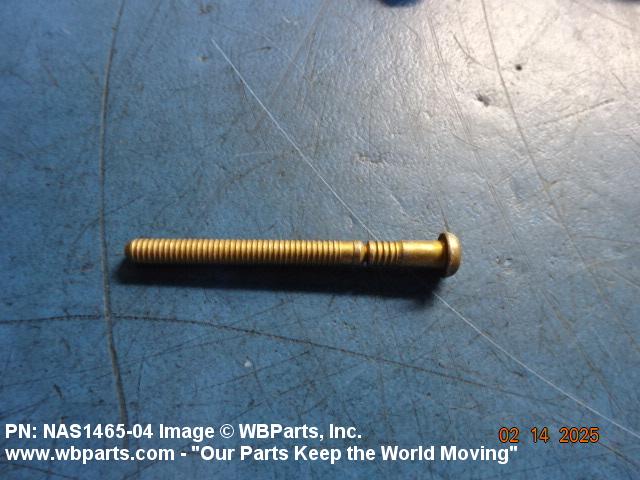

| SHANK STYLE | B27 PIN-RIVET, MULTIPLE GROOVED |

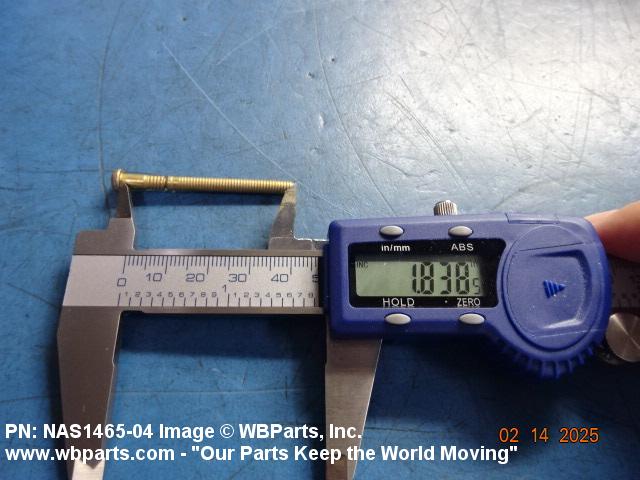

| FASTENER LENGTH | 1.750 INCHES MINIMUM AND 1.950 INCHES MAXIMUM |
| SHANK DIAMETER | 0.164 INCHES MINIMUM AND 0.165 INCHES MAXIMUM |
| GRIP LENGTH | 0.220 INCHES MINIMUM AND 0.281 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-00-800-9546
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
