NSN 5320-00-827-1533 HS20168424, HS2016-8-424, 00-827-1533

Product Details | PIN-RIVET

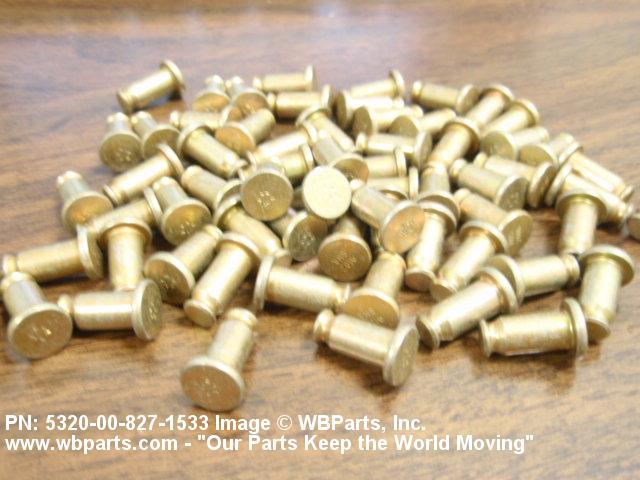

5320-00-827-1533 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: HS20168424, HS2016-8-424, 5320-00-827-1533, 00-827-1533, 5320008271533, 008271533

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-827-1533	67165 ( PIN-RIVET )

Drawings & Photos | NSN 5320-00-827-1533

Part Number	Request Date	QTY	Origin
HS20168424	2023-07-195	100	United States
HS20168424	2021-01-14	130	CA
5320-00-827-1533	2021-01-14	130	CA
5320-00-827-1533	2019-07-198	10	CA
5320-00-827-1533	2019-07-193	10	United States
5320-00-827-1533	2019-04-92	10	US
5320-00-827-1533	2019-04-91	30	US
HS20168424	2019-02-52	10	US
5320-00-827-1533	2018-10-290	40	UM
5320-00-827-1533	2018-07-199	40	United States
HS20168424	2018-01-30	10	us
HS20168424	2017-10-300	6	us
5320-00-827-1533	2016-09-251	50	Saudi Arabia
5320-00-827-1533	2016-04-95	6	US
HS20168424	2015-06-173	33	US
5320-00-827-1533	2015-04-120	1743	DIBBS
5320-00-827-1533	2015-04-104	200	Australia
5320-00-827-1533	2015-02-36	50	Australia
HS20168424	2014-07-206	100	US
5320-00-827-1533	2014-03-83	20	US
5320-00-827-1533	2012-04-101	50	United States
HS20168424	2012-03-90	10	JP
HS20168424	2011-10-278	202	US
HS20168424	2010-07-211	65	United States
5320-00-827-1533	2010-04-116	4	Japan
5320-00-827-1533	2010-04-99	3393	United States
5320-00-827-1533	2010-04-99	500	United States
5320-00-827-1533	2009-05-150	3893	DIBBS
5320-00-827-1533	2009-04-105	3238	DIBBS
5320-00-827-1533	2009-02-35	4079	DIBBS
5320-00-827-1533	2008-11-319	8	US

Cross Reference | NSN 5320-00-827-1533

Part Number	Cage Code	Manufacturer
HS2016-8-424	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HS2016-8-424	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
