NSN 5320-00-869-1486 AICL8066A8, AIC-L-806-6A8, BACB30MB68

Product Details | PIN-RIVET

5320-00-869-1486 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: AICL8066A8, AIC-L-806-6A8, BACB30MB68, BACB30MB6-8, HL20PB68, HL20PB-6-8, HS560368, HS5603-6-8, GB511E38, GB511E3-8, 10004868, 100-048-6-8, 5320-00-869-1486, 00-869-1486, 5320008691486, 008691486

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	23 OCT 1967	00-869-1486	67165 ( PIN-RIVET )

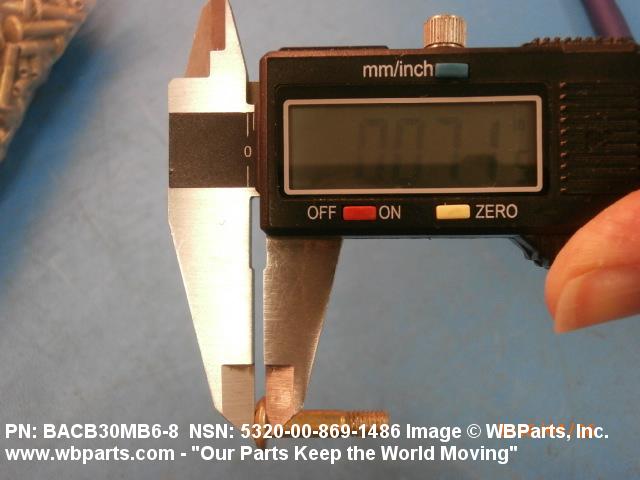

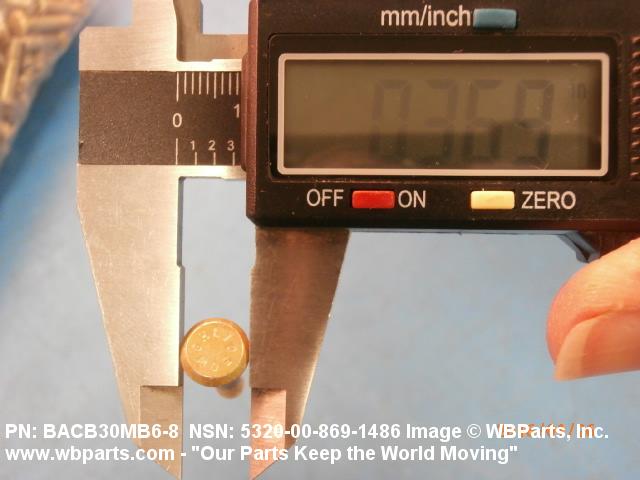

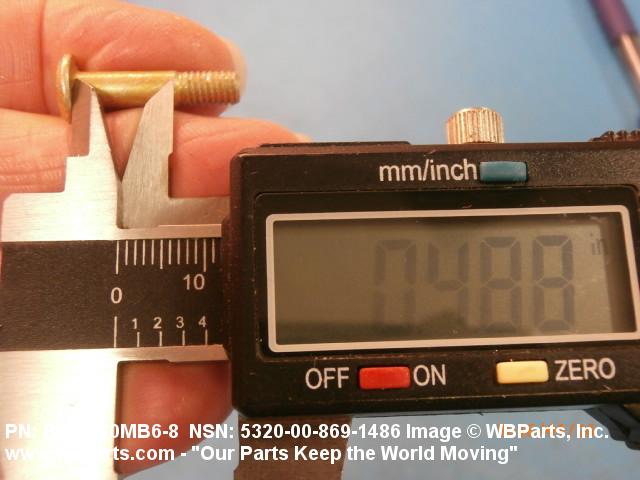

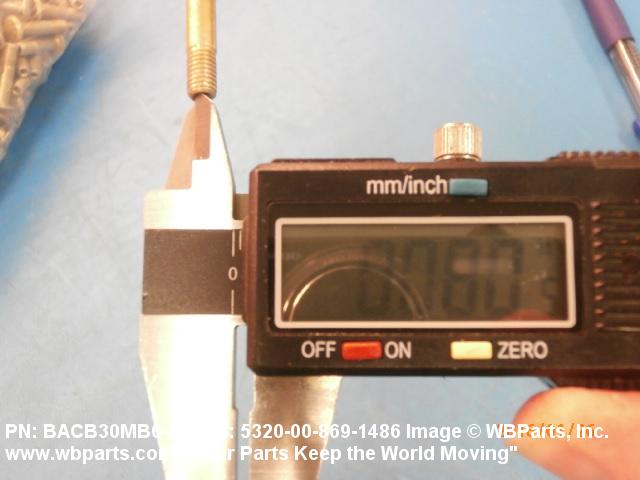

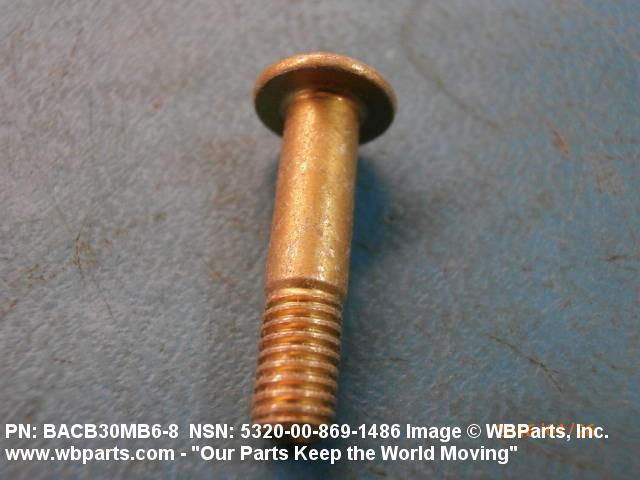

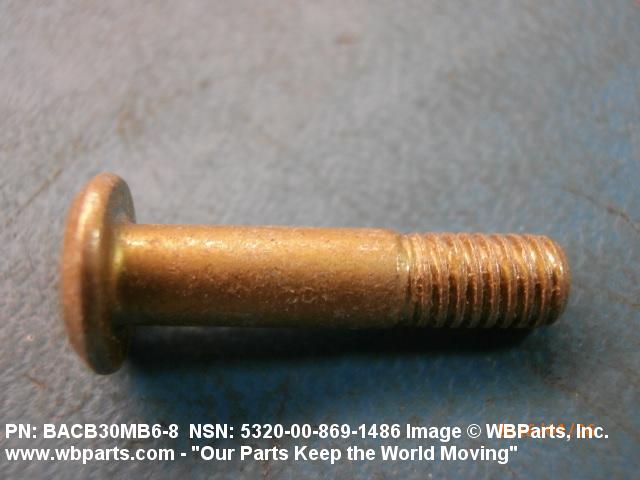

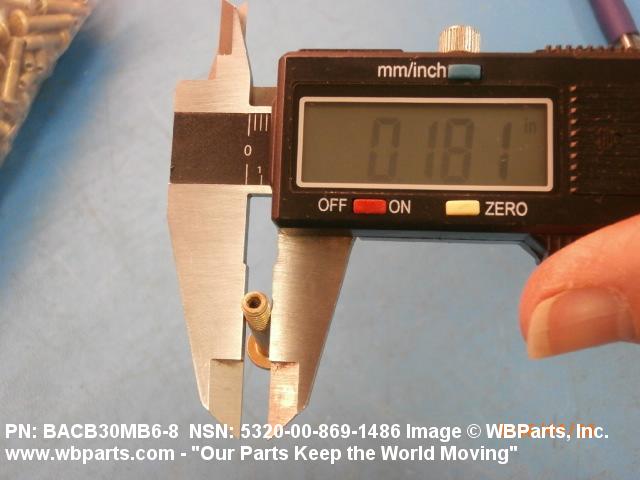

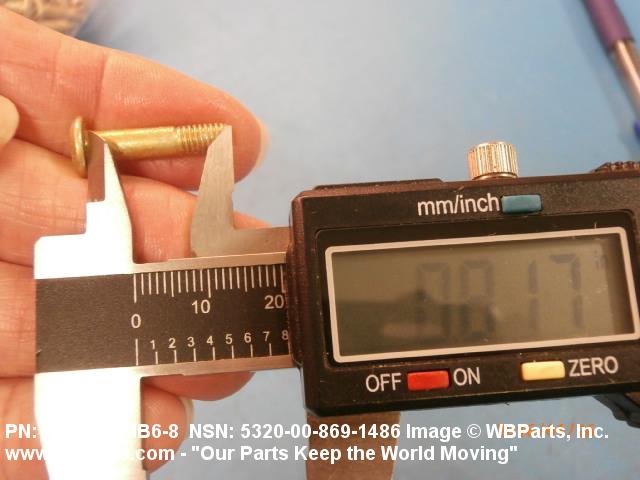

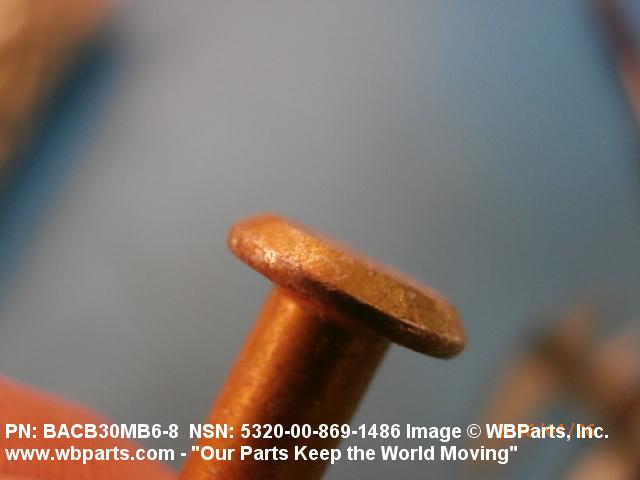

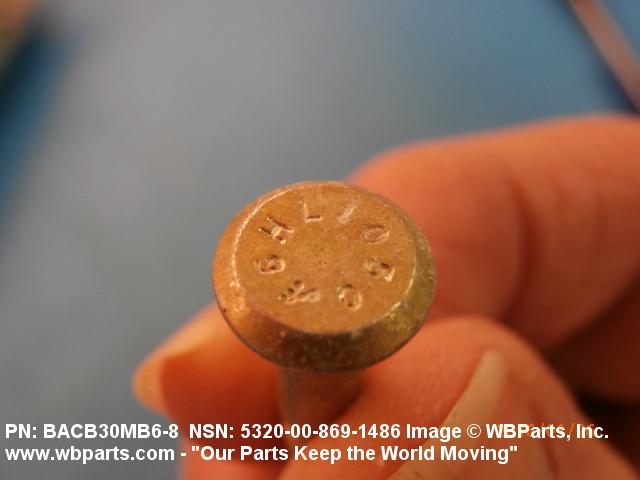

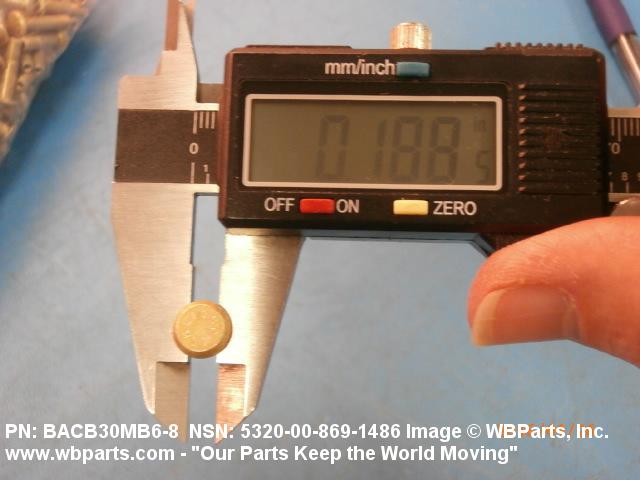

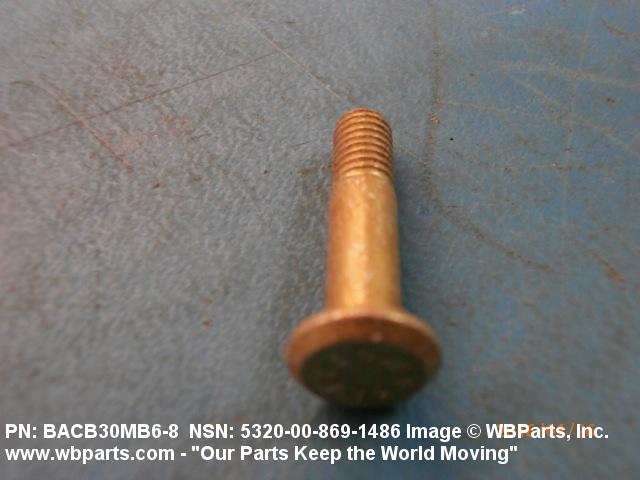

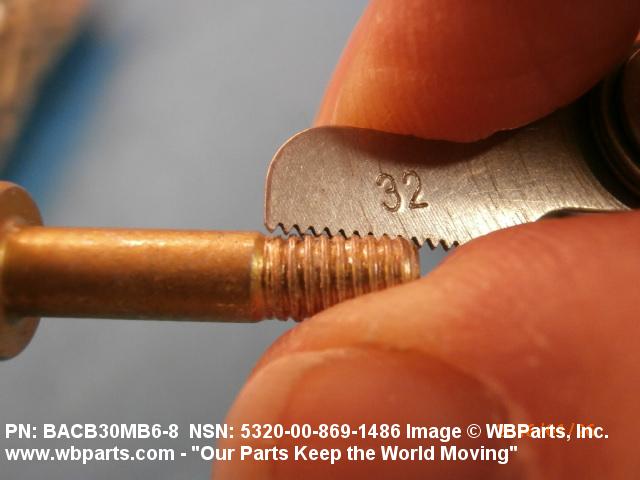

Drawings & Photos | NSN 5320-00-869-1486

Part Number	Request Date	QTY	Origin
100-048-6-8	2025-09-246	14347	DIBBS
GB511E3-8	2025-09-246	14347	DIBBS
HL20PB-6-8	2025-09-246	14347	DIBBS
HL20PB6-8	2025-09-246	14347	DIBBS
HS5603-6-8	2025-09-246	14347	DIBBS
5320-00-869-1486	2024-04-92	14679	United States
HL20PB68	2023-08-221	1000	Germany
HL20PB68	2022-04-108	40	United States
5320-00-869-1486	2021-11-307	140	MY
HL20PB68	2021-09-273	140	Malaysia
5320-00-869-1486	2019-04-100	1	DIBBS-RFPs
HL20PB-6-8	2019-03-71	44000	DIBBS
HL20PB-6-8	2019-03-63	44000	DIBBS
5320-00-869-1486	2018-11-308	2602	DIBBS
5320-00-869-1486	2017-03-65	30952	DIBBS
10004868	2016-10-302	12	PE
5320-00-869-1486	2016-05-123	26296	DIBBS
10004868	2015-10-294	2020	China
5320-00-869-1486	2015-10-291	10938	DIBBS
5320-00-869-1486	2015-08-221	10694	DIBBS
HL20PB-6-8	2015-06-156	10	United States
5320-00-869-1486	2015-05-137	12299	DIBBS
5320-00-869-1486	2015-04-109	11691	DIBBS
HL20PB68	2012-09-249	100	United Kingdom
HL20PB68	2011-06-168	2	United States
HL20PB68	2010-08-238	1950	US
5320-00-869-1486	2009-10-289	14257	DIBBS
5320-00-869-1486	2009-09-254	14257	DIBBS
5320-00-869-1486	2009-02-40	23888	DIBBS
5320-00-869-1486	2008-10-304	15085	DIBBS
5320-00-869-1486	2008-06-176	6091	DIBBS
10004868	2008-02-60	25	United States
5320-00-869-1486	2008-02-53	5	US
10004868	2007-03-68	100	US
5320-00-869-1486	2006-05-127	435	us

Cross Reference | NSN 5320-00-869-1486

Part Number	Cage Code	Manufacturer
100-048-6-8	97499	BELL HELICOPTER TEXTRON INC.
AIC-L-806-6A8	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
BACB30MB6-8	77272	THE BOEING COMPANY DBA BOEING
BACB30MB6-8	81205	THE BOEING COMPANY DBA BOEING
GB511E3-8	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
HL20PB-6-8	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HL20PB-6-8	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL20PB-6-8	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HL20PB-6-8	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HL20PB-6-8	60516	WEST COAST AEROSPACE INC
HL20PB-6-8	73197	HI-SHEAR CORPORATION
HL20PB-6-8	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL20PB-6-8	97928	HUCK INTL INC
HL20PB-6-8	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
HL20PB-6-8	L4528	LISI AEROSPACE CANADA CORP
HL20PB-6-8	R1120	SATAIR A/S
HS5603-6-8	02731	MCDONNELL DOUGLAS HELICOPTER CO INC
HS5603-6-8	8V613	BOEING COMPANY, THE DBA BOEING
