NSN 5320-00-938-8367 BACB30MB509, HL20PB59, HL20PB-5-9

Product Details | PIN-RIVET

5320-00-938-8367 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: BACB30MB509, HL20PB59, HL20PB-5-9, HL20PB5-9 , HL20RB59, HL20RB-5-9, HL55259, HL552-5-9, HS560359, HS5603-5-9, GB511E089, GB511E08-9, 10004859, 100-048-5-9, 3M248A089, 3M248A08-9, 5320-00-938-8367, 00-938-8367, 5320009388367, 009388367

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	21 MAR 1967	00-938-8367	67165 ( PIN-RIVET )

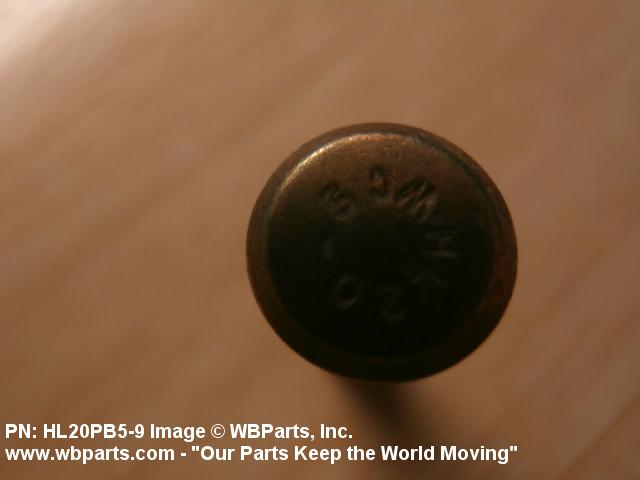

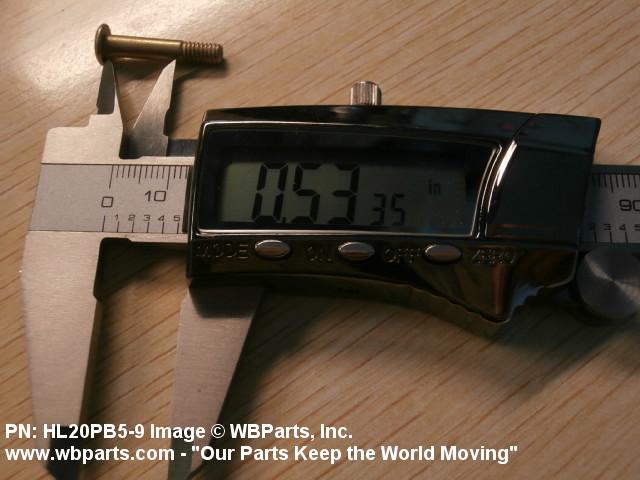

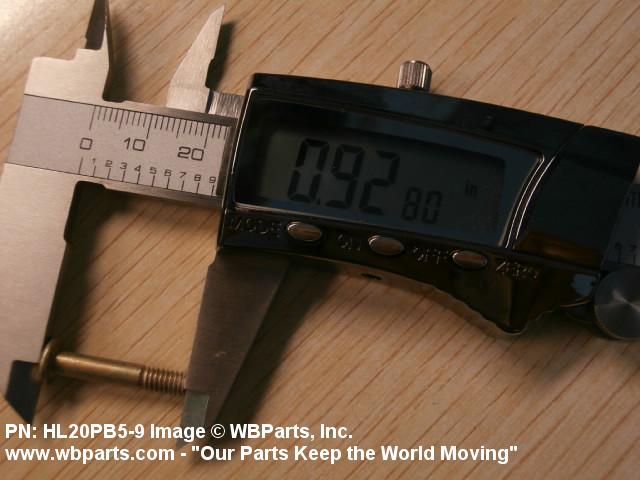

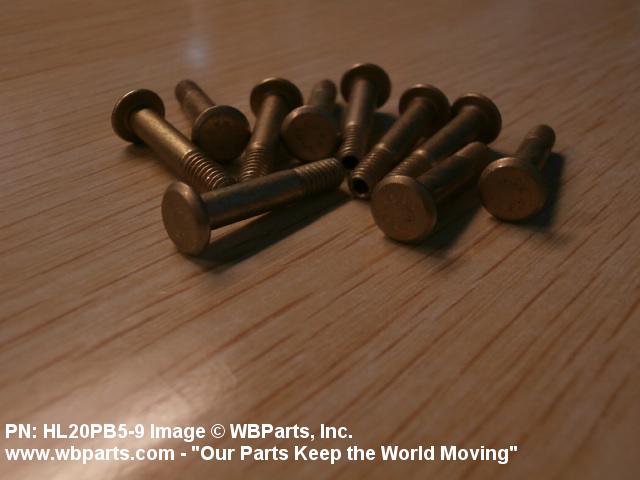

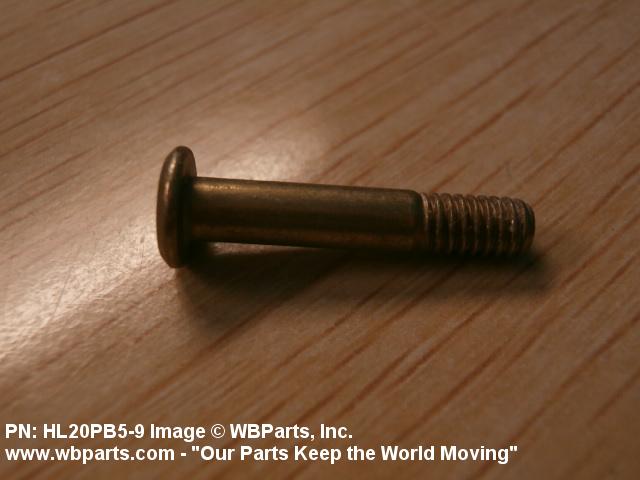

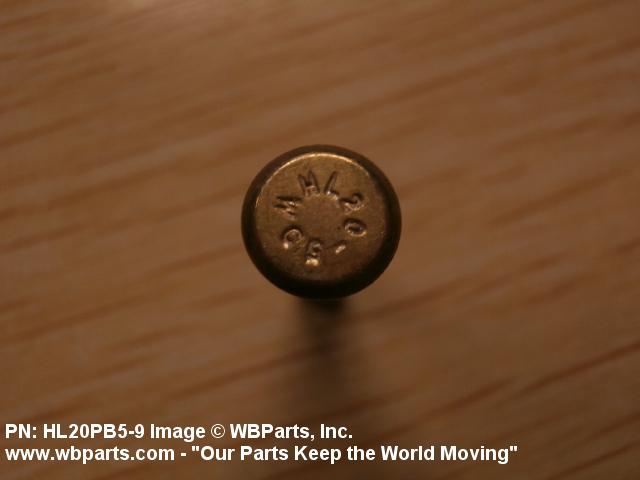

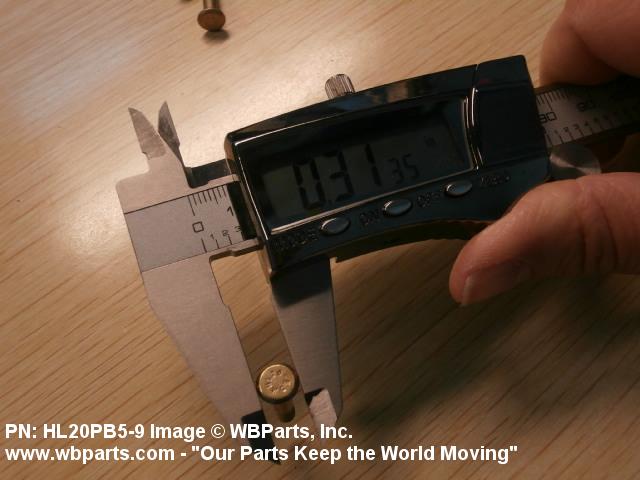

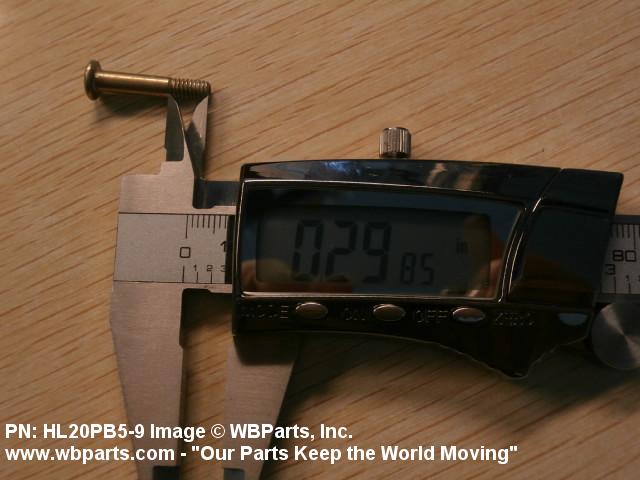

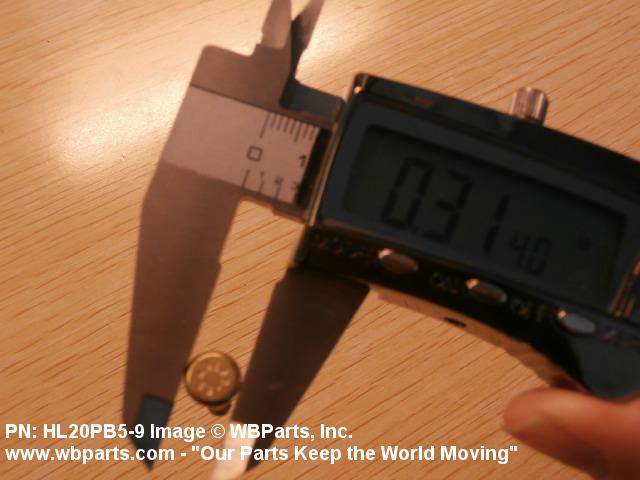

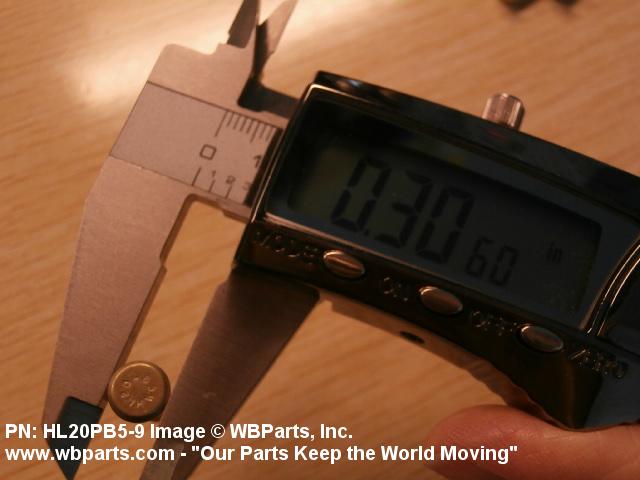

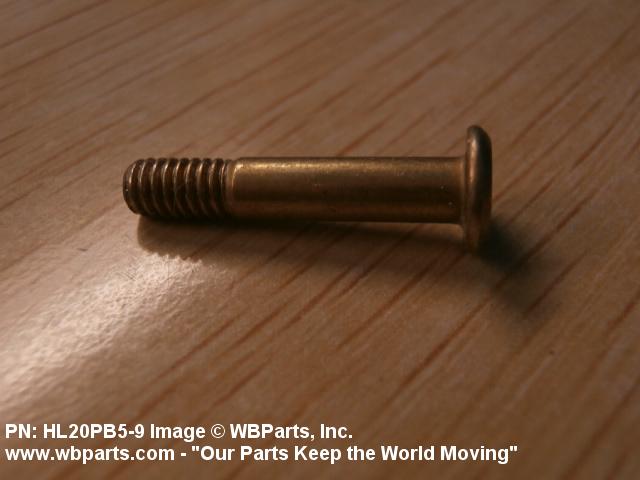

Drawings & Photos | NSN 5320-00-938-8367

Part Number	Request Date	QTY	Origin
HL20PB59	2025-07-183	20	United States
HL20PB59	2025-07-183	20	United States
HL20PB59	2021-05-144	20	US
HL20PB59	2021-04-119	200	GR
5320-00-938-8367	2021-04-116	2	GR
5320-00-938-8367	2015-03-69	7716	DIBBS
HS560359	2014-01-29	35	United States
HL20PB59	2011-09-272	4	KE

Cross Reference | NSN 5320-00-938-8367

Part Number	Cage Code	Manufacturer
100-048-5-9	97499	BELL HELICOPTER TEXTRON INC.
3M248A08-9	76301	BOEING COMPANY, THE DBA BOEING
BACB30MB509	81205	THE BOEING COMPANY DBA BOEING
GB511E08-9	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
HL20PB-5-9	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HL20PB-5-9	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL20PB-5-9	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HL20PB-5-9	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HL20PB-5-9	60516	WEST COAST AEROSPACE INC
HL20PB-5-9	73197	HI-SHEAR CORPORATION
HL20PB-5-9	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
HL20PB-5-9	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL20PB-5-9	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
HL20PB-5-9	L4528	LISI AEROSPACE CANADA CORP
HL20PB5-9	2G586	PEERLESS AEROSPACE FASTENER CORPORATION
HL20RB-5-9	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL20RB-5-9	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HL20RB-5-9	73197	HI-SHEAR CORPORATION
HL20RB-5-9	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL20RB-5-9	R1120	SATAIR A/S
HL552-5-9	73197	HI-SHEAR CORPORATION
HS5603-5-9	02731	MCDONNELL DOUGLAS HELICOPTER CO INC
HS5603-5-9	8V613	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-938-8367

Compare

Related Products | NSN 5320-00-938-8367

5320-00-938-8981, 5320-00-939-1605, 5320-00-939-1780, 5320-00-939-1781, 5320-00-939-1782

Technical Data | NSN 5320-00-938-8367

Characteristic	Specifications
MATERIAL	STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 4130 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH
HEAD STYLE	A34 FLAT CHAMFER
HEAD HEIGHT	0.055 INCHES MINIMUM AND 0.060 INCHES MAXIMUM
HEAD MAJOR DIAMETER	0.306 INCHES MINIMUM AND 0.322 INCHES MAXIMUM
SHANK STYLE	B31 PIN-RIVET, STRAIGHT, THREADED
FASTENER LENGTH	0.828 INCHES MINIMUM AND 0.848 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.079 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
SHANK DIAMETER	0.163 INCHES MINIMUM AND 0.164 INCHES MAXIMUM
GRIP LENGTH	0.567 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD CLASS	3A
THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND

Restrictions/Controls & Freight Information | NSN 5320-00-938-8367

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	CT	U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-00-938-8367

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
