NSN 5320-01-058-4714 HL10VAP88, HL10VAP-8-8, 01-058-4714
Product Details | PIN-RIVET
5320-01-058-4714 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HL10VAP88, HL10VAP-8-8, 5320-01-058-4714, 01-058-4714, 5320010584714, 010584714
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 MAR 1978 | 01-058-4714 | 67165 ( PIN-RIVET ) |

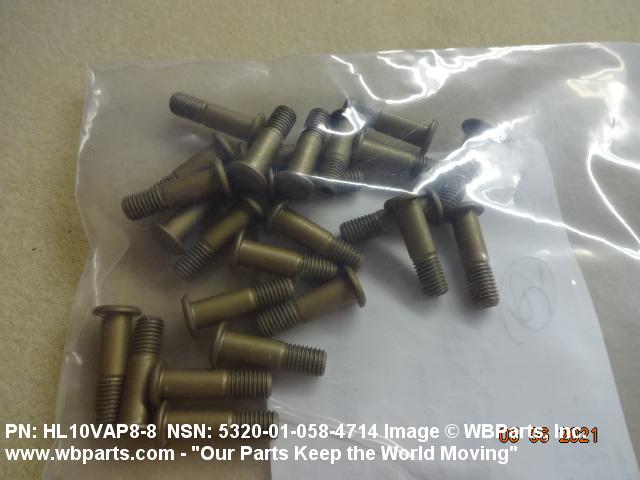

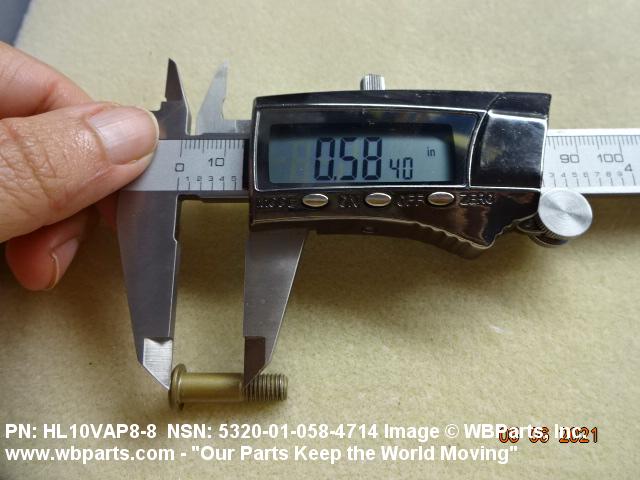

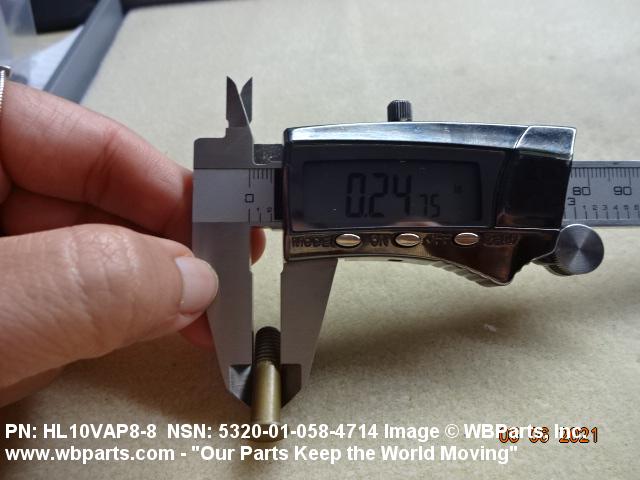

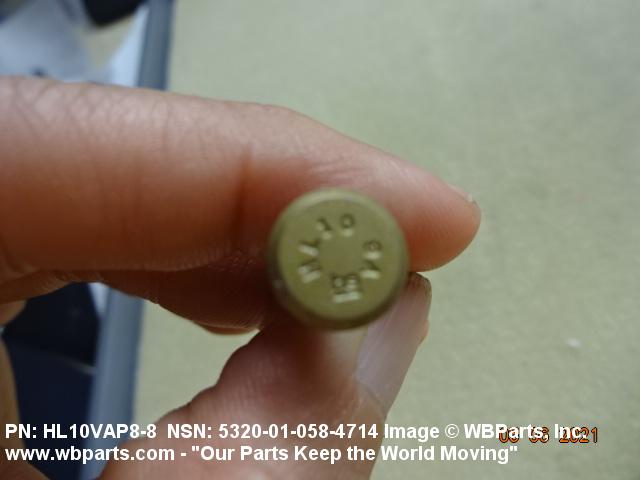

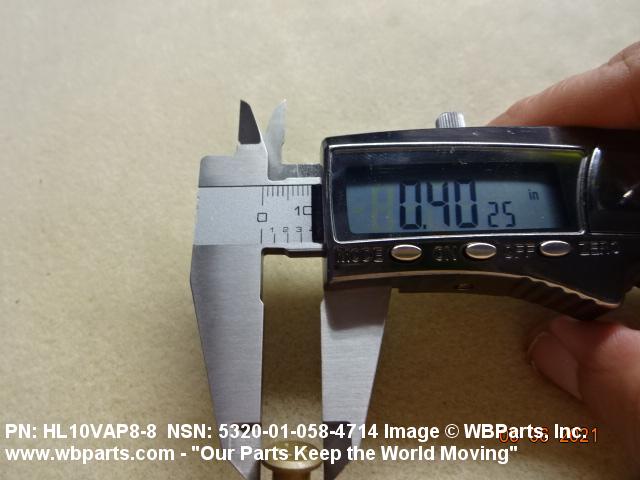

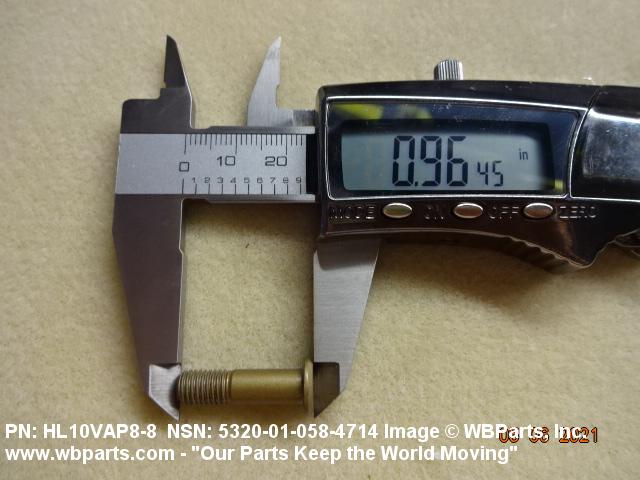

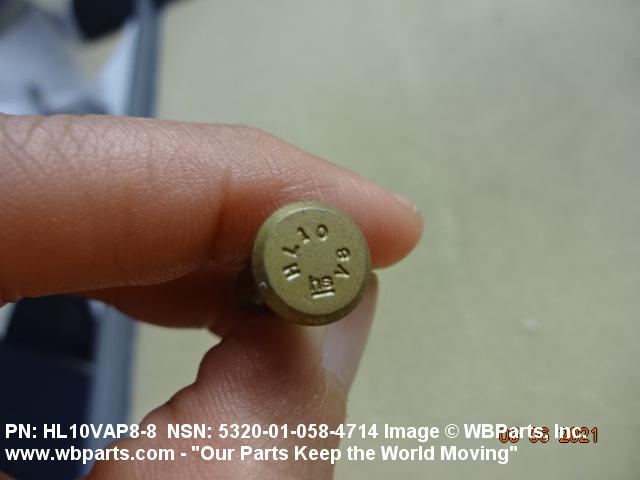

Drawings & Photos | NSN 5320-01-058-4714
Demand History | NSN 5320-01-058-4714
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL10VAP-8-8 | 2023-04-94 | 124 | DIBBS |
| HL10VAP-8-8 | 2023-02-43 | 40 | DIBBS |
| HL10VAP-8-8 | 2022-09-265 | 9 | DIBBS |
| HL10VAP-8-8 | 2022-06-152 | 9 | DIBBS |
| HL10VAP-8-8 | 2022-04-103 | 30 | DIBBS |
| HL10VAP-8-8 | 2021-09-264 | 10 | DIBBS |
| 5320-01-058-4714 | 2021-04-117 | 25 | United States |
| 5320-01-058-4714 | 2021-04-117 | 25 | United States |
Cross Reference | NSN 5320-01-058-4714
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HL10VAP-8-8 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL10VAP-8-8 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| HL10VAP-8-8 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL10VAP-8-8 | 73197 | HI-SHEAR CORPORATION |
| HL10VAP-8-8 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HL10VAP-8-8 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL10VAP-8-8 | 97928 | HUCK INTL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-058-4714
Related Products | NSN 5320-01-058-4714
Technical Data | NSN 5320-01-058-4714
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ALUMINUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | 294,FSCM 73197 MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 95000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A34 FLAT CHAMFER |
| HEAD HEIGHT | 0.059 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.387 INCHES MINIMUM AND 0.412 INCHES MAXIMUM |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |
| FASTENER LENGTH | 0.885 INCHES MINIMUM AND 0.905 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.0947 INCHES MINIMUM AND 0.0967 INCHES MAXIMUM |
| SHANK DIAMETER | 0.2485 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| GRIP LENGTH | 0.505 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 28 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL |
| MANUFACTURERS CODE | 73197 |
| DESIGN CONTROL REFERENCE | HL10VAP-8-8 |
Restrictions/Controls & Freight Information | NSN 5320-01-058-4714
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-058-4714
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
