NSN 5320-01-095-5765 AICL247A6C20, AIC-L-247A6C20, HL550620
Product Details | PIN-RIVET
5320-01-095-5765 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: AICL247A6C20, AIC-L-247A6C20, HL550620, HL550-6-20, 3M247A320, 3M247A3-20, 642AS06803, 642AS0680-3, 65842320, 65842-3-20, 5320-01-095-5765, 01-095-5765, 5320010955765, 010955765
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JUN 1980 | 01-095-5765 | 67165 ( PIN-RIVET ) |

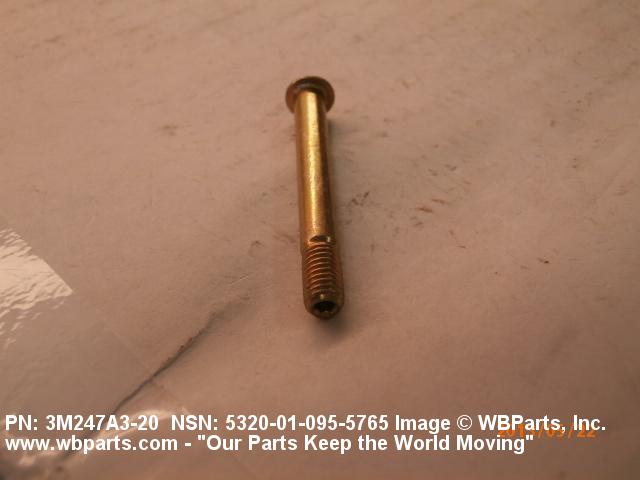

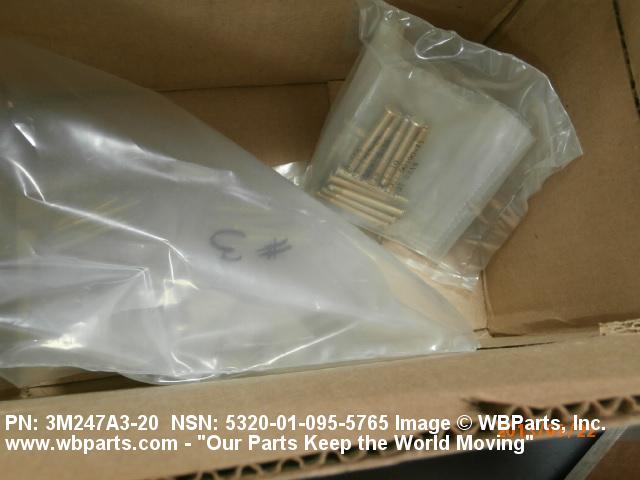

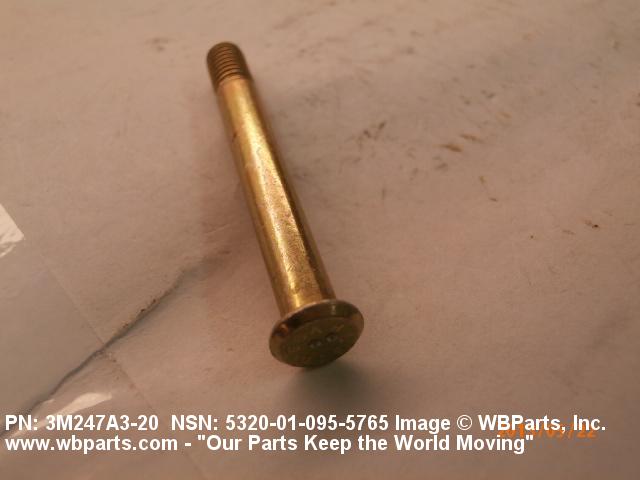

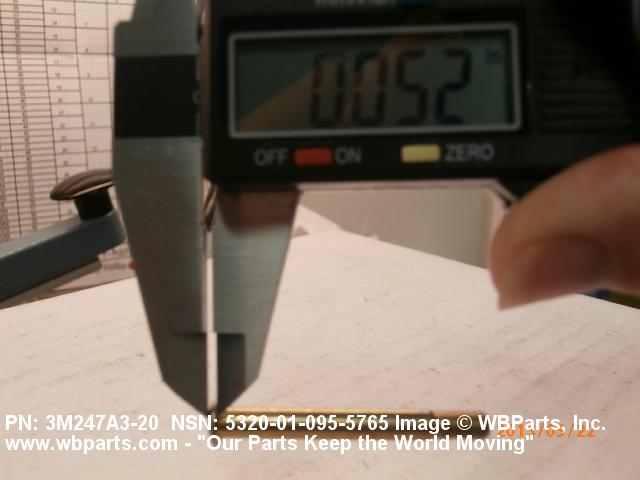

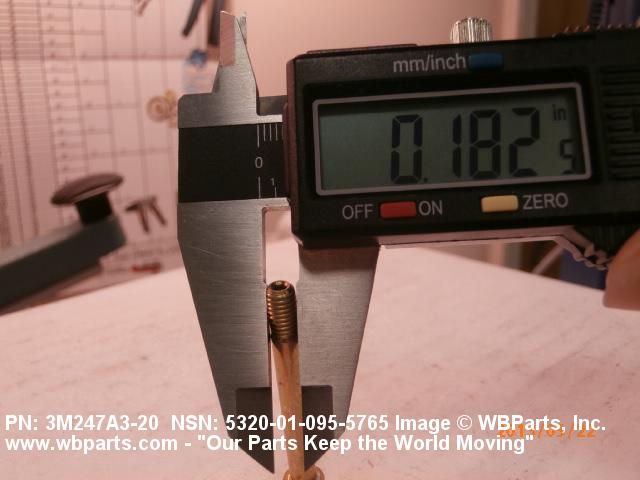

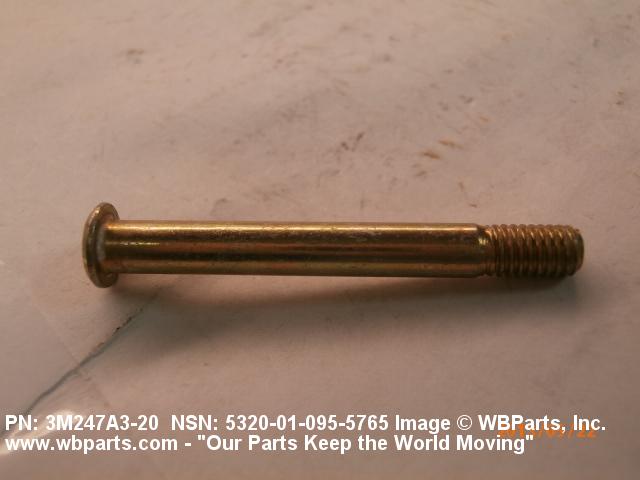

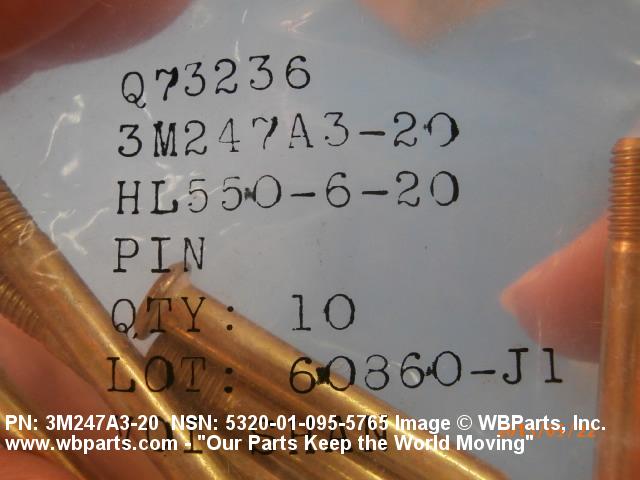

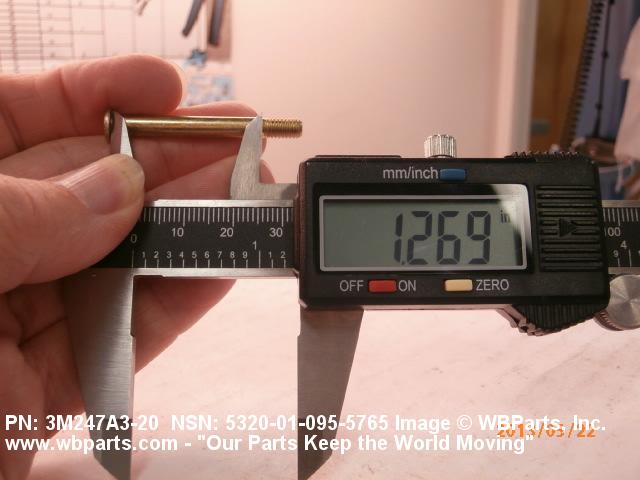

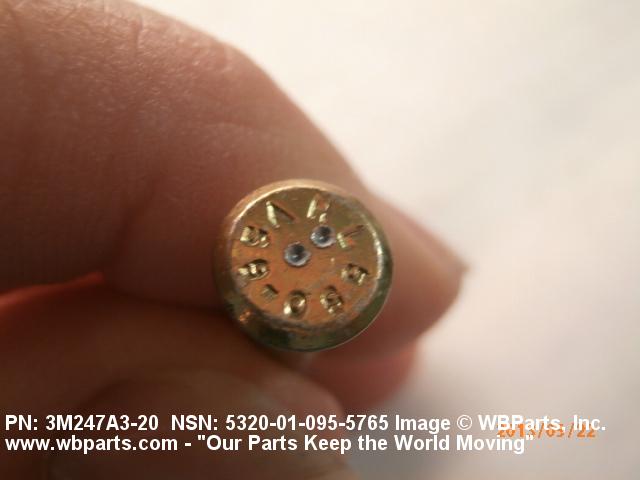

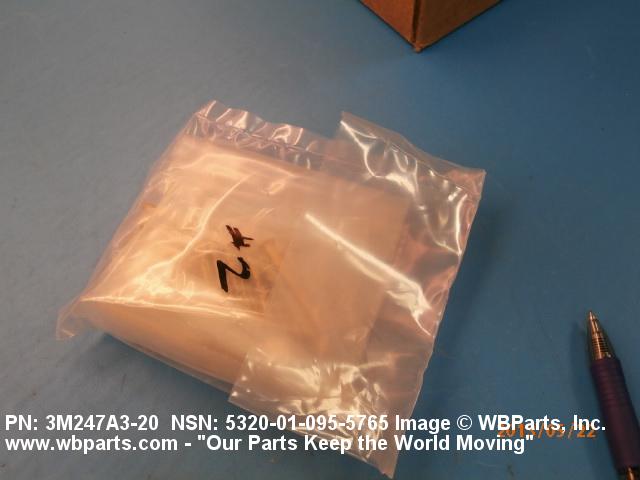

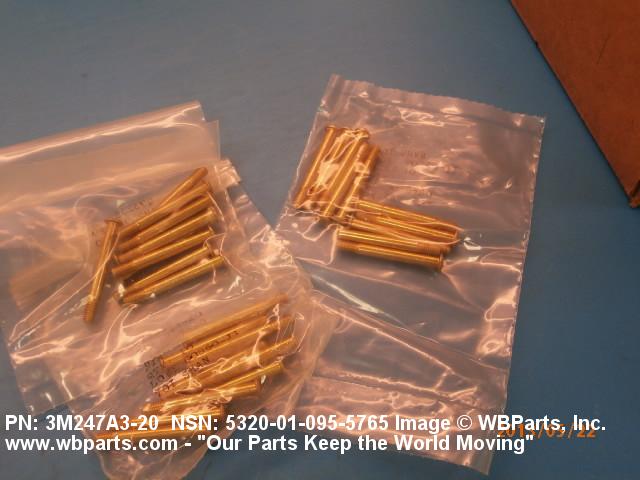

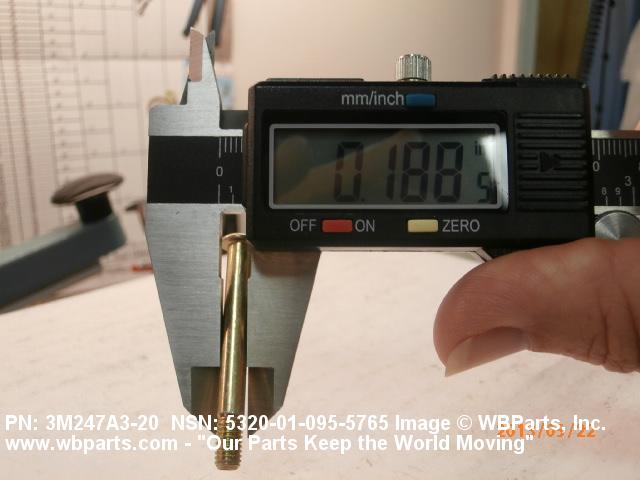

Drawings & Photos | NSN 5320-01-095-5765
Demand History | NSN 5320-01-095-5765
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3M247A3-20 | 2022-08-223 | 1 | DIBBS |
| 65842-3-20 | 2022-08-223 | 1 | DIBBS |
| AIC-L-247A6C20 | 2022-08-223 | 1 | DIBBS |
| HL550-6-20 | 2022-08-223 | 1 | DIBBS |
| 642AS06803 | 2020-02-56 | 16 | United Kingdom |
| 642AS0680-3 | 2018-10-284 | 2 | United Kingdom |
| 642AS0680-3 | 2018-09-267 | 200 | United Kingdom |
| 3M247A320 | 2016-03-91 | 4 | United Kingdom |
| 642AS0680-3 | 2016-02-60 | 4 | United Kingdom |
| 642AS0680-3 | 2015-04-106 | 8 | United Kingdom |
| 3M247A320 | 2013-05-137 | 29 | United Kingdom |
| 642AS06803 | 2013-04-91 | 29 | United Kingdom |
Cross Reference | NSN 5320-01-095-5765
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M247A3-20 | 60516 | WEST COAST AEROSPACE INC |
| 3M247A3-20 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 642AS0680-3 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 65842-3-20 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| AIC-L-247A6C20 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL550-6-20 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL550-6-20 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| HL550-6-20 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL550-6-20 | 73197 | HI-SHEAR CORPORATION |
| HL550-6-20 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HL550-6-20 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL550-6-20 | 97928 | HUCK INTL INC |
| HL550-6-20 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-095-5765
Restrictions/Controls & Freight Information | NSN 5320-01-095-5765
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-095-5765
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
