NSN 5320-01-112-1593 TLD96656E16, TLD966-5-6E-16, 01-112-1593
Product Details | PIN-RIVET
5320-01-112-1593 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: TLD96656E16, TLD966-5-6E-16, 5320-01-112-1593, 01-112-1593, 5320011121593, 011121593
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 APR 1981 | 01-112-1593 | 67165 ( PIN-RIVET ) |

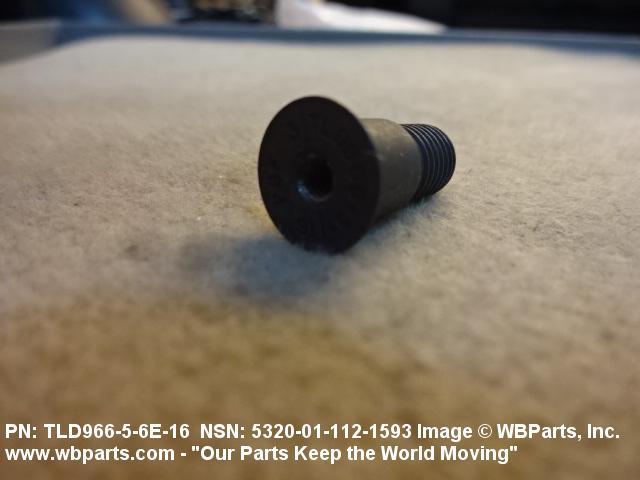

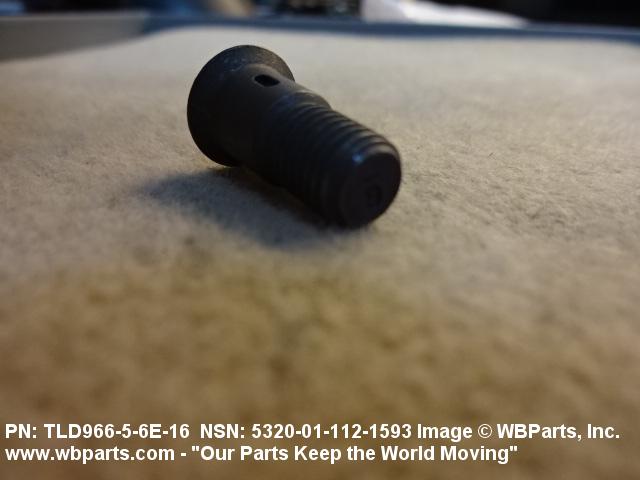

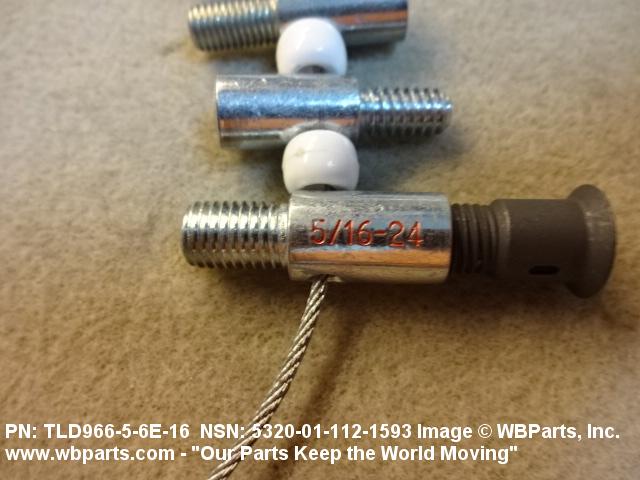

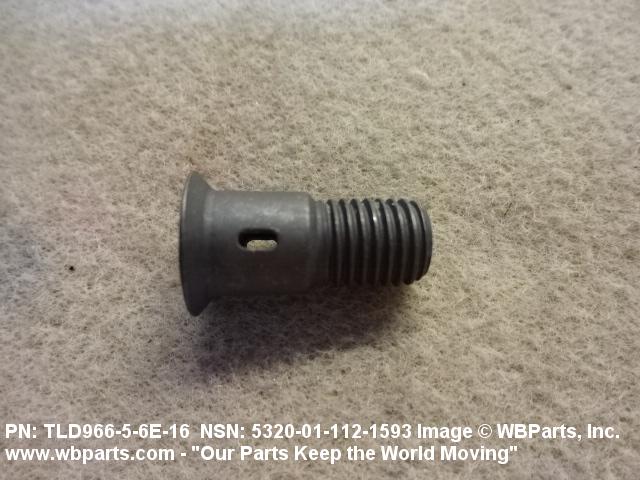

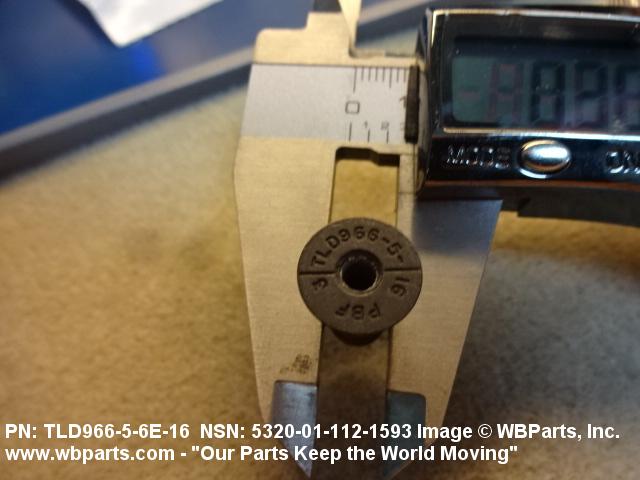

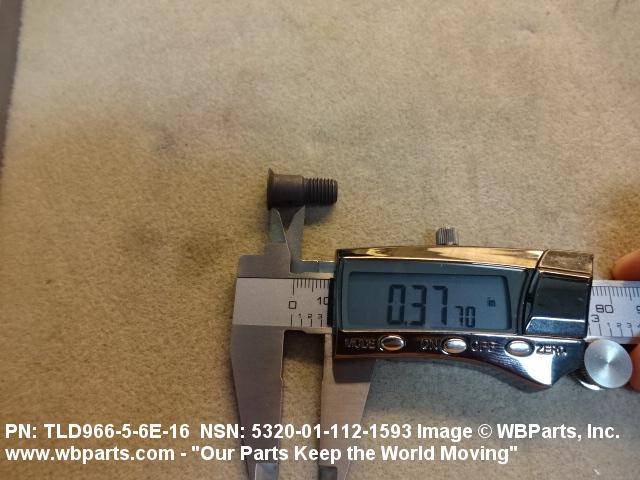

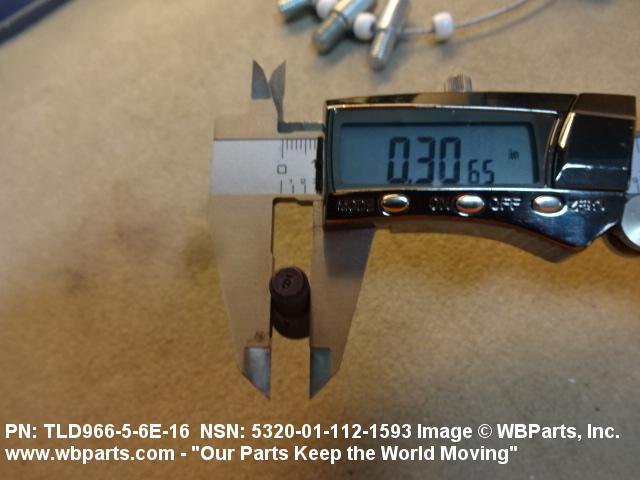

Drawings & Photos | NSN 5320-01-112-1593
Demand History | NSN 5320-01-112-1593
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-112-1593 | 2019-01-09 | 64 | United States |
| 5320-01-112-1593 | 2018-11-322 | 64 | DIBBS |
| 5320-01-112-1593 | 2018-08-214 | 19 | DIBBS |
| 5320-01-112-1593 | 2018-07-201 | 14 | DIBBS |
| 5320-01-112-1593 | 2018-07-193 | 14 | DIBBS |
| 5320-01-112-1593 | 2018-07-185 | 7 | DIBBS |
| 5320-01-112-1593 | 2018-06-161 | 10 | DIBBS |
| 5320-01-112-1593 | 2018-05-142 | 4 | DIBBS |
| 5320-01-112-1593 | 2017-12-339 | 2 | DIBBS |
| 5320-01-112-1593 | 2012-11-331 | 20 | DIBBS |
| 5320-01-112-1593 | 2012-10-300 | 20 | DIBBS |
| 5320-01-112-1593 | 2012-08-226 | 20 | DIBBS |
Cross Reference | NSN 5320-01-112-1593
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TLD966-5-6E-16 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| TLD966-5-6E-16 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| TLD966-5-6E-16 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| TLD966-5-6E-16 | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| TLD966-5-6E-16 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| TLD966-5-6E-16 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| TLD966-5-6E-16 | 97928 | HUCK INTL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-112-1593
Related Products | NSN 5320-01-112-1593
Technical Data | NSN 5320-01-112-1593
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP XM-13 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5629 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 220000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 125000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A9 FLUSH COUNTERSUNK |

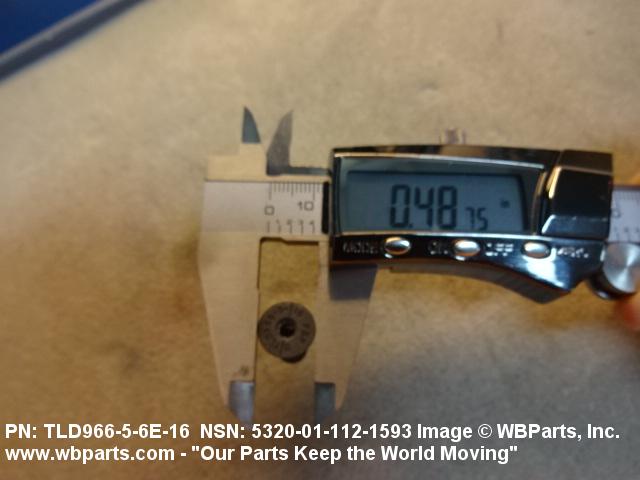

| HEAD MAJOR DIAMETER | 0.522 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | B33 PIN-RIVET, TAPERED, THREADED |

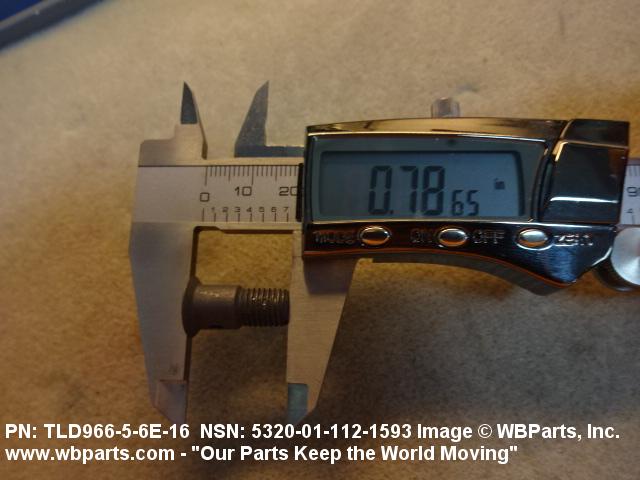

| FASTENER LENGTH | 0.771 INCHES MINIMUM AND 0.796 INCHES MAXIMUM |

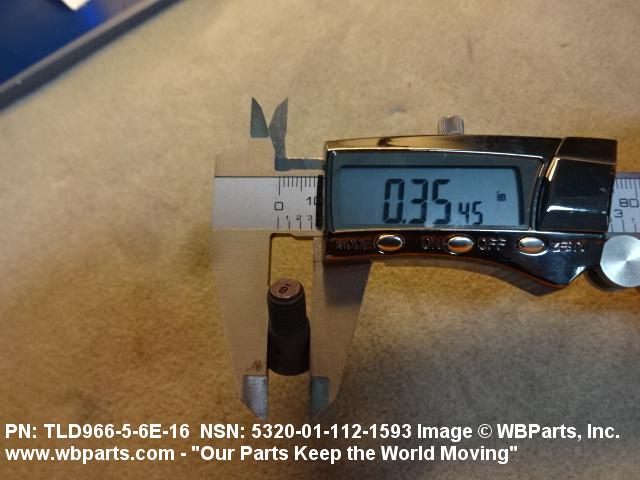

| SHANK DIAMETER | 0.3547 INCHES NOMINAL |
| TIP DIAMETER | 0.3502 INCHES NOMINAL |
| GRIP LENGTH | 0.365 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 24 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL AND DRY FILM |
| SPECIAL FEATURES | 8-32UNJC-3B THREAD SIZE,0.280 IN. LENGTH OF THREADS ALONG THE LONGITUDINAL AXIS FROM THE HEAD END,0.120 IN. SLOT LENGTH,0.060 IN. SLOT WIDTH LOCATED 0.220 IN. FROM TOP OF HEAD TO CENTER OF SLOT |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| MANUFACTURERS CODE | 17446 |
| DESIGN CONTROL REFERENCE | TLD966-5-6E-16 |
Restrictions/Controls & Freight Information | NSN 5320-01-112-1593
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-112-1593
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
