NSN 5320-01-129-4528 M7885/3-5-02 , M7885/3-5-2 , M78853502

Product Details | PIN-RIVET

5320-01-129-4528 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: M7885/3-5-02 , M7885/3-5-2 , M78853502, M7885352, MBBN3013L4002, NAS9302BNS502, NAS9302BNS-5-02 , AF3212502, AF3212-5-02 , AF321252, AF3212-5-2 , AICL759V36, AIC-L-759V3-6, CR3212502, CR3212-5-02 , CR321252, CR3212-5-2 , HC3212502, HC3212-5-02 , HC321252, HC3212-5-2 , HLT310DL66, HLT310DL-6-6, HLT310TB66, HLT310TB-6-6, ST3M759V36, ST3M759V3-6, MIL-R-7885/3 , MILR78853, 10124099 , 5320-01-129-4528, 01-129-4528, 5320011294528, 011294528

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	07 APR 1982	01-129-4528	67165 ( PIN-RIVET )

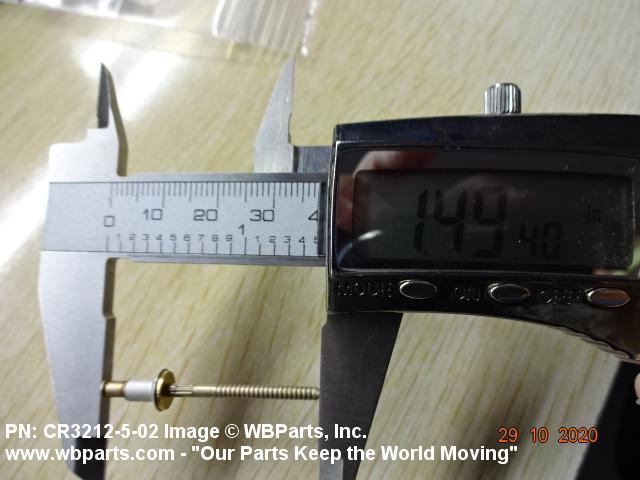

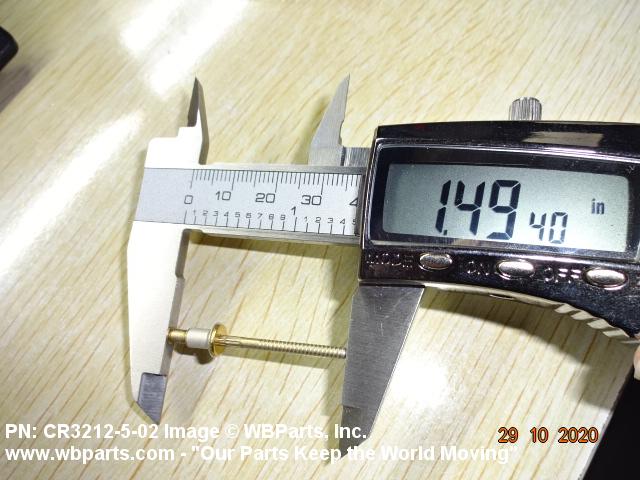

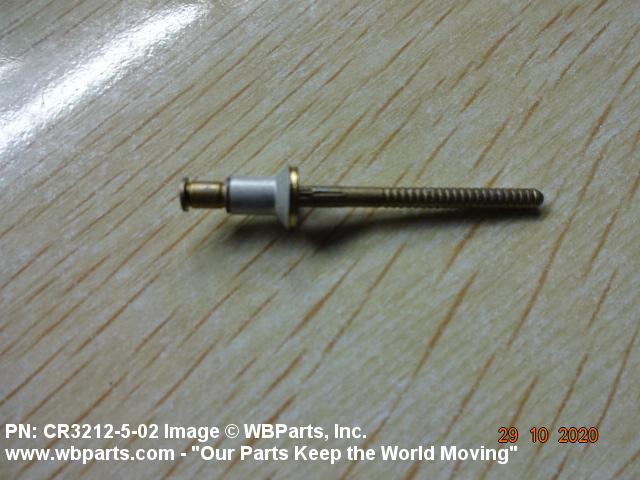

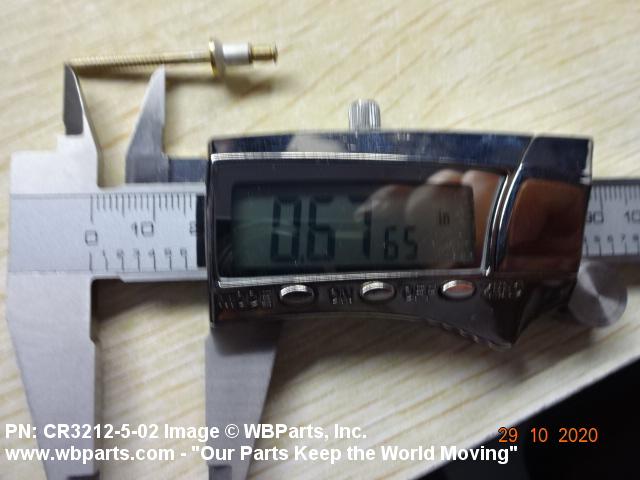

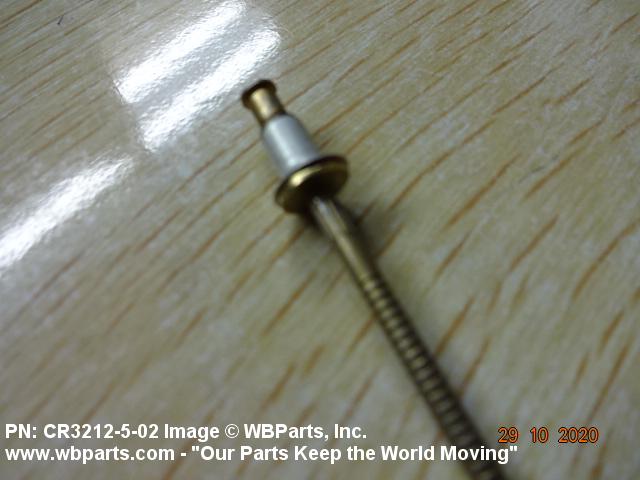

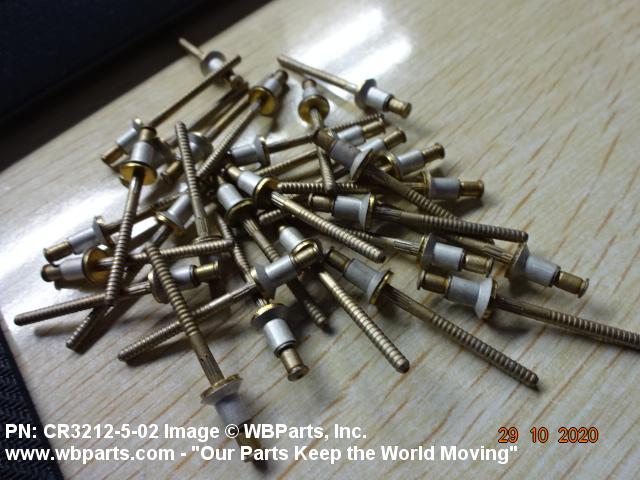

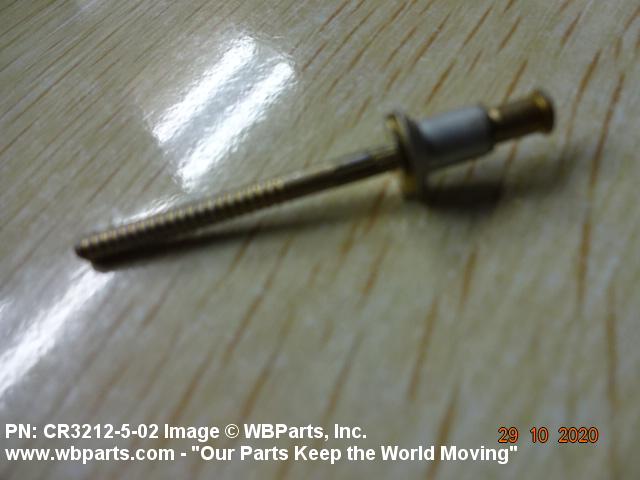

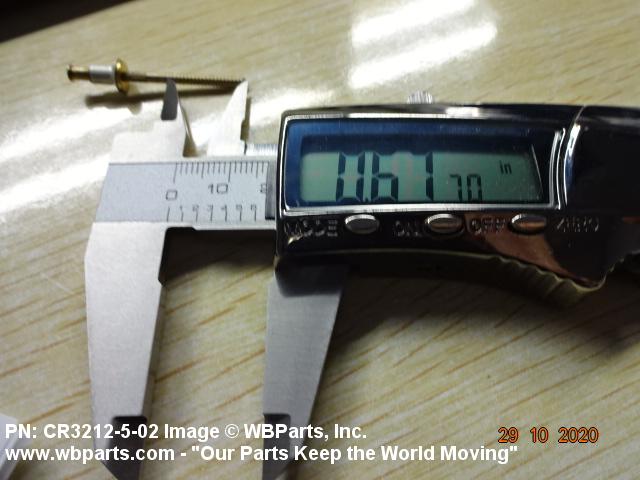

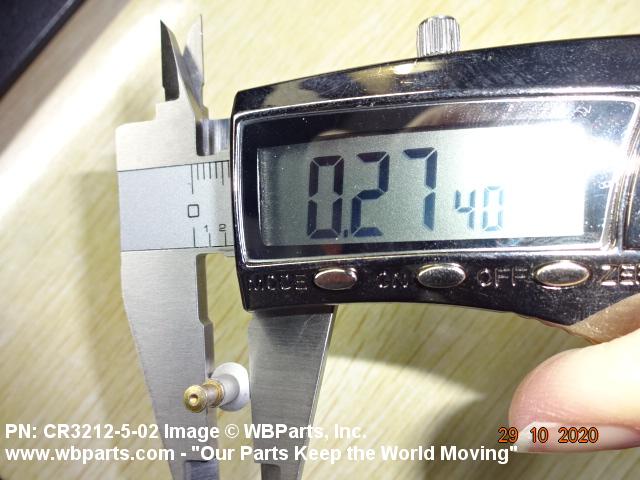

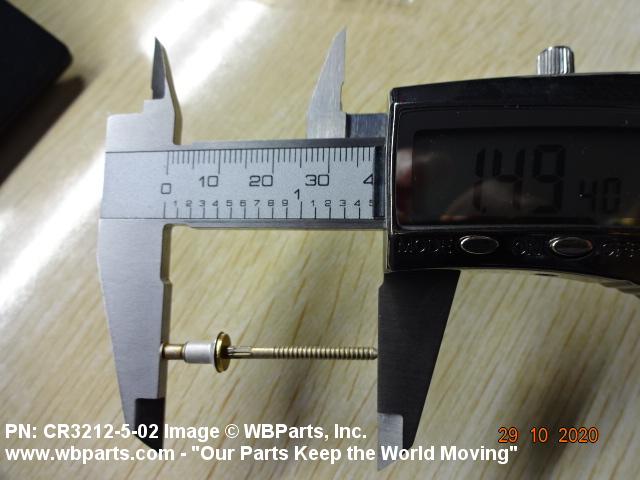

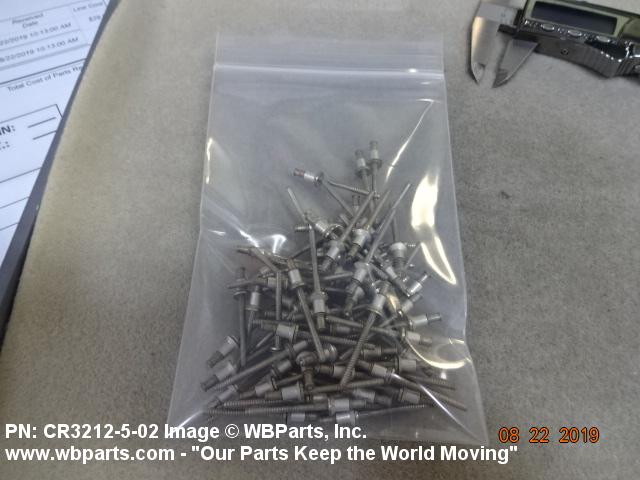

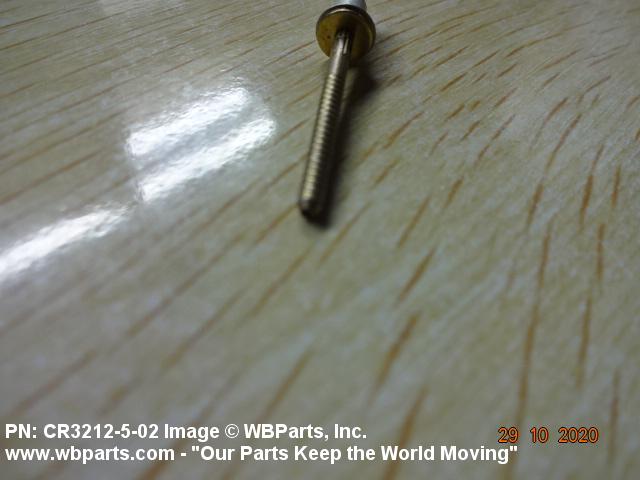

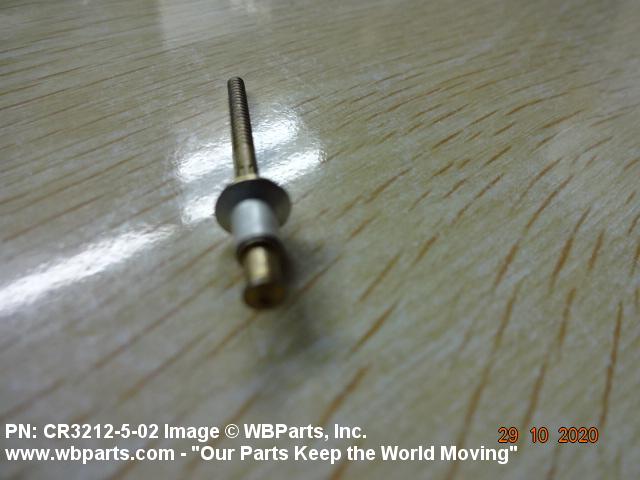

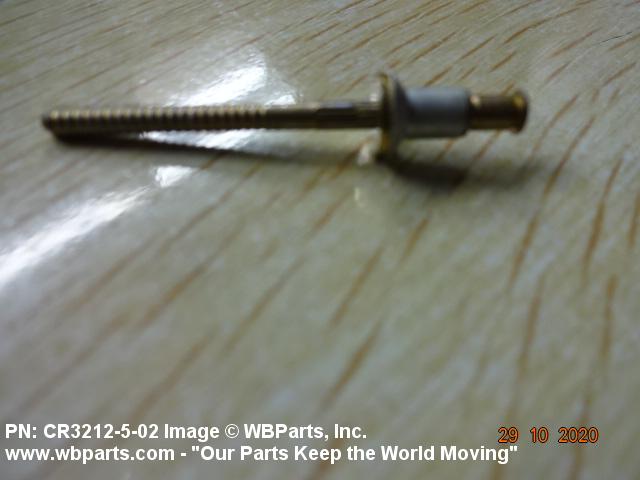

Drawings & Photos | NSN 5320-01-129-4528

Part Number	Request Date	QTY	Origin
CR321252	2024-11-309	40	US
CR321252	2024-02-50	60	US
CR3212502	2024-01-05	300	Czech Republic
CR321252	2022-10-279	100	Malaysia
CR321252	2019-06-168	400	CL
CR3212502	2019-03-73	1250	Germany
ST3M759V36	2018-10-301	100	SA
CR3212502	2018-04-113	200	MX
CR3212502	2017-09-264	200	US
CR321252	2017-07-206	1205	United States
CR321252	2017-07-206	2500	United States
CR321252	2017-07-206	3750	United States
CR321252	2017-07-206	5000	United States
CR3212502	2015-05-149	80	US
5320-01-129-4528	2013-09-246	1	DIBBS-RFPs
AF3212-5-02	2013-08-238	5000	US
CR321252	2013-03-67	250	United Kingdom
CR3212502	2012-07-207	2000	US
CR3212-5-2	2012-06-171	200	Malaysia
CR321252	2011-02-34	200	US
CR321252	2010-02-39	300	Italy
CR321252	2006-04-98	600	United States

Cross Reference | NSN 5320-01-129-4528

Part Number	Cage Code	Manufacturer
3929AS1133-V3-6	30003	NAVAL AIR SYSTEMS COMMAND
AIC-L-759V3-6	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HLT310DL-6-6	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HLT310DL-6-6	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HLT310DL-6-6	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HLT310DL-6-6	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HLT310DL-6-6	60516	WEST COAST AEROSPACE INC
HLT310DL-6-6	73197	HI-SHEAR CORPORATION
HLT310DL-6-6	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
HLT310DL-6-6	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HLT310DL-6-6	97928	HUCK INTL INC
HLT310DL-6-6	K5673	SPS TECHNOLOGIES LTD TJ BROOKS DIVISION
HLT310DL-6-6	L4528	LISI AEROSPACE CANADA CORP
HLT310TB-6-6	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HLT310TB-6-6	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HLT310TB-6-6	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HLT310TB-6-6	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HLT310TB-6-6	60516	WEST COAST AEROSPACE INC
HLT310TB-6-6	73197	HI-SHEAR CORPORATION
HLT310TB-6-6	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
HLT310TB-6-6	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HLT310TB-6-6	97928	HUCK INTL INC
HLT310TB-6-6	K5673	SPS TECHNOLOGIES LTD TJ BROOKS DIVISION
HLT310TB-6-6	L4528	LISI AEROSPACE CANADA CORP
HP4759V3-6	0ZC92	HEARTLAND PRECISION FASTENERS, INC.
ST3M759V3-6	58998	EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY
ST3M759V3-6	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-129-4528

Compare

Related Products | NSN 5320-01-129-4528

5320-01-129-4529, 5320-01-129-5061, 5320-01-129-5542, 5320-01-129-5543, 5320-01-129-5544

Technical Data | NSN 5320-01-129-4528

Characteristic	Specifications
MATERIAL	TITANIUM ALLOY UNS R56400 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	TI-SHIELD 3,FSCM 73197 MFR REF SINGLE TREATMENT RESPONSE OVERALL
SHEAR STRENGTH	95000 SINGLE POUNDS PER SQUARE INCH
HEAD STYLE	A34 FLAT CHAMFER
HEAD HEIGHT	0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM
HEAD MAJOR DIAMETER	0.295 INCHES MINIMUM AND 0.315 INCHES MAXIMUM
SHANK STYLE	B31 PIN-RIVET, STRAIGHT, THREADED
FASTENER LENGTH	0.695 INCHES MINIMUM AND 0.715 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.079 INCHES MINIMUM AND 0.081 INCHES MAXIMUM
SHANK DIAMETER	0.189 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
GRIP LENGTH	0.380 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD CLASS	3A
THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND
LUBRICATION	SOLID FILM AND CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP

Restrictions/Controls & Freight Information | NSN 5320-01-129-4528

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013630	ALUM RIVETS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-129-4528

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
