NSN 5320-01-166-3669 HLT33TB665M, HLT33TB-6-6-5M , HP4923C365
Product Details | PIN-RIVET
5320-01-166-3669 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HLT33TB665M, HLT33TB-6-6-5M , HP4923C365, HP4923C3-6-5, 10111949 , 3M923C365, 3M923C3-6-5, 5320-01-166-3669, 01-166-3669, 5320011663669, 011663669
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 NOV 1983 | 01-166-3669 | 67165 ( PIN-RIVET ) |

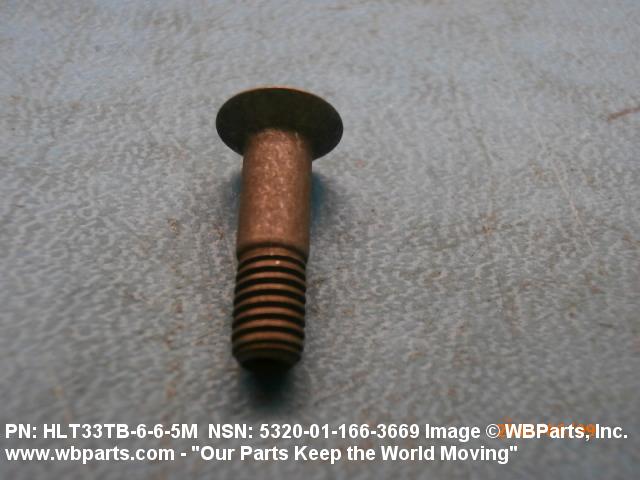

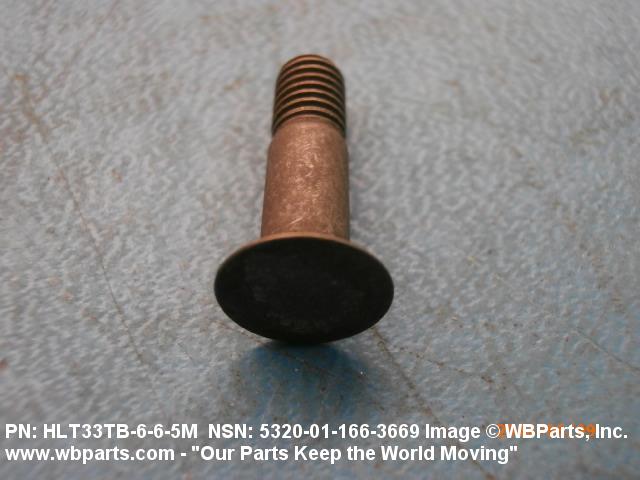

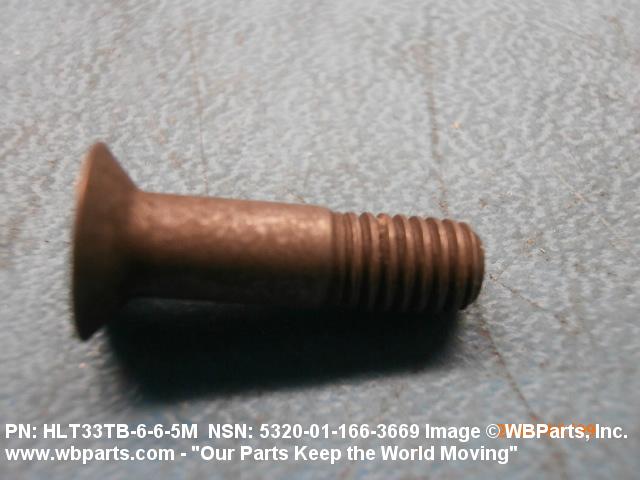

Drawings & Photos | NSN 5320-01-166-3669
Demand History | NSN 5320-01-166-3669
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3M923C3-6-5 | 2020-10-304 | 38 | DIBBS |
| HLT33TB-6-6-5M | 2020-10-304 | 38 | DIBBS |
| HP4923C3-6-5 | 2020-10-304 | 38 | DIBBS |
| 3M923C3-6-5 | 2020-10-281 | 38 | DIBBS |
| HLT33TB-6-6-5M | 2020-10-281 | 38 | DIBBS |
| HP4923C3-6-5 | 2020-10-281 | 38 | DIBBS |
| 3M923C3-6-5 | 2019-11-318 | 32 | DIBBS |
| HLT33TB-6-6-5M | 2019-11-318 | 32 | DIBBS |
| HP4923C3-6-5 | 2019-11-318 | 32 | DIBBS |
| 5320-01-166-3669 | 2017-07-195 | 25 | DIBBS |
| 5320-01-166-3669 | 2017-07-187 | 25 | DIBBS |
| 5320-01-166-3669 | 2017-07-186 | 25 | DIBBS |
| 5320-01-166-3669 | 2017-06-178 | 25 | DIBBS |
| 5320-01-166-3669 | 2017-06-177 | 6 | DIBBS |
| 5320-01-166-3669 | 2017-06-172 | 19 | DIBBS |
| 5320-01-166-3669 | 2017-06-164 | 19 | DIBBS |
| HLT33TB665M | 2016-05-145 | 100 | United States |
Cross Reference | NSN 5320-01-166-3669
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M923C3-6-5 | 76301 | BOEING COMPANY, THE DBA BOEING |
| HLT33TB-6-6-5M | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HLT33TB-6-6-5M | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT33TB-6-6-5M | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT33TB-6-6-5M | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HLT33TB-6-6-5M | 60516 | WEST COAST AEROSPACE INC |
| HLT33TB-6-6-5M | 73197 | HI-SHEAR CORPORATION |
| HLT33TB-6-6-5M | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT33TB-6-6-5M | 97928 | HUCK INTL INC |
| HLT33TB-6-6-5M | L4528 | LISI AEROSPACE CANADA CORP |
| HP4923C3-6-5 | 0ZC92 | HEARTLAND PRECISION FASTENERS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-166-3669
Related Products | NSN 5320-01-166-3669
Technical Data | NSN 5320-01-166-3669
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP XM-13 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5629 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SHEAR STRENGTH | 125000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A12 OVAL COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.3813 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |

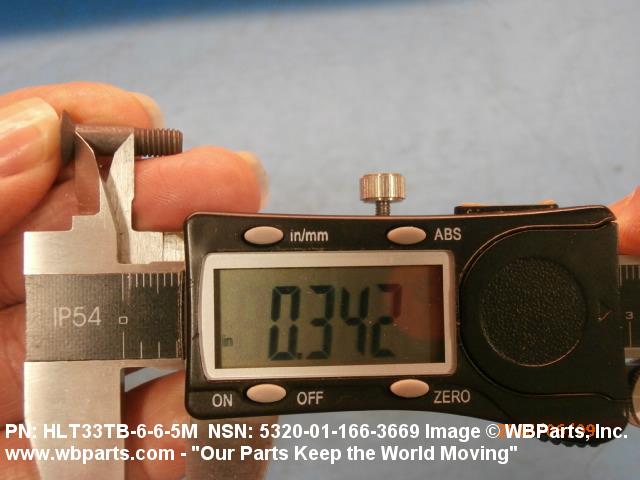

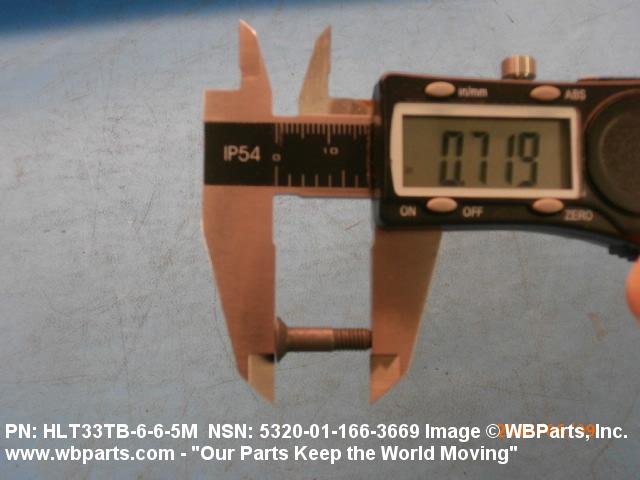

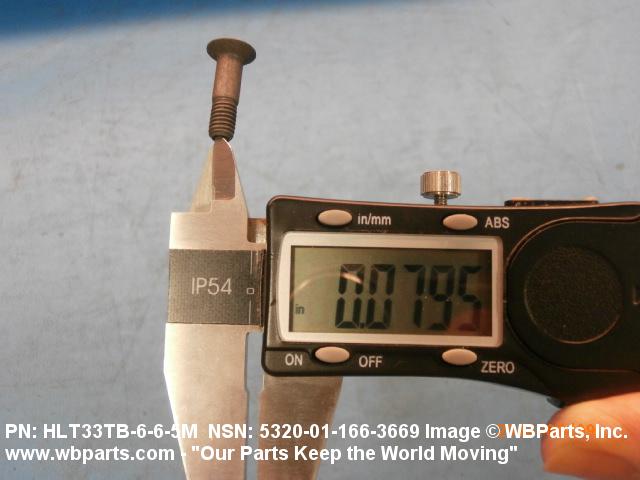

| FASTENER LENGTH | 0.699 INCHES MINIMUM AND 0.719 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.0791 INCHES MINIMUM AND 0.0806 INCHES MAXIMUM |

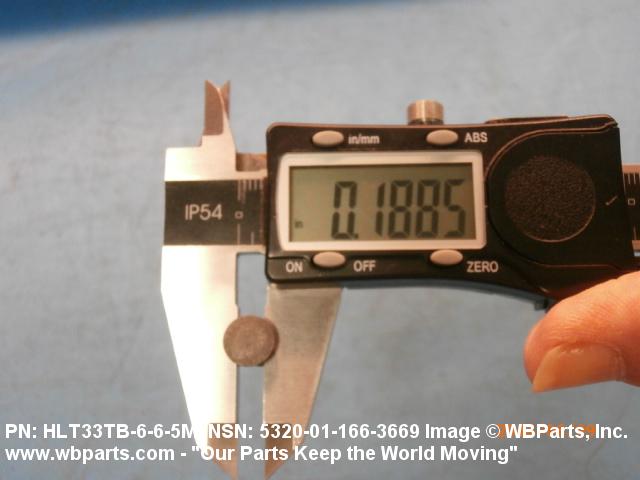

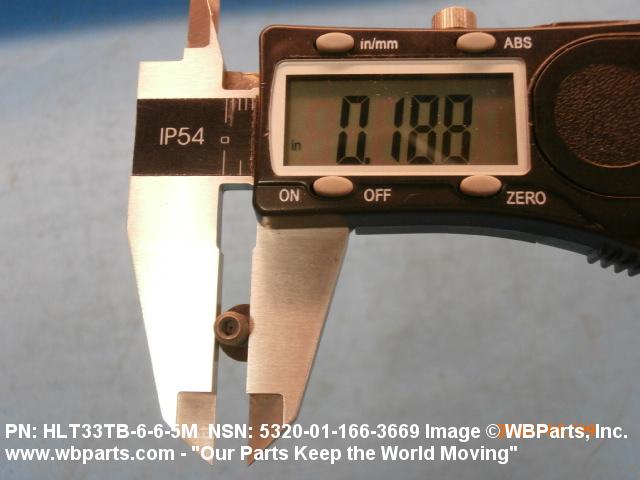

| SHANK DIAMETER | 0.1890 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM |
| GRIP LENGTH | 0.411 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 3A |

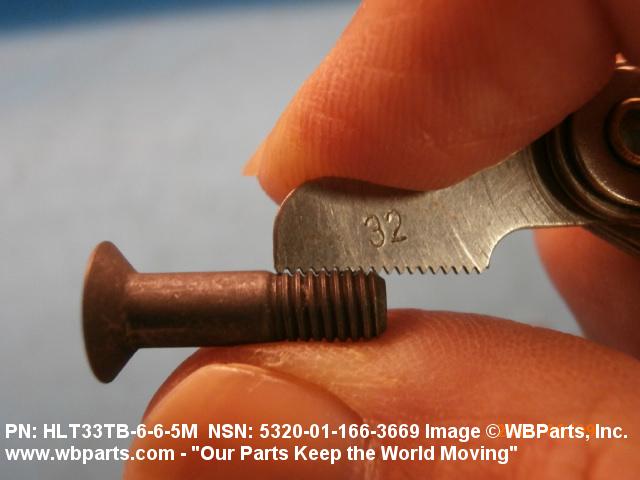

| THREAD QUANTITY PER INCH | 32 |
