NSN 5320-01-300-2787 HL220614, HL220-6-14, 01-300-2787
Product Details | PIN-RIVET

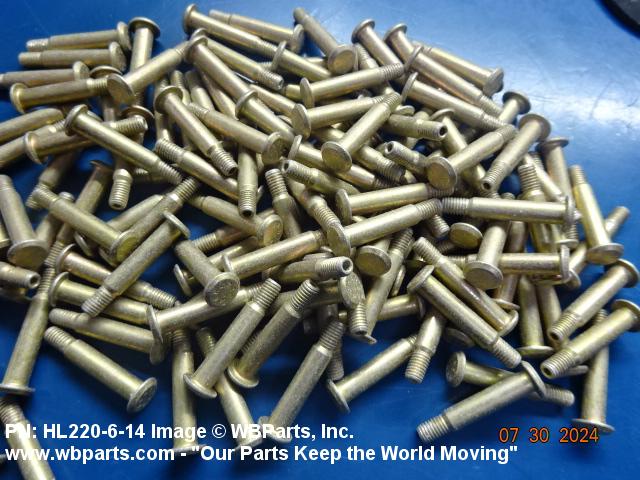

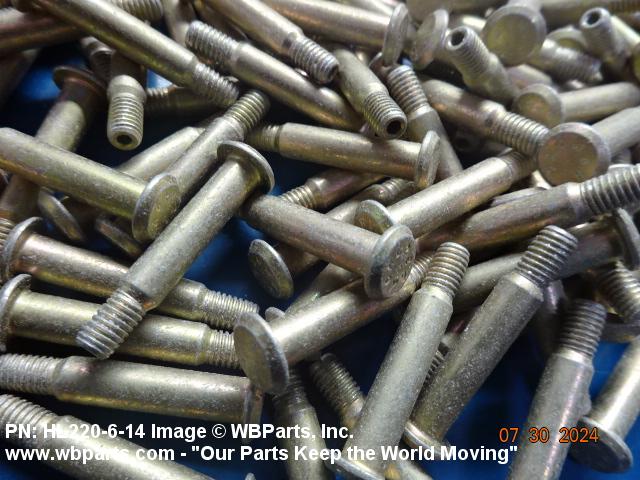

5320-01-300-2787 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HL220614, HL220-6-14, 5320-01-300-2787, 01-300-2787, 5320013002787, 013002787
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAY 1989 | 01-300-2787 | 67165 ( PIN-RIVET ) |
Drawings & Photos | NSN 5320-01-300-2787
Demand History | NSN 5320-01-300-2787
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL220614 | 2026-02-33 | 12 | us |
| HL220614 | 2026-02-33 | 42 | us |
| HL220614 | 2026-01-08 | 42 | us |
| HL220614 | 2024-12-365 | 11 | United States |
| 5320-01-300-2787 | 2024-07-184 | 125 | United States |
| 5320-01-300-2787 | 2017-09-260 | 62086 | DIBBS |
| 5320-01-300-2787 | 2016-10-300 | 5734 | DIBBS |
| 5320-01-300-2787 | 2016-09-245 | 5734 | DIBBS |
| 5320-01-300-2787 | 2016-08-236 | 91 | DIBBS |
| 5320-01-300-2787 | 2016-04-98 | 5734 | DIBBS |
| 5320-01-300-2787 | 2016-03-90 | 5734 | DIBBS |
| 5320-01-300-2787 | 2015-07-210 | 244 | DIBBS |
| 5320-01-300-2787 | 2015-03-81 | 93 | DIBBS |
| 5320-01-300-2787 | 2015-01-19 | 32 | DIBBS |
| 5320-01-300-2787 | 2014-12-350 | 33 | DIBBS |
| 5320-01-300-2787 | 2013-12-352 | 68 | DIBBS |
| 5320-01-300-2787 | 2013-11-323 | 540 | DIBBS |
| 5320-01-300-2787 | 2013-09-262 | 458 | DIBBS |
| 5320-01-300-2787 | 2013-05-121 | 223 | DIBBS |
| 5320-01-300-2787 | 2013-03-63 | 158 | DIBBS |
| 5320-01-300-2787 | 2012-02-53 | 200 | DIBBS |
| 5320-01-300-2787 | 2011-12-349 | 200 | DIBBS |
| 5320-01-300-2787 | 2011-11-320 | 100 | DIBBS |
| 5320-01-300-2787 | 2009-02-56 | 16 | US |
Cross Reference | NSN 5320-01-300-2787
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HL220-6-14 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL220-6-14 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL220-6-14 | 73197 | HI-SHEAR CORPORATION |
| HL220-6-14 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL220-6-14 | 97928 | HUCK INTL INC |
| HL220-6-14 | L4528 | LISI AEROSPACE CANADA CORP |
| HL220-6-14 | R1120 | SATAIR A/S |
