NSN 5320-01-320-4544 HLT410AP88, HLT410AP8-8, 01-320-4544
Product Details | PIN-RIVET
5320-01-320-4544 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HLT410AP88, HLT410AP8-8, 5320-01-320-4544, 01-320-4544, 5320013204544, 013204544
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 MAY 1990 | 01-320-4544 | 67165 ( PIN-RIVET ) |

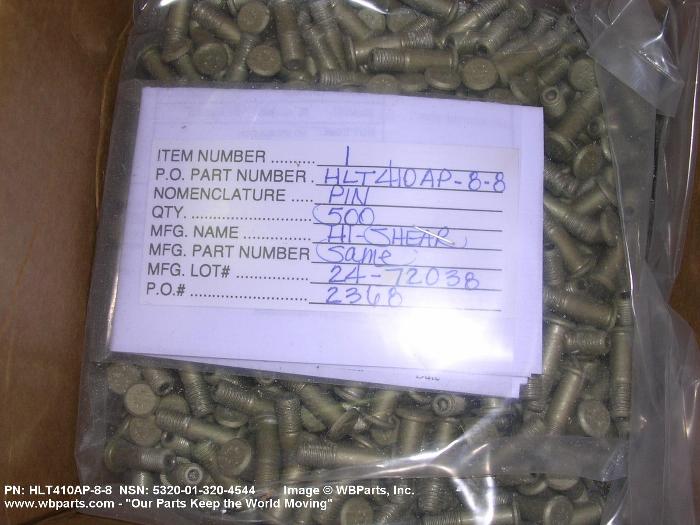

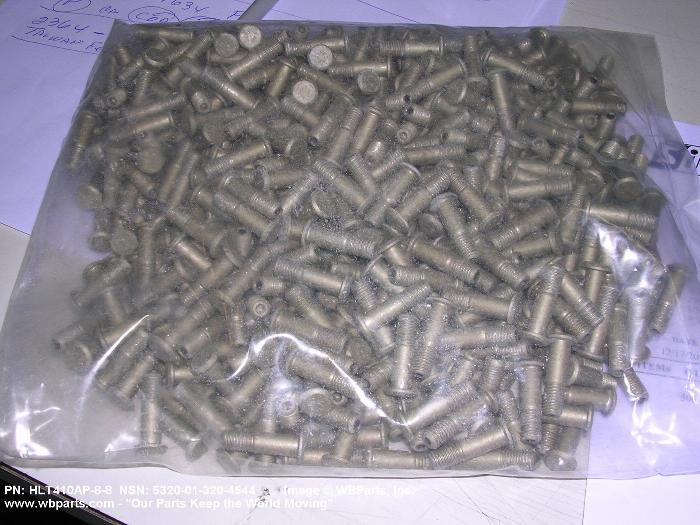

Drawings & Photos | NSN 5320-01-320-4544
Demand History | NSN 5320-01-320-4544
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HLT410AP88 | 2012-08-244 | 1000 | United States |
| HLT410AP88 | 2011-06-157 | 100 | United Kingdom |
| HLT410AP88 | 2007-12-345 | 100 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-320-4544
Technical Data | NSN 5320-01-320-4544
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | A34 FLAT CHAMFER |
| HEAD HEIGHT | 0.059 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.387 INCHES MINIMUM AND 0.412 INCHES MAXIMUM |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |
| FASTENER LENGTH | 0.885 INCHES MINIMUM AND 0.905 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.0947 INCHES MINIMUM AND 0.0967 INCHES MAXIMUM |
| SHANK DIAMETER | 0.2490 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| GRIP LENGTH | 0.495 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 28 |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | HI-KOTE 1 PER HI-SHEAR SPEC. 294 AND CETYL ALCOHOL LUBE PER HI-SHEAR SPEC. 305 |
| SPECIFICATION/STANDARD DATA | 73197-HLT410AP8-8 PROFESSIONAL/INDUSTRIAL ASSOCIATION SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 5320-01-320-4544
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
