NSN 5320-01-337-6724 AL10AG612, AL10AG-6-12, BACB30VT6K12

Product Details | PIN-RIVET

5320-01-337-6724 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: AL10AG612, AL10AG-6-12, BACB30VT6K12, HST10AG612, HST10AG-6-12, VL10AG612, VL10AG-6-12, WC10AG612, WC10AG-6-12 , 5320-01-337-6724, 01-337-6724, 5320013376724, 013376724

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	19 APR 1991	01-337-6724	67165 ( PIN-RIVET )

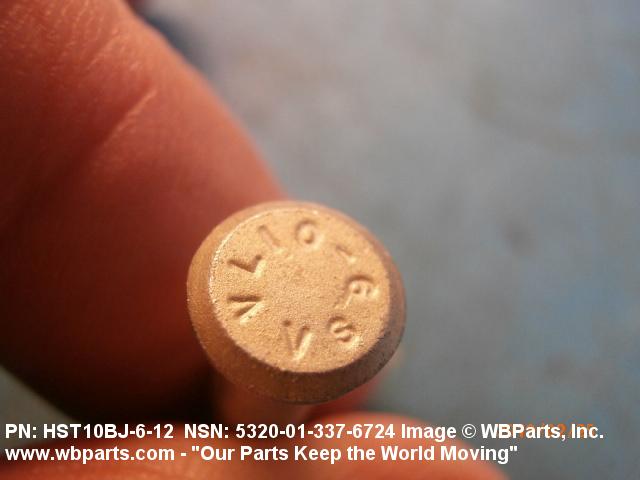

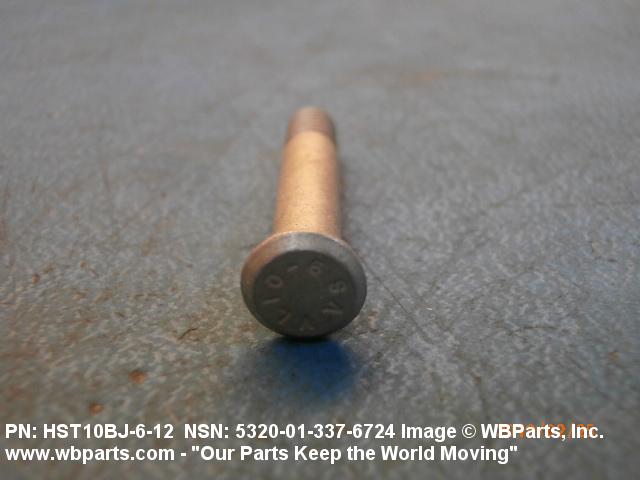

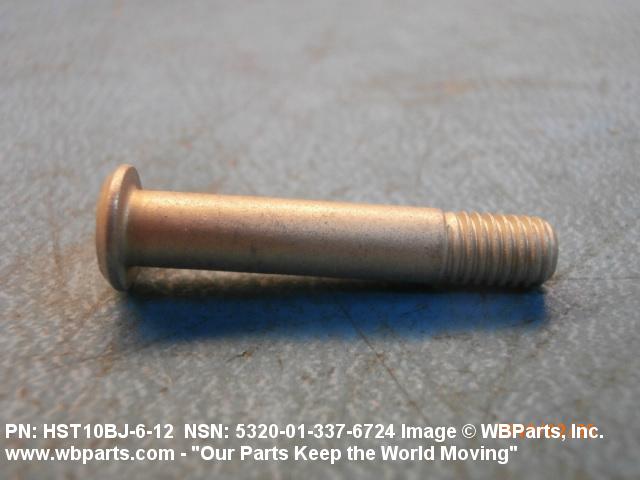

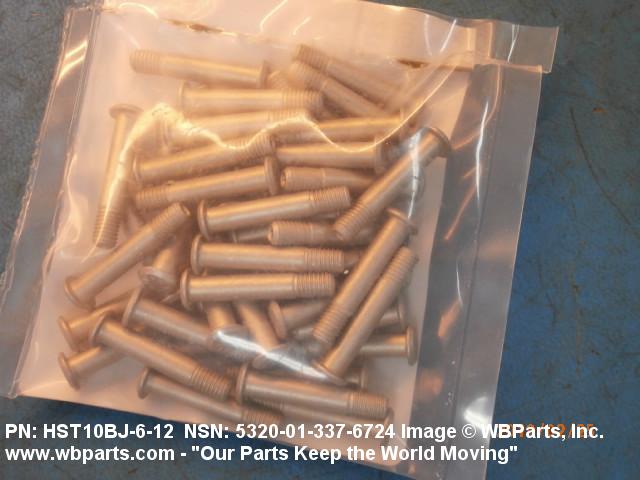

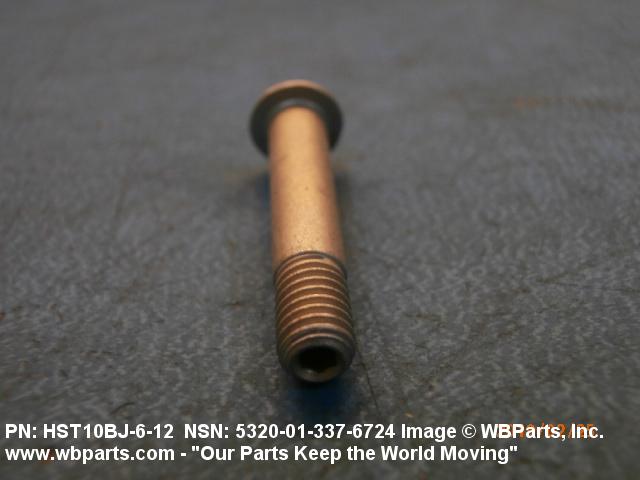

Drawings & Photos | NSN 5320-01-337-6724

Part Number	Request Date	QTY	Origin
5320-01-337-6724	2025-09-248	1000	Slovakia
AL10AG-6-12	2025-03-82	348	DIBBS
BACB30VT6K12	2025-03-82	348	DIBBS
HST10AG-6-12	2025-03-82	348	DIBBS
VL10AG-6-12	2025-03-82	348	DIBBS
WC10AG-6-12	2025-03-82	348	DIBBS
AL10AG-6-12	2024-09-259	181	DIBBS
BACB30VT6K12	2024-09-259	181	DIBBS
HST10AG-6-12	2024-09-259	181	DIBBS
VL10AG-6-12	2024-09-259	181	DIBBS
WC10AG-6-12	2024-09-259	181	DIBBS
AL10AG-6-12	2024-05-148	100	DIBBS
BACB30VT6K12	2024-05-148	100	DIBBS
HST10AG-6-12	2024-05-148	100	DIBBS
VL10AG-6-12	2024-05-148	100	DIBBS
WC10AG-6-12	2024-05-148	100	DIBBS
5320-01-337-6724	2019-01-29	50	United States
5320-01-337-6724	2018-05-144	1	DIBBS-RFPs
5320-01-337-6724	2017-01-26	798	DIBBS
5320-01-337-6724	2016-06-181	659	DIBBS
5320-01-337-6724	2016-05-138	640	DIBBS
5320-01-337-6724	2016-01-13	534	DIBBS
5320-01-337-6724	2015-07-188	379	DIBBS
5320-01-337-6724	2014-05-135	264	DIBBS
5320-01-337-6724	2013-11-318	54	DIBBS
HST10AG612	2012-08-227	125	US
5320-01-337-6724	2010-04-100	107	DIBBS
5320-01-337-6724	2009-04-113	256	DIBBS

Cross Reference | NSN 5320-01-337-6724

Part Number	Cage Code	Manufacturer
AL10AG-6-12	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
BACB30VT6K12	81205	THE BOEING COMPANY DBA BOEING
HST10AG-6-12	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HST10AG-6-12	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HST10AG-6-12	73197	HI-SHEAR CORPORATION
HST10AG-6-12	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HST10AG-6-12	L4528	LISI AEROSPACE CANADA CORP
VL10AG-6-12	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
WC10AG-6-12	60516	WEST COAST AEROSPACE INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-337-6724

Compare

Related Products | NSN 5320-01-337-6724

5320-01-337-6725, 5320-01-337-6726, 5320-01-337-6727, 5320-01-337-6728, 5320-01-337-6729

Technical Data | NSN 5320-01-337-6724

Characteristic	Specifications
MATERIAL	TITANIUM ALLOY UNS R56400 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ALUMINUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	HI KOTE 1,CAGEC 73197 MFR REF SINGLE TREATMENT RESPONSE OVERALL
SHEAR STRENGTH	95000 SINGLE POUNDS PER SQUARE INCH
HEAD STYLE	A34 FLAT CHAMFER

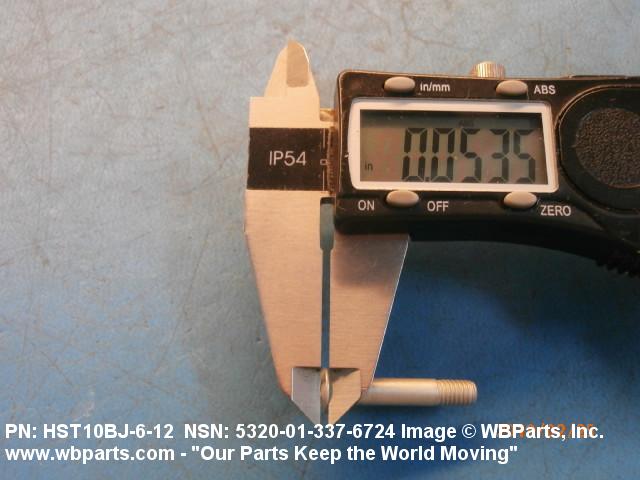

HEAD HEIGHT	0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM

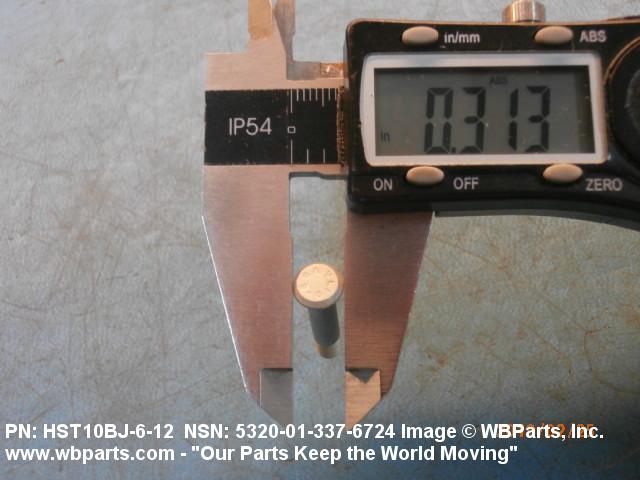

HEAD MAJOR DIAMETER	0.295 INCHES MINIMUM AND 0.315 INCHES MAXIMUM
SHANK STYLE	B31 PIN-RIVET, STRAIGHT, THREADED

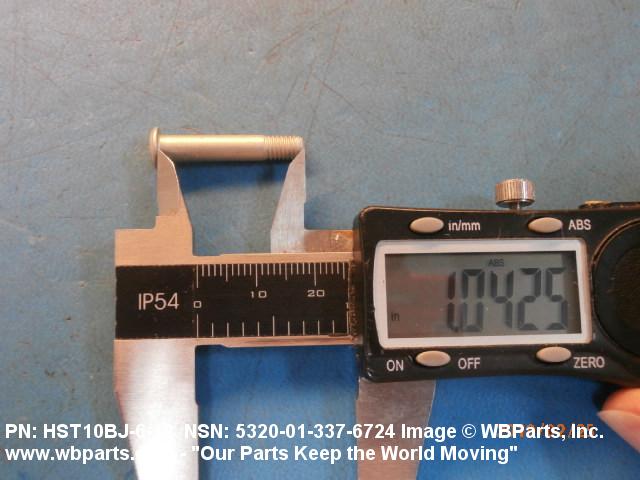

FASTENER LENGTH	1.030 INCHES MINIMUM AND 1.050 INCHES MAXIMUM

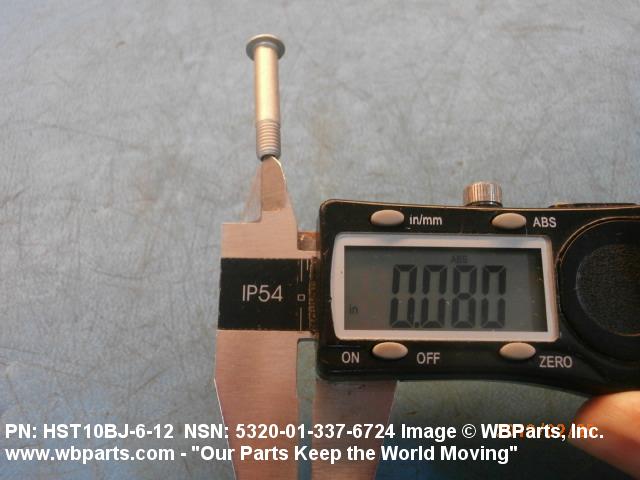

WIDTH BETWEEN FLATS	0.0791 INCHES MINIMUM AND 0.0806 INCHES MAXIMUM

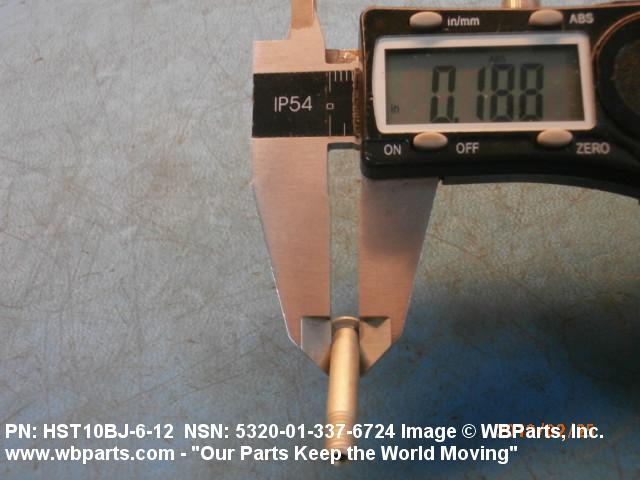

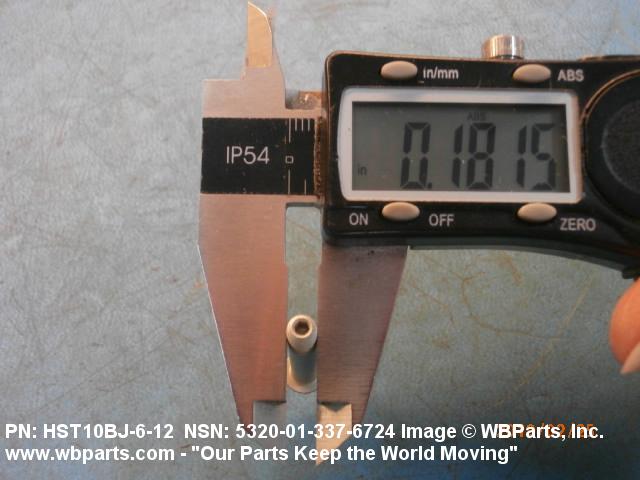

SHANK DIAMETER	0.1885 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM

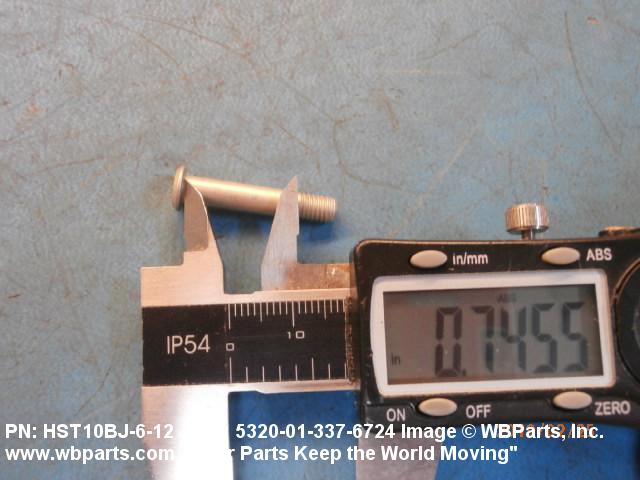

GRIP LENGTH	0.745 INCHES MINIMUM AND 0.755 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD CLASS	3A

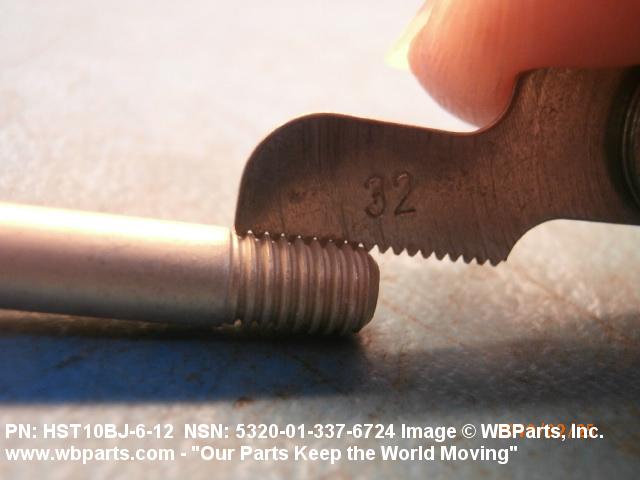

THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND
LUBRICATION	CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP
SPECIAL FEATURES	COLOR CODE ORANGE ON THREAD END

Restrictions/Controls & Freight Information | NSN 5320-01-337-6724

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	096320	RIVETS I/S NICKEL PLATED BUFFED
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
