NSN 5320-01-338-6909 AL10AG64, AL10AG-6-4, BACB30VT6K4

Product Details | PIN-RIVET

5320-01-338-6909 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: AL10AG64, AL10AG-6-4, BACB30VT6K4, HST10AG64, HST10AG-6-4 , VL10AG64, VL10AG-6-4, 5320-01-338-6909, 01-338-6909, 5320013386909, 013386909

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 MAY 1991	01-338-6909	67165 ( PIN-RIVET )

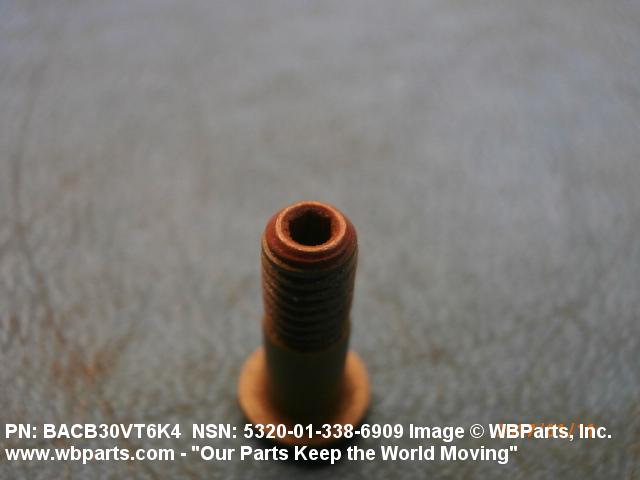

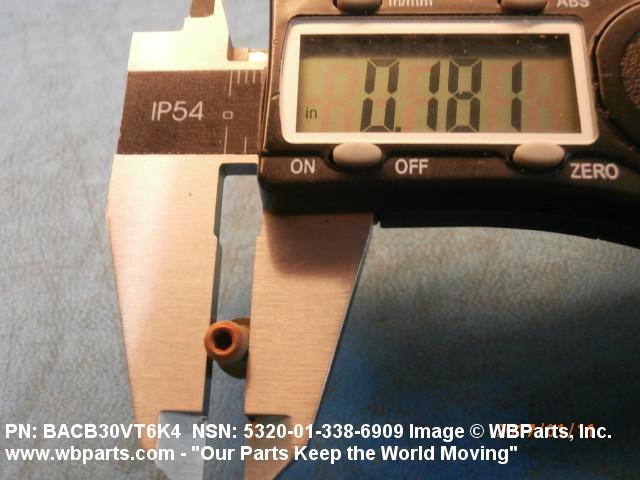

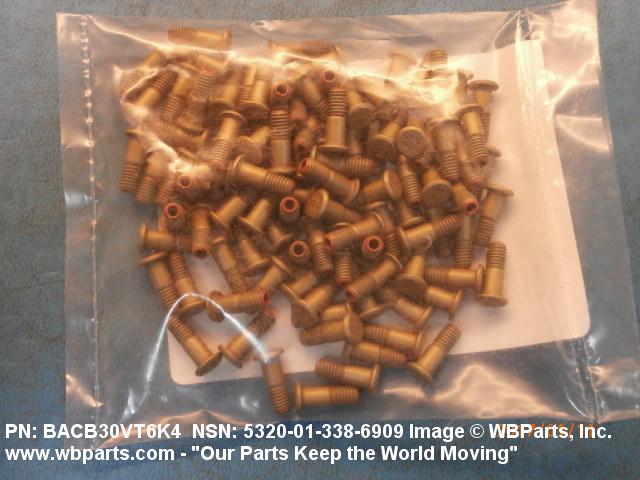

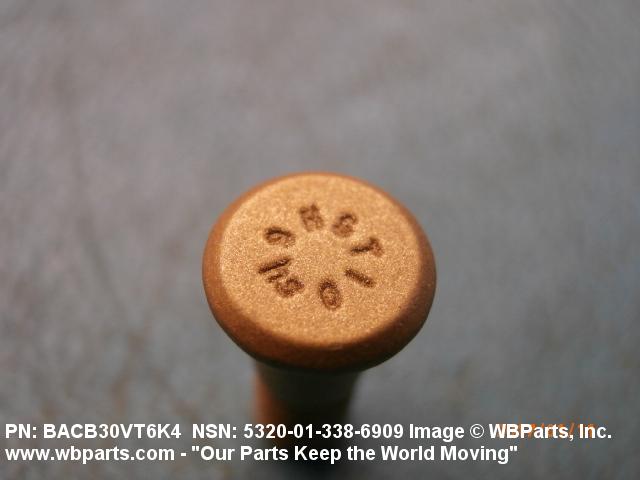

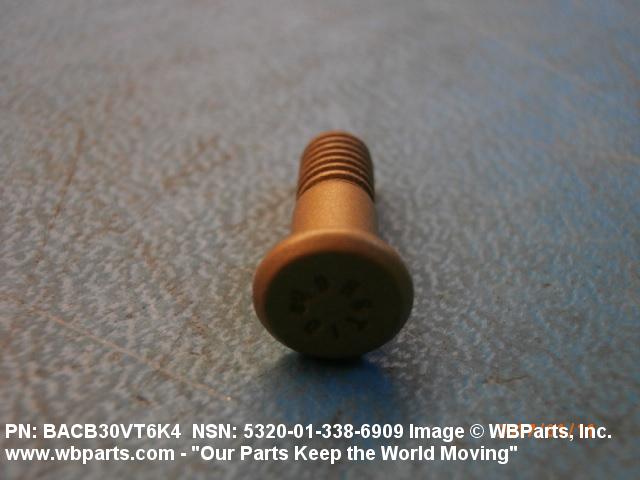

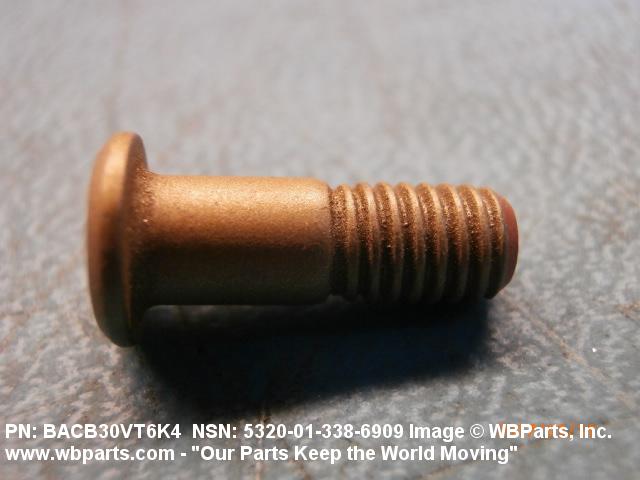

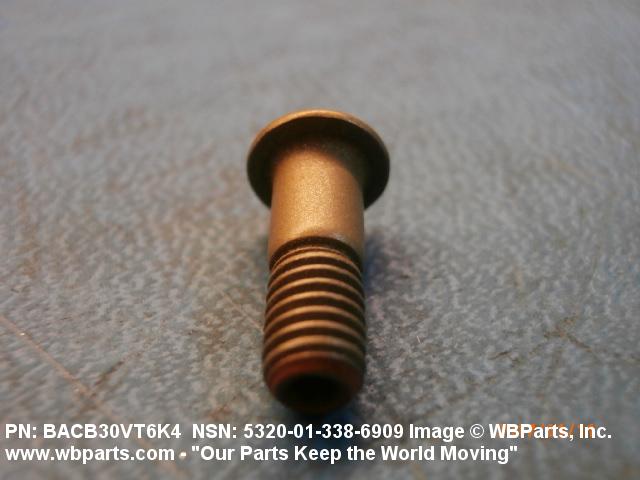

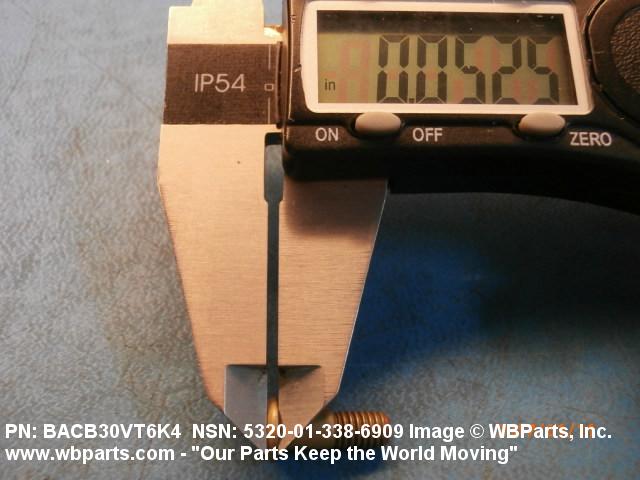

Drawings & Photos | NSN 5320-01-338-6909

Part Number	Request Date	QTY	Origin
BACB30VT6K4	2025-12-353	1000	SG
HST10AG64	2025-11-310	30	France
BACB30VT6K4	2025-08-213	300	United States
BACB30VT6K4	2024-10-304	126	United States
HST10AG64	2022-08-213	100	United States
AL10AG-6-4	2022-06-152	9785	DIBBS
HST10AG-6-4	2022-06-152	9785	DIBBS
VL10AG-6-4	2022-06-152	9785	DIBBS
HST10AG64	2022-02-48	20	United States
HST10AG64	2022-01-28	4000	United States
HST10AG64	2021-12-351	10	United States
BACB30VT6K4	2021-04-96	1188	United States
5320-01-338-6909	2018-11-308	12822	DIBBS
5320-01-338-6909	2018-10-281	10234	DIBBS
BACB30VT6K4	2017-03-86	100	US
5320-01-338-6909	2017-01-10	100	United States
5320-01-338-6909	2017-01-09	100	US
BACB30VT6K4	2015-03-82	2880	United States
5320-01-338-6909	2014-06-180	20	DIBBS
BACB30VT6K4	2014-04-113	54	United States
5320-01-338-6909	2014-02-51	7806	DIBBS
BACB30VT6K4	2014-01-21	800	Canada
BACB30VT6K4	2013-12-336	41	US
BACB30VT6K4	2013-12-336	41	US
BACB30VT6K4	2013-10-294	15	US
5320-01-338-6909	2013-06-154	48	US
5320-01-338-6909	2013-06-154	56	US
5320-01-338-6909	2012-11-334	8128	DIBBS
HST10AG64	2012-08-227	7765	US
HST10AG64	2011-11-319	4650	HK
HST10AG64	2011-11-319	4650	HK
5320-01-338-6909	2011-11-307	2623	DIBBS
5320-01-338-6909	2011-08-216	756	DIBBS
5320-01-338-6909	2010-01-27	917	DIBBS
5320-01-338-6909	2009-11-316	917	DIBBS
BACB30VT6K4	2008-07-206	100	us
HST10AG64	2008-05-135	390	US
5320-01-338-6909	2008-04-100	1107	DIBBS
5320-01-338-6909	2008-02-49	20	China
BACB30VT6K4	2008-01-09	200	United States
HST10AG64	2006-10-300	390	US
BACB30VT6K4	2006-09-258	20	US

Cross Reference | NSN 5320-01-338-6909

Part Number	Cage Code	Manufacturer
AL10AG-6-4	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
BACB30VT6K4	81205	THE BOEING COMPANY DBA BOEING
BACB30VT6K4	Z03F0	BOEING DEFENCE AUSTRALIA LTD
BACB30VT6K4	Z8T75	BOEING DEFENCE AUSTRALIA LTD
HST10AG-6-4	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HST10AG-6-4	0PTK6	SPS TECHNOLOGIES INC
HST10AG-6-4	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HST10AG-6-4	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HST10AG-6-4	73197	HI-SHEAR CORPORATION
HST10AG-6-4	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HST10AG-6-4	L4528	LISI AEROSPACE CANADA CORP
VL10AG-6-4	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
VL10AG-6-4	1RC86	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-338-6909

Compare

Related Products | NSN 5320-01-338-6909

5320-01-338-6910, 5320-01-338-6911, 5320-01-338-6912, 5320-01-338-6913, 5320-01-338-6914

Technical Data | NSN 5320-01-338-6909

Characteristic	Specifications
MATERIAL	TITANIUM ALLOY UNS R56400 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ALUMINUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	HI KOTE 1,CAGEC 73197 MFR REF SINGLE TREATMENT RESPONSE OVERALL
SHEAR STRENGTH	95000 SINGLE POUNDS PER SQUARE INCH
HEAD STYLE	A34 FLAT CHAMFER
HEAD HEIGHT	0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM

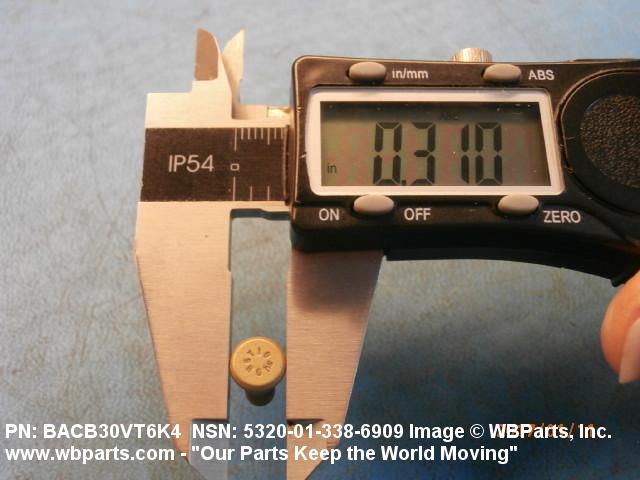

HEAD MAJOR DIAMETER	0.295 INCHES MINIMUM AND 0.315 INCHES MAXIMUM
SHANK STYLE	B31 PIN-RIVET, STRAIGHT, THREADED

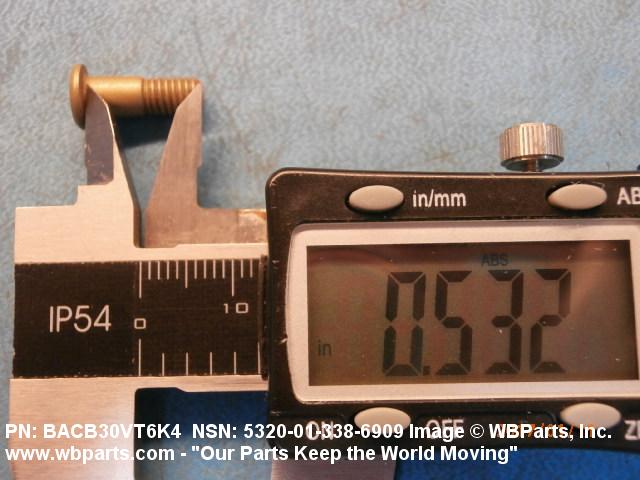

FASTENER LENGTH	0.530 INCHES MINIMUM AND 0.550 INCHES MAXIMUM

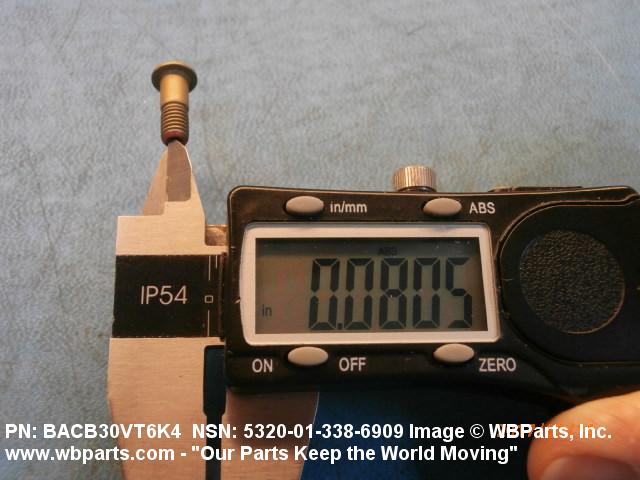

WIDTH BETWEEN FLATS	0.0791 INCHES MINIMUM AND 0.0806 INCHES MAXIMUM

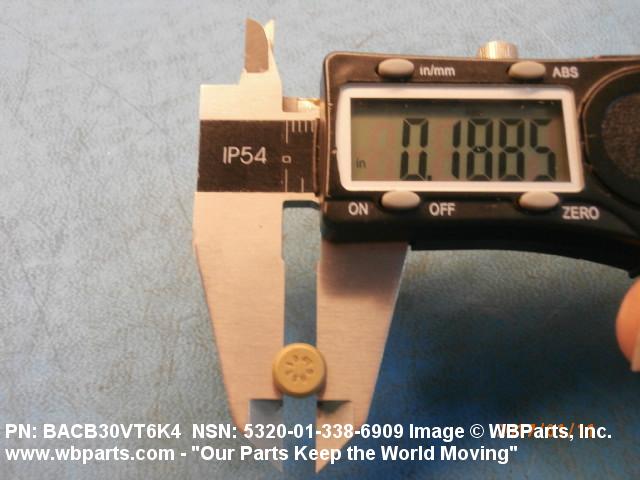

SHANK DIAMETER	0.1885 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM

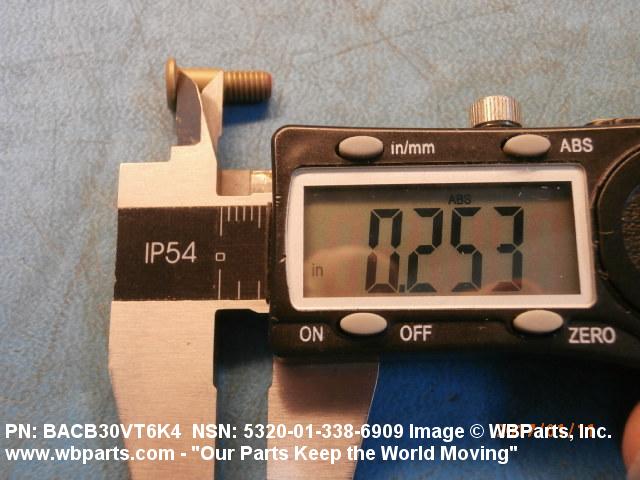

GRIP LENGTH	0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD CLASS	3A

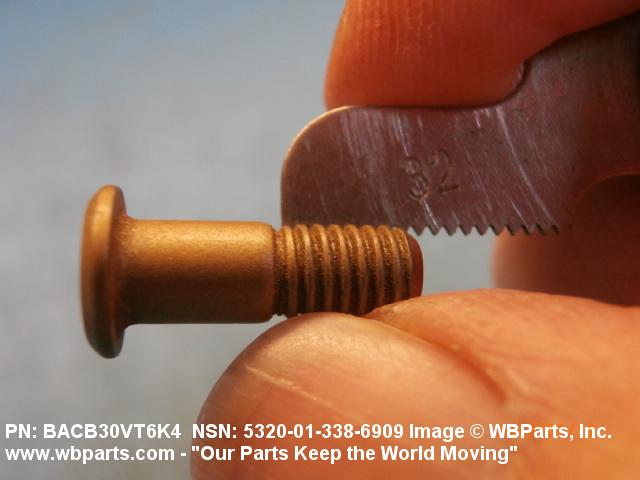

THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND
LUBRICATION	CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP
SPECIAL FEATURES	COLOR CODE ORANGE ON THREAD END

Restrictions/Controls & Freight Information | NSN 5320-01-338-6909

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	096320	RIVETS I/S NICKEL PLATED BUFFED
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-338-6909

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
