NSN 5320-01-338-7386 AL315AG63, AL315AG-6-3, BACB30WM6K3

Product Details | PIN-RIVET

5320-01-338-7386 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: AL315AG63, AL315AG-6-3, BACB30WM6K3, HST315AG63, HST315AG-6-3, HST315AG63WD, HST315AG6-3WD , WC315AG63, WC315AG-6-3, 10015863, 100-158-6-3, 5320-01-338-7386, 01-338-7386, 5320013387386, 013387386

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	10 MAY 1991	01-338-7386	67165 ( PIN-RIVET )

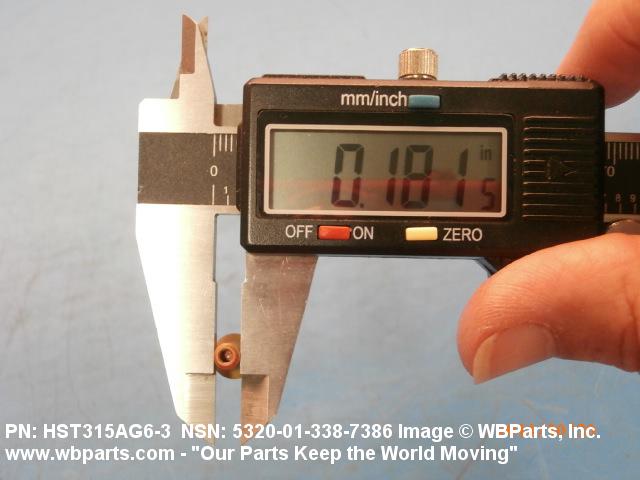

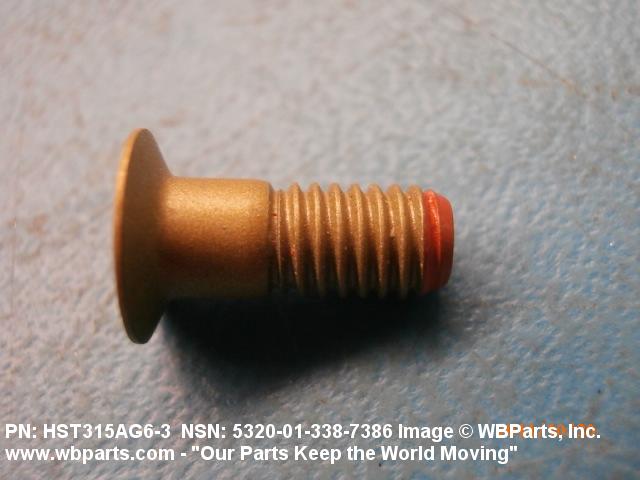

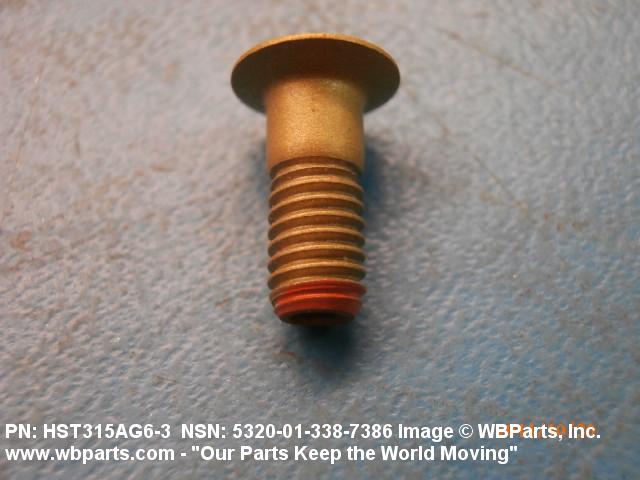

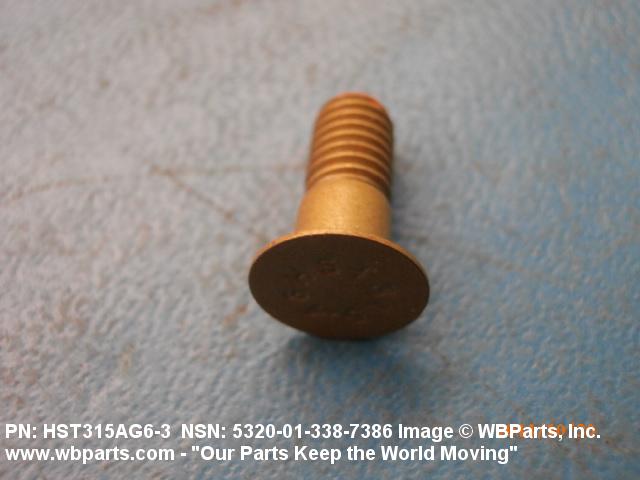

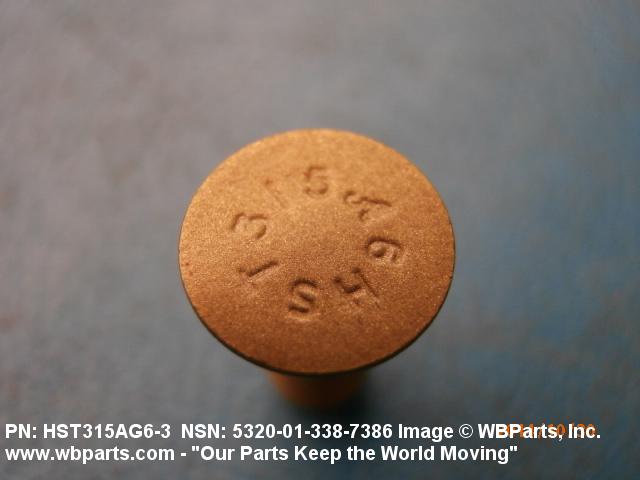

Drawings & Photos | NSN 5320-01-338-7386

Part Number	Request Date	QTY	Origin
BACB30WM6K3	2020-10-304	6	us
100-158-6-3	2020-04-120	1725	DIBBS
AL315AG-6-3	2020-04-120	1725	DIBBS
HST315AG-6-3	2020-04-120	1725	DIBBS
HST315AG6-3WD	2020-04-120	1725	DIBBS
WC315AG-6-3	2020-04-120	1725	DIBBS
HST315AG63	2014-10-293	100	United States
5320-01-338-7386	2014-08-217	1601	DIBBS
5320-01-338-7386	2014-02-48	506	DIBBS
5320-01-338-7386	2013-03-86	418	DIBBS
5320-01-338-7386	2011-08-228	391	DIBBS
5320-01-338-7386	2010-05-124	178	DIBBS
5320-01-338-7386	2010-03-65	87	DIBBS
5320-01-338-7386	2009-05-151	177	DIBBS
5320-01-338-7386	2009-04-105	100	DIBBS
5320-01-338-7386	2009-02-36	64	DIBBS
5320-01-338-7386	2009-01-23	50	DIBBS
5320-01-338-7386	2008-11-333	22	DIBBS
5320-01-338-7386	2008-11-317	32	US

Cross Reference | NSN 5320-01-338-7386

Part Number	Cage Code	Manufacturer
100-158-6-3	97499	BELL HELICOPTER TEXTRON INC.
AL315AG-6-3	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
BACB30WM6K3	81205	THE BOEING COMPANY DBA BOEING
HST315AG-6-3	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HST315AG-6-3	73197	HI-SHEAR CORPORATION
HST315AG-6-3	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
HST315AG-6-3	L4528	LISI AEROSPACE CANADA CORP
HST315AG6-3WD	73197	HI-SHEAR CORPORATION
HST315AG6-3WD	L4528	LISI AEROSPACE CANADA CORP
WC315AG-6-3	60516	WEST COAST AEROSPACE INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-338-7386

Compare

Related Products | NSN 5320-01-338-7386

5320-01-338-7387, 5320-01-338-7388, 5320-01-338-7389, 5320-01-338-8250, 5320-01-338-8251

Technical Data | NSN 5320-01-338-7386

Characteristic	Specifications
MATERIAL	TITANIUM ALLOY UNS R56400 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ALUMINUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	HI-KOTE 1,SPEC. 294,CAGEC 73197 MFR REF SINGLE TREATMENT RESPONSE OVERALL
SHEAR STRENGTH	95000 SINGLE POUNDS PER SQUARE INCH
HEAD STYLE	A9 FLUSH COUNTERSUNK

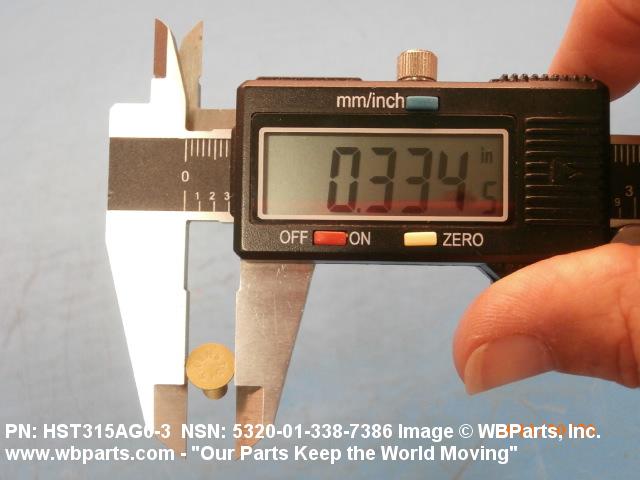

HEAD MAJOR DIAMETER	0.3825 INCHES MINIMUM AND 0.3911 INCHES MAXIMUM
COUNTERSINK ANGLE	130.0 DEGREES NOMINAL
SHANK STYLE	B31 PIN-RIVET, STRAIGHT, THREADED

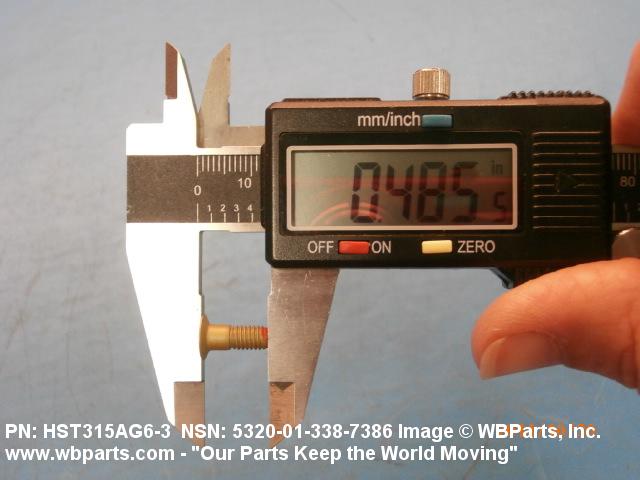

FASTENER LENGTH	0.468 INCHES MINIMUM AND 0.488 INCHES MAXIMUM

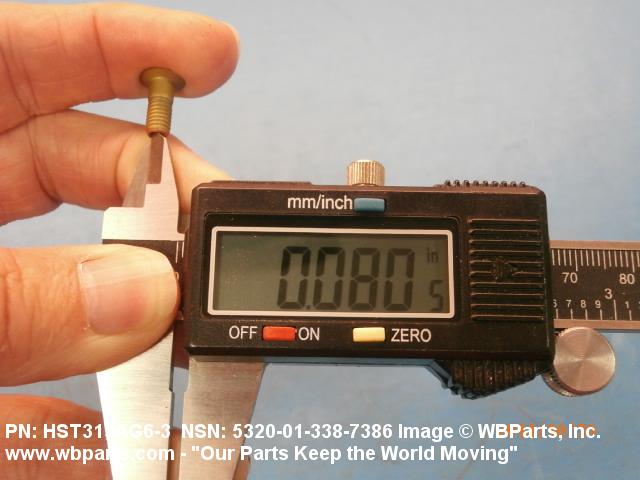

WIDTH BETWEEN FLATS	0.0791 INCHES MINIMUM AND 0.0806 INCHES MAXIMUM

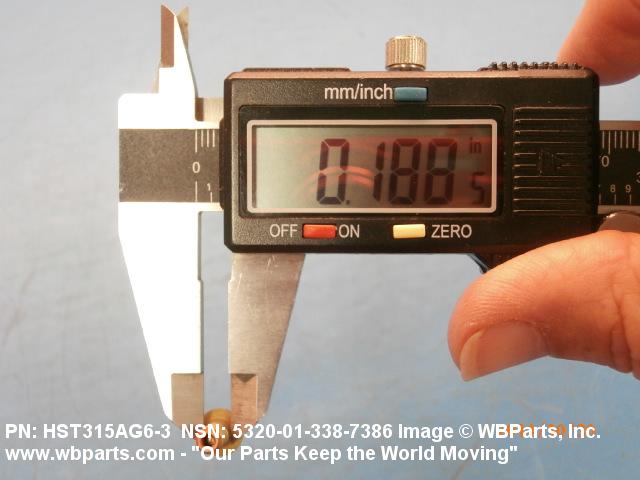

SHANK DIAMETER	0.1885 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM

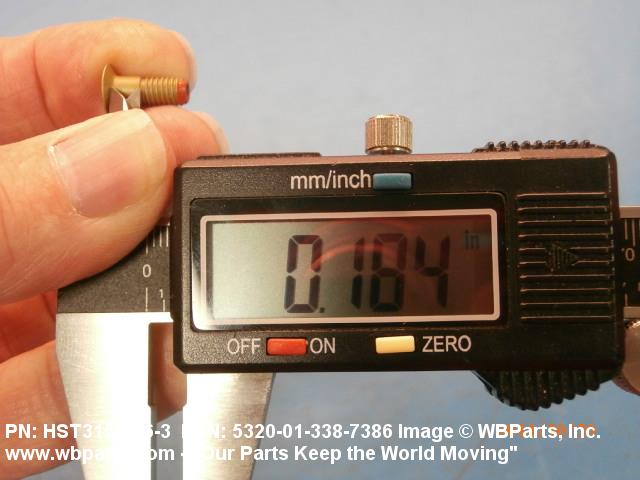

GRIP LENGTH	0.183 INCHES MINIMUM AND 0.193 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD CLASS	3A
THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND
LUBRICATION	CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP
SPECIAL FEATURES	IDENTIFY WITH COLOR ORANGE ON THREAD END

Restrictions/Controls & Freight Information | NSN 5320-01-338-7386

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	096320	RIVETS I/S NICKEL PLATED BUFFED
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-338-7386

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
