NSN 5320-01-378-5008 HL2082, HL20-8-2, 01-378-5008
Product Details | PIN-RIVET
5320-01-378-5008 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HL2082, HL20-8-2, 5320-01-378-5008, 01-378-5008, 5320013785008, 013785008
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 AUG 1993 | 01-378-5008 | 67165 ( PIN-RIVET ) |

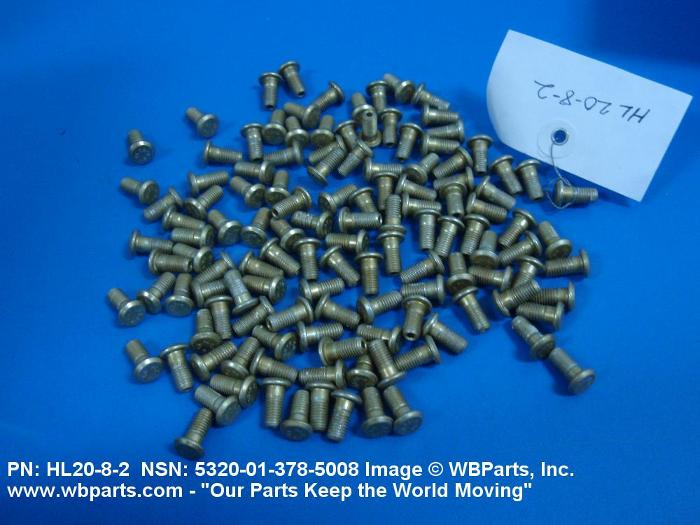

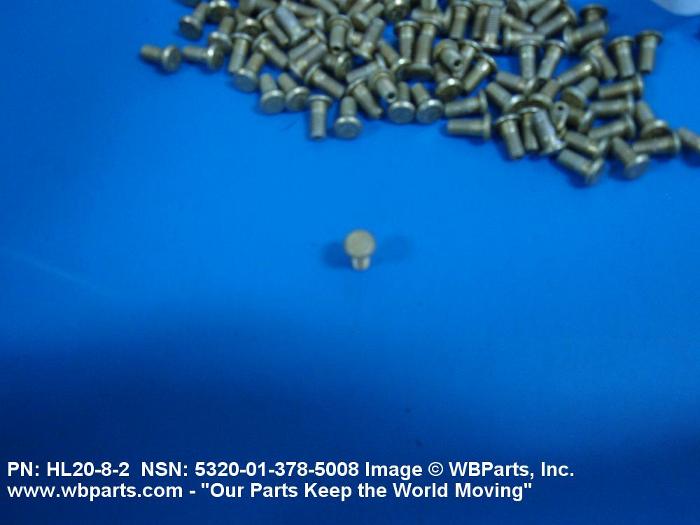

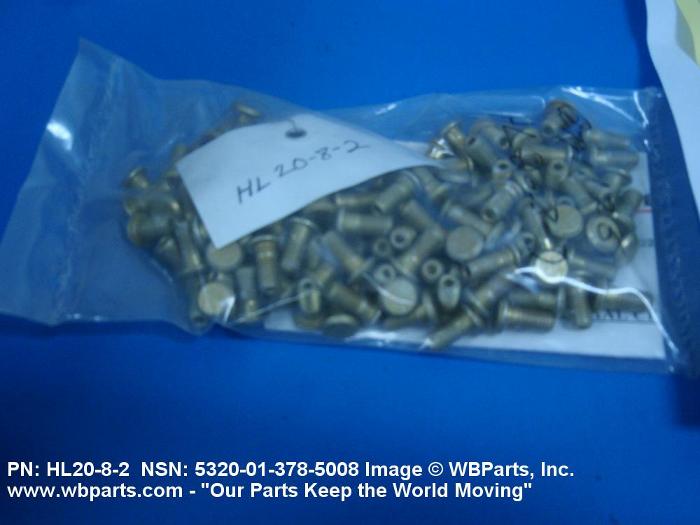

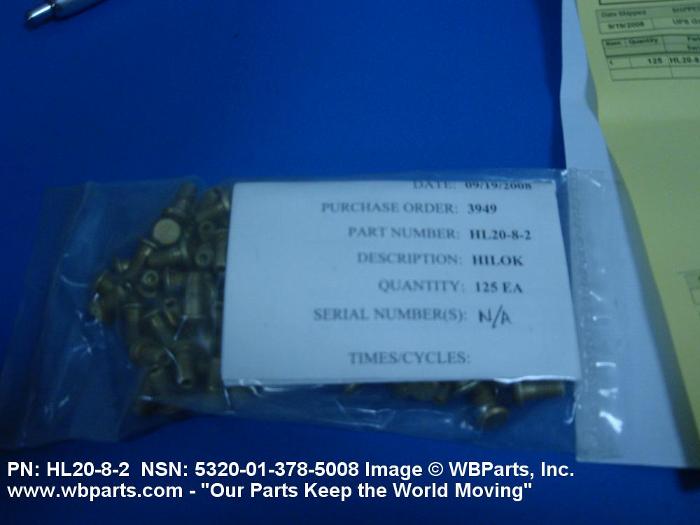

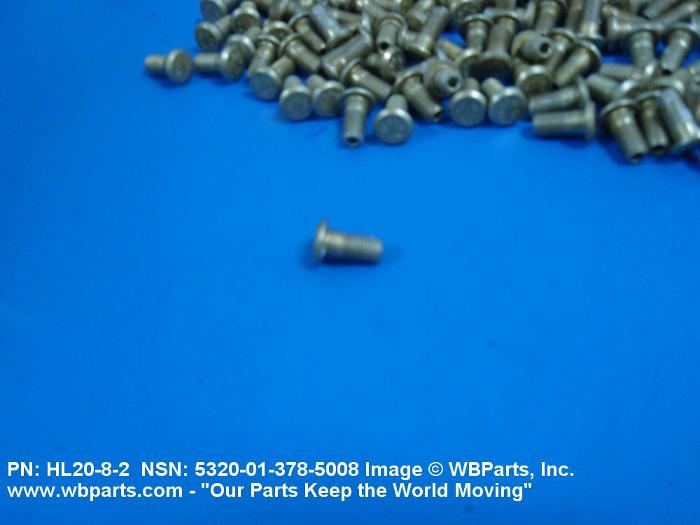

Drawings & Photos | NSN 5320-01-378-5008
Demand History | NSN 5320-01-378-5008
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-378-5008 | 2008-09-260 | 30 | Romania |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-378-5008
Technical Data | NSN 5320-01-378-5008
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HEAD STYLE | A34 FLAT CHAMFER |
| HEAD HEIGHT | 0.122 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.415 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |
| FASTENER LENGTH | 0.510 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.947 INCHES MINIMUM AND 0.967 INCHES MAXIMUM |
| SHANK DIAMETER | 0.248 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
| GRIP LENGTH | 0.120 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| THREAD DIRECTION | RIGHT-HAND |
Restrictions/Controls & Freight Information | NSN 5320-01-378-5008
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZC | Canada ZD ZE |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
