NSN 5320-01-414-5986 HL21PB59, HL21PB5-9, 01-414-5986
Product Details | PIN-RIVET
5320-01-414-5986 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HL21PB59, HL21PB5-9, 5320-01-414-5986, 01-414-5986, 5320014145986, 014145986
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUN 1995 | 01-414-5986 | 67165 ( PIN-RIVET ) |

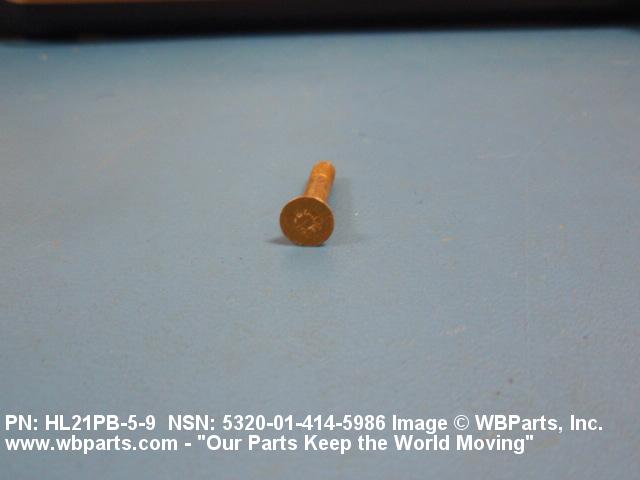

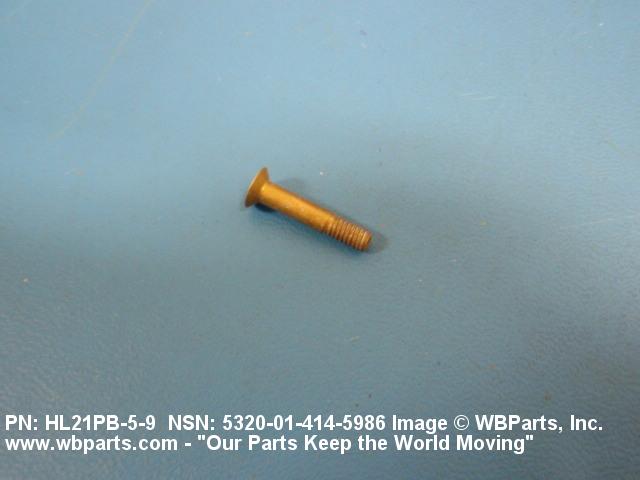

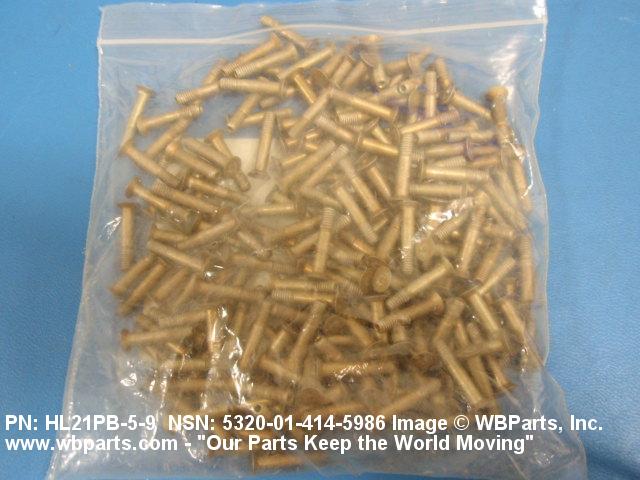

Drawings & Photos | NSN 5320-01-414-5986
Demand History | NSN 5320-01-414-5986
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL21PB5-9 | 2024-06-172 | 676 | DIBBS |
| HL21PB5-9 | 2024-06-164 | 676 | DIBBS |
| HL21PB5-9 | 2023-12-339 | 415 | DIBBS |
| HL21PB5-9 | 2023-10-297 | 57 | DIBBS |
| HL21PB5-9 | 2023-09-262 | 41 | DIBBS |
| HL21PB5-9 | 2023-06-157 | 61 | DIBBS |
| 5320-01-414-5986 | 2023-04-104 | 8 | United States |
| 5320-01-414-5986 | 2023-04-104 | 100 | United States |
| HL21PB5-9 | 2023-01-18 | 1189 | DIBBS |
| HL21PB5-9 | 2023-01-10 | 1189 | DIBBS |
| HL21PB5-9 | 2022-10-277 | 40 | DIBBS |
| HL21PB5-9 | 2022-07-193 | 944 | DIBBS |
| HL21PB5-9 | 2022-01-11 | 60 | DIBBS |
| HL21PB59 | 2021-04-119 | 100 | GR |
| 5320-01-414-5986 | 2014-12-350 | 100 | DIBBS |
| HL21PB59 | 2013-01-24 | 32 | Spain |
| 5320-01-414-5986 | 2012-08-236 | 100 | US |
| HL21PB59 | 2009-05-132 | 0 | United States |
| HL21PB59 | 2009-05-132 | 200 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-414-5986
Technical Data | NSN 5320-01-414-5986
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TY II, CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.326 INCHES MINIMUM AND 0.330 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |
| FASTENER LENGTH | 0.864 INCHES MINIMUM AND 0.884 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.0791 INCHES MINIMUM AND 0.0801 INCHES MAXIMUM |
| SHANK DIAMETER | 0.1625 INCHES MINIMUM AND 0.1635 INCHES MAXIMUM |
| GRIP LENGTH | 0.620 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP |
Restrictions/Controls & Freight Information | NSN 5320-01-414-5986
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
