NSN 5320-01-424-7031 NAS4450S0621, NAS4450S06-21, 01-424-7031
Product Details | PIN-RIVET
5320-01-424-7031 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: NAS4450S0621, NAS4450S06-21, 5320-01-424-7031, 01-424-7031, 5320014247031, 014247031
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 FEB 1996 | 01-424-7031 | 67165 ( PIN-RIVET ) |

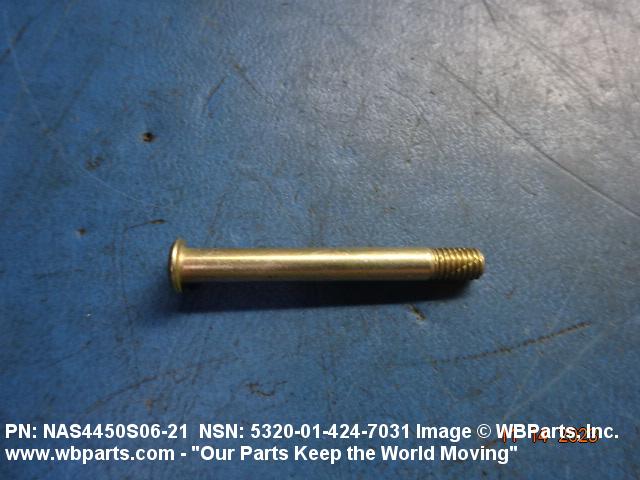

Drawings & Photos | NSN 5320-01-424-7031
Demand History | NSN 5320-01-424-7031
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-424-7031 | 2023-10-297 | 50 | South Korea |
| 5320-01-424-7031 | 2023-10-289 | 50 | South Korea |
Cross Reference | NSN 5320-01-424-7031
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS4450S06-21 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-424-7031
Technical Data | NSN 5320-01-424-7031
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 OR STEEL COMP E4340 OR STEEL COMP 4340 OVERALL |
| HEAD STYLE | A34 FLAT CHAMFER |

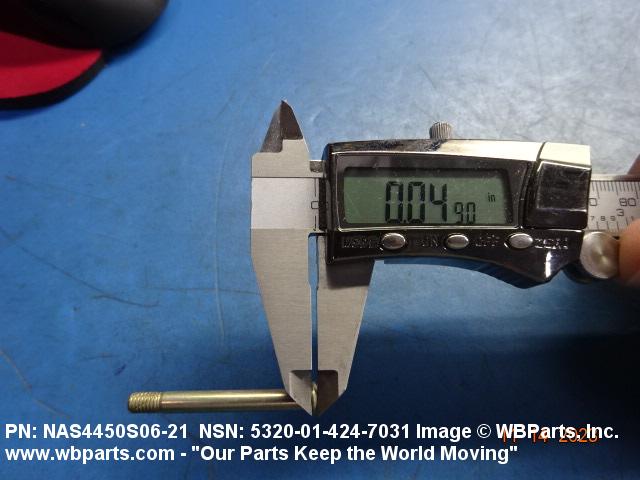

| HEAD HEIGHT | 0.042 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |

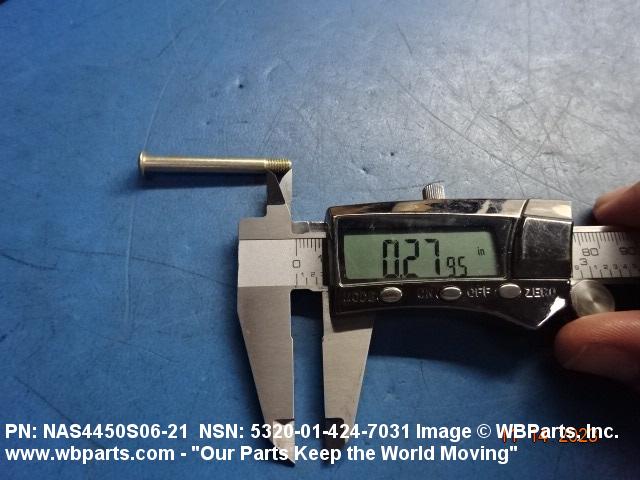

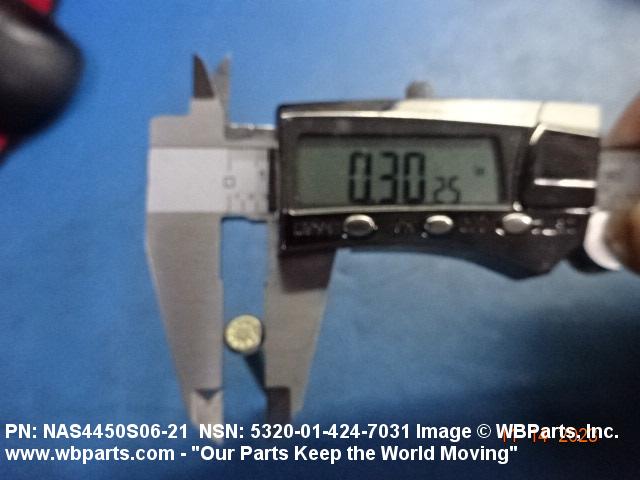

| HEAD MAJOR DIAMETER | 0.298 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |

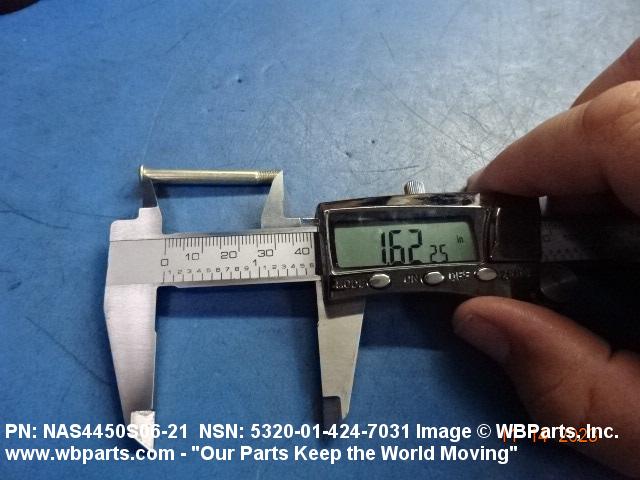

| FASTENER LENGTH | 1.598 INCHES MINIMUM AND 1.638 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.079 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |

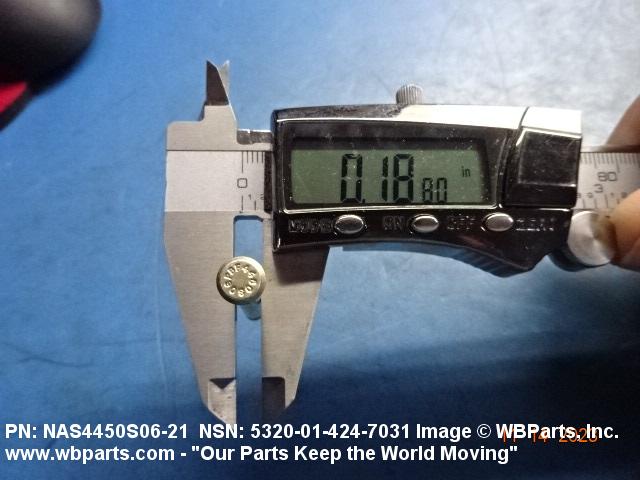

| SHANK DIAMETER | 0.188 INCHES MINIMUM AND 0.189 INCHES MAXIMUM |
| GRIP LENGTH | 1.251 INCHES MINIMUM AND 1.312 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
Restrictions/Controls & Freight Information | NSN 5320-01-424-7031
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
