NSN 5320-01-451-3102 AICL76855, AIC-L-768-5-5 , HLT969DL55

Product Details | PIN-RIVET

5320-01-451-3102 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: AICL76855, AIC-L-768-5-5 , HLT969DL55, HLT969DL5-5 , ST3M758T085, ST3M758T08-5, 10118978 , 3929AS1132T085, 3929AS1132-T08-5 , 5320-01-451-3102, 01-451-3102, 5320014513102, 014513102

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	12 DEC 1997	01-451-3102	67165 ( PIN-RIVET )

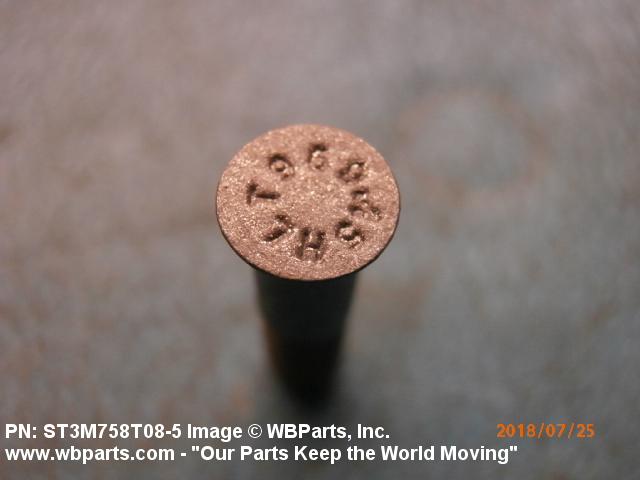

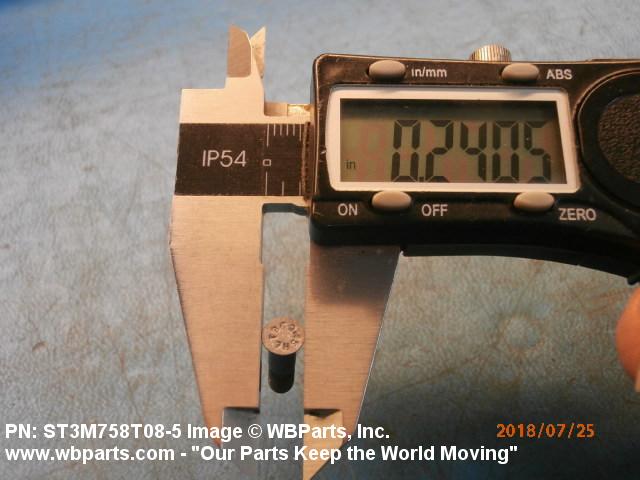

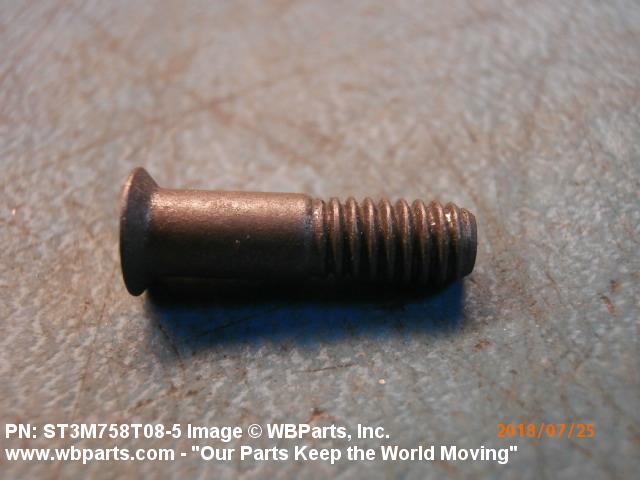

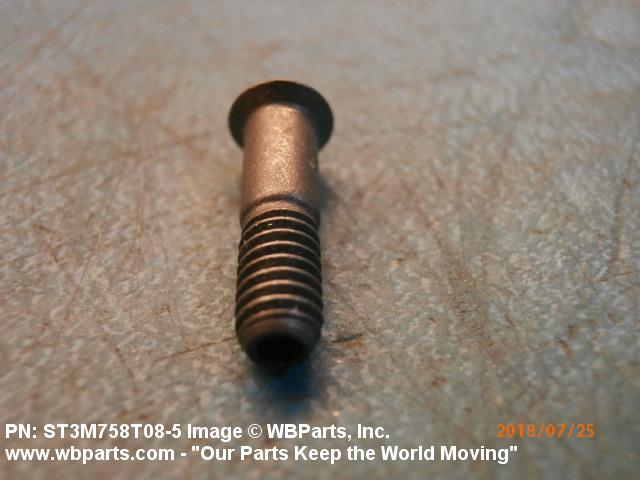

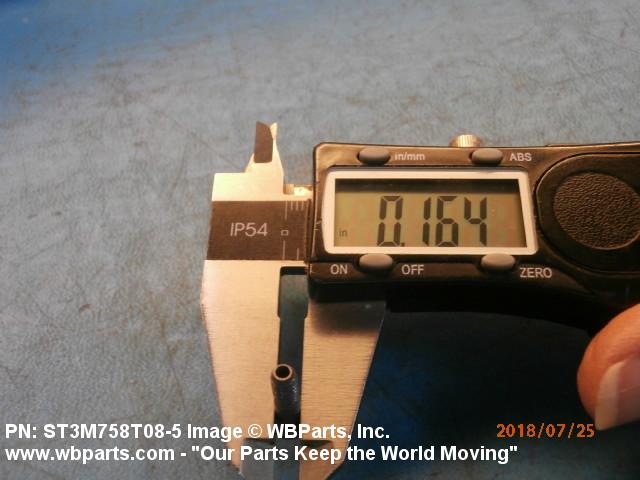

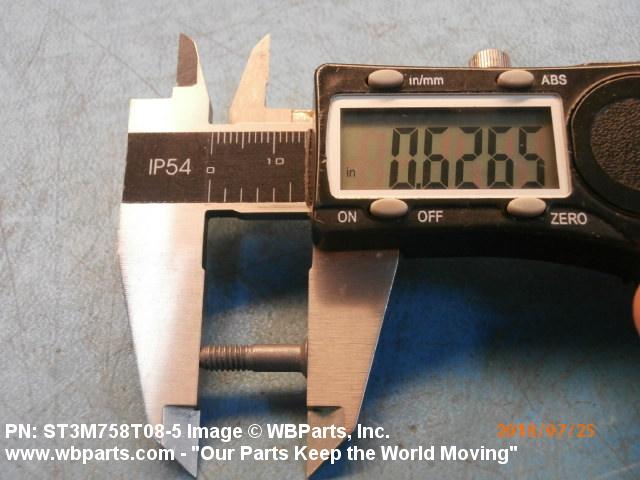

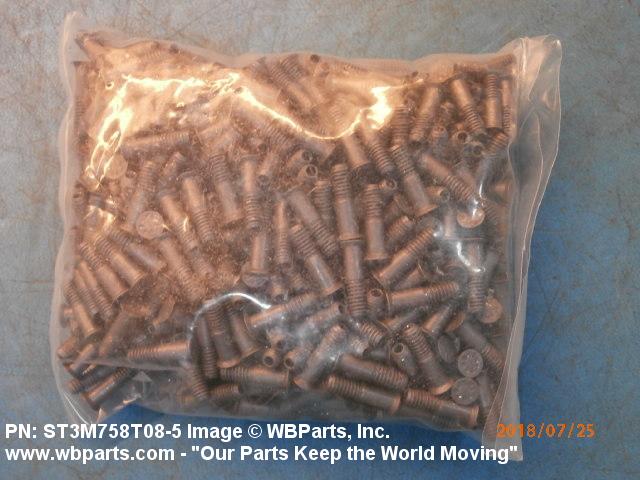

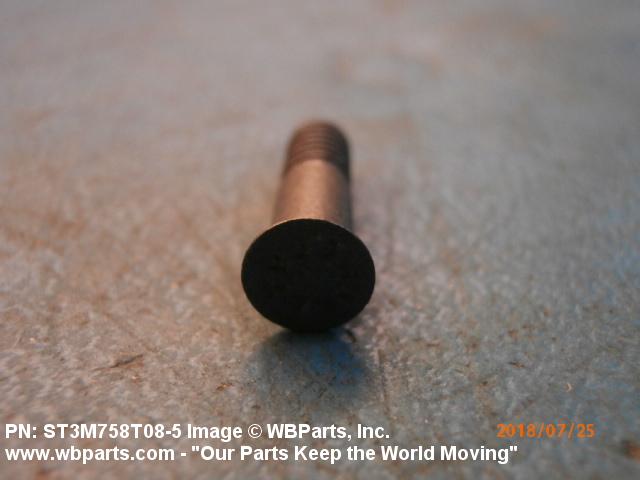

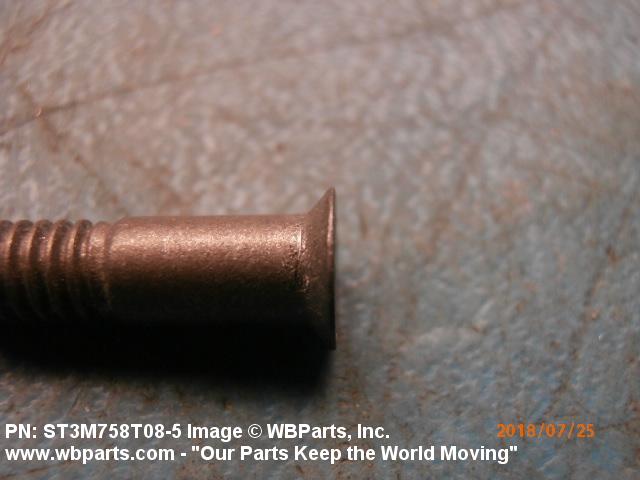

Drawings & Photos | NSN 5320-01-451-3102

Part Number	Request Date	QTY	Origin
HLT969DL5-5	2023-05-141	538	DIBBS
HLT969DL5-5	2023-02-51	538	DIBBS
HLT969DL5-5	2022-11-324	538	DIBBS
HLT969DL5-5	2021-09-269	1193	DIBBS
ST3M758T085	2018-07-191	500	Australia
5320-01-451-3102	2018-05-126	1404	DIBBS
ST3M758T085	2018-01-23	10	Australia
5320-01-451-3102	2017-03-86	1107	DIBBS
5320-01-451-3102	2017-03-78	1107	DIBBS

Cross Reference | NSN 5320-01-451-3102

Part Number	Cage Code	Manufacturer
3929AS1132-T08-5	30003	NAVAL AIR SYSTEMS COMMAND
AIC-L-768-5-5	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HLT969DL5-5	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HLT969DL5-5	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HLT969DL5-5	0PTK6	SPS TECHNOLOGIES INC
HLT969DL5-5	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HLT969DL5-5	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HLT969DL5-5	60516	WEST COAST AEROSPACE INC
HLT969DL5-5	73197	HI-SHEAR CORPORATION
HLT969DL5-5	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HLT969DL5-5	L4528	LISI AEROSPACE CANADA CORP
ST3M758T08-5	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-451-3102

Compare

Related Products | NSN 5320-01-451-3102

5320-01-451-3103, 5320-01-451-3486, 5320-01-451-3487, 5320-01-451-3488, 5320-01-451-3618

Technical Data | NSN 5320-01-451-3102

Characteristic	Specifications
MATERIAL	TITANIUM ALLOY UNS R56400 OVERALL
HEAD STYLE	A9 FLUSH COUNTERSUNK
HEAD MAJOR DIAMETER	0.256 INCHES MINIMUM AND 0.261 INCHES MAXIMUM
COUNTERSINK ANGLE	100.0 DEGREES NOMINAL
SHANK STYLE	B31 PIN-RIVET, STRAIGHT, THREADED
FASTENER LENGTH	0.614 INCHES MINIMUM AND 0.634 INCHES MAXIMUM

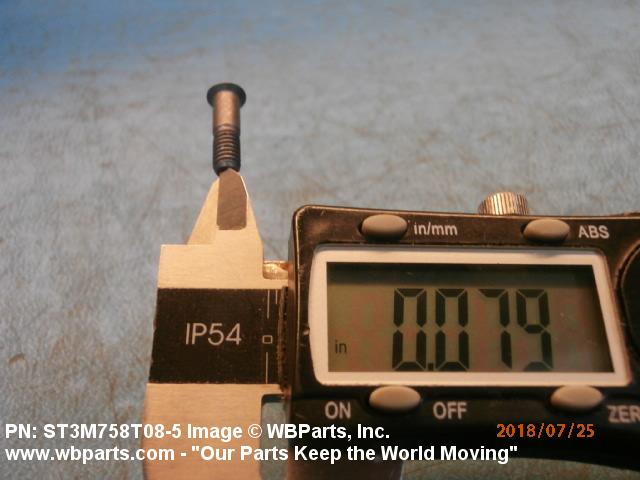

WIDTH BETWEEN FLATS	0.079 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
SHANK DIAMETER	0.163 INCHES NOMINAL
GRIP LENGTH	0.307 INCHES MINIMUM AND 0.317 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
END ITEM IDENTIFICATION	W/S: AIRCRAFT, HARRIER AV-8B; AIRCRAFT, EAGLE F-15

Restrictions/Controls & Freight Information | NSN 5320-01-451-3102

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	096320	RIVETS I/S NICKEL PLATED BUFFED
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-451-3102

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	FX	TG:F-15 EAGLE
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
