NSN 5320-01-469-2862 AICL76887, AIC-L-768-8-7, HLT969DL87
Product Details | PIN-RIVET

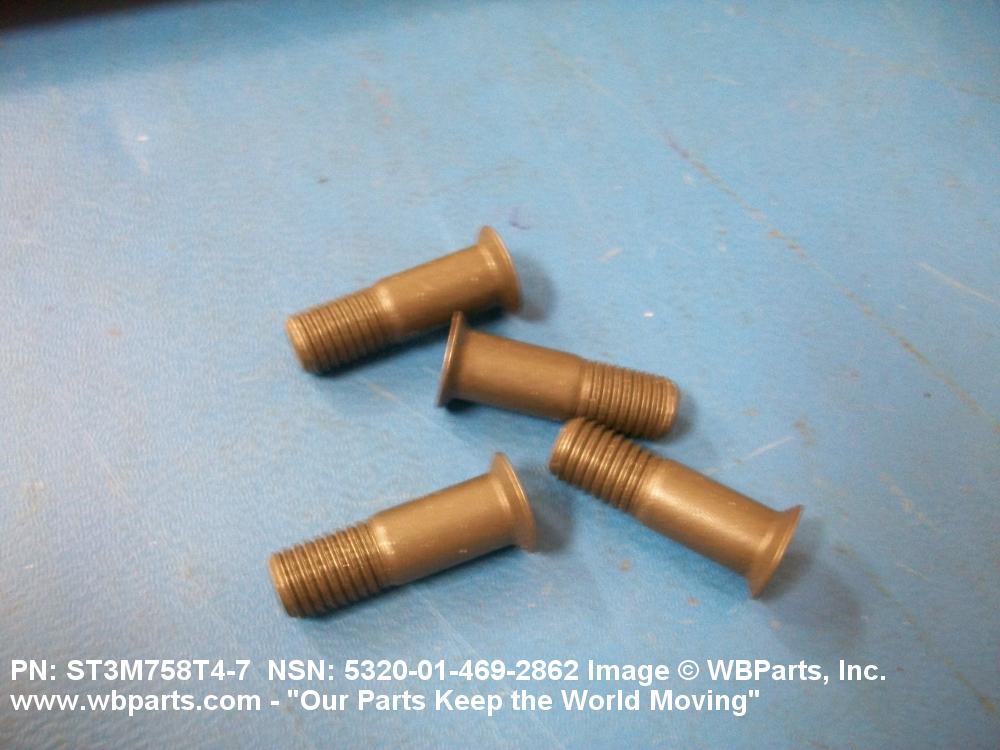

5320-01-469-2862 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: AICL76887, AIC-L-768-8-7, HLT969DL87, HLT969DL-8-7, HLT969TB87, HLT969TB-8-7 , HLT979DL87, HLT979DL-8-7 , HP4758T47, HP4758T4-7 , ST3M758T47, ST3M758T4-7 , 5320-01-469-2862, 01-469-2862, 5320014692862, 014692862
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 NOV 1999 | 01-469-2862 | 67165 ( PIN-RIVET ) |
Drawings & Photos | NSN 5320-01-469-2862
Demand History | NSN 5320-01-469-2862
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST3M758T47 | 2025-11-322 | 900 | US |
| AIC-L-768-8-7 | 2022-04-109 | 1898 | DIBBS |
| HLT969DL-8-7 | 2022-04-109 | 1898 | DIBBS |
| HLT969TB-8-7 | 2022-04-109 | 1898 | DIBBS |
| HP4758T4-7 | 2022-04-109 | 1898 | DIBBS |
| ST3M758T4-7 | 2022-04-109 | 1898 | DIBBS |
| AIC-L-768-8-7 | 2020-10-281 | 1128 | DIBBS |
| HLT969DL-8-7 | 2020-10-281 | 1128 | DIBBS |
| HLT969TB-8-7 | 2020-10-281 | 1128 | DIBBS |
| HP4758T4-7 | 2020-10-281 | 1128 | DIBBS |
| ST3M758T4-7 | 2020-10-281 | 1128 | DIBBS |
| AIC-L-768-8-7 | 2020-03-75 | 813 | DIBBS |
| HLT969DL-8-7 | 2020-03-75 | 813 | DIBBS |
| HLT969TB-8-7 | 2020-03-75 | 813 | DIBBS |
| HP4758T4-7 | 2020-03-75 | 813 | DIBBS |
| ST3M758T4-7 | 2020-03-75 | 813 | DIBBS |
| 5320-01-469-2862 | 2016-07-192 | 1383 | DIBBS |
| 5320-01-469-2862 | 2015-12-348 | 1383 | DIBBS |
| 5320-01-469-2862 | 2014-08-215 | 668 | DIBBS |
| 5320-01-469-2862 | 2014-05-126 | 263 | DIBBS |
| 5320-01-469-2862 | 2014-03-89 | 289 | DIBBS |
| 5320-01-469-2862 | 2014-02-48 | 1470 | DIBBS |
| 5320-01-469-2862 | 2013-09-252 | 226 | DIBBS |
| 5320-01-469-2862 | 2013-05-139 | 346 | DIBBS |
| 5320-01-469-2862 | 2013-05-137 | 232 | DIBBS |
| 5320-01-469-2862 | 2013-02-51 | 168 | DIBBS |
Cross Reference | NSN 5320-01-469-2862
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AIC-L-768-8-7 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HLT969DL-8-7 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HLT969DL-8-7 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT969DL-8-7 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HLT969DL-8-7 | 60516 | WEST COAST AEROSPACE INC |
| HLT969DL-8-7 | 70236 | TACTAIR FLUID CONTROLS, INC. |
| HLT969DL-8-7 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HLT969DL-8-7 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT969DL-8-7 | 97928 | HUCK INTL INC |
| HLT969DL-8-7 | 99215 | KAISER FLUID TECHNOLOGIES INC. |
| HLT969TB-8-7 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HLT969TB-8-7 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT969TB-8-7 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HLT969TB-8-7 | 60516 | WEST COAST AEROSPACE INC |
| HLT969TB-8-7 | 73197 | HI-SHEAR CORPORATION |
| HLT969TB-8-7 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HLT969TB-8-7 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT969TB-8-7 | 97928 | HUCK INTL INC |
| HLT969TB-8-7 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| HLT969TB-8-7 | L4528 | LISI AEROSPACE CANADA CORP |
| HLT979DL-8-7 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| HP4758T4-7 | 0ZC92 | HEARTLAND PRECISION FASTENERS, INC. |
| ST3M758T4-7 | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| ST3M758T4-7 | 76301 | BOEING COMPANY, THE DBA BOEING |
