NSN 5320-01-475-9319 MGPBF820, MGPB-F8-20, MGPBF8X20
Product Details | PIN-RIVET
5320-01-475-9319 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: MGPBF820, MGPB-F8-20, MGPBF8X20, MGPB-F8-X20, 5320-01-475-9319, 01-475-9319, 5320014759319, 014759319
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 JUN 2000 | 01-475-9319 | 67165 ( PIN-RIVET ) |

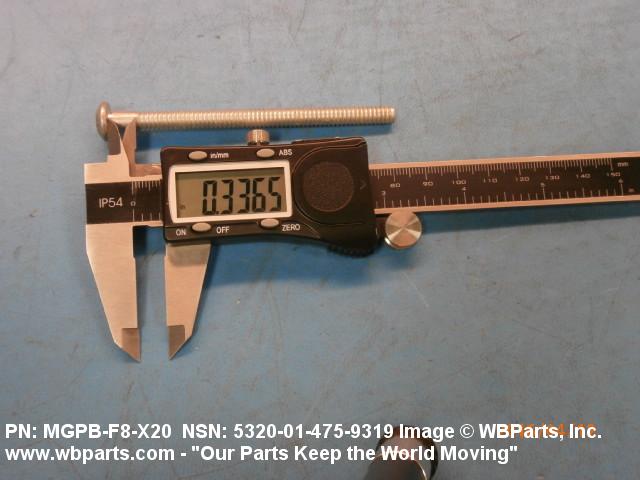

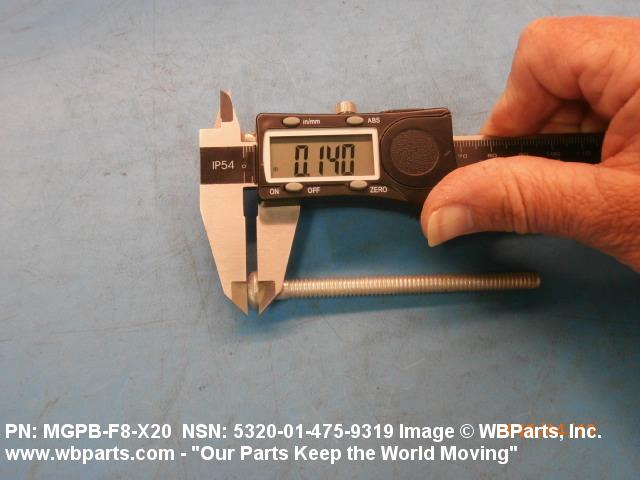

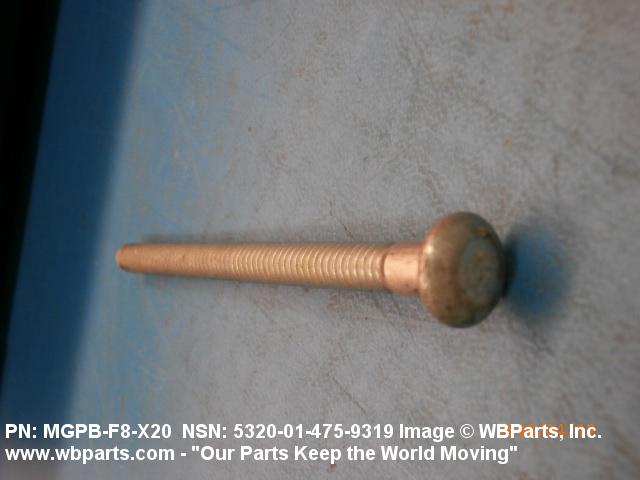

Drawings & Photos | NSN 5320-01-475-9319
Demand History | NSN 5320-01-475-9319
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MGPB-F8-X20 | 2025-08-231 | 706 | DIBBS |
| 5320-01-475-9319 | 2016-06-181 | 2365 | DIBBS |
| 5320-01-475-9319 | 2016-06-158 | 812 | DIBBS |
| 5320-01-475-9319 | 2016-04-118 | 1112 | DIBBS |
| MGPBF8X20 | 2016-03-69 | 5000 | United States |
| 5320-01-475-9319 | 2016-03-69 | 336 | DIBBS |
| 5320-01-475-9319 | 2015-07-202 | 10000 | US |
| 5320-01-475-9319 | 2015-04-120 | 965 | DIBBS |
| 5320-01-475-9319 | 2015-03-78 | 492 | DIBBS |
| 5320-01-475-9319 | 2013-11-311 | 355 | DIBBS |
| 5320-01-475-9319 | 2013-10-282 | 241 | DIBBS |
| 5320-01-475-9319 | 2013-07-212 | 193 | DIBBS |
| 5320-01-475-9319 | 2013-04-113 | 386 | DIBBS |
| 5320-01-475-9319 | 2012-03-90 | 71 | DIBBS |
| 5320-01-475-9319 | 2012-02-40 | 25 | DIBBS |
| MGPBF820 | 2011-12-347 | 25200 | US |
| MGPBF820 | 2010-11-333 | 2800 | US |
| 5320-01-475-9319 | 2010-05-139 | 141 | DIBBS |
| 5320-01-475-9319 | 2008-05-142 | 255 | DIBBS |
| 5320-01-475-9319 | 2008-03-71 | 391 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-475-9319
Related Products | NSN 5320-01-475-9319
Technical Data | NSN 5320-01-475-9319
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| HEAD STYLE | A3 BUTTON |
| HEAD HEIGHT | 0.136 INCHES MINIMUM AND 0.152 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.475 INCHES MINIMUM AND 0.525 INCHES MAXIMUM |
| SHANK STYLE | B48 GROOVED |
| FASTENER LENGTH | 2.810 INCHES MINIMUM AND 2.835 INCHES MAXIMUM |
| SHANK DIAMETER | 0.250 INCHES MINIMUM AND 0.259 INCHES MAXIMUM |
| GRIP LENGTH | 0.312 INCHES MINIMUM AND 1.250 INCHES MAXIMUM |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SMALL LOCKBOLT, MAGNA GRIP |
Restrictions/Controls & Freight Information | NSN 5320-01-475-9319
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096320 | RIVETS I/S NICKEL PLATED BUFFED |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-475-9319
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 BX : Box |
