NSN 5320-01-478-4565 HLT334810, HLT334-8-10, HS5601810
Product Details | PIN-RIVET

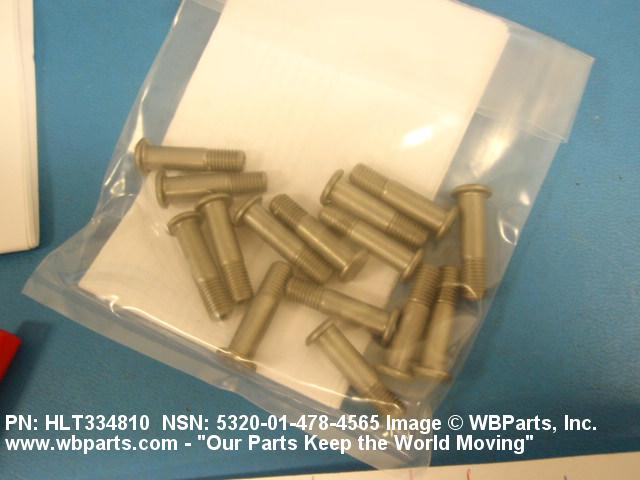

5320-01-478-4565 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HLT334810, HLT334-8-10, HS5601810, HS5601-8-10, 5320-01-478-4565, 01-478-4565, 5320014784565, 014784565
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 SEP 2000 | 01-478-4565 | 67165 ( PIN-RIVET ) |
Drawings & Photos | NSN 5320-01-478-4565
Demand History | NSN 5320-01-478-4565
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-478-4565 | 2018-11-305 | 729 | DIBBS |
| 5320-01-478-4565 | 2011-07-190 | 650 | DIBBS |
| 5320-01-478-4565 | 2011-05-133 | 196 | DIBBS |
| 5320-01-478-4565 | 2010-08-236 | 121 | DIBBS |
| 5320-01-478-4565 | 2010-05-131 | 135 | DIBBS |
| 5320-01-478-4565 | 2010-03-74 | 47 | DIBBS |
| 5320-01-478-4565 | 2009-12-348 | 170 | DIBBS |
| HLT334810 | 2009-11-327 | 15 | United States |
| 5320-01-478-4565 | 2009-10-300 | 20 | United States |
| 5320-01-478-4565 | 2009-10-300 | 20 | United States |
| 5320-01-478-4565 | 2009-08-216 | 47 | DIBBS |
| 5320-01-478-4565 | 2009-06-152 | 73 | DIBBS |
| 5320-01-478-4565 | 2009-03-75 | 47 | DIBBS |
| 5320-01-478-4565 | 2009-02-36 | 47 | DIBBS |
Cross Reference | NSN 5320-01-478-4565
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HLT334-8-10 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HLT334-8-10 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT334-8-10 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT334-8-10 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HLT334-8-10 | 60516 | WEST COAST AEROSPACE INC |
| HLT334-8-10 | 73197 | HI-SHEAR CORPORATION |
| HLT334-8-10 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HLT334-8-10 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT334-8-10 | L4528 | LISI AEROSPACE CANADA CORP |
| HS5601-8-10 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| HS5601-8-10 | 89513 | GRIMES AEROSPACE CO |
| HS5601-8-10 | 8V613 | BOEING COMPANY, THE DBA BOEING |
