NSN 5320-01-482-9721 CPH801L0619, CPH801L-06-19, 01-482-9721
Product Details | PIN-RIVET
5320-01-482-9721 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: CPH801L0619, CPH801L-06-19, 5320-01-482-9721, 01-482-9721, 5320014829721, 014829721
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAR 2001 | 01-482-9721 | 67165 ( PIN-RIVET ) |

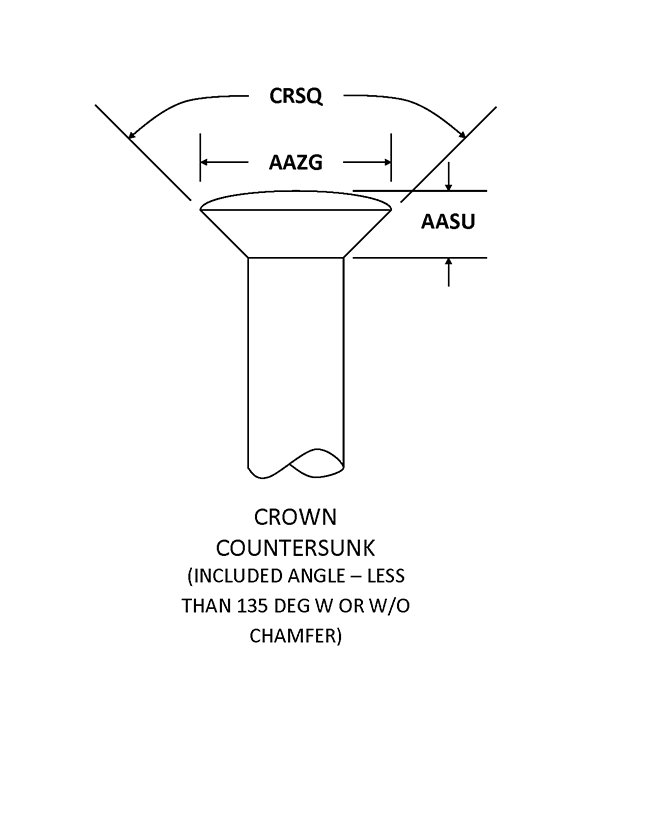

Drawings & Photos | NSN 5320-01-482-9721
Cross Reference | NSN 5320-01-482-9721
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CPH801L-06-19 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-482-9721
Technical Data | NSN 5320-01-482-9721
| Characteristic | Specifications |
|---|---|
| HEAD STYLE | A11 HEXAGON COUNTERSUNK |
| COUNTERSINK HEIGHT | 0.020 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.367 INCHES MINIMUM AND 0.378 INCHES MAXIMUM |
| FASTENER LENGTH | 0.369 INCHES NOMINAL |
| GRIP LENGTH | 0.313 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| SPECIAL FEATURES | MATERIAL LISTED AS PEEK/GLASS WITH LONG FIBERS |
Restrictions/Controls & Freight Information | NSN 5320-01-482-9721
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
