NSN 5320-01-513-5641 HST12AG67, HST12AG6-7, 01-513-5641
Product Details | PIN-RIVET
5320-01-513-5641 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HST12AG67, HST12AG6-7, 5320-01-513-5641, 01-513-5641, 5320015135641, 015135641
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 SEP 2003 | 01-513-5641 | 67165 ( PIN-RIVET ) |

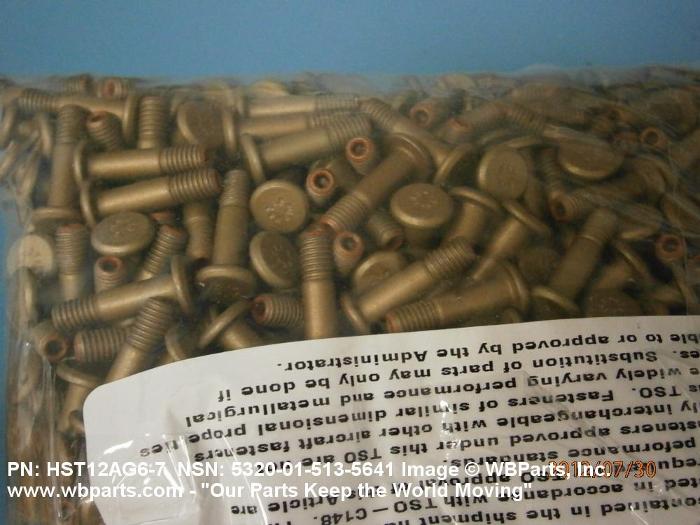

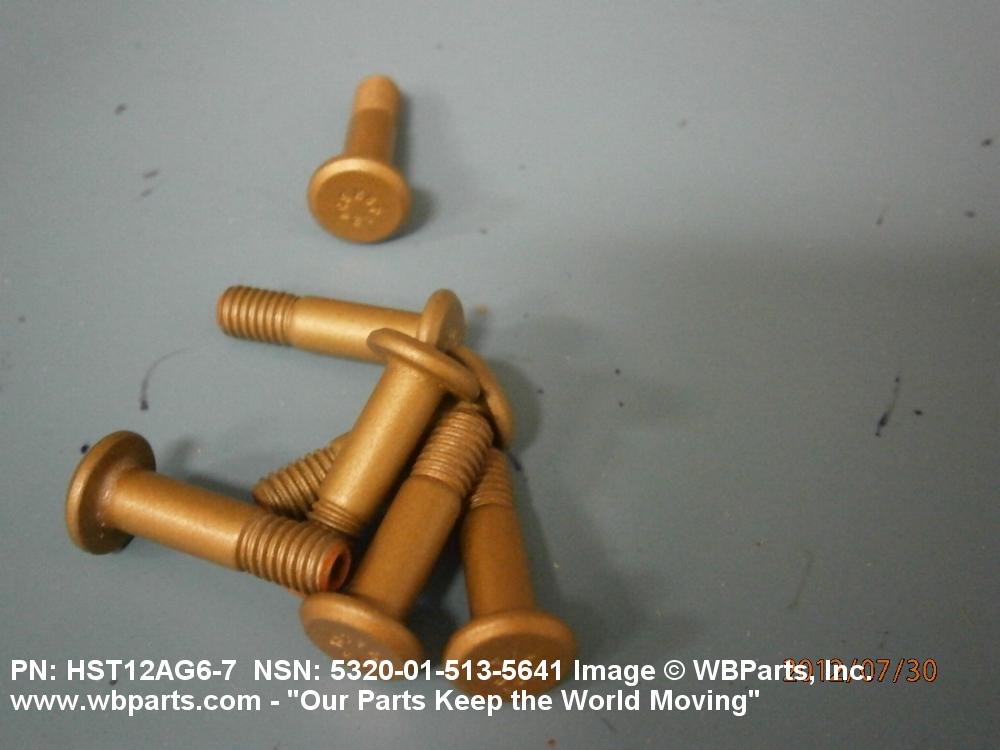

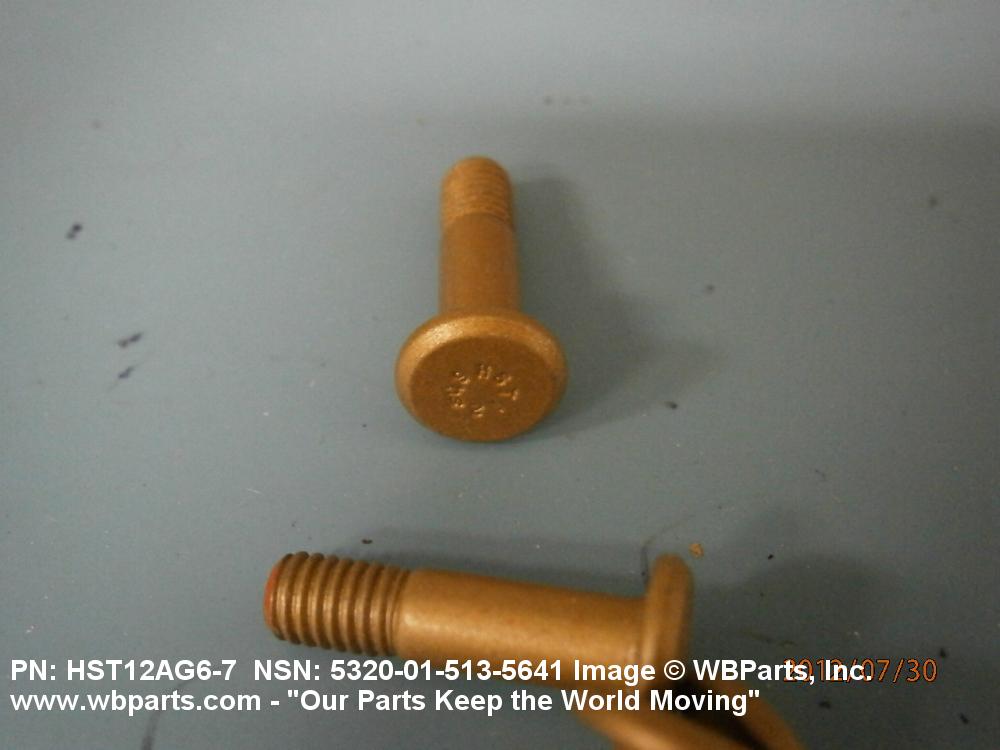

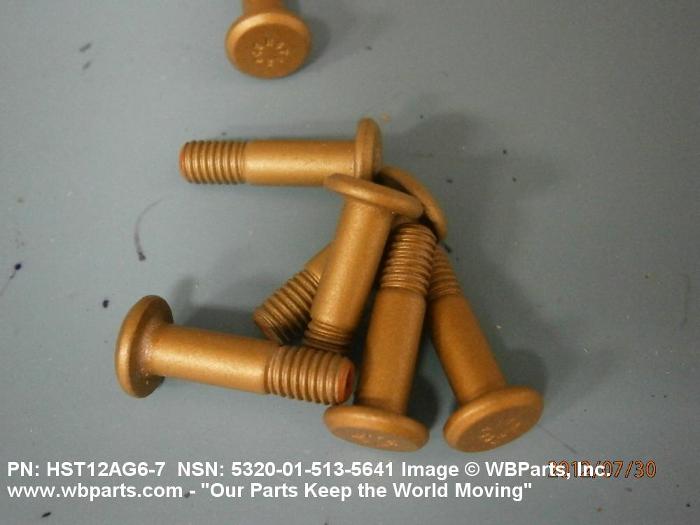

Drawings & Photos | NSN 5320-01-513-5641
Demand History | NSN 5320-01-513-5641
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-513-5641 | 2025-07-184 | 3 | US |
| 5320-01-513-5641 | 2025-05-133 | 9 | DIBBS |
| HST12AG6-7 | 2025-04-98 | 6 | DIBBS |
| 5320-01-513-5641 | 2022-07-187 | 10 | US |
| HST12AG67 | 2022-06-178 | 10 | United States |
| HST12AG67 | 2021-12-351 | 20 | United States |
| HST12AG67 | 2013-06-158 | 180 | US |
| HST12AG67 | 2012-08-227 | 435 | US |
| HST12AG67 | 2012-07-200 | 551 | Mexico |
| HST12AG6-7 | 2012-04-110 | 551 | Mexico |
| HST12AG67 | 2008-02-43 | 498 | MX |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-513-5641
Related Products | NSN 5320-01-513-5641
Technical Data | NSN 5320-01-513-5641
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ALUMINUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 5380 DOUBLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A34 FLAT CHAMFER |
| HEAD HEIGHT | 0.064 INCHES MINIMUM AND 0.074 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.357 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |
| WIDTH BETWEEN FLATS | 0.079 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| SHANK DIAMETER | 0.188 INCHES MINIMUM AND 0.189 INCHES MAXIMUM |
| GRIP LENGTH | 0.717 INCHES MINIMUM AND 0.737 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.191 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| END ITEM IDENTIFICATION | CL-125, AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 5320-01-513-5641
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | EA | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-513-5641
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
