NSN 5320-01-520-9360 EL3201NF1012A, EL3201NF10-12A, WC1245V10L12
Product Details | PIN-RIVET
5320-01-520-9360 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: EL3201NF1012A, EL3201NF10-12A, WC1245V10L12 , 3M1245V5L12A, 5320-01-520-9360, 01-520-9360, 5320015209360, 015209360
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 JUN 2004 | 01-520-9360 | 67165 ( PIN-RIVET ) |
Drawings & Photos | NSN 5320-01-520-9360
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-520-9360
Technical Data | NSN 5320-01-520-9360
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM OVERALL |
| HEAD STYLE | A6 COOPER'S |
| HEAD HEIGHT | 0.135 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.597 INCHES MINIMUM AND 0.604 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

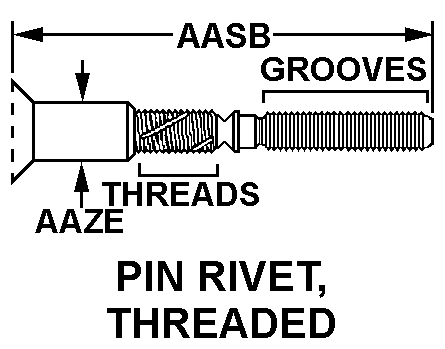

| SHANK STYLE | B49 PIN RIVET, THREADED |
| FASTENER LENGTH | 0.740 INCHES MINIMUM AND 0.760 INCHES MAXIMUM |
| SHANK DIAMETER | 0.135 INCHES MINIMUM |
| THREAD SERIES DESIGNATOR | UNJEF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 24 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL AND DRY FILM |
| SPECIAL FEATURES | REDEFINED HEAD GEOMETRY |
| END ITEM IDENTIFICATION | F/A-18E |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | PIN, RIVET, FLUTED THREADS - TENSION, 100 DEG C'SUNK, HEX POINT DRIVE |
Restrictions/Controls & Freight Information | NSN 5320-01-520-9360
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-520-9360
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | QF | FIGHTERAIRCRAFT(F18 E/F) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
