NSN 5320-01-539-3157 HLT969DL614, HLT969DL-6-14 , HLT969TB614
Product Details | PIN-RIVET
5320-01-539-3157 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HLT969DL614, HLT969DL-6-14 , HLT969TB614, HLT969TB-6-14, ST3M758T314, ST3M758T3-14, 3929AS1132T314, 3929AS1132-T3-14 , 5320-01-539-3157, 01-539-3157, 5320015393157, 015393157
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 APR 2006 | 01-539-3157 | 67165 ( PIN-RIVET ) |

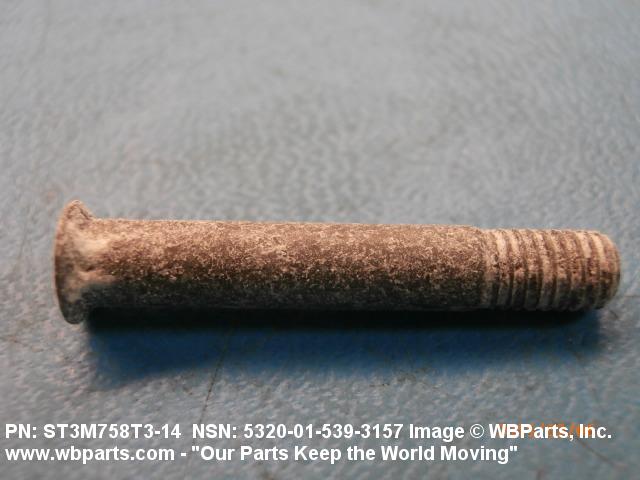

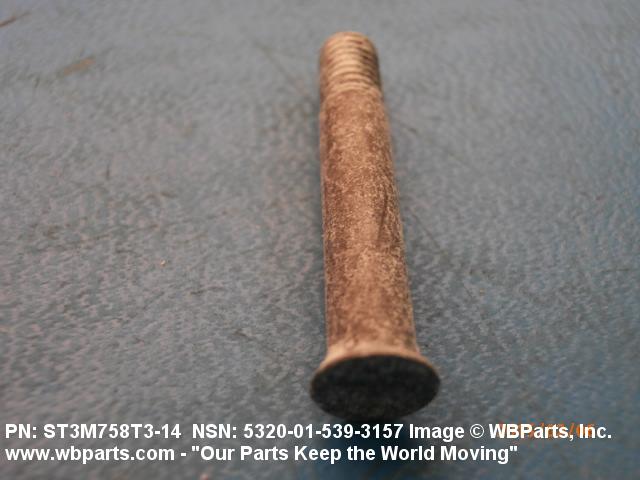

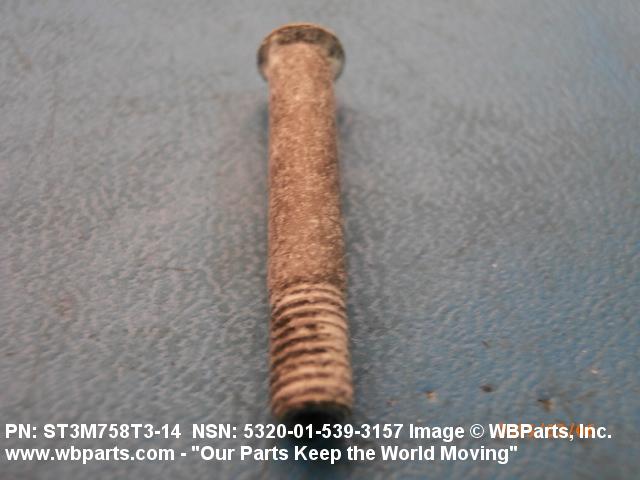

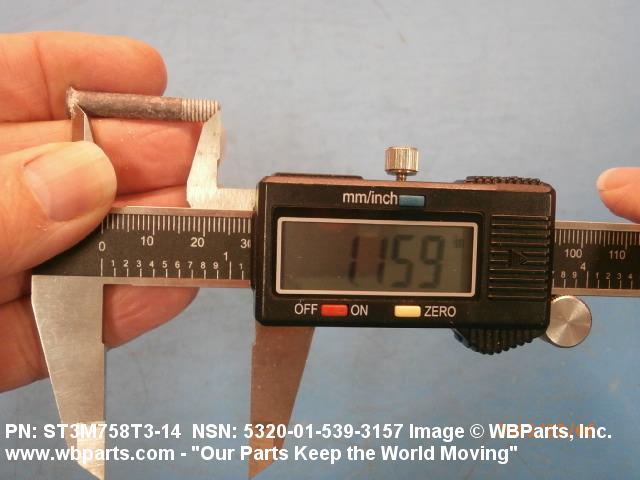

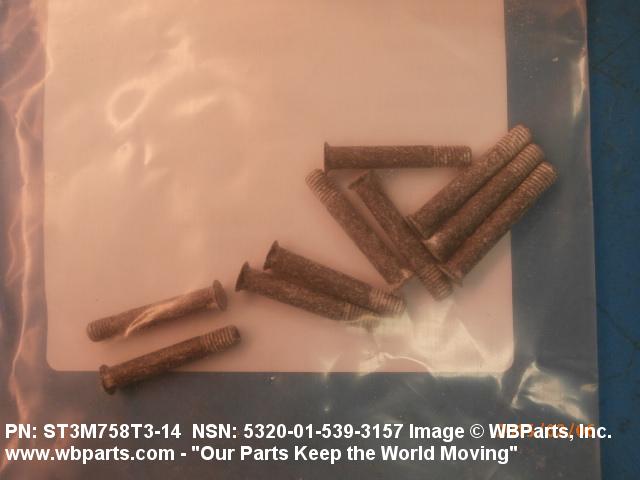

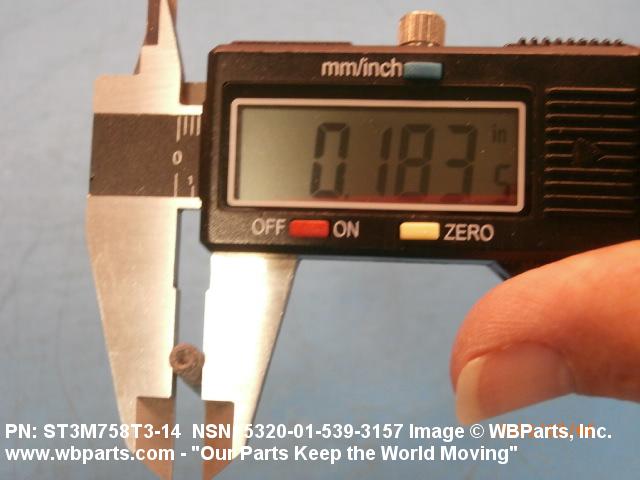

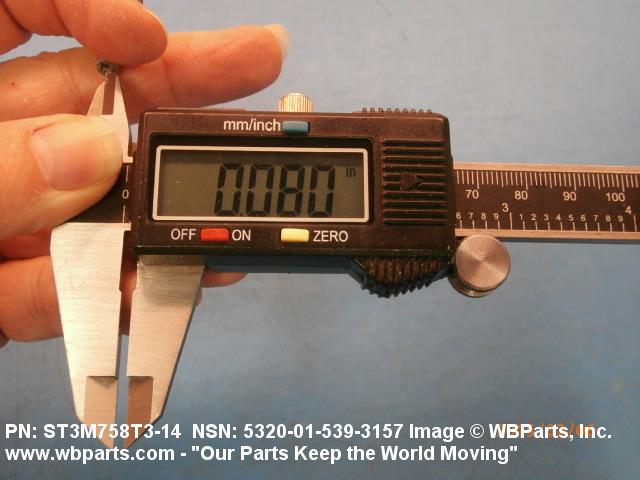

Drawings & Photos | NSN 5320-01-539-3157
Demand History | NSN 5320-01-539-3157
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3929AS1132-T3-14 | 2024-02-37 | 30 | DIBBS |
| HLT969DL-6-14 | 2024-02-37 | 30 | DIBBS |
| HLT969TB-6-14 | 2024-02-37 | 30 | DIBBS |
| ST3M758T3-14 | 2024-02-37 | 30 | DIBBS |
| ST3M758T314 | 2018-12-344 | 1 | Australia |
| ST3M758T314 | 2015-01-29 | 10 | Australia |
Cross Reference | NSN 5320-01-539-3157
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3929AS1132-T3-14 | 072E5 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 3929AS1132-T3-14 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| HLT969DL-6-14 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HLT969DL-6-14 | 0PTK6 | SPS TECHNOLOGIES INC |
| HLT969DL-6-14 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT969DL-6-14 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HLT969DL-6-14 | 60516 | WEST COAST AEROSPACE INC |
| HLT969DL-6-14 | 73197 | HI-SHEAR CORPORATION |
| HLT969DL-6-14 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT969DL-6-14 | L4528 | LISI AEROSPACE CANADA CORP |
| HLT969TB-6-14 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HLT969TB-6-14 | 0PTK6 | SPS TECHNOLOGIES INC |
| HLT969TB-6-14 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HLT969TB-6-14 | 60516 | WEST COAST AEROSPACE INC |
| HLT969TB-6-14 | 73197 | HI-SHEAR CORPORATION |
| HLT969TB-6-14 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT969TB-6-14 | L4528 | LISI AEROSPACE CANADA CORP |
| ST3M758T3-14 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-539-3157
Related Products | NSN 5320-01-539-3157
Technical Data | NSN 5320-01-539-3157
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4928 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

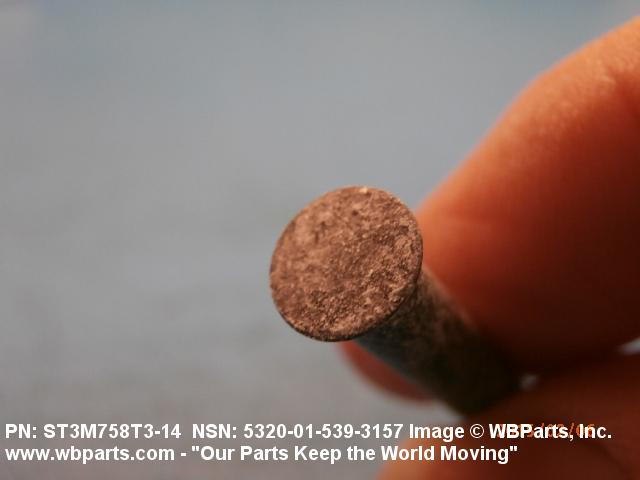

| HEAD STYLE | A9 FLUSH COUNTERSUNK |

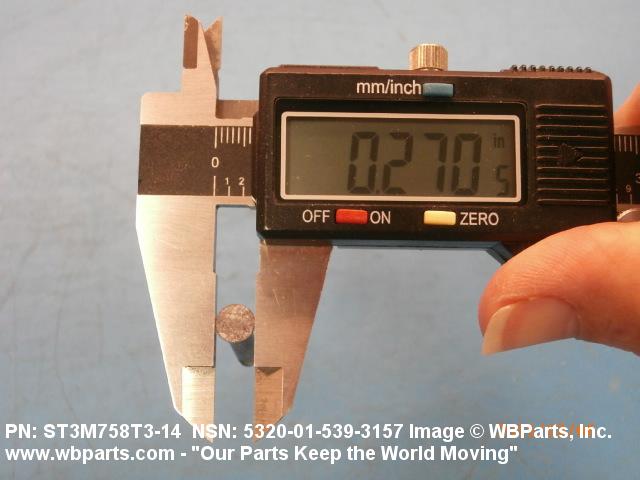

| HEAD MAJOR DIAMETER | 0.296 INCHES MINIMUM AND 0.301 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |

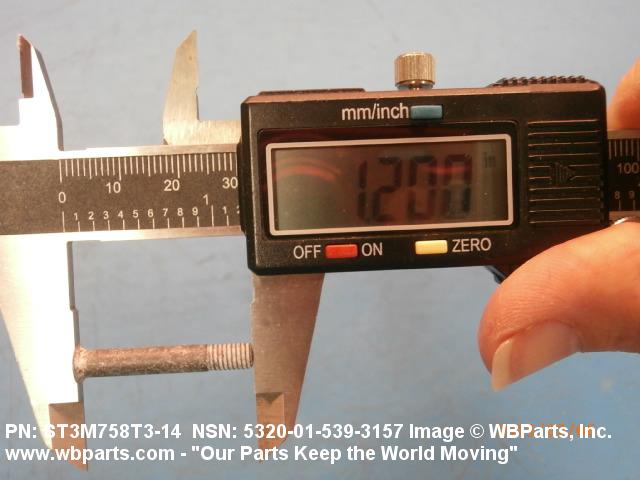

| FASTENER LENGTH | 1.187 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.079 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |

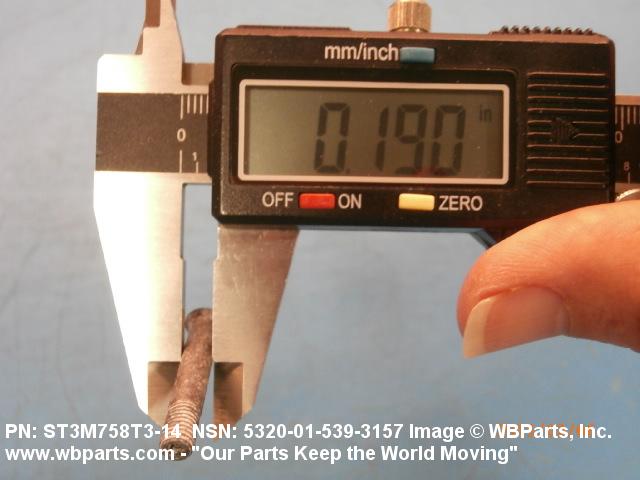

| SHANK DIAMETER | 0.189 INCHES NOMINAL |

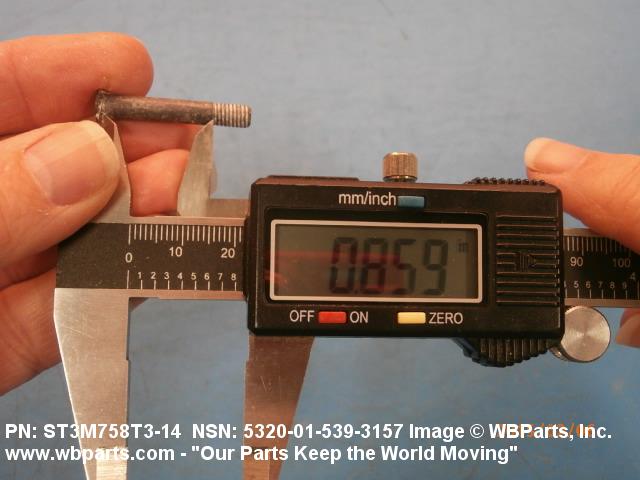

| GRIP LENGTH | 0.870 INCHES MINIMUM AND 0.890 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | DRY FILM AND SOLID FILM |
| END ITEM IDENTIFICATION | ACFT |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | PIN-RIVET THEADED, SHEAR, 100 DEGREES C'SUNK HEAD, HEX POINT DRIVE |
Restrictions/Controls & Freight Information | NSN 5320-01-539-3157
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-539-3157
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
