NSN 5320-01-541-7368 HL64PB1633, HL64PB16-33, 01-541-7368
Product Details | PIN-RIVET
5320-01-541-7368 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HL64PB1633, HL64PB16-33, 5320-01-541-7368, 01-541-7368, 5320015417368, 015417368
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-541-7368 | 67165 ( PIN-RIVET ) |
Drawings & Photos | NSN 5320-01-541-7368
Demand History | NSN 5320-01-541-7368
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-541-7368 | 2023-02-48 | 10 | us |
Cross Reference | NSN 5320-01-541-7368
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HL64PB-16-33 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL64PB-16-33 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL64PB-16-33 | 1RC86 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL64PB-16-33 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL64PB-16-33 | 60516 | WEST COAST AEROSPACE INC |
| HL64PB-16-33 | 73197 | HI-SHEAR CORPORATION |
| HL64PB-16-33 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HL64PB-16-33 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL64PB16-33 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-541-7368
Technical Data | NSN 5320-01-541-7368
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4340 OR STEEL COMP 4140 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6000 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE II, CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 39600 DOUBLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A21 STRAIGHT PAN |

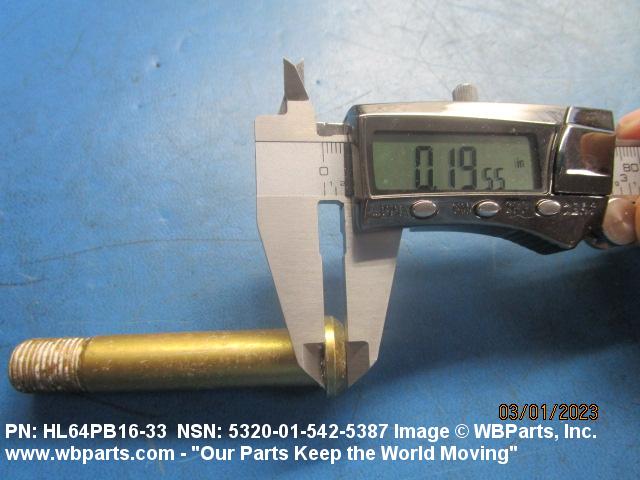

| HEAD HEIGHT | 0.168 INCHES MINIMUM AND 0.178 INCHES MAXIMUM |

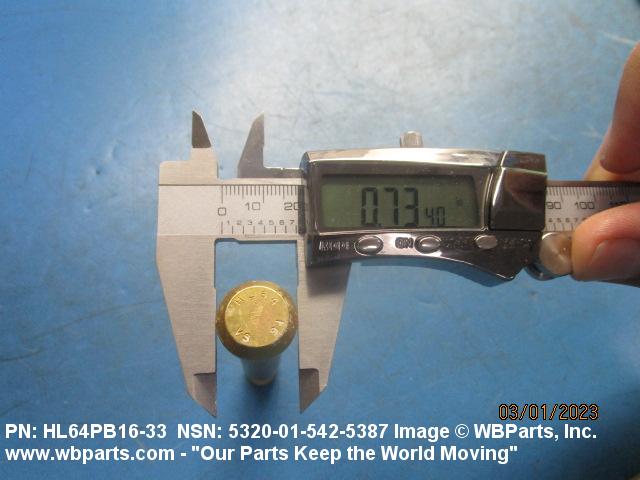

| HEAD MAJOR DIAMETER | 0.717 INCHES MINIMUM AND 0.752 INCHES MAXIMUM |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |

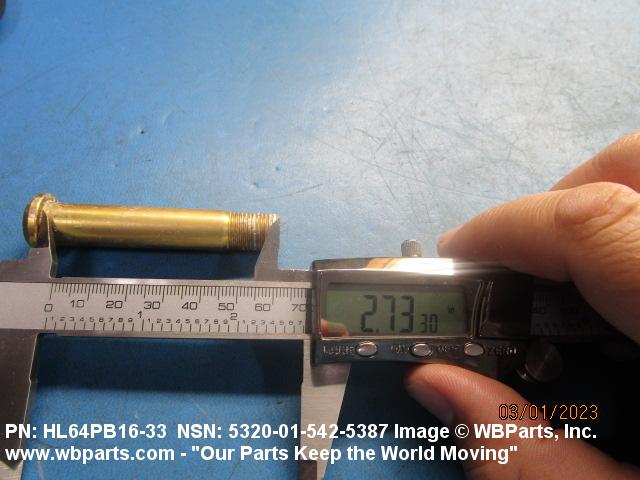

| FASTENER LENGTH | 2.062 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.259 INCHES NOMINAL |

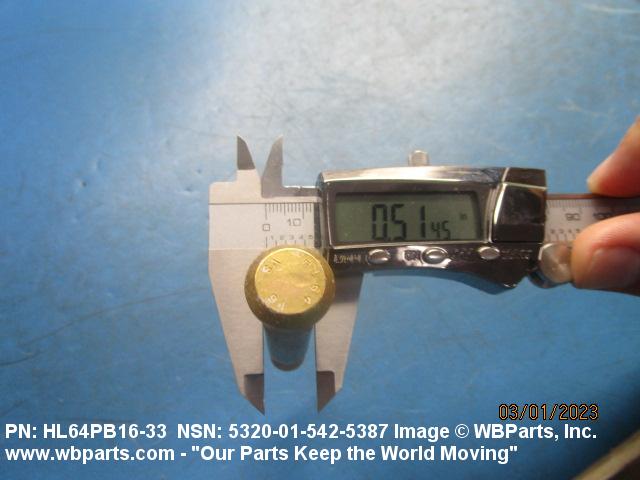

| SHANK DIAMETER | 0.514 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| GRIP LENGTH | 2.052 INCHES MINIMUM AND 2.072 INCHES MAXIMUM |
| SPECIAL FEATURES | CETYL ALOCHOL LUBE PER HI-SHEAR SPEC 305 |
Restrictions/Controls & Freight Information | NSN 5320-01-541-7368
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
