NSN 5320-01-612-7208 10019152, 100-191-5-2 , 01-612-7208
Product Details | PIN-RIVET
5320-01-612-7208 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: 10019152, 100-191-5-2 , 5320-01-612-7208, 01-612-7208, 5320016127208, 016127208
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2012292 | 01-612-7208 | 67165 ( PIN-RIVET ) |

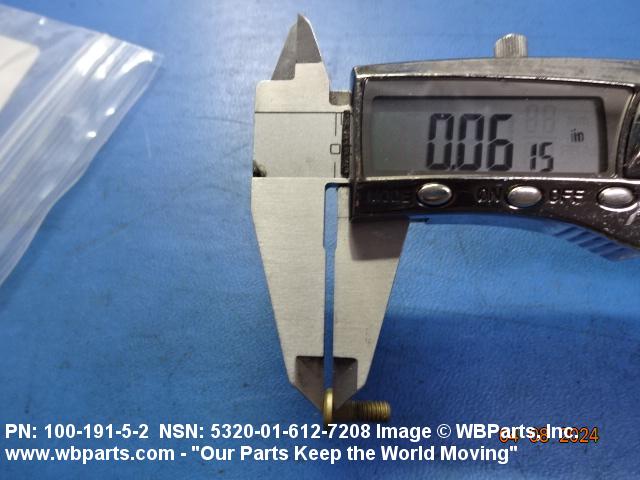

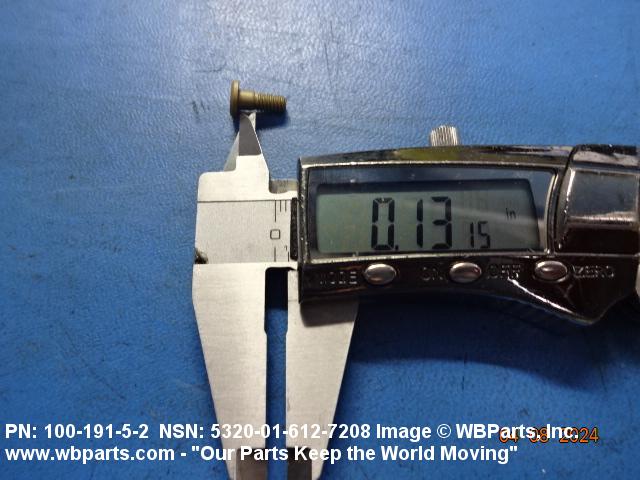

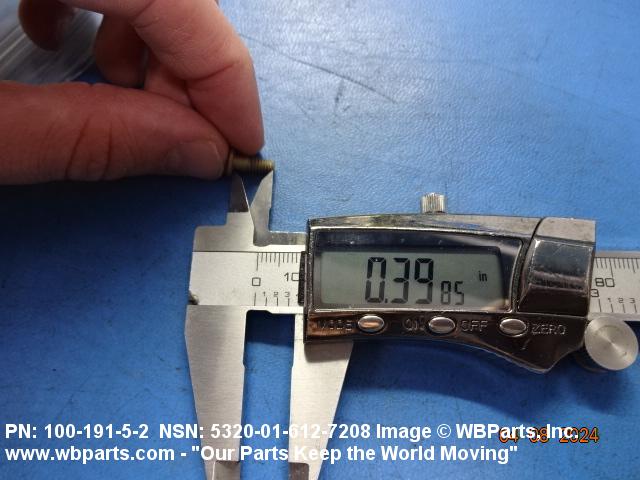

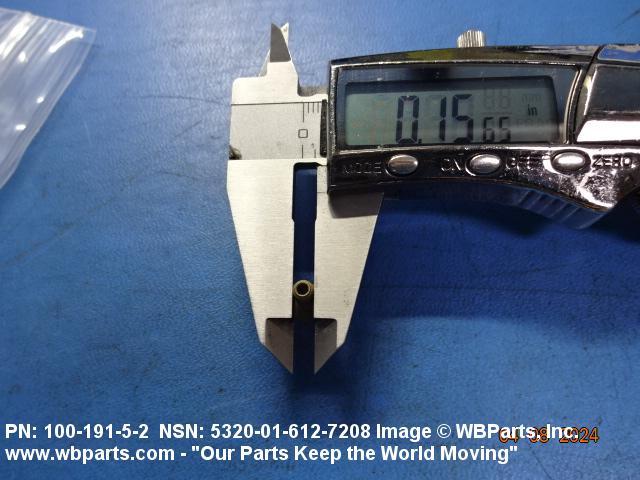

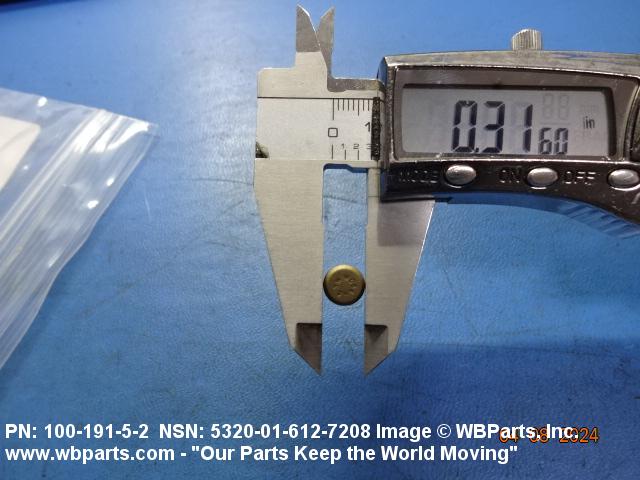

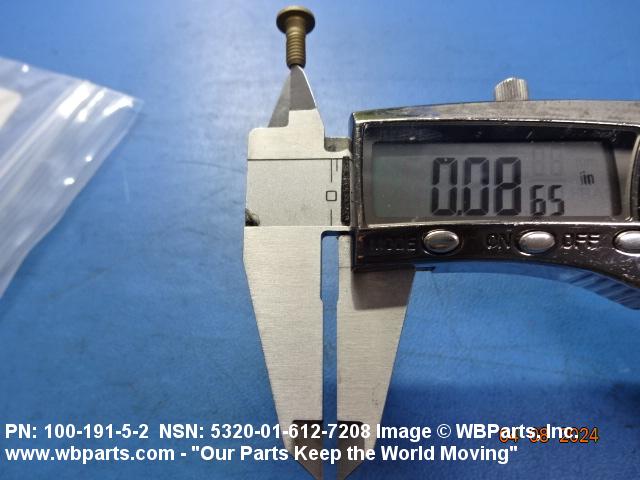

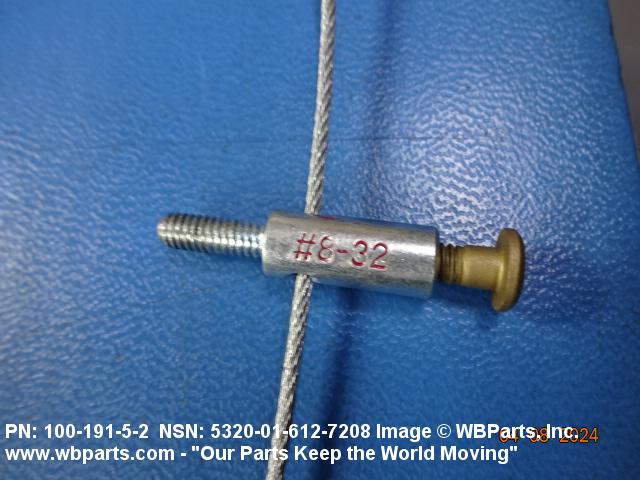

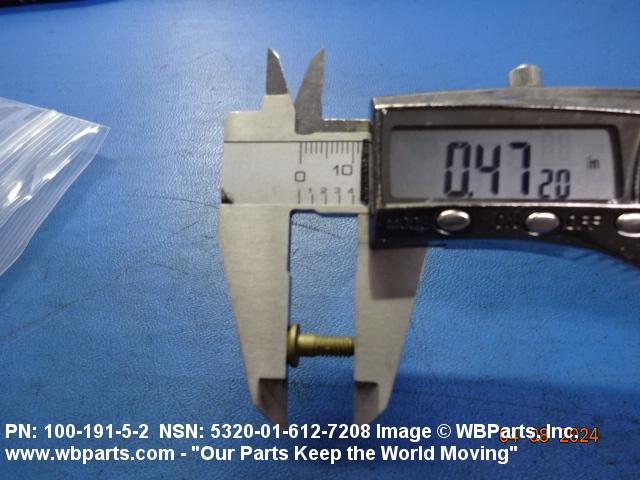

Drawings & Photos | NSN 5320-01-612-7208
Demand History | NSN 5320-01-612-7208
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10019152 | 2024-03-82 | 36 | United States |
| 5320-01-612-7208 | 2017-05-145 | 710 | DIBBS |
| 5320-01-612-7208 | 2017-05-129 | 42 | DIBBS |
| 5320-01-612-7208 | 2013-04-103 | 468 | DIBBS |
Cross Reference | NSN 5320-01-612-7208
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-612-7208
Related Products | NSN 5320-01-612-7208
Technical Data | NSN 5320-01-612-7208
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY OVERALL |
| SURFACE TREATMENT | ALUMINUM OVERALL |
| HEAD STYLE | COUNTERSUNK W/REVERSE CHAMFER |
| HEAD HEIGHT | 0.055 INCHES MINIMUM AND |
| HEAD MAJOR DIAMETER | 0.306 INCHES MINIMUM AND |
| COUNTERSINK ANGLE | 0.015 RADIANS MINIMUM AND |
| SHANK STYLE | PIN-RIVET, STRAIGHT, THREADED |
| FASTENER LENGTH | 0.399 INCHES MINIMUM AND |
| SHANK DIAMETER | 0.094 INCHES MINIMUM AND |
| GRIP LENGTH | 0.120 INCHES MINIMUM AND |
| THREAD SERIES DESIGNATOR | UNJC |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 32 |
| LUBRICATION | CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP |
| END ITEM IDENTIFICATION | V-22 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | PIN,PROTRUDING,TENSION HEAD,INCONEL 718,125 KSI SHEAR |
Restrictions/Controls & Freight Information | NSN 5320-01-612-7208
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-612-7208
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | NV | TG:JOINT VERTICAL LIFT AIRCRAFT CV-22 (OSPREY) |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
