NSN 5320-01-626-0256 NAS2005V11 , 01-626-0256, 016260256
Product Details | PIN-RIVET
5320-01-626-0256 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: NAS2005V11 , 5320-01-626-0256, 01-626-0256, 5320016260256, 016260256
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2014055 | 01-626-0256 | 67165 ( PIN-RIVET ) |

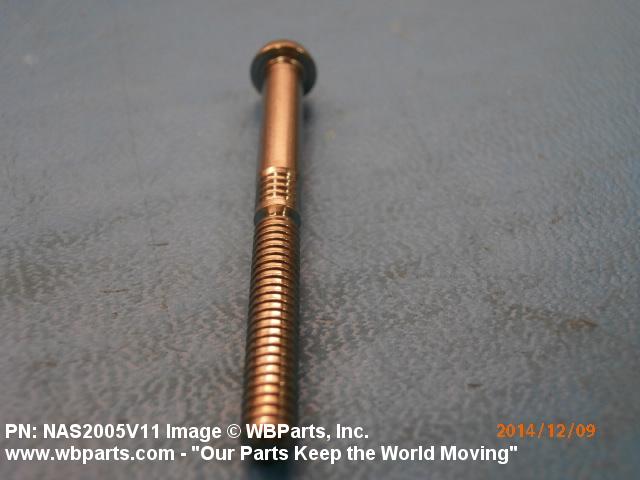

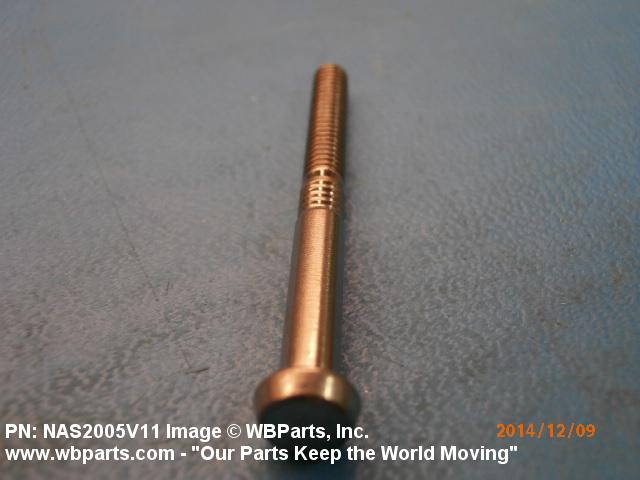

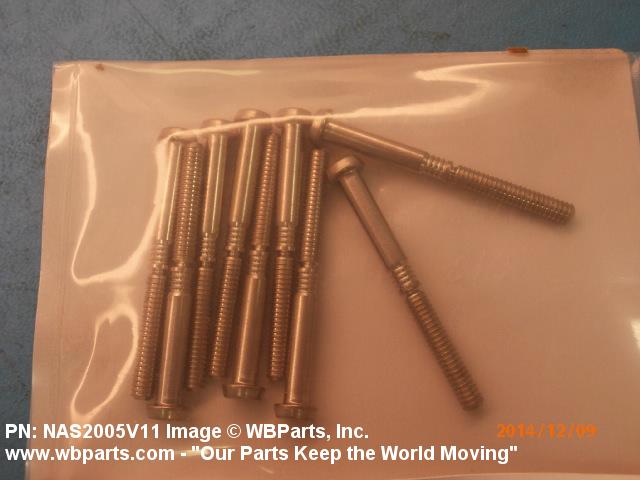

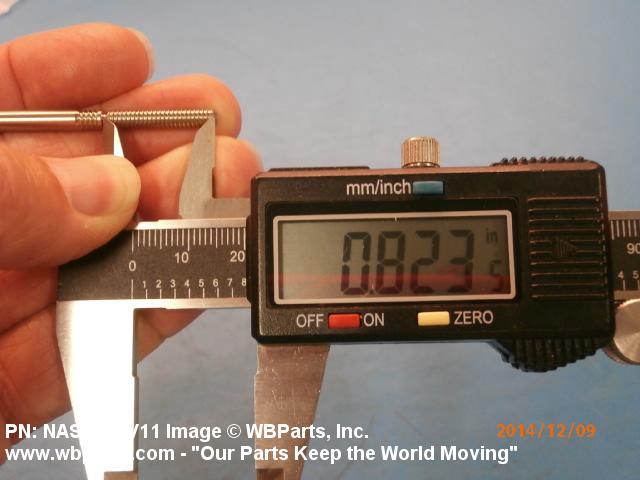

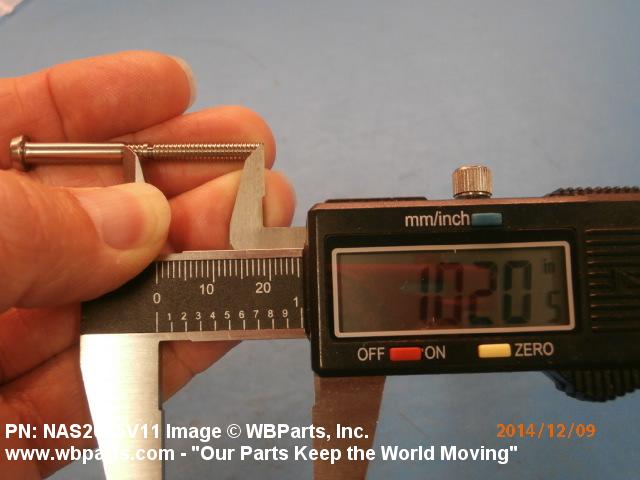

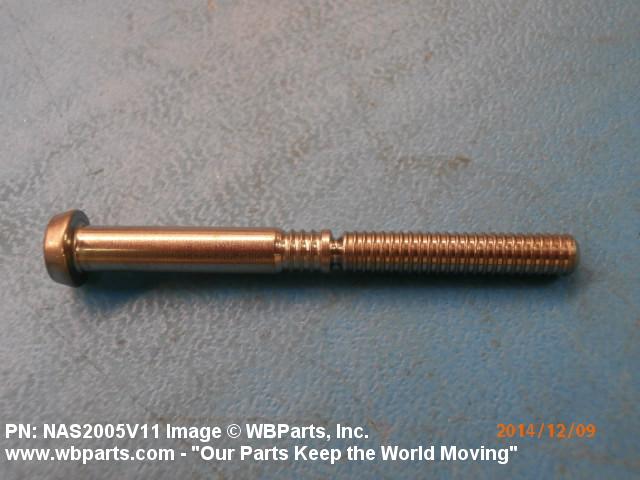

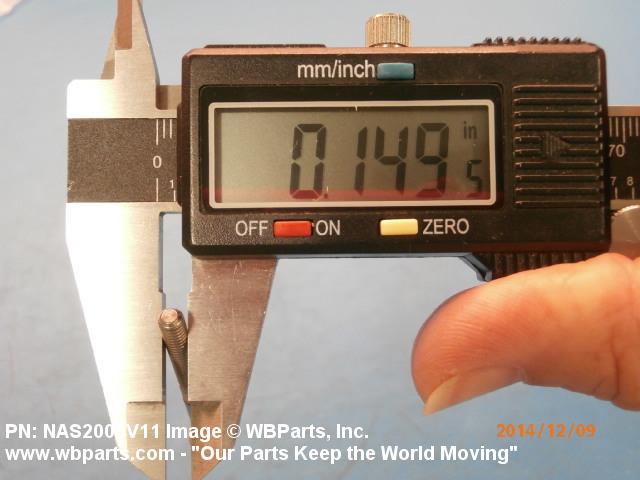

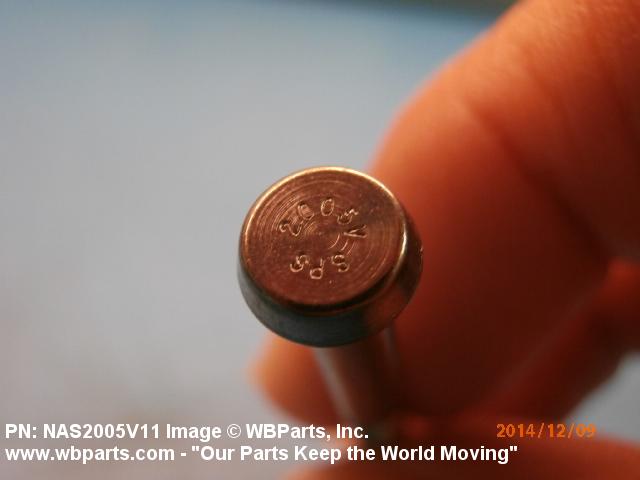

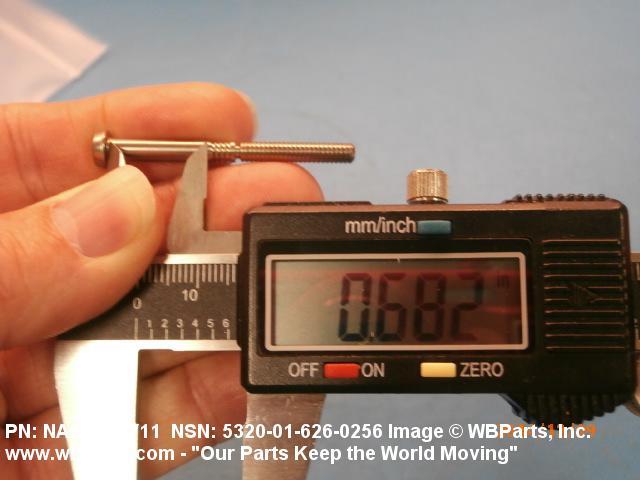

Drawings & Photos | NSN 5320-01-626-0256
Demand History | NSN 5320-01-626-0256
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-626-0256 | 2024-08-239 | 25 | DIBBS |
| 5320-01-626-0256 | 2017-11-312 | 10 | US |
| NAS2005V11 | 2015-08-224 | 5 | us |
| NAS2005V11 | 2012-11-313 | 5 | United States |
Cross Reference | NSN 5320-01-626-0256
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS2005V11 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-626-0256
Technical Data | NSN 5320-01-626-0256
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| SHEAR STRENGTH | 95000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | STRAIGHT PAN |

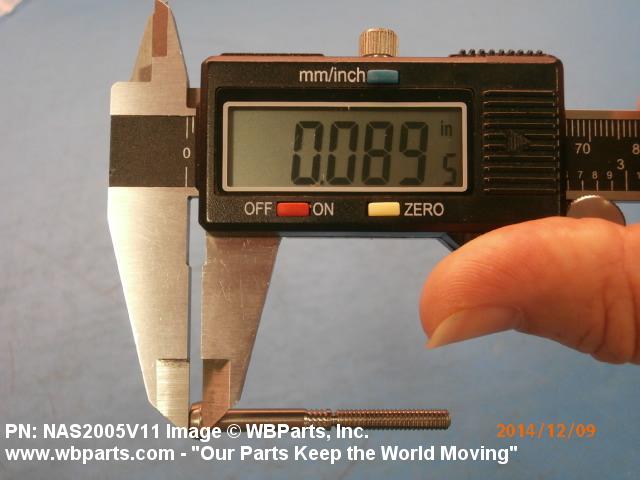

| HEAD HEIGHT | 0.085 INCHES MINIMUM AND |

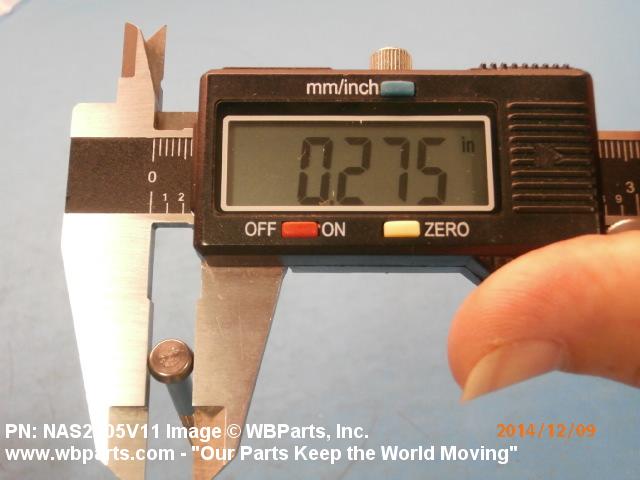

| HEAD MAJOR DIAMETER | 0.258 INCHES MINIMUM AND |
| SHANK STYLE | PIN-RIVET, MULTIPLE GROOVED |

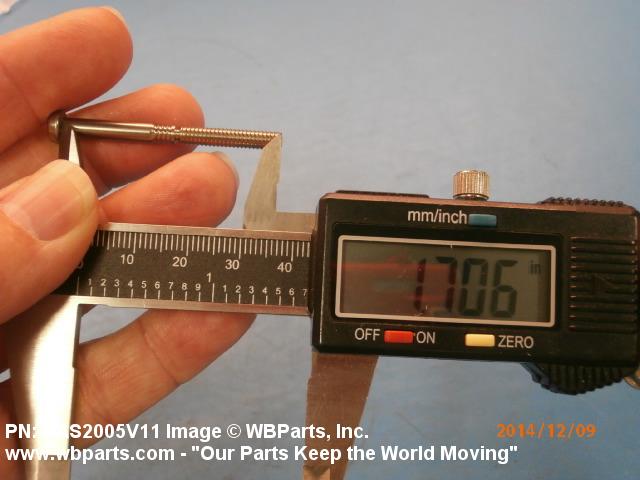

| FASTENER LENGTH | 1.705 INCHES NOMINAL |

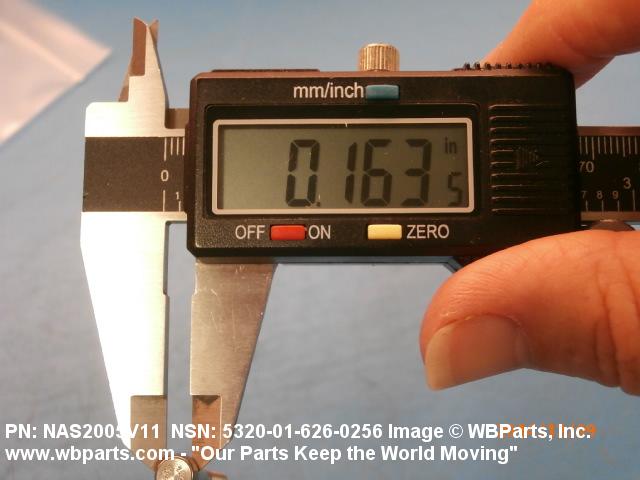

| SHANK DIAMETER | 0.1635 INCHES MINIMUM AND |
| GRIP LENGTH | 0.657 INCHES MINIMUM AND |
| LUBRICATION | CETYL ALCOHOL |
| SPECIAL FEATURES | CHLORINE FREE CETYL ALCOHOL |
| END ITEM IDENTIFICATION | F-15SA |
Restrictions/Controls & Freight Information | NSN 5320-01-626-0256
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5320-01-626-0256
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | VU | Vendor to user-of-supply concept. |
| Budget Code | W | 8457X3080:Other Base Maintenance and Support Replenishment Spares |
| Materiel Management Aggregation Code | XZ | TG:FMS UNIQUE/WR-ALC |
| Source of Supply | F2U | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | P | RESTRICTED REQUISITION - SECURITY ASSISTANCE PROGRAM (SAP) 1. Indicates item is stocked or acquired only for SAP (replaces Military Assistance Program (MAP)) requirements, or 2. Indicates item is nonstocked and materiel is ordered from the contractor for shipment directly to the foreign government. 3. Base, post, camp, or station will not requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
